Grater Rasper Waste Used Tyre/Tire Disposal Machine

Product Overview

Description

WASTE TYRE DISPOSAL MACHINE

1.Specifications

Tire Processing line

-Input size: Tire diameter up to 1750mm(68")

-Product Size: TDF(50mm-150mm), Rubber mulch(18-30mm), Rubber crumb(4-20mesh) and

                       Rubber powder(<30mesh)

-Automatic PLC

-Best turnkey service

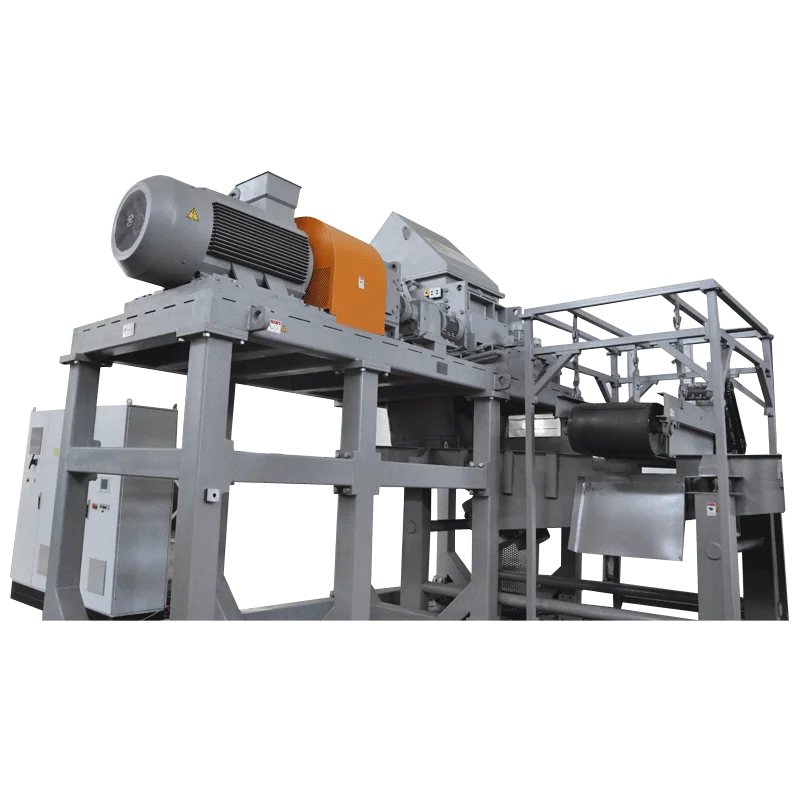

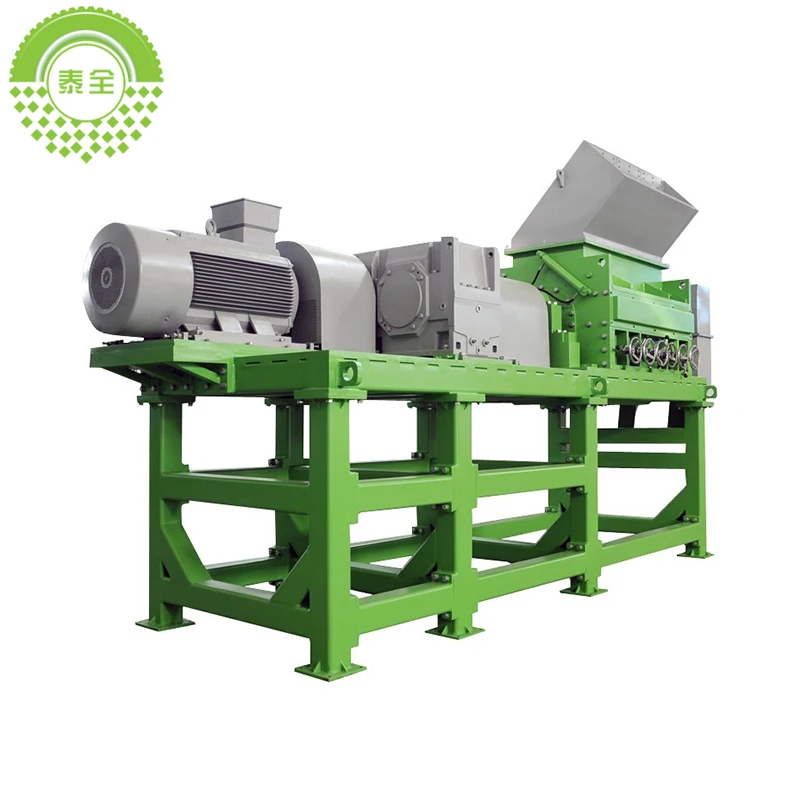

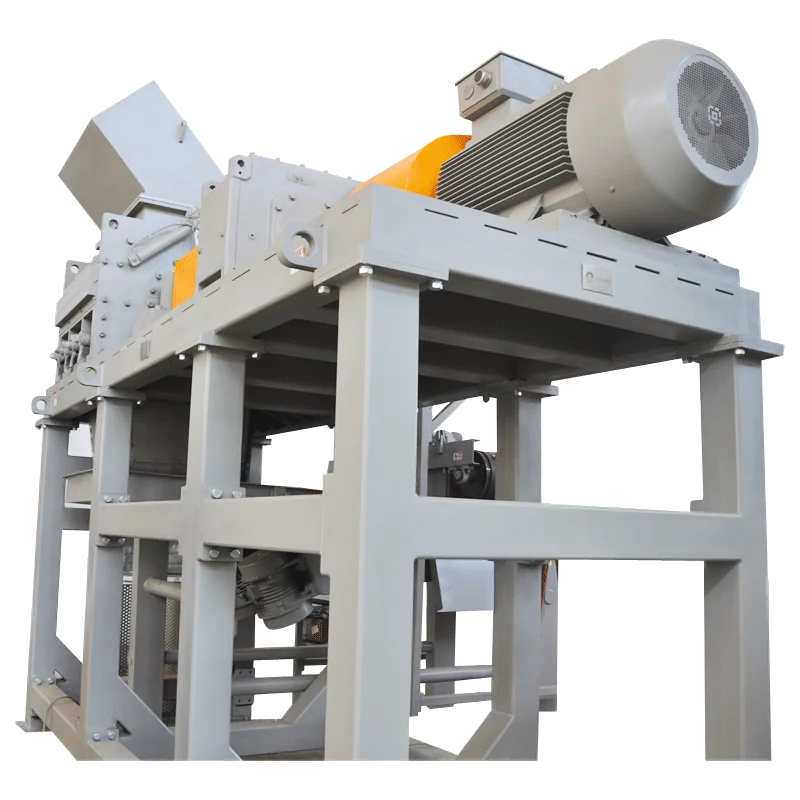

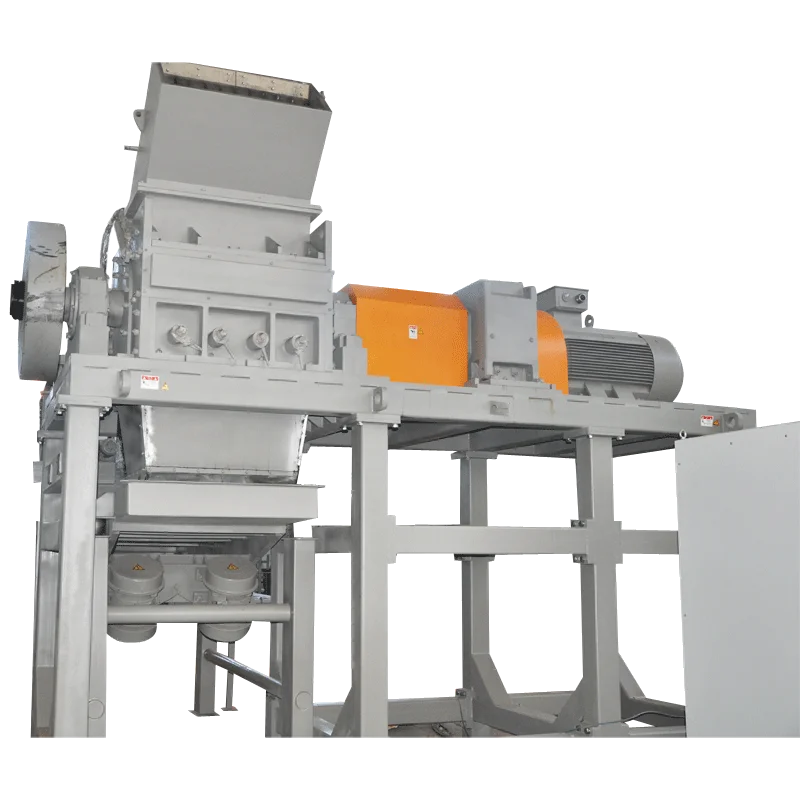

2.Picture





3.Discripiton

Handling and shredding of waste tires is one of the greatest challenges facing the recycling world today. Dura-Shred has designed powerful and effective shredding solutions specifically to process waste tires. Our shredders use a low speed, high torque mechanism for powerful reduction of passenger tires, truck tires, and pre-shredded OTR tires. Due to the increasing demand for secondary products from shredded tires, we offer our customers a complete line of shredders and shredding systems for a wide range of applications and custom engineered systems to deliver optimum production and shred size.



4. Products Introduction





products	size	produced by		application
TDF(Tire Derived Fuel)	50-150mm	Classifier after Shredder		1.Tire derived fuel. 2.Tire derived aggregate.
Rubber Mulch	18-30mm	Grater		1.Garden decorative mulch. 2.Playground protective landscaping.
Rubber Crumb	4-20mesh(4.75-0.85mm)	Granulator		1.Sports field such as runway and football turf. 2.Paving brick for parking. 3.different kinds of rubber mat and tile
Rubber powder	<30mesh(<0.599mm)	Pulverizer		1.Modified asphalt for highway application and water-proof industry. 2.reclaiming rubber.

5.Equipment Specifications



	300	1500	1000
Input Product	car tires to bicycle tires	car tires to bicycle tires	car tires to bicycle tires
Input Size(Tire diameter)	Tire diameter up to 800 mm(31")	Tire diameter up to 800 mm(31")	Tire diameter up to 800 mm(31")
End Product Size	1-6mm	1-6mm	1-6mm
Capacity	up to 300kgs tons per hour	300-500 kgs per hour	0.5-1ton per hour
Total KW(based on 50-60 Hz)	184-204 KW	228-253 KW	350-399 KW



	2000	4000
Input Product	Heavy duty truck tires to bicycle tires	Heavy duty truck tires to bicycle tires
Input Size	Tire diameter up to 1300 mm(51")	Tire diameter up to 1200 mm(47")
End Product Size	1-6mm	1-6mm
Capacity	1-2 tons per hour	2-4 tons per hour
Total KW(based on 50-60 Hz)	576-654 KW	674-768 KW



6.Dura-shred's advantage

• Exclusive Control System --- Controls and operates the entire plant from its centrally lacated position and provides instant visibility to what each machine is doing in real time.


• Uniq Stop/ Auto reversal Feature --- Protects against overfeeding and damage by non-processable items.


• Advanced Bearing Housing --- Isolates bearings from cutting chamber contamination and protects agaist bearing failure.


• Premier Full Turnkey Systems --- Plant is manufactured, shipped, installed and ready to start recycling.


• Warranty --- One of the best warrantees in the industry.



FAQ:

1 Warranty: 1 year warranty for main parts, 20 years for the heavy duty machine.

2 After sale service: 2 or 3 engineers will be sent to help install the machines.



3 Turn-Key service, available to handle all the work including shipment, customs clearance, etc.



4 Modern European and American technologies (Eldan, Granutech) supported by our engineers who ever worked in German company for 5 years, and 17 years in this industry.



5 Customized solutions: we design by your requirements, until you are satisfied.

6 Super great quality control system: SIEMENS, ZWZ, FAG..., details can be guaranteed in the contract!

7 After sale: Profits can be shared if you introduce new client to us from your market! Long-term cooperation is our target!



8 Price: at the same quality level, with our 17 years experiences, we promise you the lowest price!



If you have any questions, please inquire us freely!
