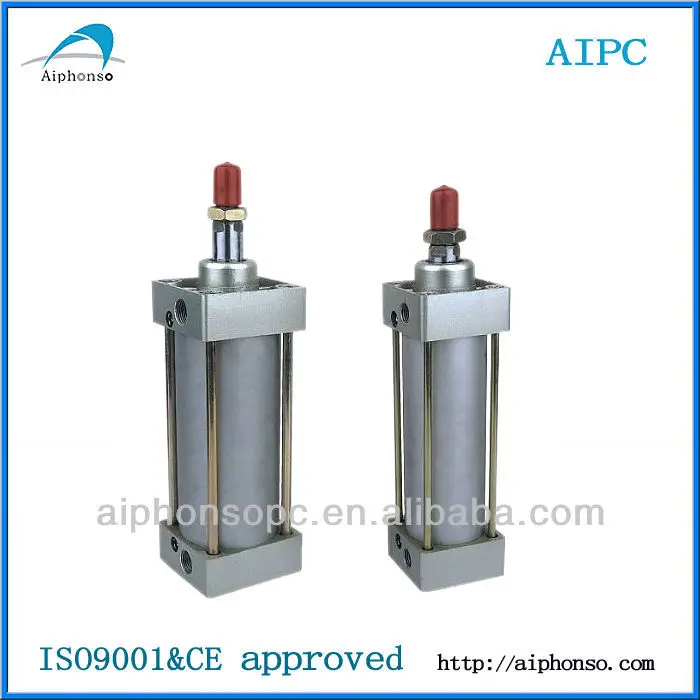

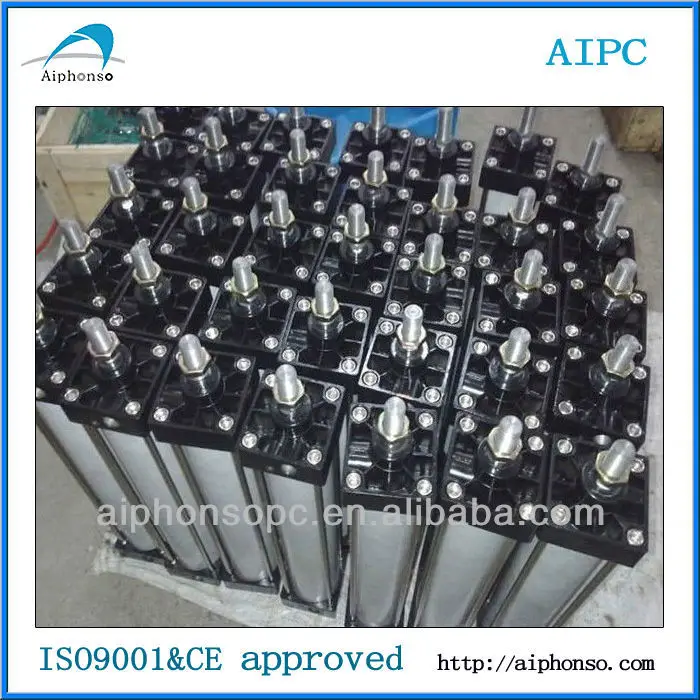

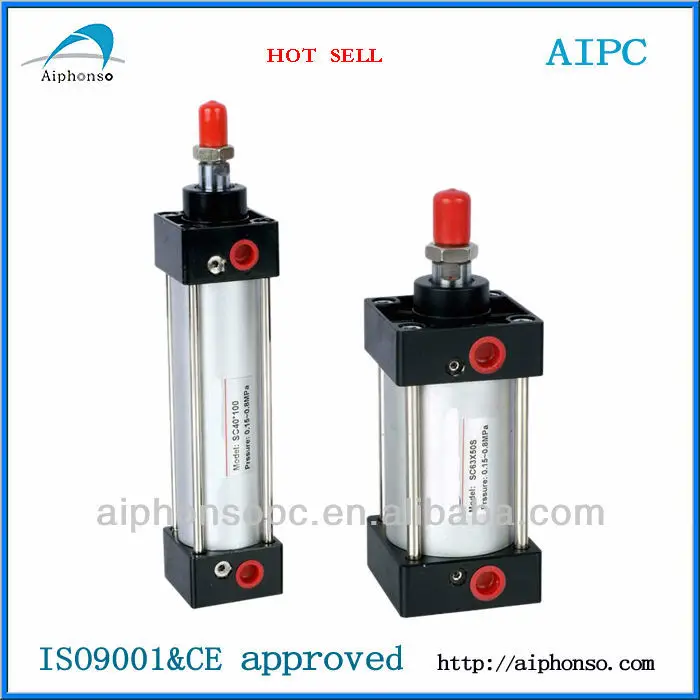

SC100*100 Air cylinder airtac aluminium pneumatic cylinder
- Category: >>>
- Supplier: Fenghua Aiphonso Industrial Automation Co. Ltd.
Share on (943489715):
Product Overview
Description
Ordering Code
| SC | - | 50 | × | 50 | - | S | - | LB |
| Model | Bore | Stroke | Magnet Code | Blank:basic type | ||||
| SC:Standard double acting | S:With magnet | LB:front and back fixed type | ||||||
| SCD:Double shaft double acting | Blank:Without magnet | FA:front flange type | ||||||
| SCJ:Double axis double acting adjustable type | FB:rear flange type | |||||||
| SU:Standard double acting(without rod) | CA:single earring | |||||||
| CB:double earring | ||||||||
| TC:swinging type | ||||||||
| TC-W:swinging type attach foot seat | ||||||||
Specification
| Bore(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| Action type | Double Action | ||||||||
| Working Medium | Air | ||||||||
| Pressure Range | 1.0~9.0Kgf/cm² | ||||||||
| Ensured Pressure Resistance | 13.5Kgf/cm² | ||||||||
| Temperature Range | -5~70℃ | ||||||||
| Speed Range | 30~800mm/s | ||||||||
| Buffer Type | Adjustable Buffer | ||||||||
| Buffer Stroke | 24 | 32 | |||||||
| Joint Pipe Bore | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 | PT1/2 | |||

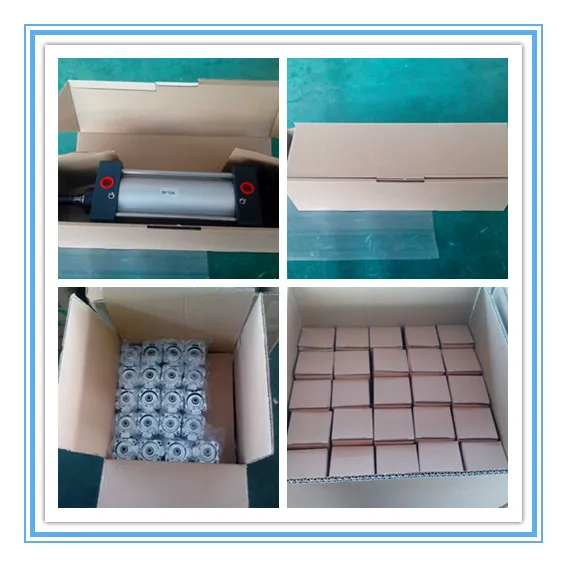

Packaging:
Our Company:
Fenghua Aiphonso Industrial Autaomation CO., LTD
is a professional manufacturer of pneumatic components,solenoid valves, cylinders,fittings and so on. It has more than 100 employees and covers an area of over 4,000 square meters.Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001:2000 Quality System Certification .Our Products are well sold in Southeast Asia,the Middle East and other regions.

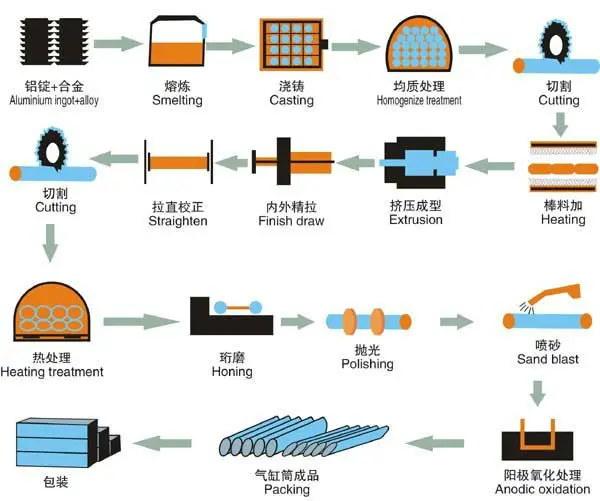

Production Process:

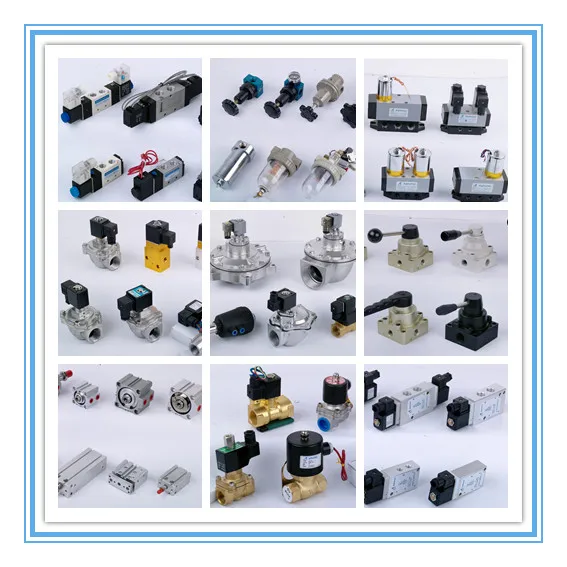

Other Products:
