SJ 55 PP shrink wrap packing film blowing plastic garbage bag extrusion machine pp

Product Overview

Description

SJ-55 PP shrink wrap packing film blowing plastic garbage bag extrusion machine pp



//www.youtube.com/watch?v=sevVoH-Z_pU







Technical Features:



Applications:

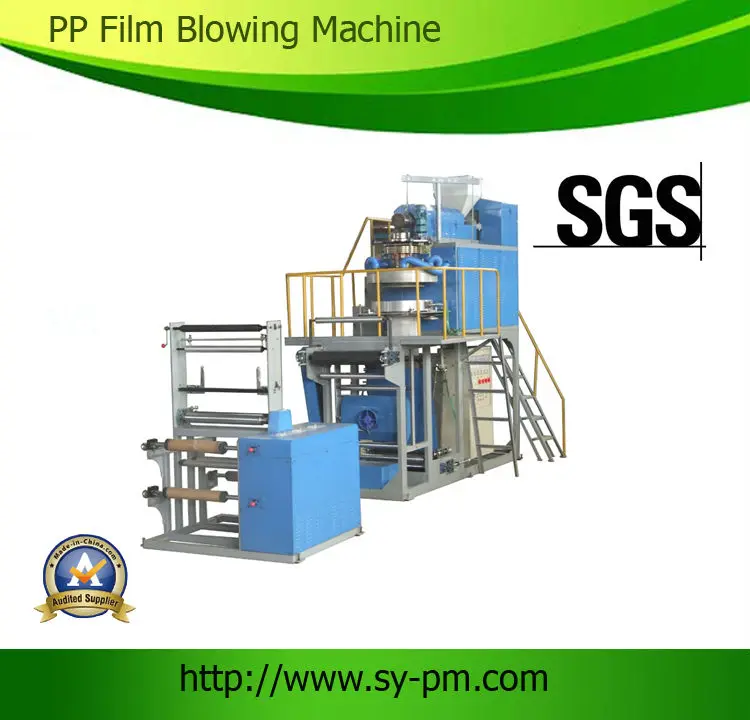

This SJ-55 PP shrink wrap packing machine/film blowing machine/plastic garbage bag extrusion machine is suitable for the plastic film as polypropylene PP., which is widely used for packing foodstuff, garment, textile, daily-use articles and industrial products etc.



Technical description:

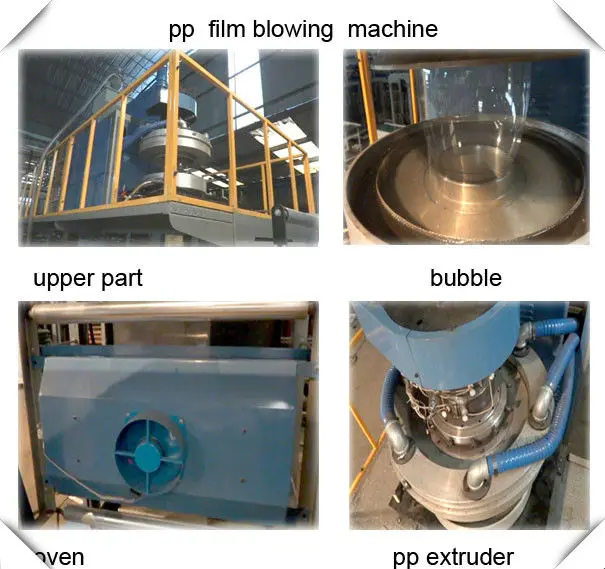

1- Screw and barrel: The screw and barrel are made of 38CRMOALA high quality alloy steel. It is after fine finishing and nitrogen treatment. It has high hardness, strong resistance to corrosion, durable service.



2- Die head: The die head is plated with hard chrome, of screw mandrel type structure. It can strengthen the intensity and evenness of plastic film.



3- Rotary Die head device: rotary die head can be rotated to left or right 360 angles, it can strengthen the intensity and evenness of plastic film



4-Double winding Unit: double winding device is suitable for single layer film roller. It is back to back structure. The winding adopts pressure friction rewinding or center rewinding device, which is driven by torque motor. It is even and smooths rewinding and easy roll changing.



5- Knife on winding unit: two knives are installed on the winding unit to cut the film into single layer.



7- Electric container: the independent electric container is convenient to operate the machine.



8- Frequency Inverter: the main motor is adjusted by frequency inverter; the take-up motor is also adjusted by frequency inverter.



9-optional device: air shaft, auto loader, electric meter calculator, corona.



 10- Main Technical Parameters:



Model type	SJ-55	SJ-60	SJ-65
Diameter of Screw Stem	55mm	60mm	65mm
Screw L/D Ratio	28:1	28:1	28:1
Rational Speed of Screw stem	30-60rpm	30-60rpm	30-60rpm
Specification of Die Head	70mm	120mm	150mm
Thickness of Products	0.015-0.06	0.015-0.06	0.015-0.06
Folding Width of Products	100-400mm	100-600mm	150-700mm
Main motor Power	7.5kw	15kw	18.5kw
Heating Power	12kw	16kw	16kw
Output	15-35kg/h	25-45kg/h	25-50kg/h
Machine Weight	1.9t	2.1t	2.2t
Overall Dimensions(L*W*H)	5000*2000*3300mm	5300*2200*3400mm	5400*2300*3600mm







11.Free spare part list



No.	Spare parts name	Quantity	Notes
1	Temperature meter	1pc
2	Electric Sensor	2 pcs
3	Heating ring	3 pcs
4	Tool box	1set
5	English manual	1pc
6	Water ring	3 different size	One on the machine, and another two as spare part











 More Pictures
