HFD-C Portable Multi-function Underground Water/Metal Detector for sale
- Category: Industrial Metal Detectors >>>
- Supplier: Zhengzhou,Hanfa,Imp,&,Exp,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Main feature:

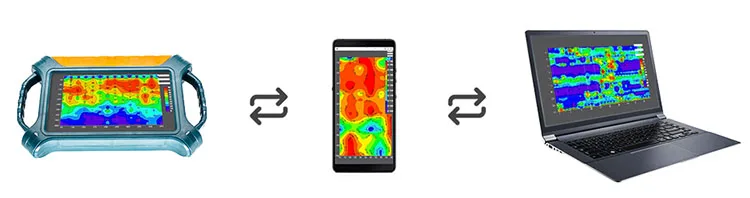

Automatic imaging: The 10-inch Android system touch screen intelligently generates 2D, 3D and curved images in real time.Accurate and stable: Solve the shortcomings of inconsistencies and changes in the intensity of natural electromagnetic field sources, and the accuracy is greatly improved.Three screen intercommunication: the instrument screen, mobile phone screen, computer screen intercommunication.Intelligent and flexible: 1-14 channels are optional, and an electromagnetic probe can be selected for TT probe measurement mode,and it also supports wireless connection to find water golden hoop.The 16-channel real-time imaging water-finder is a real-time imaging intelligent water-finder jointly developed with the Guilin Institute of Hydrology and Geological Exploration. It uses 16-channel simultaneous input measurement to obtain a stable field source, which not only solves the problem of natural electric field changes at any time , And avoid the error caused by moving the electrode multiple times in the same profile, which solves the shortcoming of the repeated measurement data profile of the single-channel instrument.
The 16-channel real-time imaging water finder comes standard with 10.1-inch Android system touch screen real-time imaging, and the instrument screen, mobile phone screen, and computer screen are interoperable. 1-14 measurement channels can be selected, and wireless probes or water search can be optional The hoop rod can switch the measurement mode of MN electrode and TT probe, and the field operation is very convenient, which is generally recognized by customers.
The 16-channel real-time imaging water finder comes standard with 10.1-inch Android system touch screen real-time imaging, and the instrument screen, mobile phone screen, and computer screen are interoperable. 1-14 measurement channels can be selected, and wireless probes or water search can be optional The hoop rod can switch the measurement mode of MN electrode and TT probe, and the field operation is very convenient, which is generally recognized by customers.
2. Main purpose:
to determine the location, depth, and water yield of groundwater, to guide operations such as well drilling and water
extraction,and to improve the success rate of well drilling. Detailed survey and general survey of regional hydrogeology.
to determine the location, depth, and water yield of groundwater, to guide operations such as well drilling and water
extraction,and to improve the success rate of well drilling. Detailed survey and general survey of regional hydrogeology.
Detailed Information
Model | Single channel | 16 channels | 32 channels | ||
Maximum depth（m） | ≤600 | ≤3000 | ≤4000 | ||
Optional depth（m） | 100/200/300/400/500/600 | 100/200/300.../3000 | 100/200/300.../4000 | ||
16 channels input at the same time, the maximum electrode spacing is 2.5m | 32 channels input at the same time, the maximum electrode spacing is 5m | ||||
Channel selection | 1-14 | 1-30 | |||
Depth layering | 10-80 | 40-160 | |||
Connection method | Serial port, Wifi, Bluetooth 4.0, USB (optional 4G communication) | ||||
Display screen | 7-inch IPS wide-angle 178° visibility | 10.1 inch IPS wide-angle 178° visible touch screen (1024x600) | |||
operating system | Android6.0.1 | ||||
ARM Cortex-A7 (AD24 bit 1Msps) | ARM Cortex-A7 8-core CPU 2.0Hz running memory 1G memory 8G (expandable 128G) | ||||
Optional depth, real-time 2D/3D drawing, removable battery | Optional depth, optional number of channels, real-time 2D/3D drawing, removable battery | ||||
Measurement mode | MN/TT | ||||
Measuring range | ±5V | ||||
Frequency Range（HZ） | 15-80KHZ | 1-8k/0.01-6k | 0.001-7k | ||
Frequency selective filtering | Preset frequency selection and intelligent frequency selection, analog + data filtering 1-16 times overlay optional | ||||
Resolution | 0.1mV±5% | 0.01mV±3%/0.01mV±2% | 0.01mV±3%/0.01mV±1% | ||
sampling time（s） | 40-280 | 60-3600/120-5400 | 120-7200/160-9000 | ||
Battery power consumption | 600mA/H | 800mA/H | 900mA/H | ||
Host weight | 2.3kg | 2.6kg | 3kg | ||
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the
ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 20 years experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
After-sale services
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
Our Customers
FAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
