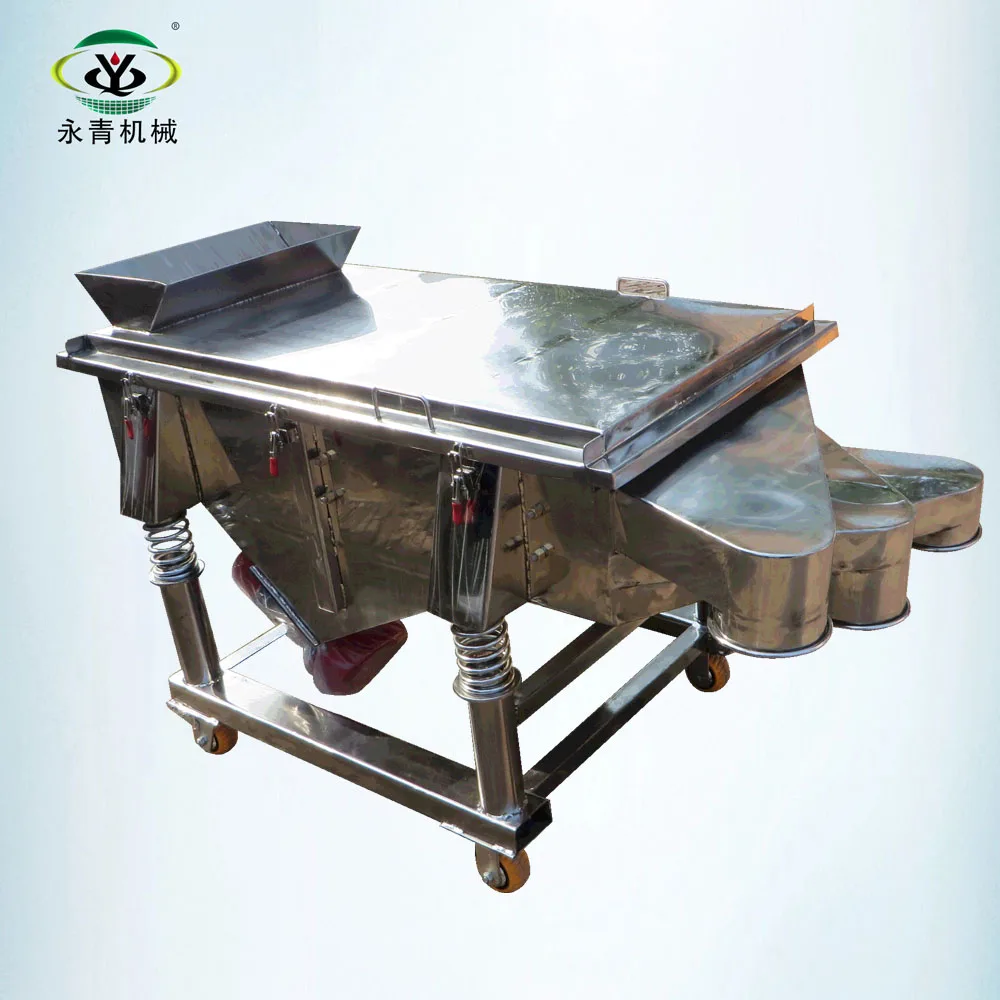

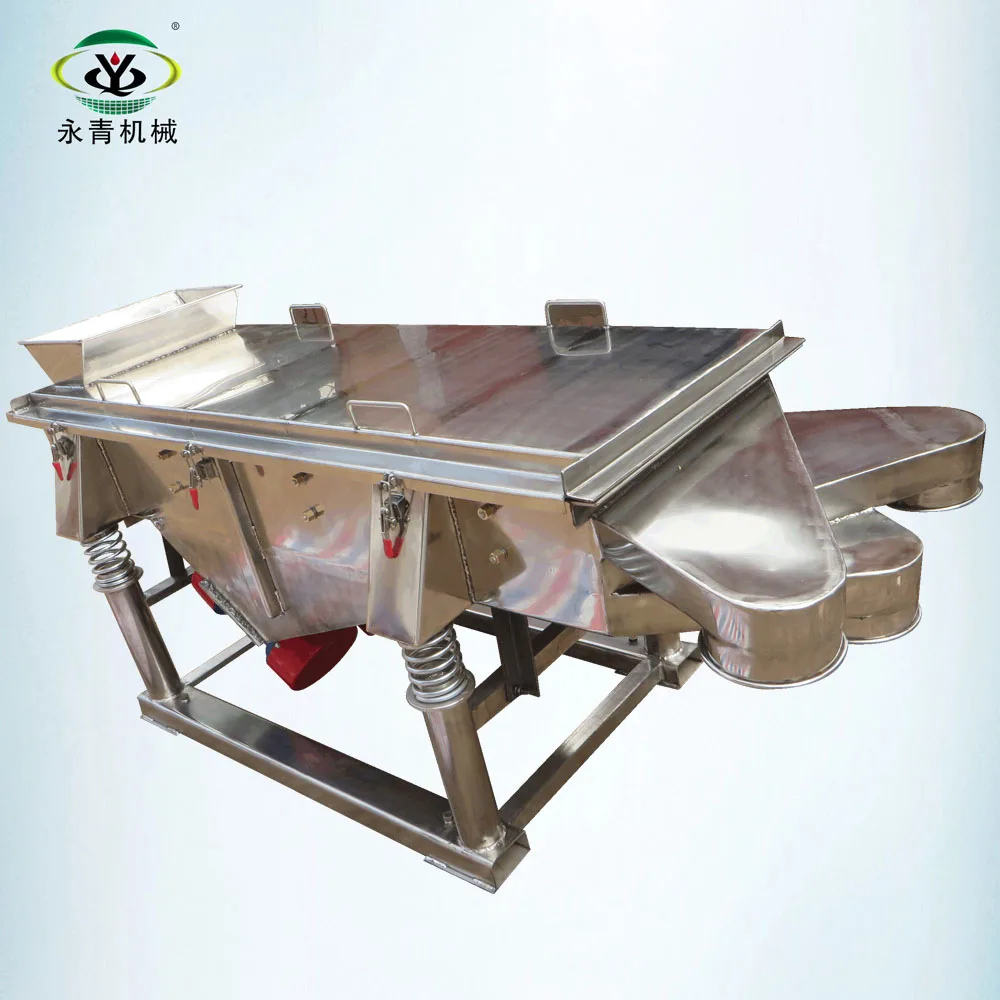

Factory supply linear type sand screen vibration for sea salt sieving

Product Overview

Description

Factory supply linear type sand screen vibration for sea salt sieving



Introduction

1. DZSF series linear vibrating screen are very useful in plastic, rubber, ceramic, food, pharmaceutical, chemical, fertilizer, glass industries.

2. Linear vibration screen can be provided with dust proof cover as required.

3. DZSF series linear vibration screen can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material.Inlets,outlets and legs can be custom fit to your installation requirements.







Parameters

Model	Layer	Screening Area(mm)	Mesh (mm)	Particle Size(mm)	Capacity (t/h)	Power (kw)	Dual Amplitude
DZSF-612	1-5	600*1200	0.074 -20	≤20	≤3	0.25×2	6-8 mm
DZSF-520		500*2000			≤5	0.37×2
DZSF-525		500*2500			≤8	0.37×2
DZSF-1020		1000*2000			≤12	0.75×2
DZSF-1025		1000*2500			≤16	0.75×2
DZSF-1030		1000*3000			≤20	1.1×2
DZSF-1224		1200*2400			≤23	1.5×2
DZSF-1525		1500*2500			≤28	1.5×2
DZSF-1530		1500*3000			≤32	2.2×2

Note: the above data refers to bulk density 1.5t/m3, 1 layer and mesh size 5mm.
