Пластиковый полиэтиленовый поливинилхлоридный ПЭТ пульверизатор/фрезерный станок

Product Overview

Description

Plastic pulverizer/plastic grinding machine/plastic miller



Brief introduction:

1. With water cycle and wind cooling, this plastic miller/pulverizer can be applied to process  thermoplastic material. like PE/PVC/PC/PA/ABS, etc

2. Drived by the he high-speed rotating air stream (partly eddy flow) which is produced by the high-speed rotating of the main shaft, the raw materials collide strongly with the board and the cutting blade, and was grinded into powder (without sieving).
3. Both the board and the blade are made of stainless steel, with excellent performance after heat treatment.
4. Slender body, Wonderful design, and Golden quality.

Main technical parameter:

Model	MF 500	MF 600
Diameter of rotor quantity(mm)	400	500
Grinding chamber	4000	5000
Motor power(kw)	37	45
Main shaft rotary speed(r/min)	2200	2200
Grinding capacity(kg/h)	200-400	300-500
Cooling method	Water	Water
Numbers of grain	60-80	60-80
Weight(kg)	1000	1200

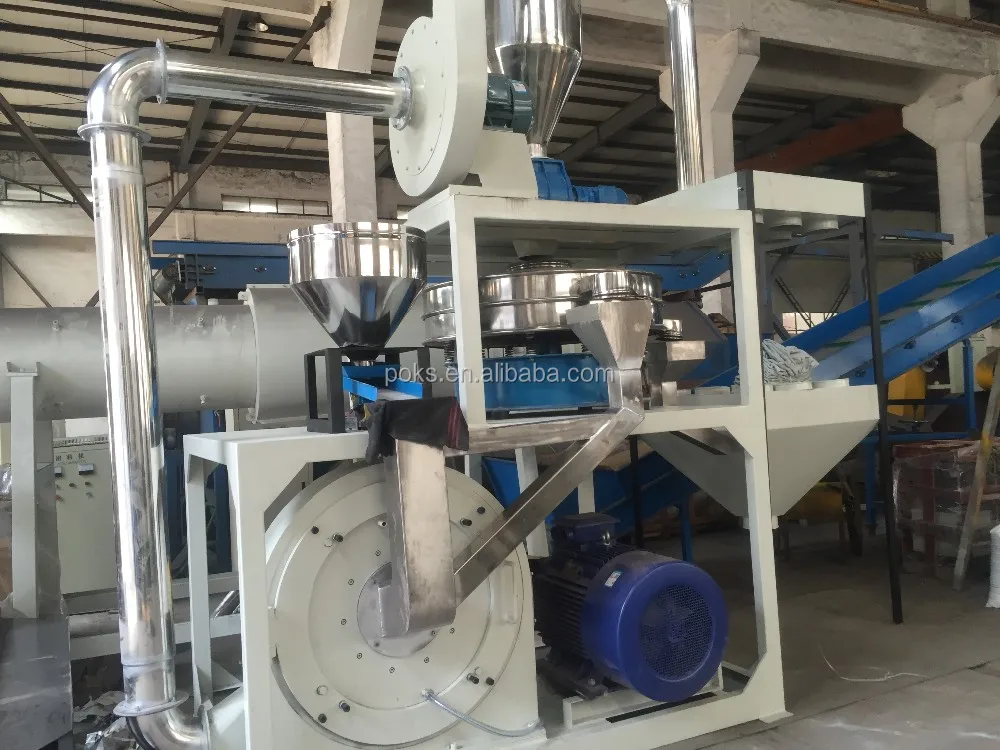

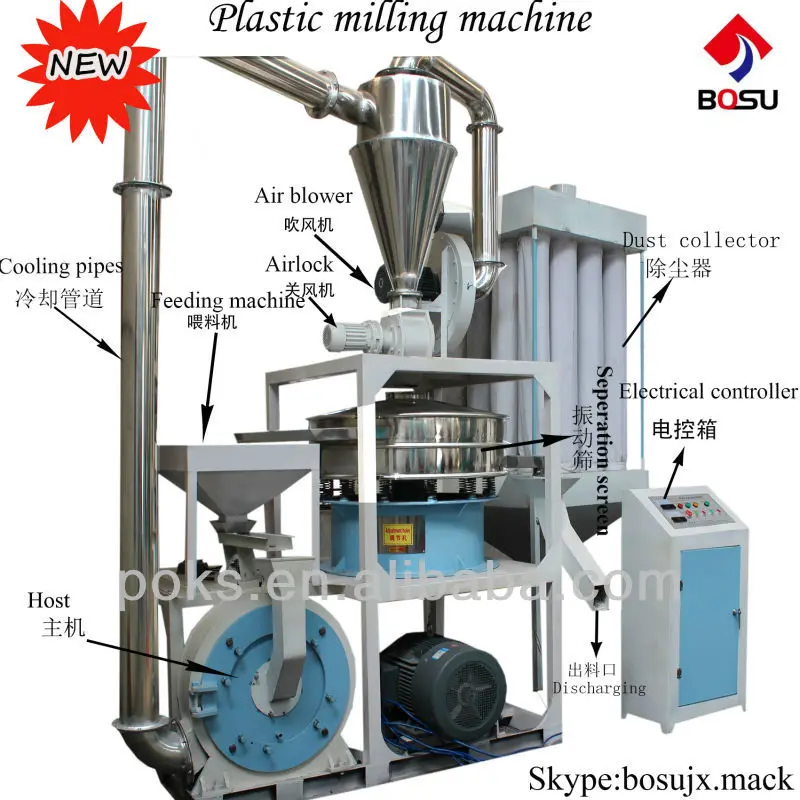

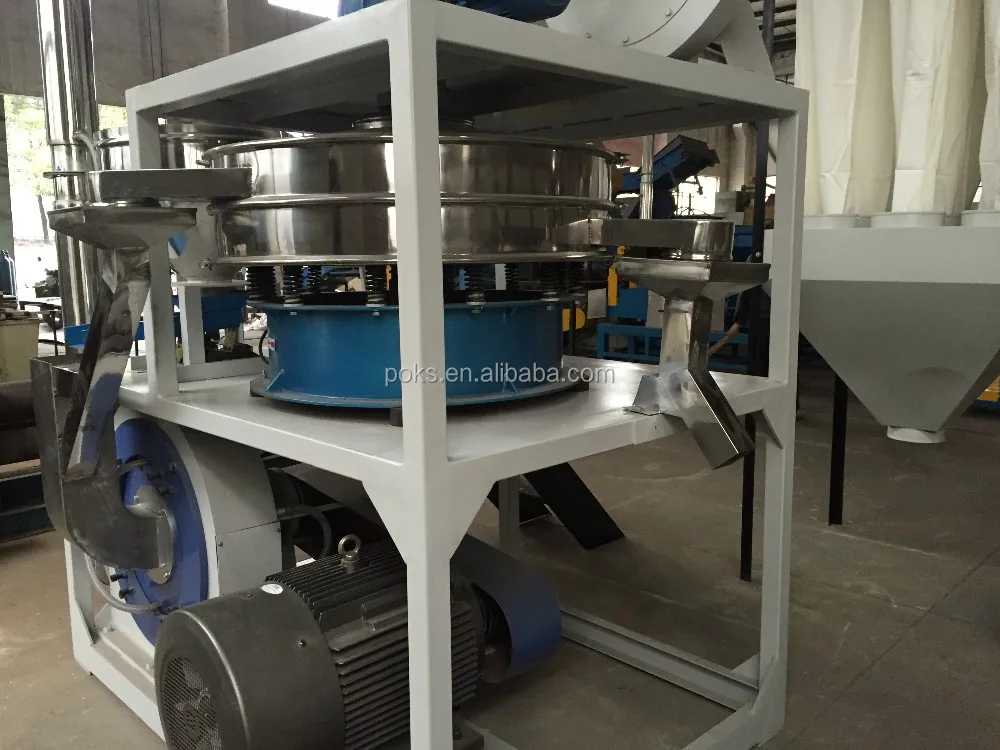

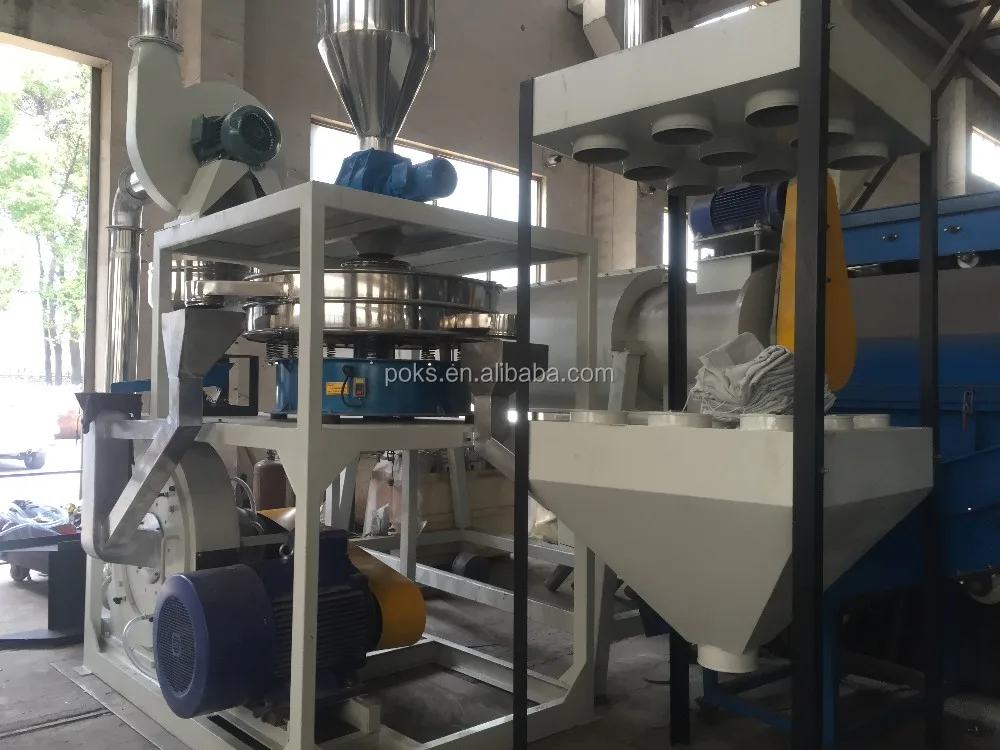

Pictures for reference:

For more details of this high quality plastic pulverizer/plastic milling machine, pls no hesitation to contact with me.
