Product Overview

Description

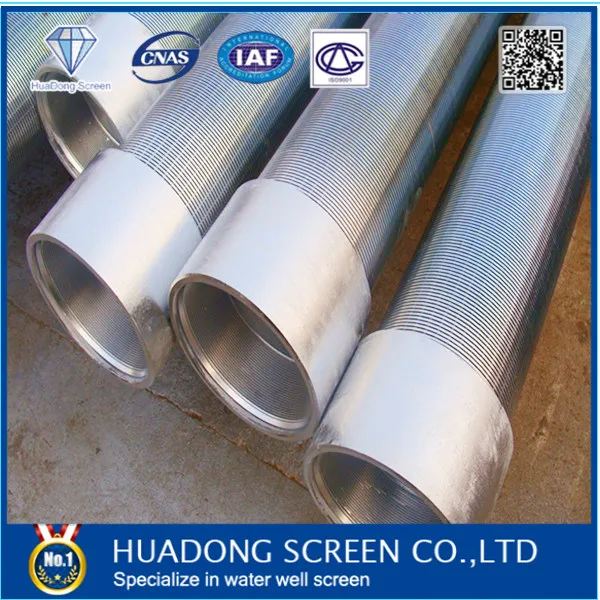

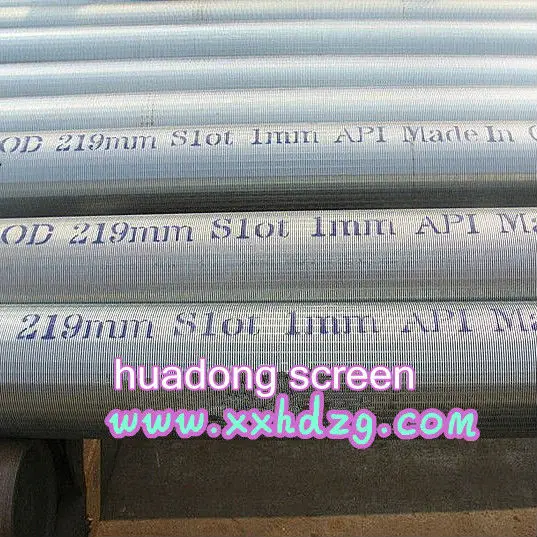

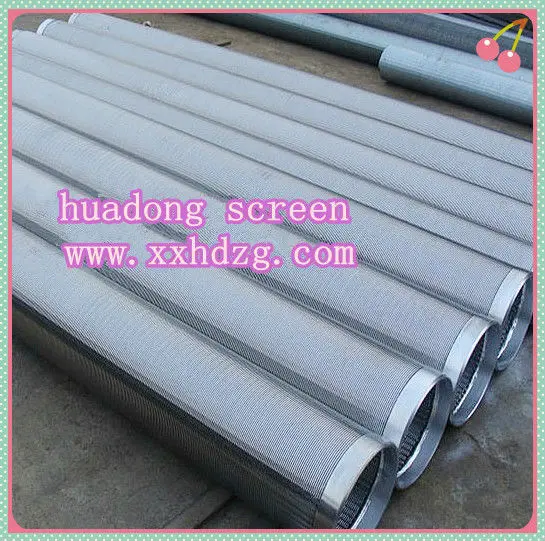

water well strainer pipe

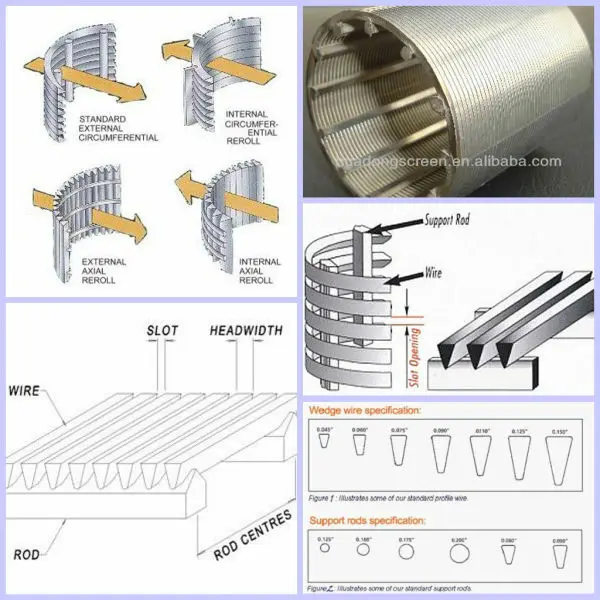

1)They consist of Vshape profile wire and the longitudinal support rods.

2)Each intersecting point the V shape section plane can avoid blockage ,and make sure of the unimpeded water.

3The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wire.

4) it has sturdy constriction and good mechanical property.

  Technical Parameters :

SIZE (INCH)	O.D (MM)	SLOT (INCH)	LENGTH (M)	COLLAPSE STRENGTH (PSI)	TENSILE WEIGHT (TON)	WRAPthick*deep  (MM)	RODS (MM)
4	117	0.040	3	395	6	2.2*3.0	3.8MM/22
4	114.3	0.040	3	395	6	2.3*3.0	3.8MM/22
6	168.3	0.040	3	252	8	2.3*3.5	3.8MM/32
8	219.1	0.010	3	399	10.5	3.0*5.0	3.8MM/48
8	219.1	0.020	3	370	10.5	3.0*5.0	3.8MM/48
8	219.1	0.040	3	323	10.5	3.0*5.0	3.8MM/48
10	273.1	0.010	3	206	11	3.0*5.0	3.8MM/50
10	273.1	0.020	3	191	11	3.0*5.0	3.8MM/50
10	273.1	0.040	3	167	11	3.0*5.0	3.8MM/50





 We can produce the products according to your requirements.





  Application:



1.Architects specify johnson screen for column and wall covers and various decorative appplications;

2.Different kinds and specification of screens are used in moter-pumbed wells and geothermal wells;

3. Johnson screen are used on food processors;

4.pulp and paper plants;

5.Mineral procesors,refiners,waster water treatment and water supply systems.



The application of johnson screen in oil refining machines



The application of johnson screensin water treatment equipments
