automatic 5 gallons PET bottle blowing machine/ 5 gallon pet blower
- Category: >>>
- Supplier: Zhangjiagang Sanofi Machinery Co. Ltd.
Share on (949506604):
Product Overview
Description
Products Description

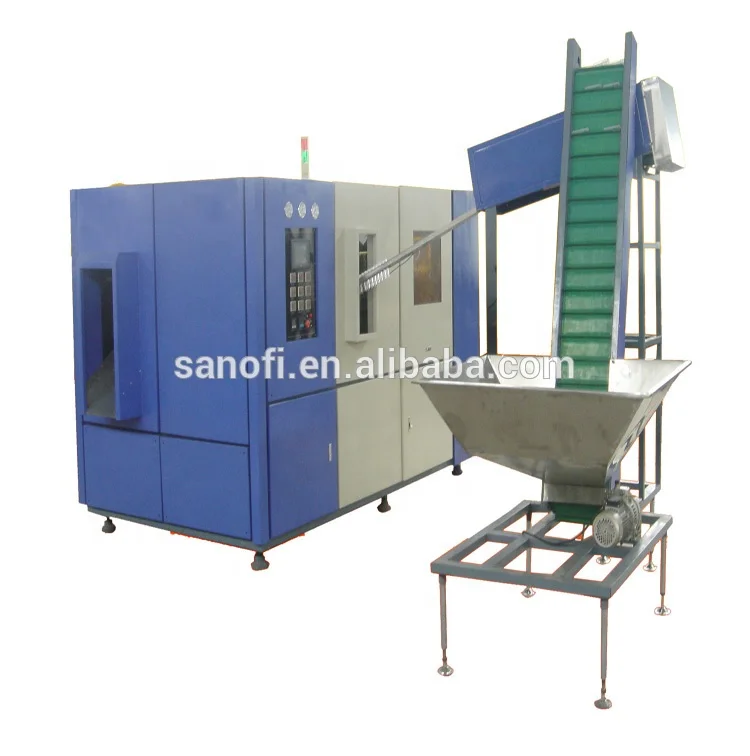

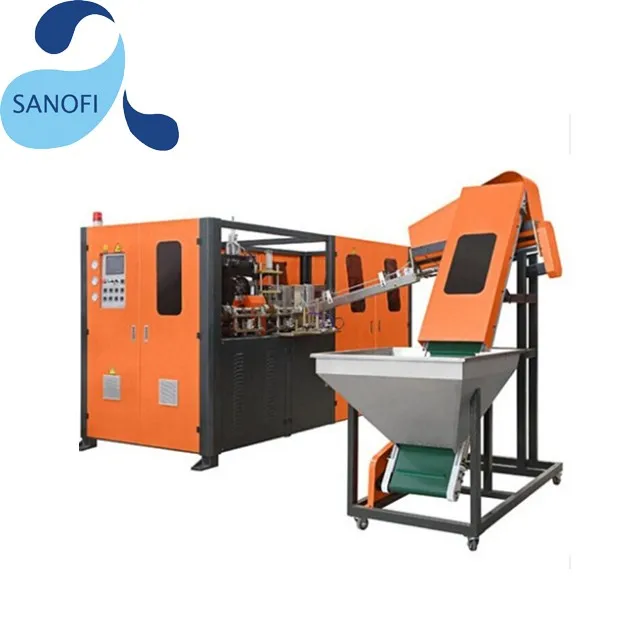

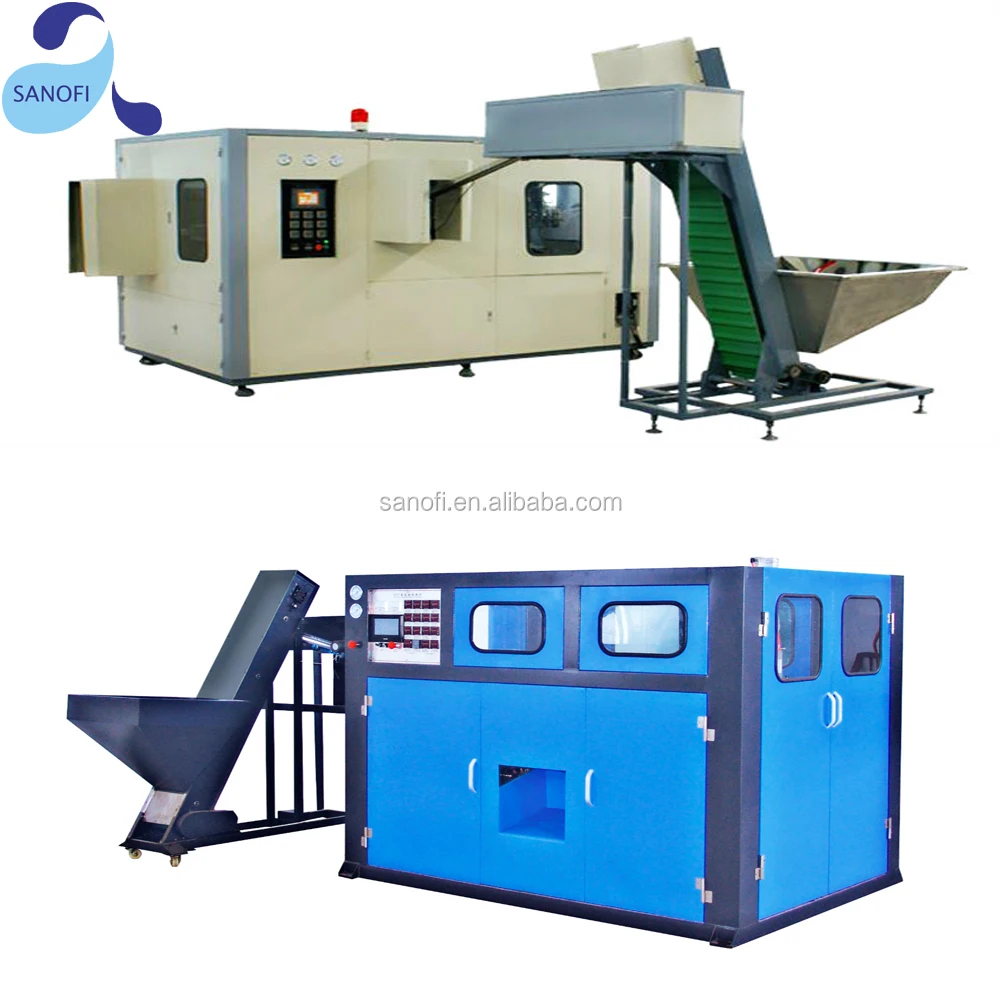

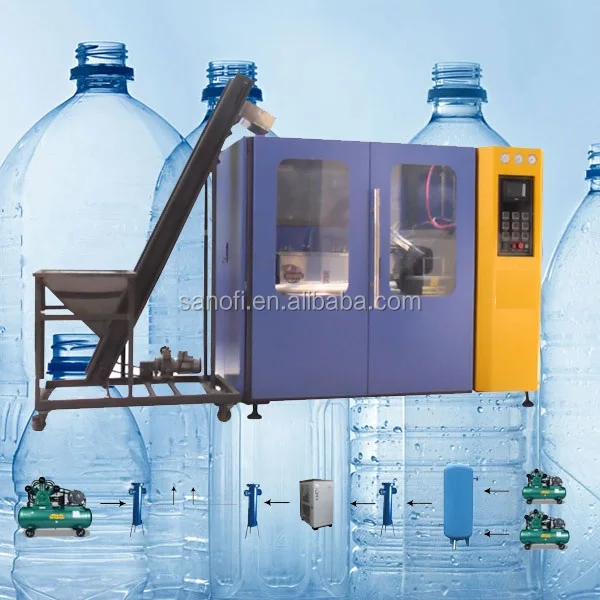

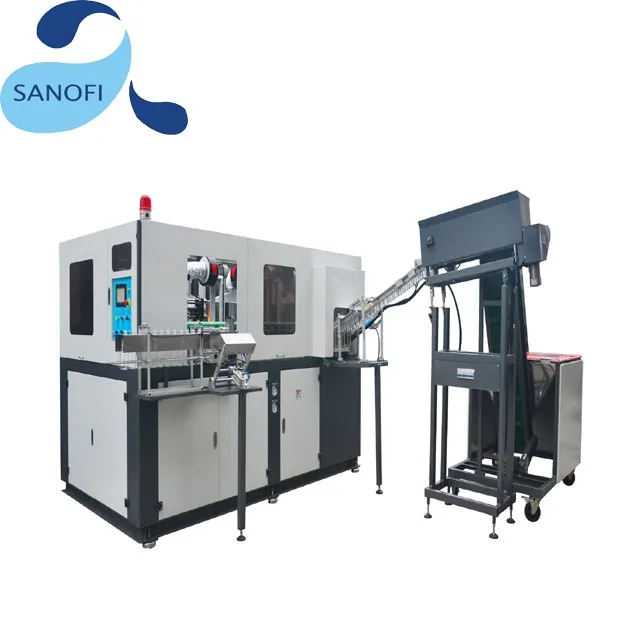

automatic 5 gallons PET bottle blowing machine/ 5 gallon pet blower
Automatic PET Bottle Blowing / Plastic Stretch Blow Moulding / Bottle Making Machine blow moulding machine is suitable for producing PET plastic containers and bottles in all shapes. The blow moulding machine is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Details Images
output | according to bottle shape | Max. 6000PCS/H |
product specification | bottle body diameter | 20mm-100mm |
bottle height | 50mm-350mm | |
bottle mouth diameter | 15mm-38mm | |
mold | cavity | 2cavities |
mold thickness | 200mm | |
mold effective area | 800*800mm | |
Main power | power ,voltage | 380v 3Phase /220v 3Phase 50/60HZ |
Install machine power/actural use power | 68kw/15kw | |
air source | low pressure air compressor | 2.0m3/min 1.0MPa |
high pressure air compressor | 3.6m3/min 3.0MPa | |
cold-dry machine | 2.0m3/min 3.0MPa 1set | |
cooling water | cooling quantity | 15L/min |
main machine size | L*W*H | 160*60*161cm |
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
New Auto Preform Unscrambler System.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and
abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator
to add the preforms into the hopper when lacks preform instead of stopping the machine.
*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and
abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator
to add the preforms into the hopper when lacks preform instead of stopping the machine.
Easy To Change Bottle Shape.
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same
bottleneck diameter
*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same
bottleneck diameter
· Unique heating system, accurate temperature control and easy adjustment.
· Unique air storage unit.
· The cooling system achieves the desired cooling effect.
· Each action is driven by a cylinder instead of an oil pump, without contamination.
The drying tunnel and the blowing platform are separated, which shortens the time for mold opening, increases the blowing speed
and increases the output.
· Compact design saves space, reduces investment costs and increases competitiveness.
· Advanced PLC control system, light and simple control panel.
· Unique air storage unit.
· The cooling system achieves the desired cooling effect.
· Each action is driven by a cylinder instead of an oil pump, without contamination.
The drying tunnel and the blowing platform are separated, which shortens the time for mold opening, increases the blowing speed
and increases the output.
· Compact design saves space, reduces investment costs and increases competitiveness.
· Advanced PLC control system, light and simple control panel.
Recommend Products
Product packaging
After Sales service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas. After equipment reached the workshop of customer, place the equipment
according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at
the same time make the equipment reach the rated producing capacity of the line.
* Engineers available to service machinery overseas. After equipment reached the workshop of customer, place the equipment
according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at
the same time make the equipment reach the rated producing capacity of the line.
Company Profile
Certifications
FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
