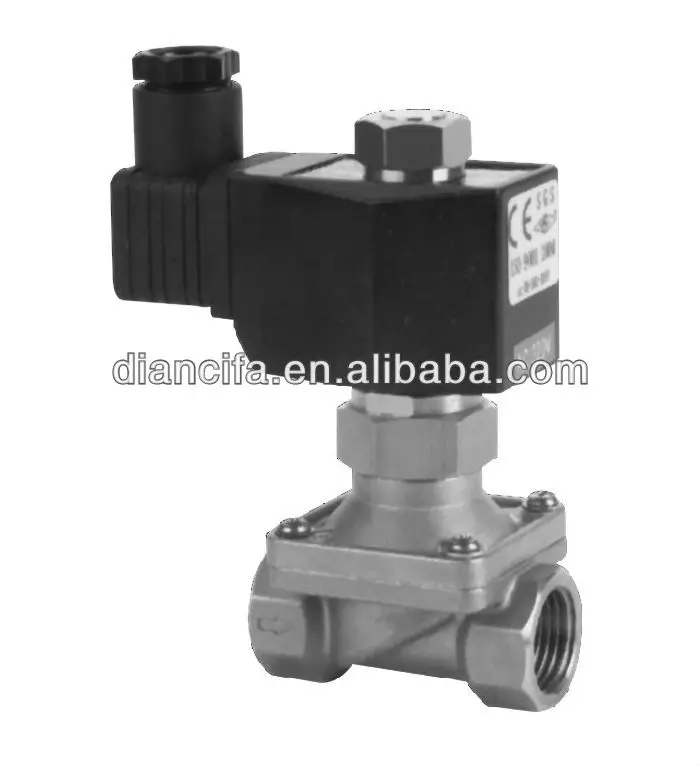

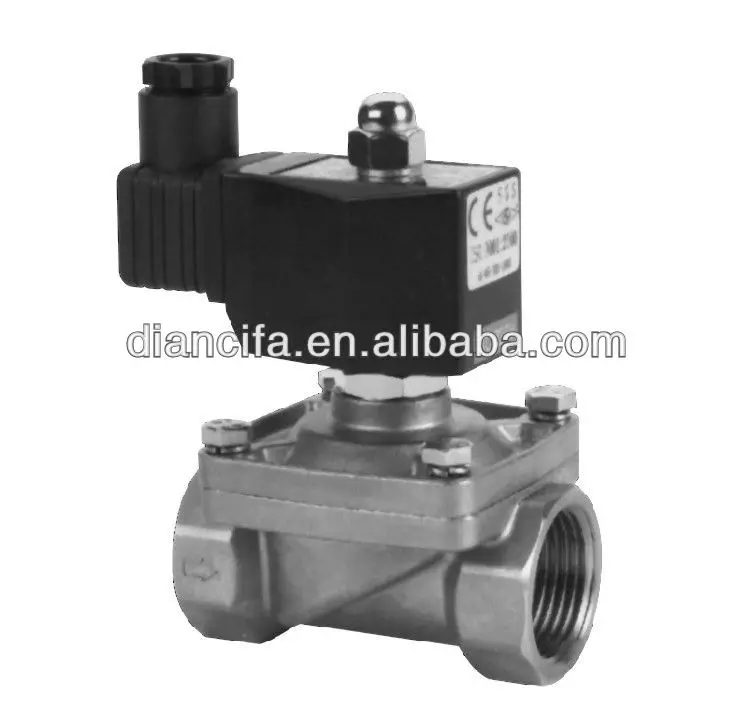

ZW J Series NBR Stainless Solenoid Valve

Product Overview

Description

solenoid valve
Medium: water, gas, air, oil.
Temp.: -5-80 degree



solenoid valve

-- Media: Gas, Water, Air, Oil (below 20cst), Weak acid & alkali, Vacuum

-- Pressure: Normally Closed 8bar; Normally Open 6bar

--Function type: Normally Closed (N/C), Normally Open (N/O)

--Temperature: -5 ÷80

--Mode of action:  Semi-direct lift type

--Body material: Brass

-- Sealing material: NBR

 --Protection class:  IP65

MODEL	ZW-10N	ZW-15N	ZW-20N	ZW-25N	ZW-32N	ZW-40N	ZW-50N
G CONNECTION	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
DN MM	15	15	20	25	32	40	50
CV VALUE	2.2	4.8	7.6	12	24	29	48
MEDIUM TEMP.	-5-80 (-10-130 )
POWDER	220V-230V AC /50-60HZ; 110V-120V AC/50-60HZ; DC 24V; DC 12V; RANGE;-/+10%
