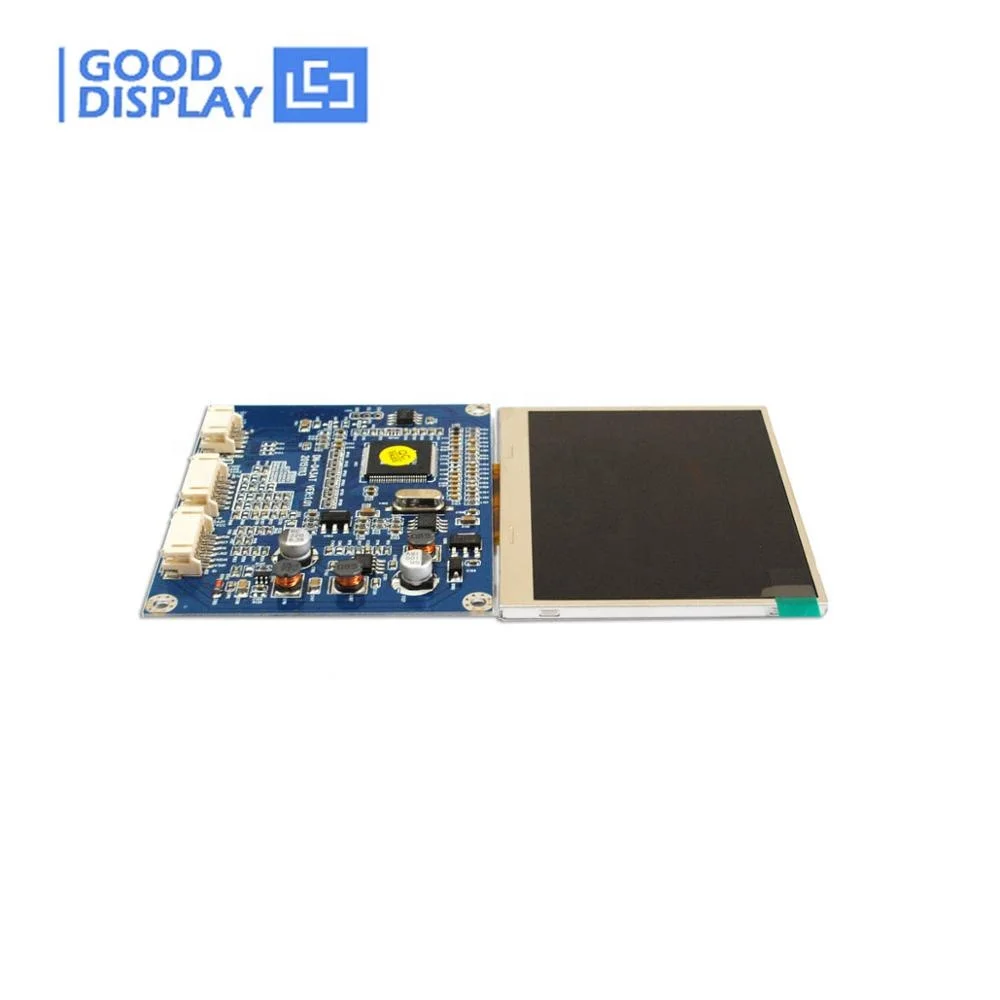

Small TFT 3.5 inch LCD Module VGA&Video input 320x240 pixels 4:3 ratio
- Category: >>>
- Supplier: Dalian Good Display Co. Ltd.
Share on (953273211):
Product Overview
Description
Small TFT 3.5 inch LCD Module VGA&Video input 320x240 pixels 4:3 ratio
\t\t\t\t\t\t\t\t\tGeneral Description \t\t\t\t\t\t\t

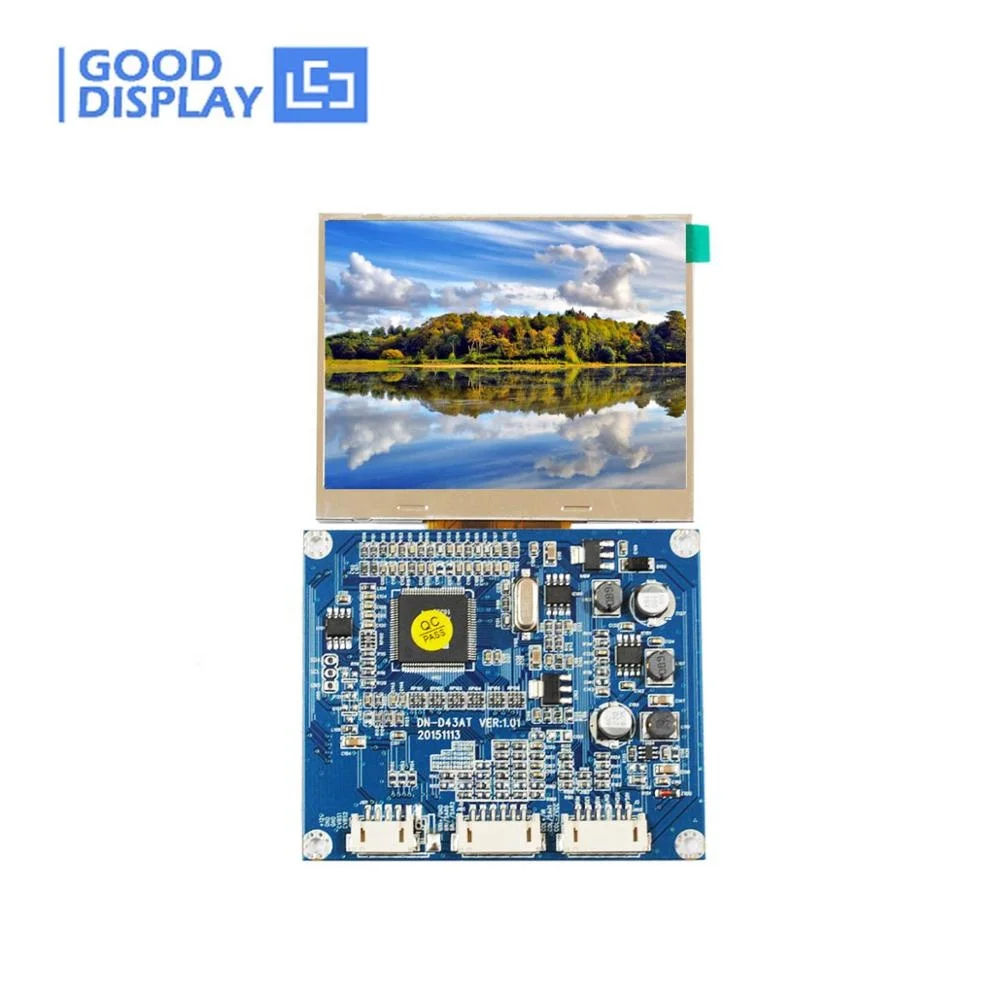

3.5 inch color TFT-LCD module display, 320x240 dots, video & VGA driver board, can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.
Part Number | GDN-D43AT-GTT035KDH03 |
Size | 3.5’’ |
Resolution | 320x240 |
Brightness | 300cd/m2 |
Working Voltage | DC12V(DC9~15V,DC110mA±20mA |
Viewing Angle(U/D/L/R) | 40°/60°/60°/60° |
Signal input | VIDEO |

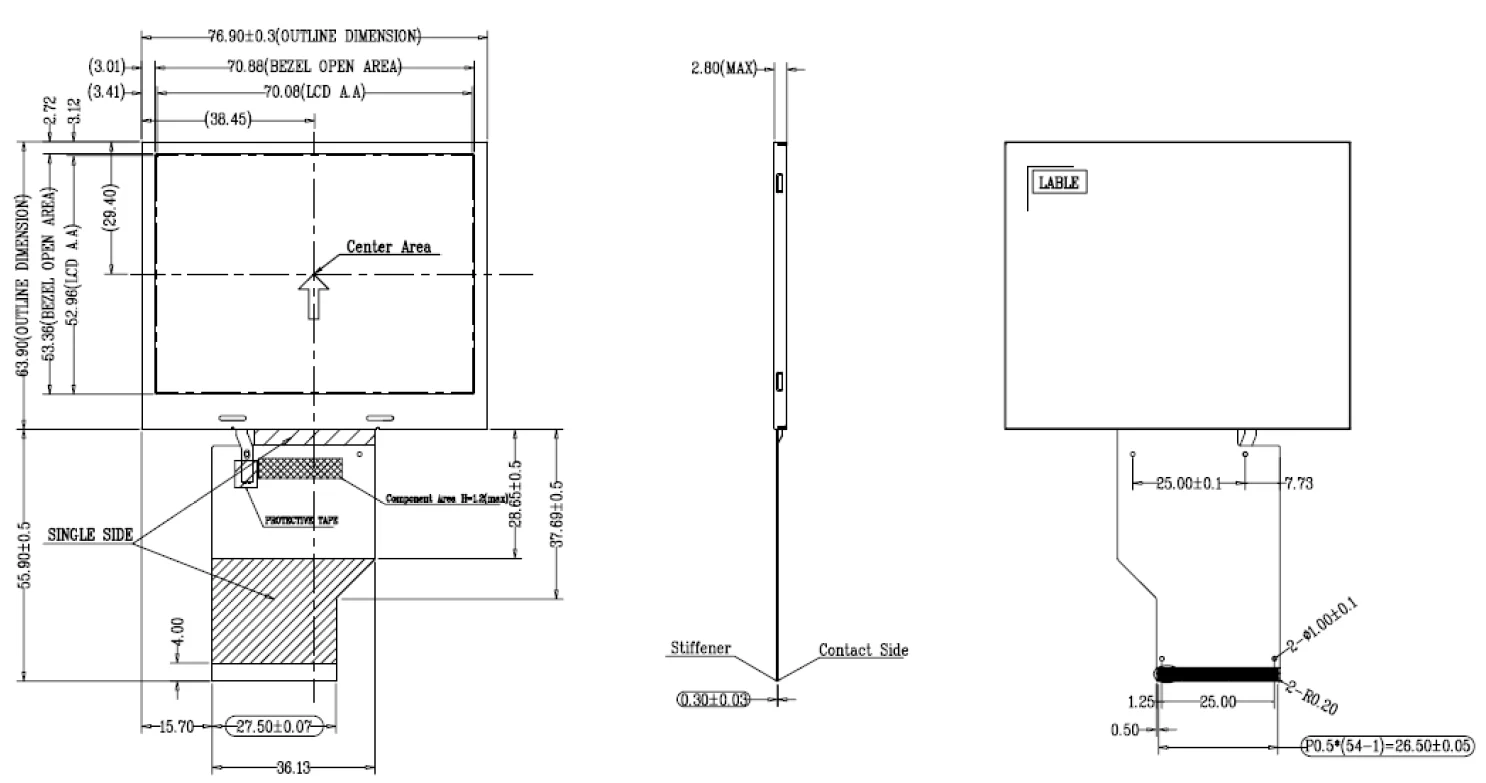

Outside dimension of lcd panel(mm) | 76.9x63.9x3.2 |
Active Area of lcd panel(mm) | 70.08x52.56 |

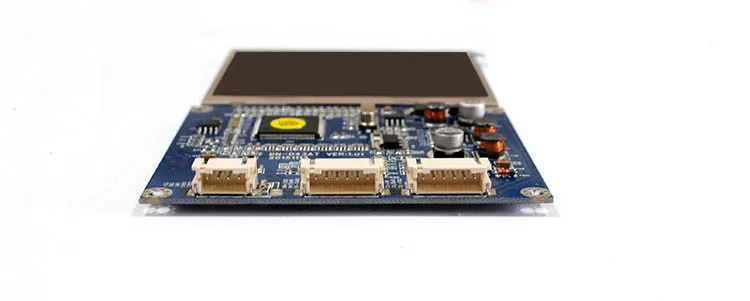

Structural dimension of PCBA(mm) | 62.0x55.2x9.0 |
Backlight | LED |
Operating temperature | -10℃~60℃ |
Storage temperature | -20℃~70℃ |
Particulars
Features
● 320x240resolution

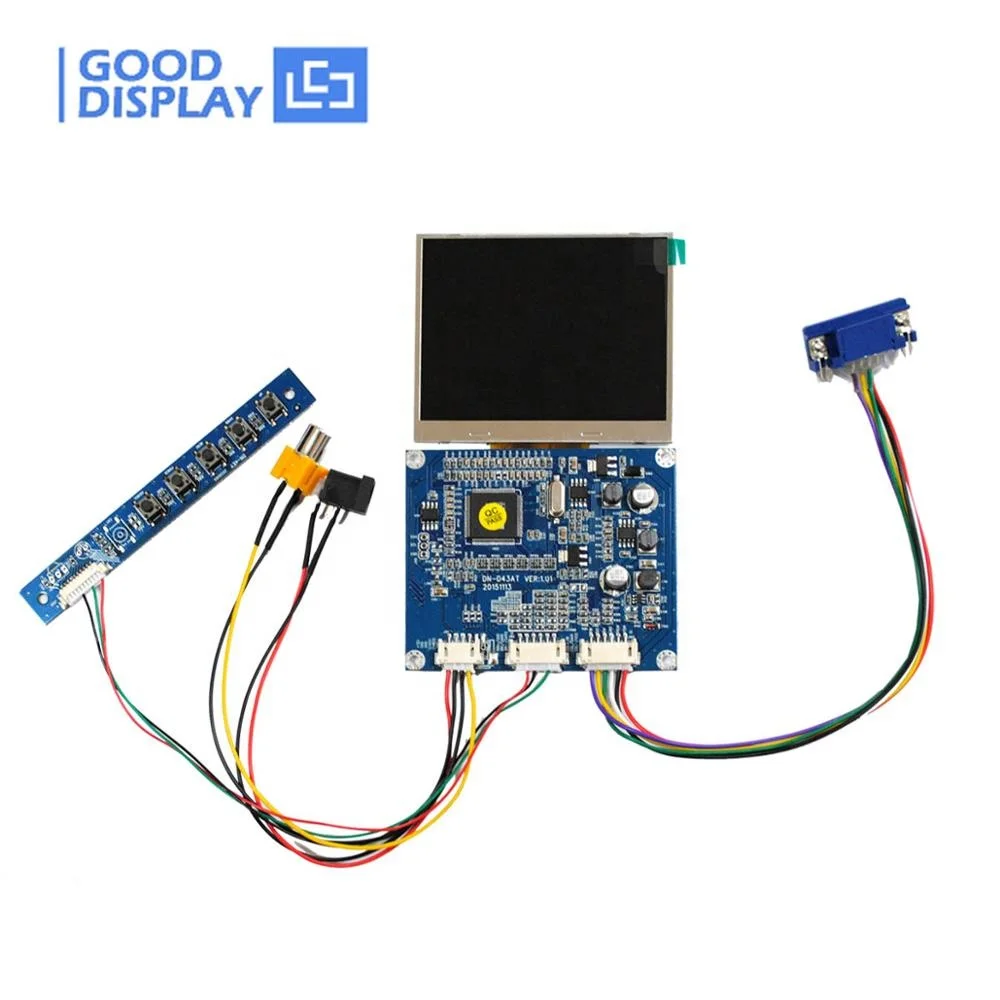

● Video&VGA driver board
● Viewing Angle 40°/60°/60°/60°（L/R/U/D）
● Operating temperature -10℃~60℃
● Optional touch screen
● Optional 3.5 inch 4-wire resistive touch panel with USB driver board and cable
● Optional capacitive touch panel with USB controller board and cable
* If you need the optional accessories, please contact us.*
● Video&VGA driver board
● Viewing Angle 40°/60°/60°/60°（L/R/U/D）
● Operating temperature -10℃~60℃
● Optional touch screen
● Optional 3.5 inch 4-wire resistive touch panel with USB driver board and cable
● Optional capacitive touch panel with USB controller board and cable
* If you need the optional accessories, please contact us.*
