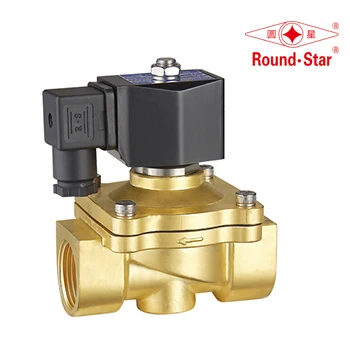

2W Series Brass Gas Solenoid Valve diaphragm solenoid valve 0 10bar

Product Overview

Description

medium temperature:-5 ~ 80℃

working pressure:0 ~ 10bar (details see specification table)

working type:semi direct acting(NC)

Valvebody material:brass  SS304

sealing material:NBR

interface:G thread   NPT thread

voltage:AC220~240V  AC 110V  AC24V  50/60Hz   DC24V  DC12V   IP65  H degree(iron seal coil: IP54  B degree)

        DN10~25  AC 20VA  DC 30W   DN35~50  AC 45VA  DC 31W

Options:

Rc thread   sealing material: EPDM  VITON  VMQ(-10~130℃)

Digital timer   LED light connector

Es low power energy saving coil( DN10~25  AC220 V4VA  DC24V 4W   DN35~50  AC220V 8VA  DC24V 7W )

Lead wire iron seal coil
