TGM 200 Shanghai Food grinding machine /Paste making machine /Soy Milk making machine

Product Overview

Description

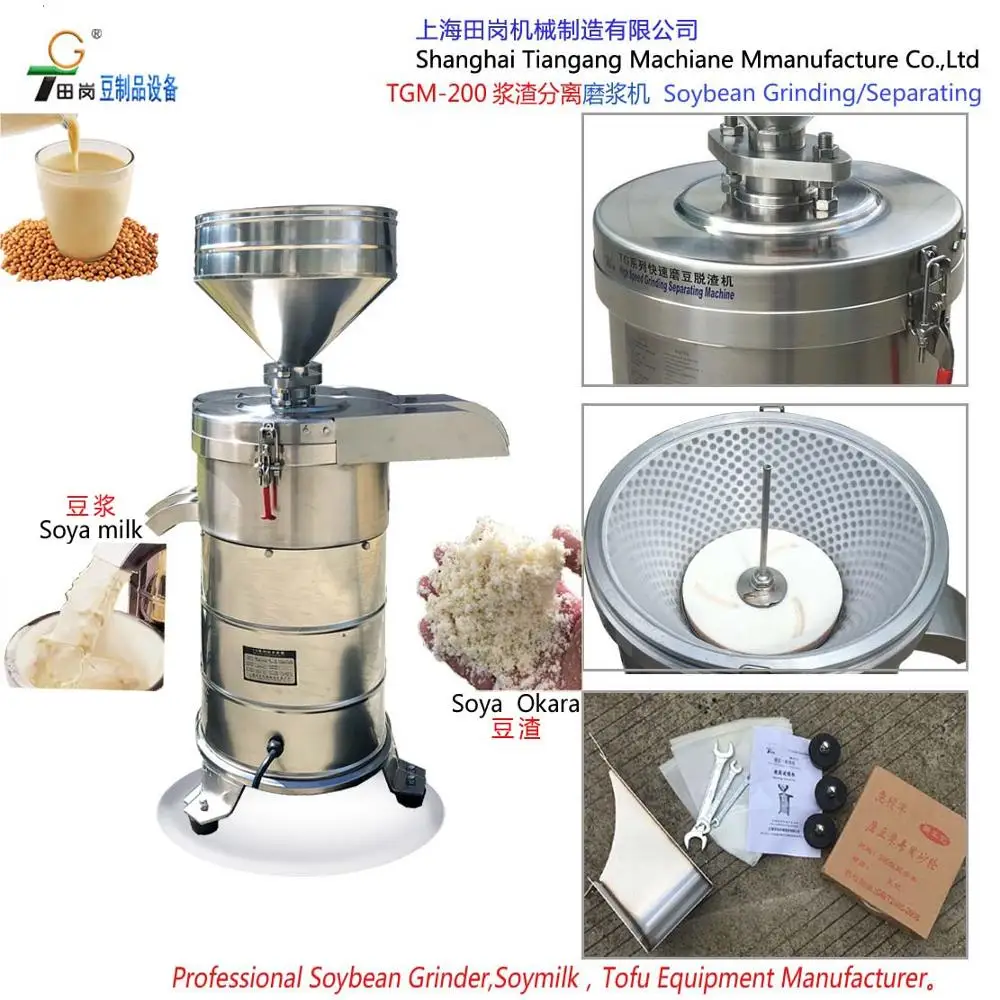

 TGM-200   High Speed Commercial Food Grinding Machine

Product introduction
Fast soybean bean grinder slag remover. It is suitable for use in bean processing plants such as tofu, dried bean curd, bean curd and soy milk.
Help you grind the bean slag once, produce a rich soy milk, and separate the bean dregs like snowflakes.
1. Unique material door mechanism and special waterproof device for grinding and motor, which effectively solves the leakage problem of equipment.
2. The well-designed honing can make the slurry flow smoothly, less material accumulation and convenient cleaning.
3. Practical and unique coarse and fine pitch adjustment mechanism, convenient adjustment and reliable locking.
4. The specially formulated edible sand tablets have long service life and high output.
5, clean and hygienic, the whole working flow path from feeding, grinding to discharging is made of all stainless steel; it is suitable for soaking soybeans and other beans, macerated articles, grinding and other functions.





Model Number	TGM-200
input	Soybean 175kgs/hr
Diameter of the grinding stone	200mm
material of the grinding stone	white corundum
Power	5kw
Voltage	380v/50Hz
filter	100 mesh
Speedr	2800 R.P.M.
Weight	98kgs

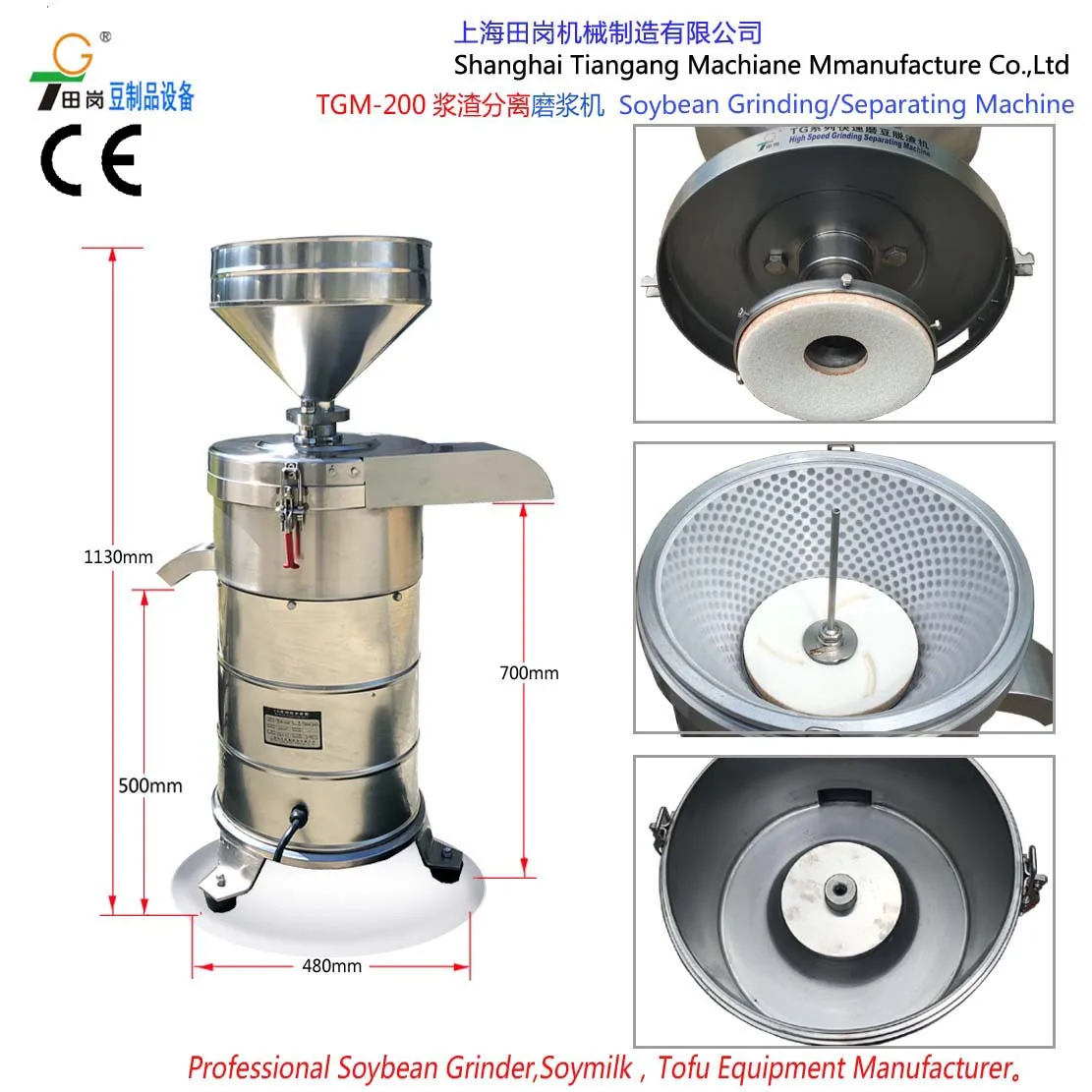

Size	460*600*1150mm





Company Introduction





Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.

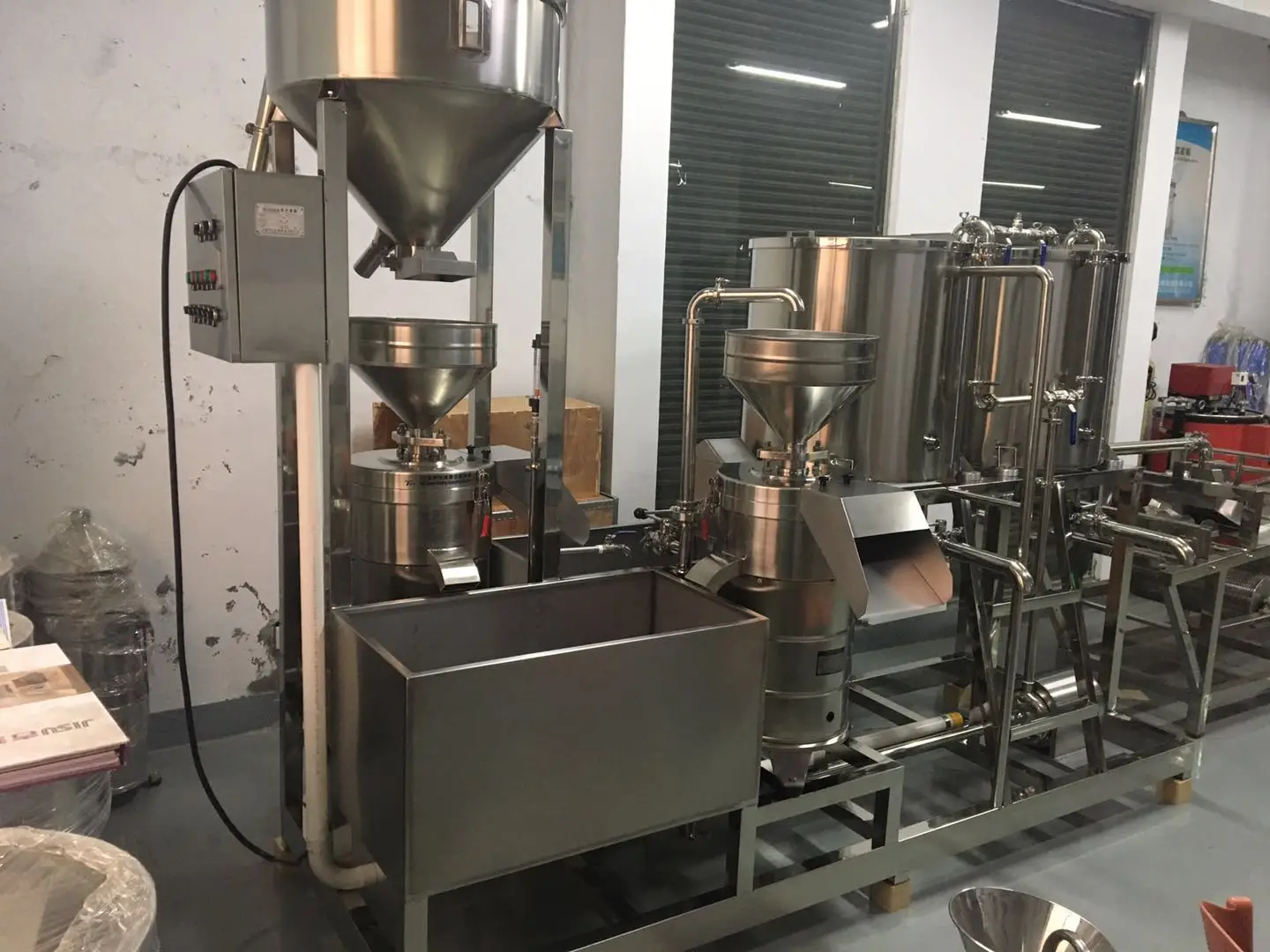

We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.

We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.
