TGM 300 Food grinding machine /Soybean grinding machine / food grinder

Product Overview

Description

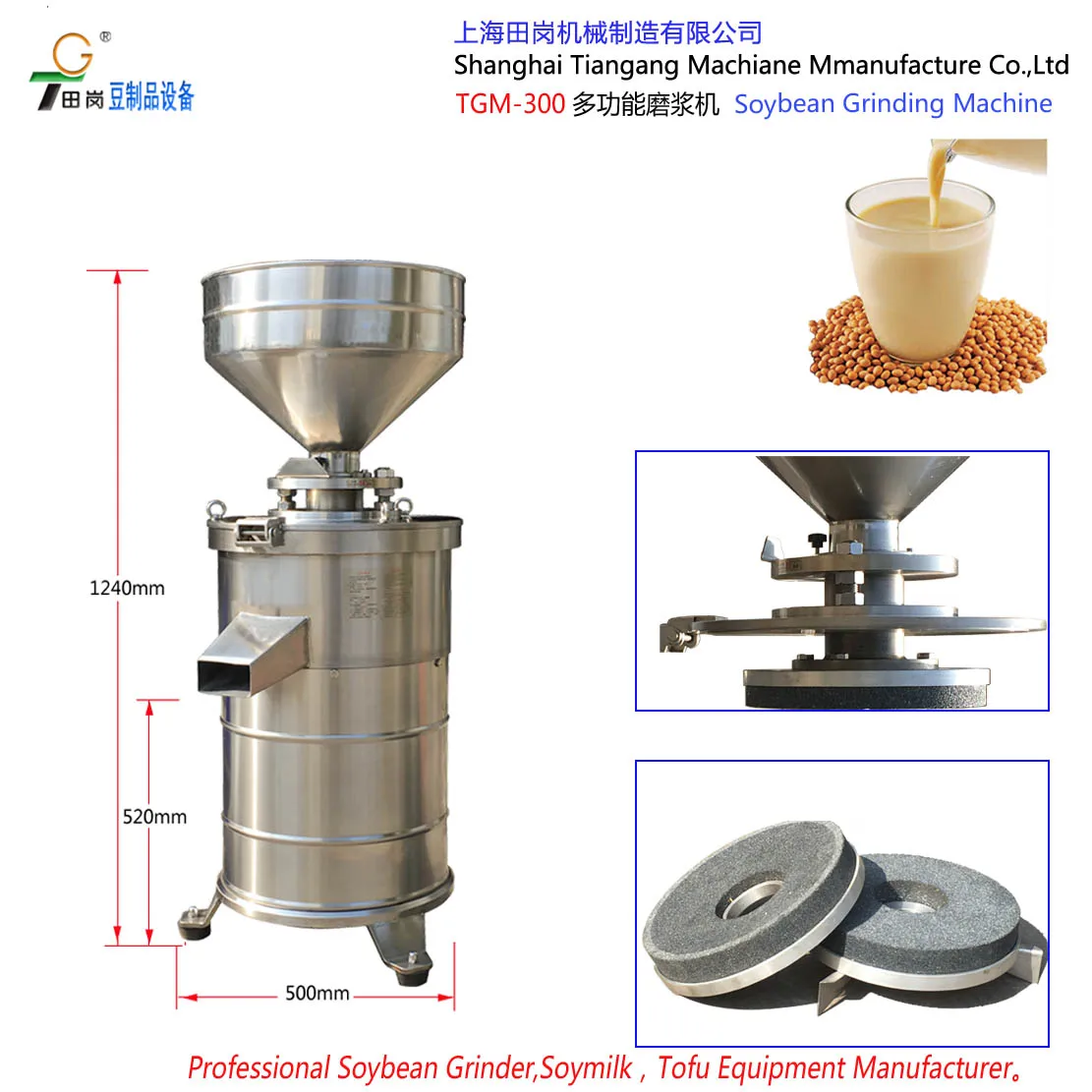

TGM-300 High Speed Grinding Machine/Food Grinding Machine

specially designed grindstone angle makes bean-grinding fast
Overall  stainless steel
soybeans and soaked soft foods grinding



Voltage:380v/50Hz,Power:7.5kW;
Motor Speed:1440r/min
Capacity:beans 300kgs/hr;
Grinding stone Diameter:300mm;
Size:520*560*1300mm; Weight:195kgs;

Features:

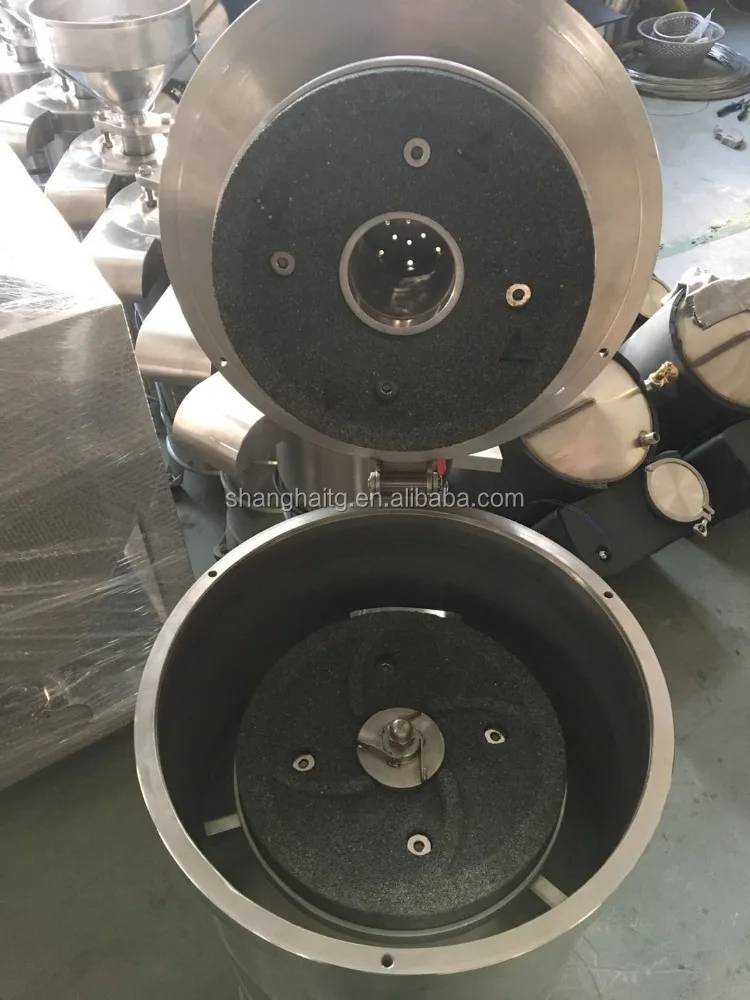

This device  of wet grinding equipment which is a novel stainless steel ,used in the food class materials  for wet milling processing of wet grinding., such as rice, soybeans, corn, etc. Alsi use of some materials in the pharmaceutical, sugar, food and other industries . After pretreatment of the clean-up, soak the material into the hopper into the mill, centrifugal force into the relative motion on down dishes because of the mutual impact of materials, extrusion and sand tray shear the combined effects of the tear etc., so that the material along the sand tray from the inside to the outside, the plane reached from coarse to fine grinding purpose.

Model Number	TGM-300
input	bean 250-400kgs/hr,rice:320-400kgs/hr
Diameter of the grinding stone	300mm
material of the grinding stone	corundum.
Power	7.5KW,
Voltage	380v/7.5kw
Speedr	1720/1430 R.P.M.
Weight	195kgs
Size	520*560*1380mm
Packing size	650*500*1400mm



Specially designed grindstone angle makes bean-grinding fast and rice-grinding fine

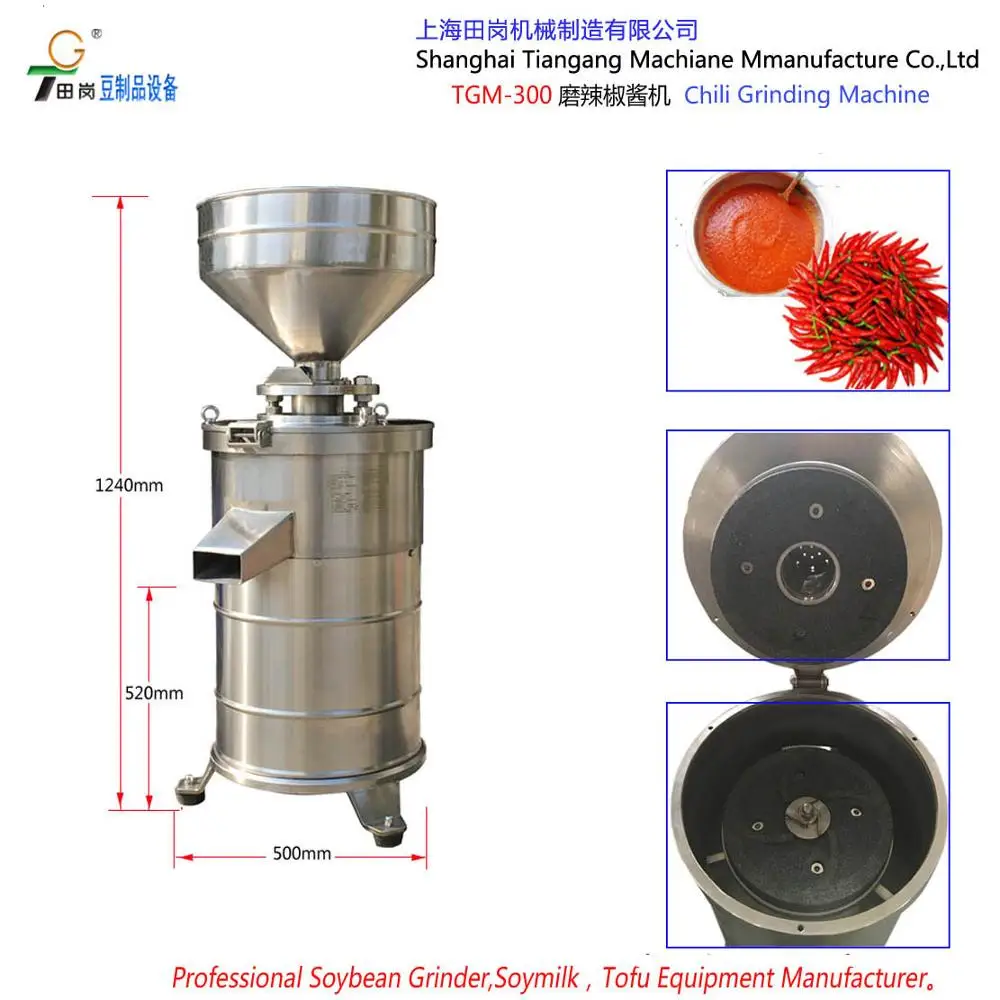

suitable for making soybean milk,rice paste,capsicum paste and the fine grinding of various beans ,rice other foods



Company Introduction



Shanghai Tiangang Machine Manufacture Co., Ltd. integrates design, manufacture, sale and service. We specialize in manufacturing and selling soy bean machinery. Our main products are High speed grinding/separating machines, Commercial soybean Milk Machines, such as soya milk making machines, tofu making machines, dry bean curd machines, Japanese style tofu machines and related equipment.



We can offer soybean soaking & washing, auto exalting, grinding & separating, soymilk cooking & coagulating, forming & U.H.T sterilizing, cooling & packing whole systems.

We have a professional product development team and an after-sales service team. We are able to produce, install and adjust the machines, and can meet the requests of customers.

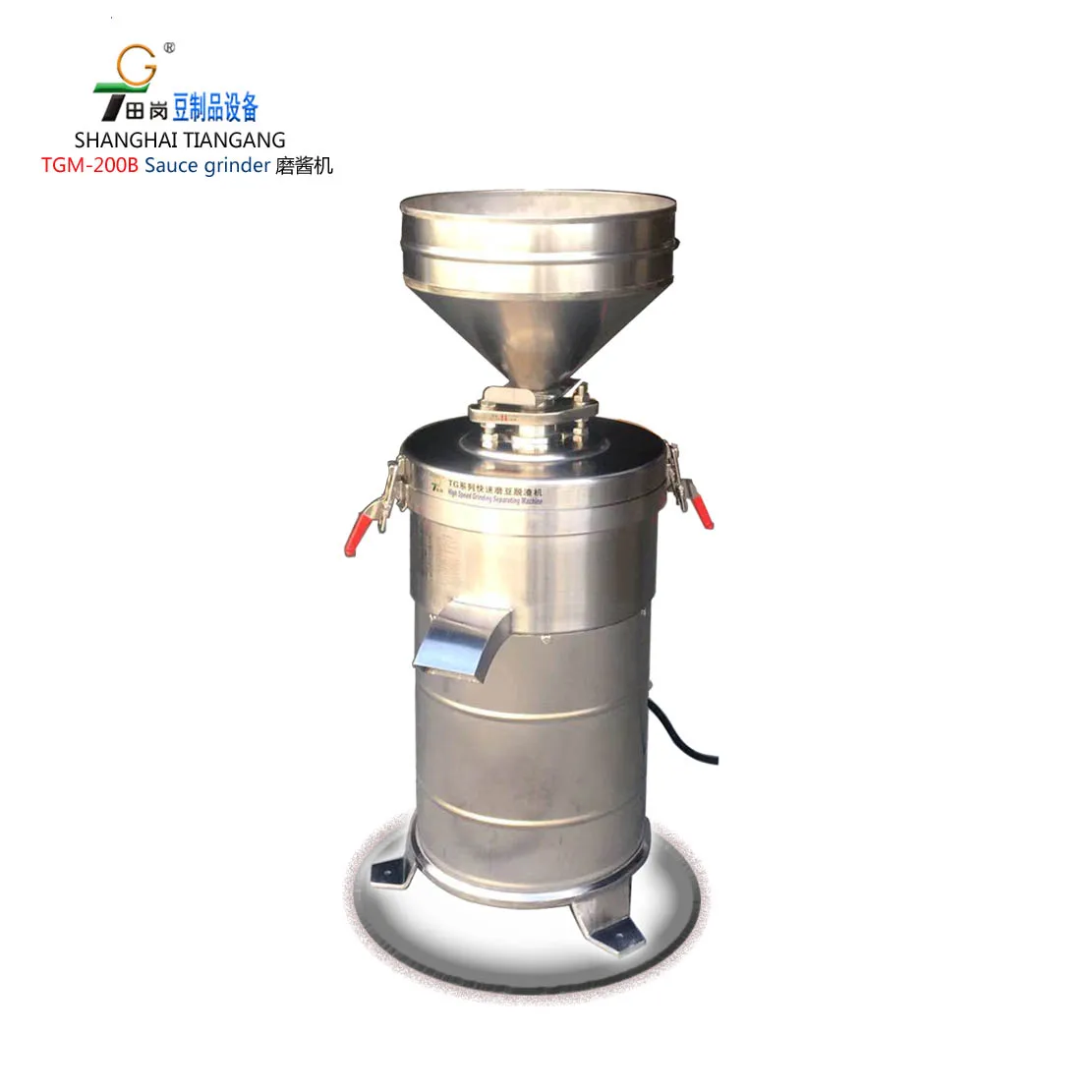

TGM-200B multi-function food grinding machine

Technical Parameters
Power supply: 380V/50Hz; power: 4KW; speed: 1430 R.P.M
Production: 80-150kg / hour; grinding wheel diameter: 200mm
size: 480*520*1150mm, package size: 530*480*1250mm
Weight: 96kgs; gross weight: 105kg
