HM SB series Soft Bag Filling Sealing Machine I.V.solution CE GMP approved /EU cGMP Standard

Product Overview

Description









I.V. SOLUTION

-Non-PVC Soft Bag    -PVC Soft Bag



Single chamber: Euro-Head Port, Two Tube Ports,

Two chambers: Liquid/Lquid, Liquid/Powder



HM SB series I.V. Solution Non-PVC Soft Bag Form-Fill-Seal Machine

Usage: automatic feed non-PVC film/port/cap, form-fill-seal soft bag. print marks (1 color).nitrogen purge(option)

Features:

-PLC control with CIP and SIP

-No bag no filling, no cap no sealing

-Counting the output and display alarms

-Defective bags detect in place and automatic rejection.

-Filling precision: 98.5%

-Qualified rate : 99-99.5 %

Suitable : 50ml, 100ml, 250ml, 500ml, 1000ml, non –PVC soft bag.

Working principle: hot welding forming, mass flow meter control filling, hot sealing.

Model: HM SB-1200/2500/3500/4500

Bags/cycle: 1/2/3/4

Capacity: 1200/2500/3500/4500bph

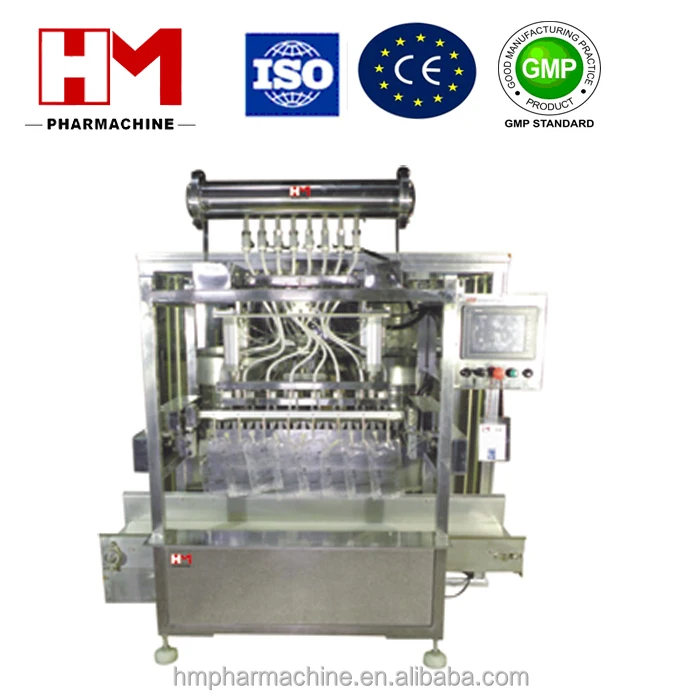

HM SB-FS series Soft Bag Filling & Sealing Machine

Usage: manual feeding formed soft bag, automatic filling liquid, automatic feeding plug and plugging soft bag.

Suitable: 50-1000ml PVC or Non-PVC formed soft bag.

Features:

-the filling system is time-pressure control, filling pressure: 0.1~0.2 Mpa; high filling accuracy,±2%.

-filling volume can be set and adjusted on touch screen

-filling parts are easy for CIP cleaning, easy dismantled for sterilization

-changeable plugging heads, suitable for different plugs.

Model: HM SB-F2000/1000

Filling heads: 8/4

Capping heads: 8/4

Capacity: for 500ml, 2000/1000bph



HM SB-F4 Soft Bag Filling Machine

4 mass flow meter filling

Suitable for big bag up to 5000ml



HM SB-F1200 Soft Bag Filling Machine

6 filling heads

Range: 5-9999ml





















-PP Plastic Bottle               BFS Plastic Bottle

1 or 2 step blowing, then filling & sealing technology

Advantage: PP plastic bottle, can be sterilized, be more sanitary;

Bottle will be more light and transparent than BFS technology;

Speed can be very fast up to 15000bph.



HM PB series I.V.Solution Plastic Bottle Cleaning-Filling-Sealing Compact Line

Uasage: Ion air cleaning plastic bottle, filling infusion liquid into bottle and sealing cap.

Features: no bottle no filling ,no feeding cap no sealing.

PLC control with CIP and SIP (option).

Counting the output and display alarms.

Filling precision: 98.5 %

Sealing rate: 99%

Suitable: 50ml,100ml,250ml,500ml I.V. Plastic bottle

Working principle: ion-air cleaning; rotary filling; hot sealing

Model: HM PB-3000/6000/9000/12000/15000

Capacity: calculate as 500ml, 3000/6000/9000/12000/15000bph



Glass Bottle



HM GB series I.V. Solution Glass Bottle Washing-Filling-Sealing Compact Line

Model: HM GB-1000/3000/6000/9000/12000

Capacity: calculate as 500ml, 1000/3000/6000/9000/125000bph





BFS Plastic Bottle

HM BFS series Plastic Bottle Blow-Fill-Sealing Machine

Usage: from plastic granule feeding, blow form small plastic bottle, fill liquid and seal bottle

Suitable : eyedrop or plastic ampoule

Filling volume: 1-20 ml

Model: HM BFS-50

Capacity: 20-50 bottles/min

On developing for big I.V. Solution plastic bottle
