VMS LED Sign Trailer One Color For Australian Market

Product Overview

Description

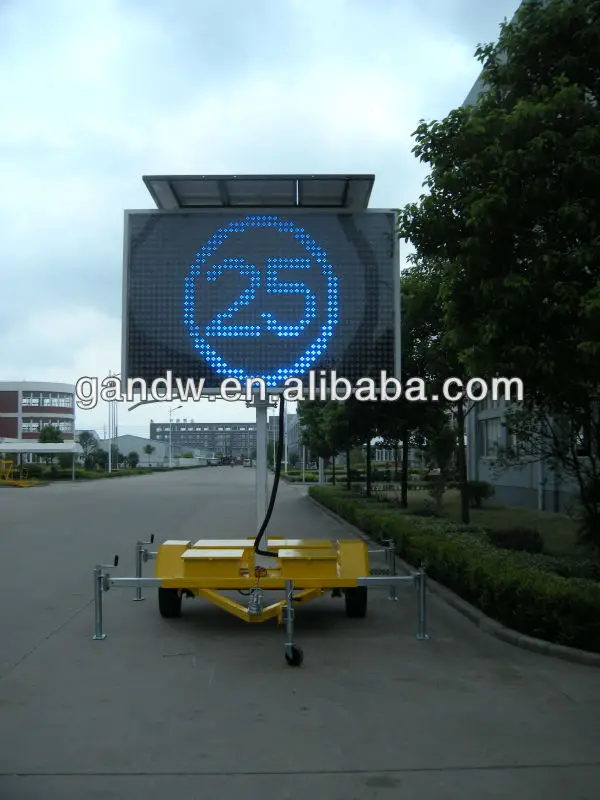

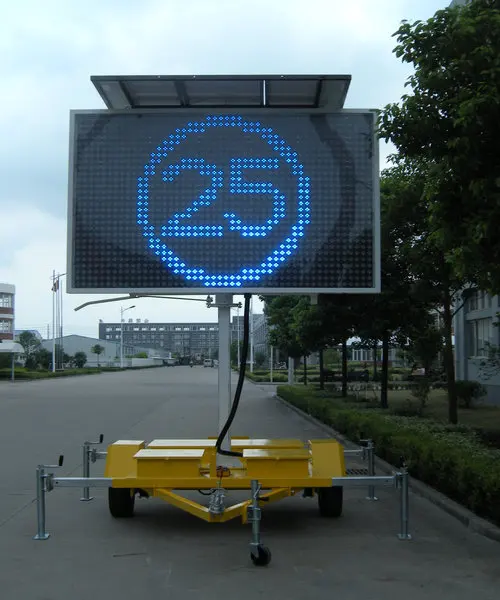

 VMS LED Sign Trailer, GW-VM 400







Applications:

Advanced warning to motorists of roadworks/conditions
School, Pedestrian or Roadwork Zones

Notification of road closures or detours

Used with Radar to display traffic speed

Promotion of Events, e. G Sporting, Festival

Product Advertising, e. G Car Yard, Property Development



Features:

Full Graphics

Non Glare, UV resistant polycarbonate

Highest Quality LED s

Solar Powered/Environmentally Friendly

Plug & Play controller and LED modules





SPECIFICATIONS & TECHNICAL DATA



Display:

Display Type: LED Full Matrix

Display Size: 2730mm x 1850mm

Display Viewing Area: 2450mm x 1600mm

Matrix: 48 x 28, 4 X 5mm LED s per pixel ( GREEN, RED, AMBER, WHITE) or (GREEN, RED, AMBER, WHITE)

 Enclosure: IP54 equivalent, front access

Screen: Non Glare UV polycarbonate

Photocell auto dimming



Trailer:

L x W x H: 3950 X 2050 X 2700MM (with draw bar, fender)

Operating height: 3950mm

Rotating degree for message panel: 360

Draw bar length: A frame type 2200mm

Trailer has the brake system for the message panel, so it can stop on the certain position.

For corner jack stands: 15 inch, 3000LBS

Draw bar jack stand (with 6inch jockey wheel): 2000LBS

Coupler: 5000LBS; 50mm ball

Wheel type: 14 inch

Disc brake system for the wheel

Hydraulic function for operating message panel lift

Manual Hydraulic Backup

3mm steel check plate

Controller and Programming

PC for on site programming

Programming options: SMS, RSR232 Serial direct connect



Software

Windows Compliant Free automatic software updates! !

Predefined Images: 90

Radar: Radar logging / remote removal, logging speed data / time traffic count

Large Storage up to 100 individual messages with various page sizes



Power

Voltage: 12V

Solar Panels: 2 x 125 watt Panels

Batteries: 3 x 12Volt;200AH deep cycle

Solar Controller: 30AMP

Operation on batteries/solar Indefinite under normal conditions

Optional Extras

SMS

3G GPS+INTERNET

INDUSTRIAL TOUCH MONITOR TABLET PC

BATTERY CHARGE

SPEED RADAR

SOLAR TILTING SYSTEM
