Product Overview
Description

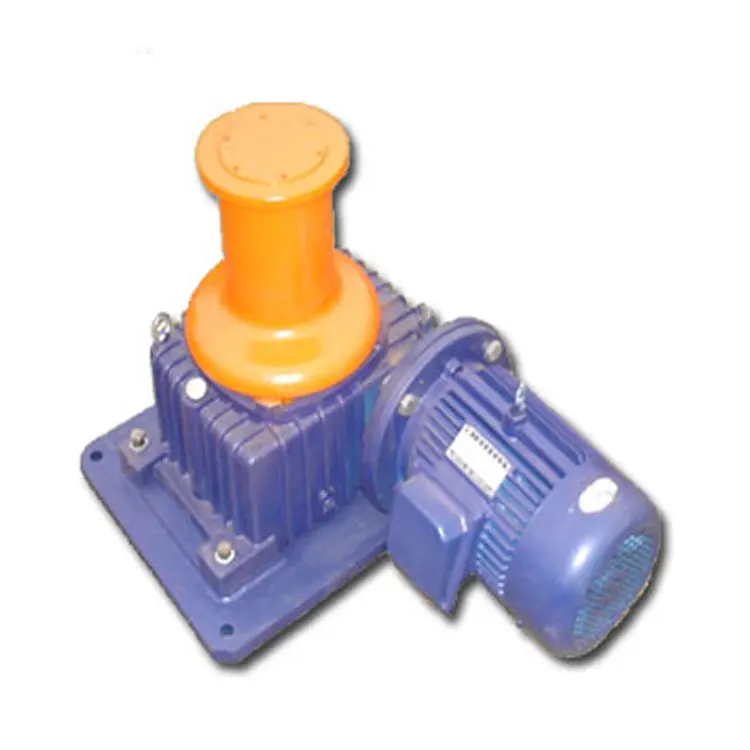

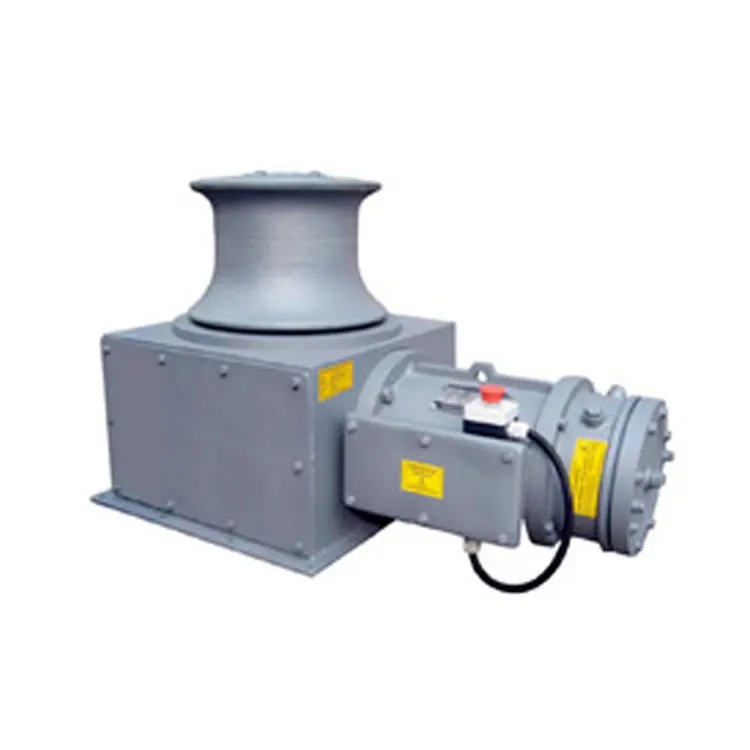

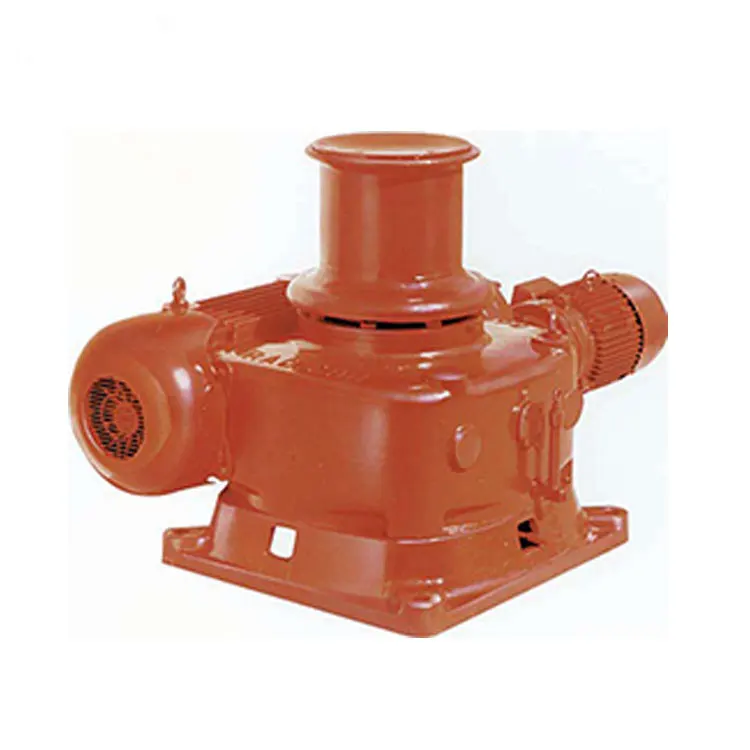

portable electric capstan winches
We need you confirm below information when you send inquiry to us : [Noted:tell me your email and whatsapp or skype] 1.Your need quantity?(Set) 2.FOB price or CIF price?(If need CIF price,kindly tell us your nearest sea port) 3.Driven type?(Electric or Hydraulic) 4.Working loading capacity?(KN) 5.Working speed?(m/min) 6.Rope diameter?(m) 7.Structure type?(Vertical or horizontal) 8.Power supply?(Voltage-50Hz/60Hz-Phase) 9.What does the capstan used for ? 10.Any other special requirements? |
Product Overviews

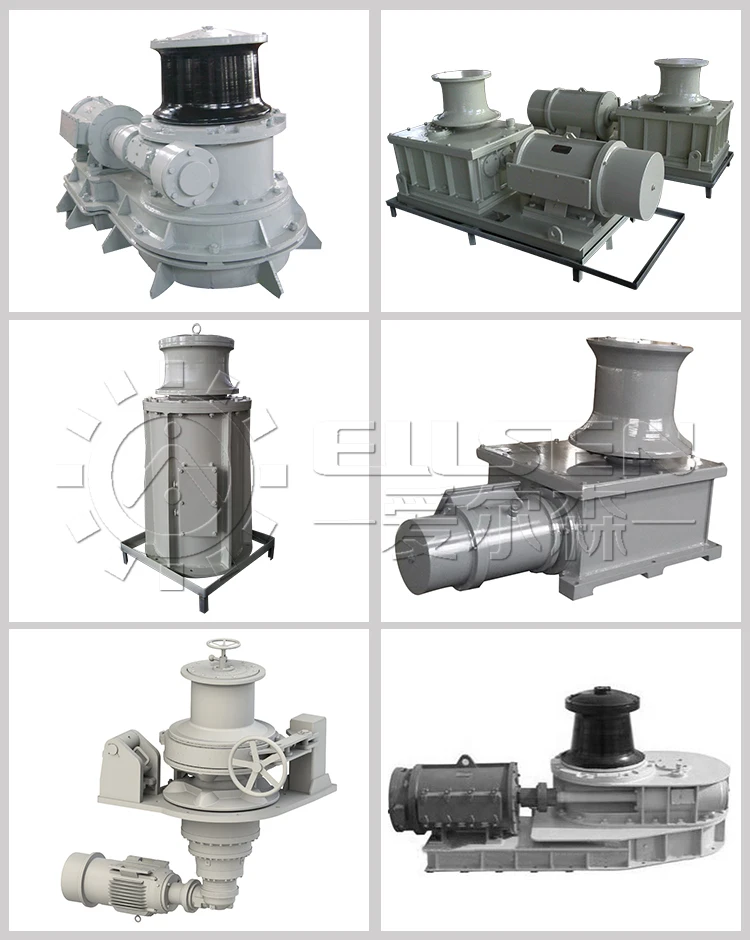

More kinds capstan windlass for your choose Contact us
Specific details of capstan windlass used in boat mooring :
- Driven type: Electric ,hydraulic
- Structure type: Vertical ,horizontal
- Loading capacity:0.5 ~ 30T
- Working speed:10 ~ 30 m/min
- Rope diameter:15 ~ 50 mm
- Usage:Mooring
Specific details of capstan windlass used in boat anchor :
- Driven type: Electric ,hydraulic
- Structure type: Vertical ,horizontal
- Chain diameter: ø12 ~ ø26 mm
- Working speed:9 m/min
- Usage:Anchoring
Capstan windlass can be divided into Vertical and Horizontal structure.

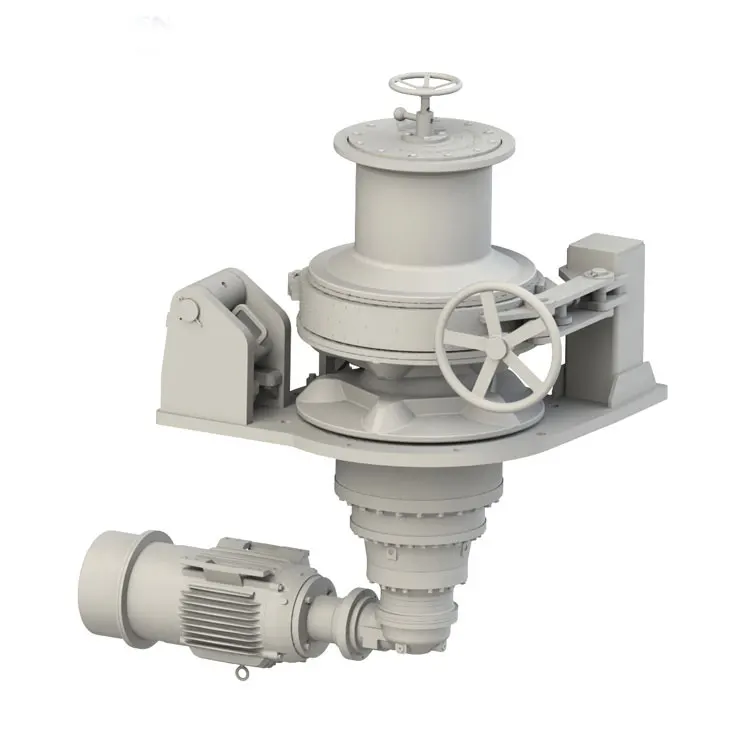

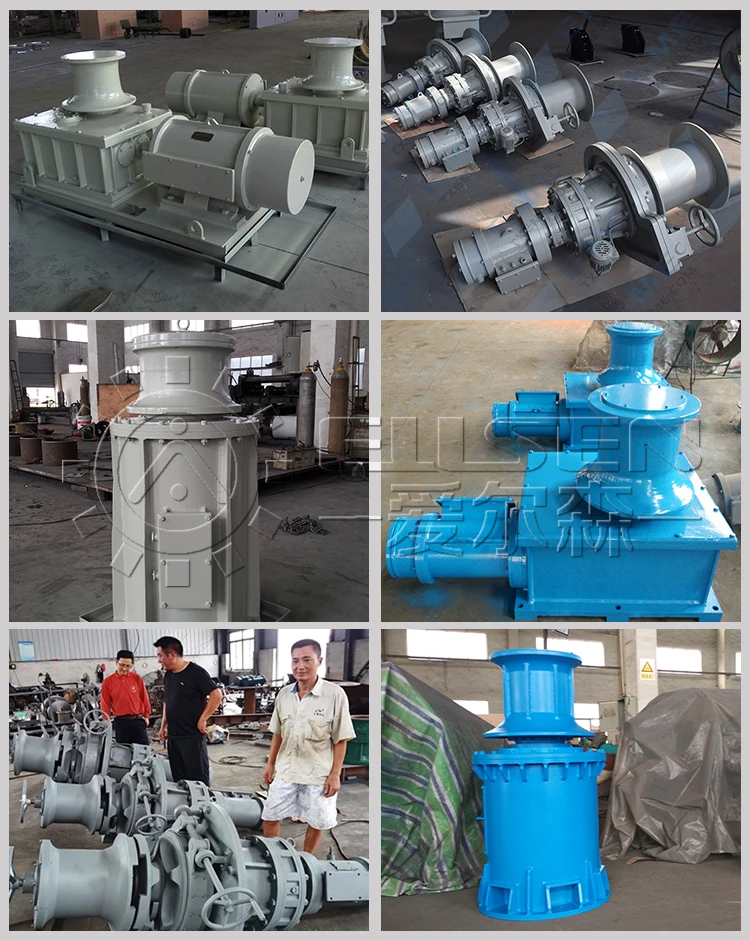

Display of vertical structure capstan windlass for your reference as below:

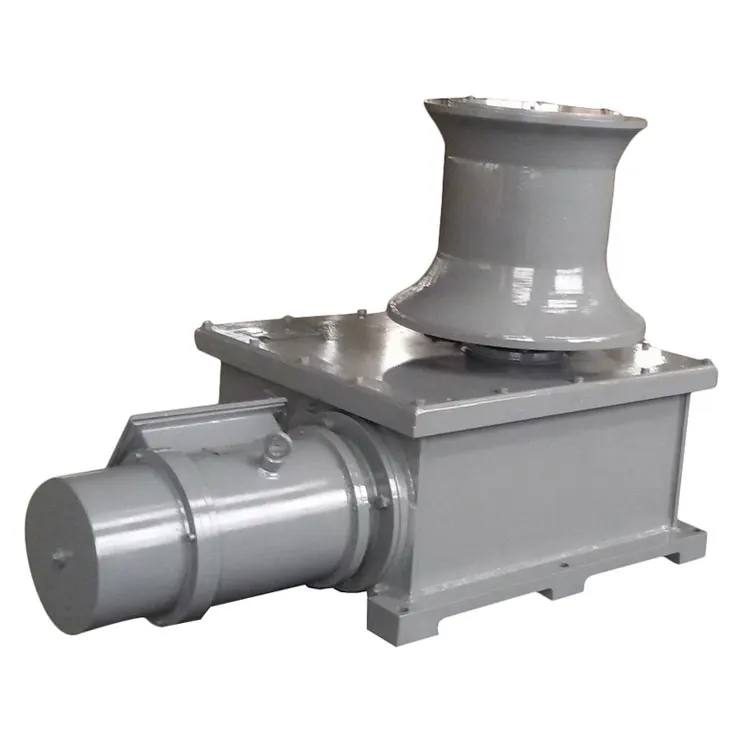

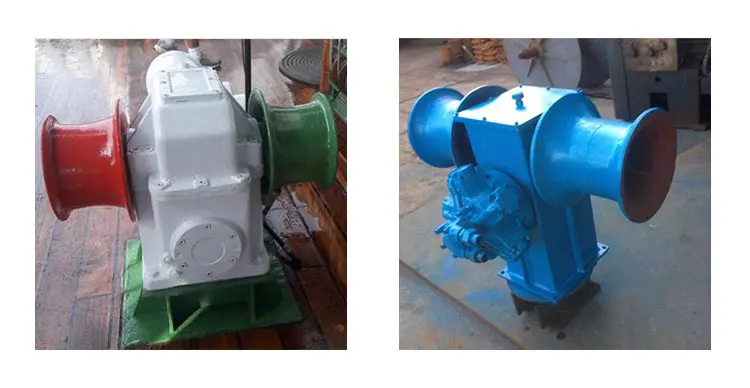

Display of Horizontal structure capstan windlass for your reference as below:
Product Description
Brief introduction Contact us
| Brief introduction | Capstan windlass (hereinafter referred to as winch) is designed according to standard GB/T4447-1992 which is suitable for 5 m to 30 m length ship. The capstan is always be installed on the ship keel of main deck, and used for anchoring and mooring. |
| Specific details | Capstan technical parameters:
|
Technical parameter Contact us
| Model | Load(KN) | Speed(m/min) | Rope diameter(mm) | Motor power(KW) |
| EL-5 | 5 | >=18 | 11 | 3/1.2 |
| EL-10 | 10 | >=18 | 11 | 4.3/1.7 |
| EL-15 | 15 | >=18 | 13 | 8.5/3.5 |
| EL-20 | 10/15/20 | >=18 | 15 | 11/11/7.5 |
| EL-30 | 30 | >=18 | 17.5 | 16/16/11 |
| EL-40 | 30/40/50 | >=18 | 20.5 | 22/22/16 |
| EL-50 | 50 | >=16/18 | 20.5 | 22/22/16 |
| EL-70 | 50/70 | >=15 | 26 | 30/30/22 |
| EL-100 | 100 | >=15 | 28 | 45/45/30 |
| EL-120 | 120 | >=15 | 32.5 | 60/60/45 |
| EL-150 | 150 | >=15 | 36.5 | 60/60/45 |

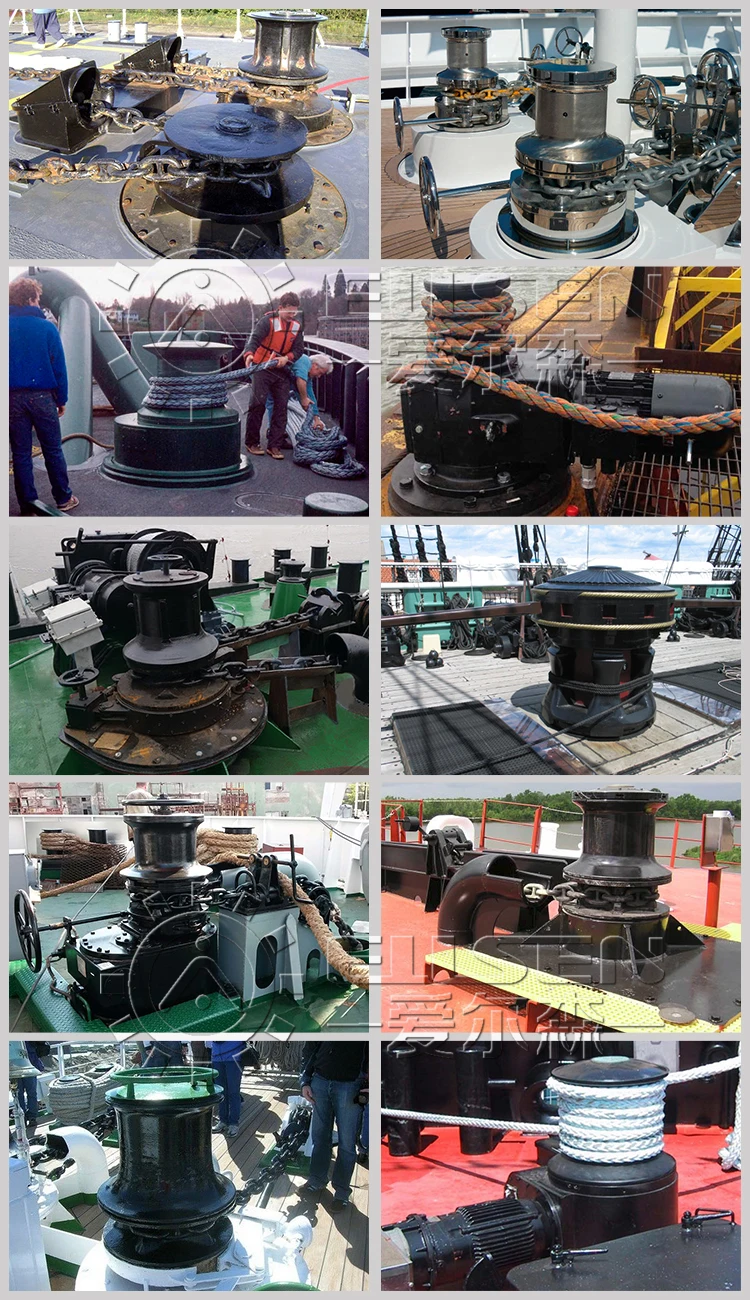

Work site of capstan windlass Contact us
Related Products
More kinds of marine winch for your choose,you can click below picture to learn more details
Company Information
About us Contact us
Zhengzhou Ellsen Machinery Equipment Co.,Ltd. is a professtional manufacture crane equipments and marine equipments factory.At presently,our company own six subsidiary factory.We can customize design and produce overhead crane,gantry crane,port crane,jib crane,hoist,winch,etc. At presently,in the field of winch industry,our factory produce Electric winch,Hydraulic winch,Diesel winch,Boat winch,Anchor winch,Anchor boat winch,Towing winch,Mooring winch,Marine winch,Tugger winch,Construction winch,Mine winch with KA and MA certificates,Sinking winch,etc.Our winch has passed CE,BV,CCS,ABS,DNV,RINA,etc certificates and our winch with high strict quality control and professional check system.Our products have been exported to USA, Australia,England,Russia,India, Pakistan, Bengal,Philippine, Australia,Malaysia, etc,more than100 countries and regions. |
 |
Certifications
Certification of capstan windlass Contact us
