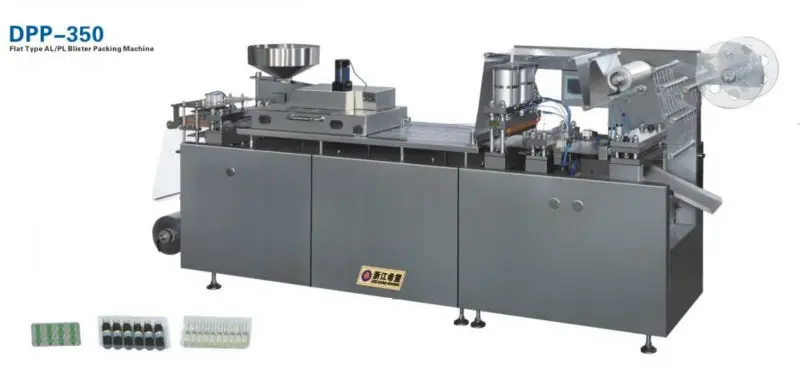

DPP350 Blister Packing Machine

Product Overview

Description



Auto Blister Packing Machine DPP350 ( Capsules And Tablets)

Main Technical Parameter:

Capacity(punch/time)	20-40
Range of stroke(mm)	40-120
Packing material:    Pharmacy PVC(mm)	(0.2-0.5)*250
PTP alu foil(mm)	(0.02-0.05)*250
Cleam compressed air	0.5-0.7Mpa
Air consumption(m³/min)	≥0.3
Power	AC380V 50HZ 10KW
Water chiller for moulds	Tap water or recycle water with 60L/h
Dimension(L-W*H)(mm)	3890*750*1700
Net weight (kg)	2000

Operating position :







• Worm wheel reductor :Main machine overloading protect with lower noise and stabile runnnning .


• Adjustable range of stroke:can change the stoke dimension freely to suitable more kinds of product.


• No waste material cutting station can save material cost .


• Double orientation shafts with shafts with spline shaft transmission adopted to ensure synchronization stablie running]

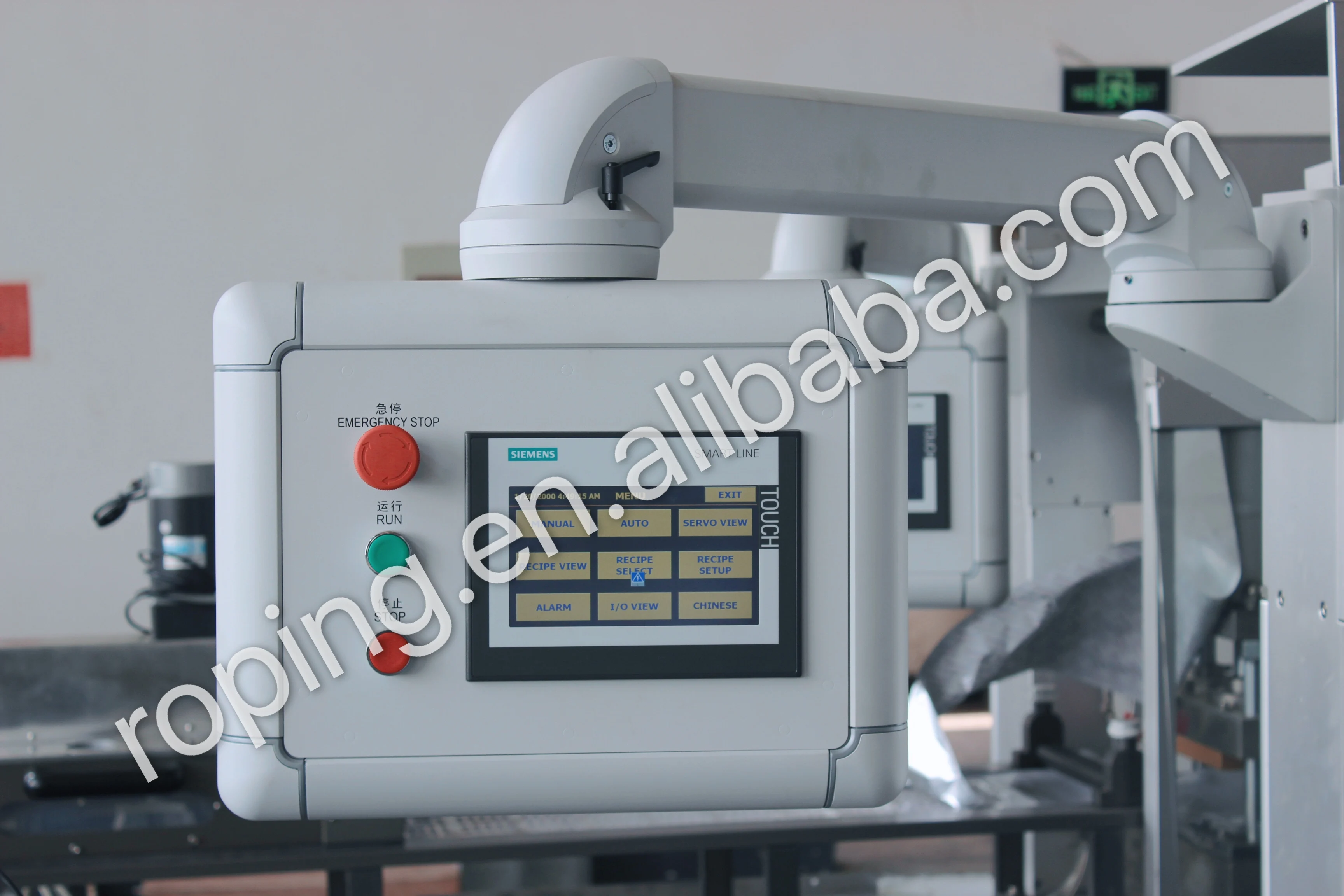

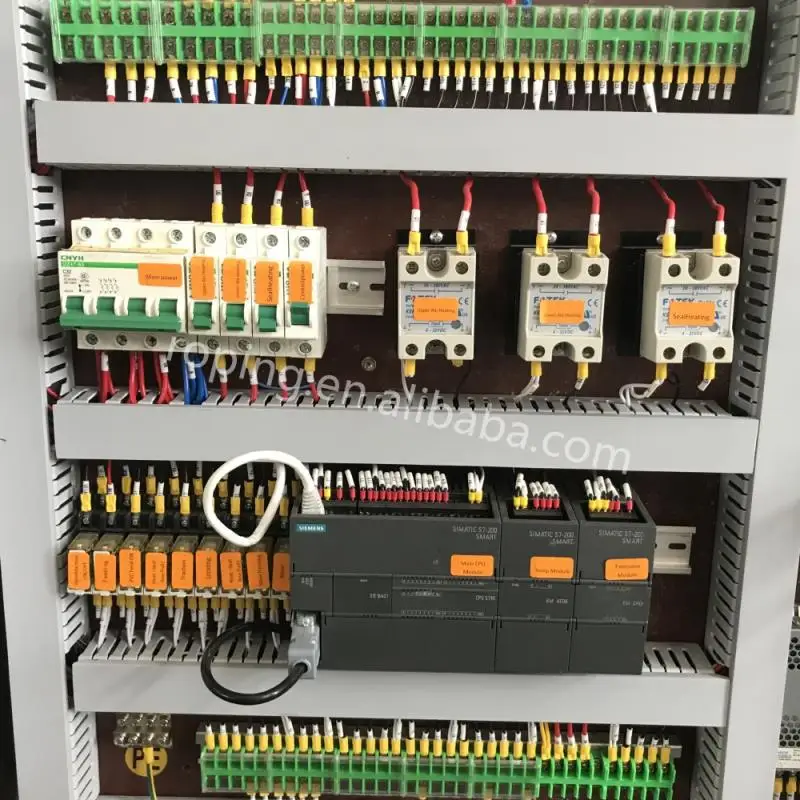

• Touch screen with PLC block adopted ,stabile operation and easy maintenance.

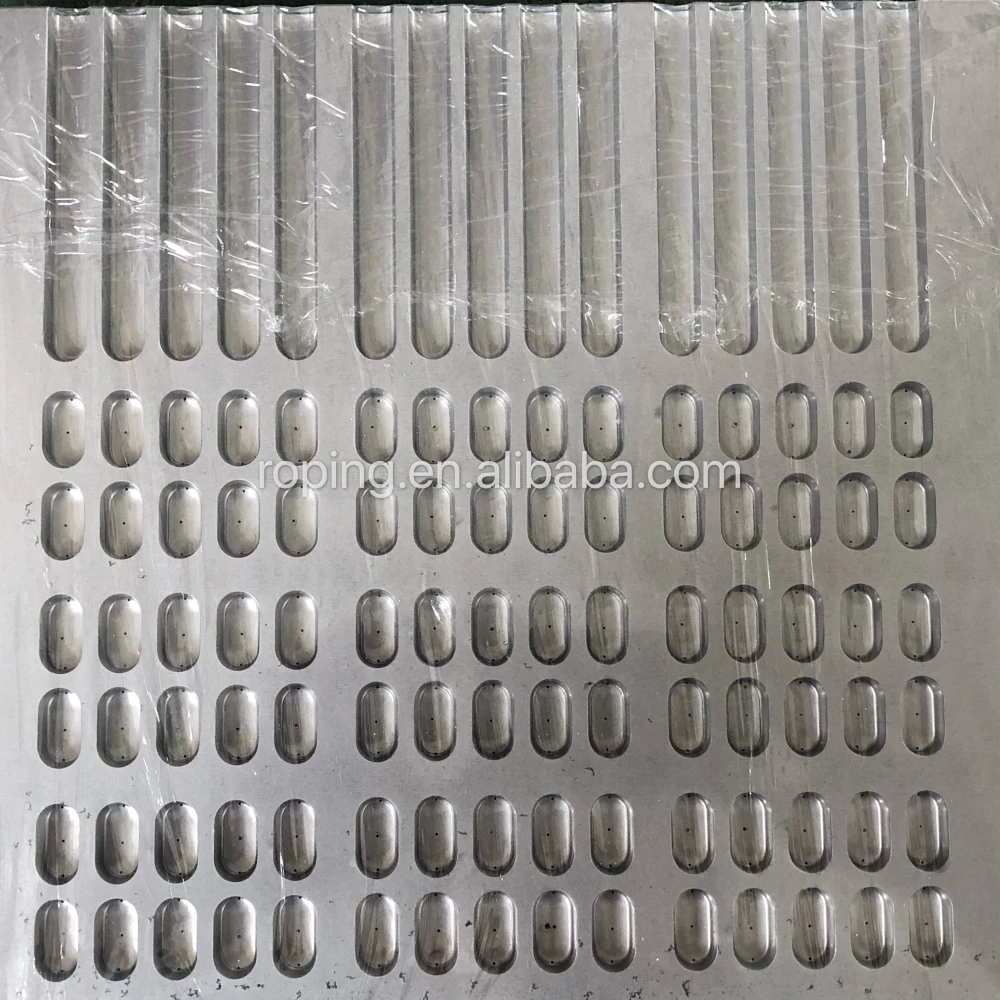

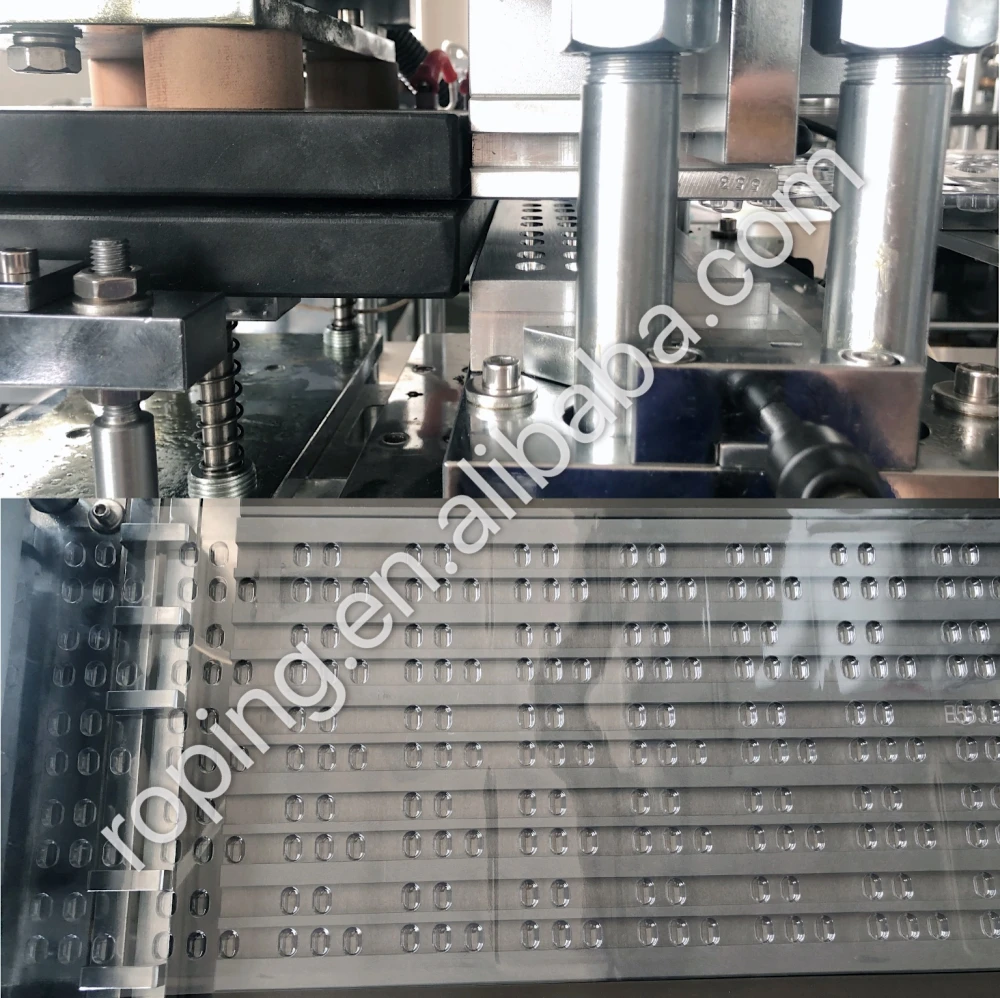

Mould

Spare parts

Our services

• The company equipped with professional technical support and after-sales service, also send technician to the customer’s enterprise to adjusting machines, supervise technique and training the stuff etc.

Packaging & Delivery

•  Packaging details:exporting standard wooden case, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.


•  Within 45 days after receipt of 30% payment by T/T.

Company Information

•  Hoping Company takes Zhejiang Hoping Machinery Co, Ltd as the leader, dominates Ruian City Wonder International Trading Co., Ltd and is a high-tech enterprise integrating R&D, production, sales and relevant service of pharmaceutical machinery, packaging machinery, food machinery and cosmetics machinery.


•  Main products include flat type aluminum-plastic, aluminum-aluminum and aluminum-plastic-aluminum packaging machines, roller type high speed blister packaging machines, automatic cartoning machine series, automatic blister-carton packaging production lines, mask and eye pad packaging machines, and labeling machines, etc.

Certification

• Hoping Company, as a professional manufacturer of blister packaging machines, has rich technology and production experience, and is a member of China Association for Pharmaceutical Equipment. Our packaging products have filled up domestic blank, passed the appraisal of  authorities, and obtained national patents, and meet the requirements of GMP. Our company was first certified to ISO9001 Quality Management System and EU CE requirements, and our products were affirmed as "China Famous Brand". Besides,


• Our company was evaluated as "National High-tech Enterprise" "National Torch Plan Project" "National Innovation Fund Project" "Province Key New Product "Zhejiang Province Quality Service Prestige AAA Grade Credit" "Wenzhou Patent Demonstration Enterprise" "Ruian City Second Prize of Science and Technology "etc. in 2009.

CE1

CE2

ISO9001
