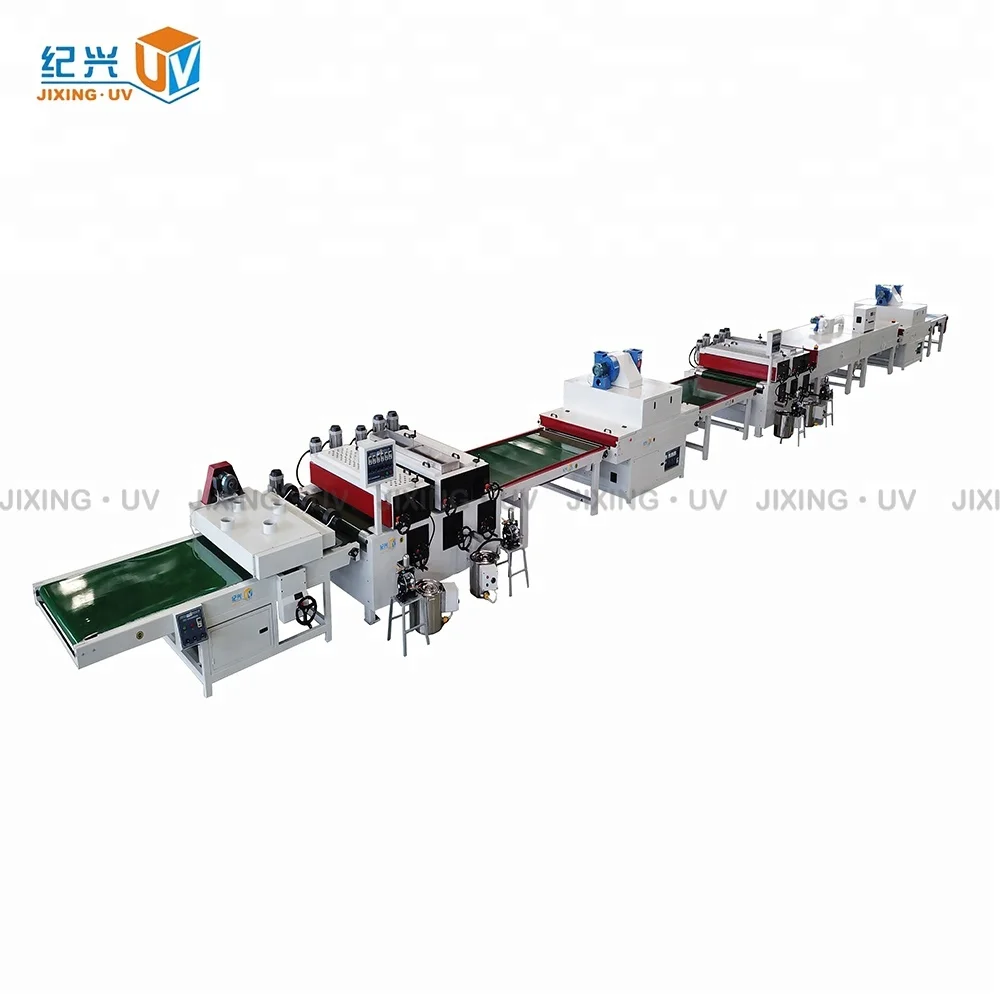

Furniture/Plywood/Wood UV Coating Line
①Lengthening Deduster → ②Putty Filling Machine → ③Conveyor → ④Double Lamps UV Curing → ⑤Conveyor → ⑥Posltive and Inverse Rolling → ⑦Heating Leveling → ⑧Three Lamps UV curing → ⑨Conveyor
\t

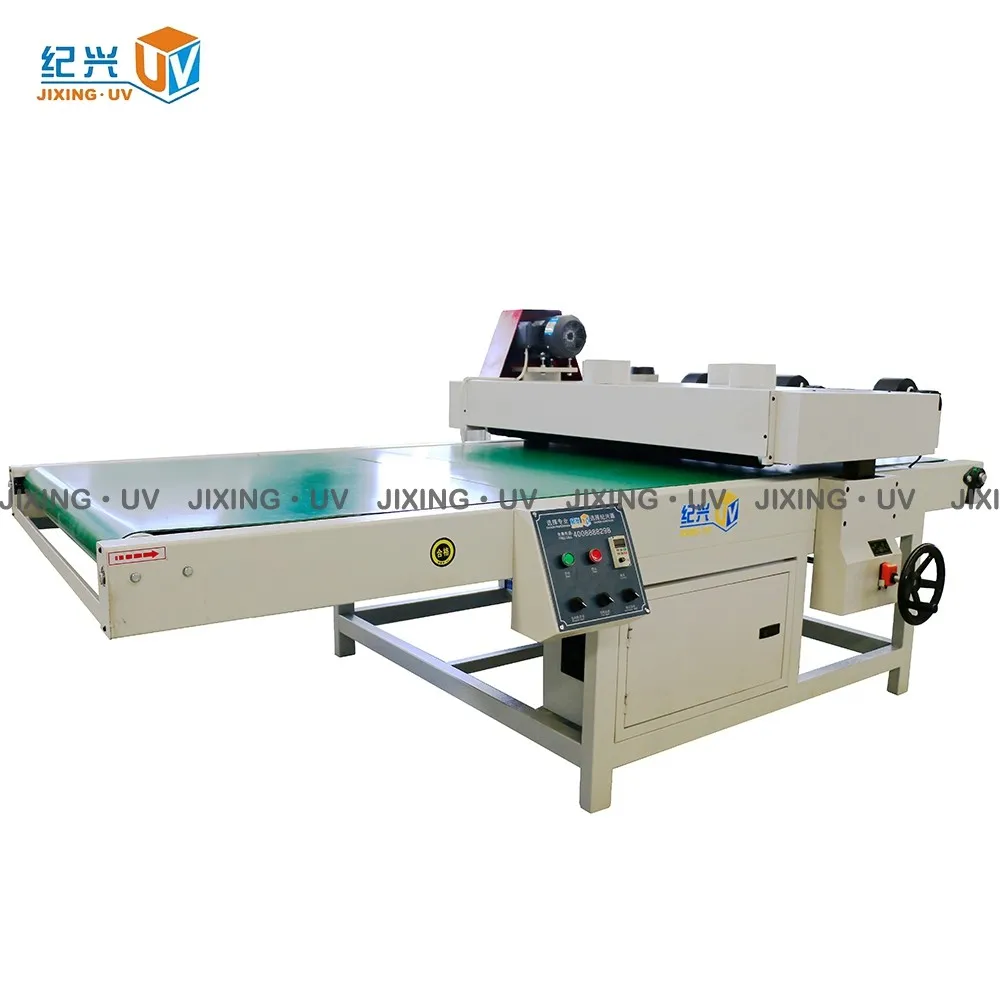

① Lengthening Deduster JXDC-C-1300
\t
Working Width
\t
1300mm
\t
Convey Speed
\t
5~15 m/min
\t
Brush Roll Type
\t
Nylon and Sisal Brush
\t
Brush Roll Size
\t
Length 1340 * 180mm
\t
Fan Power
\t
0.2 kw * 3 pcs
\t
Vacuuming Tuyere
\t
φ 150 mm * 4 pcs
\t
Machine Size
\t
3000×2000×1400 mm
\t
② Putty Filling Machine
\t
Working Width
\t
1300 mm
\t
Convey Speed
\t
5~15 m/min
\t
Coating Roll (PU)
\t
1450 * φ 240 mm (1.5kw * 2 pcs)
\t
Putty Roll (chromeplate)
\t
1450 * φ 240 mm (1.5kw)
\t
Doctor Roll
\t
1450 * φ 150 mm (0.75kw * 2 pcs)
\t
Machine Size
\t
2100×2370×1730 mm
\t

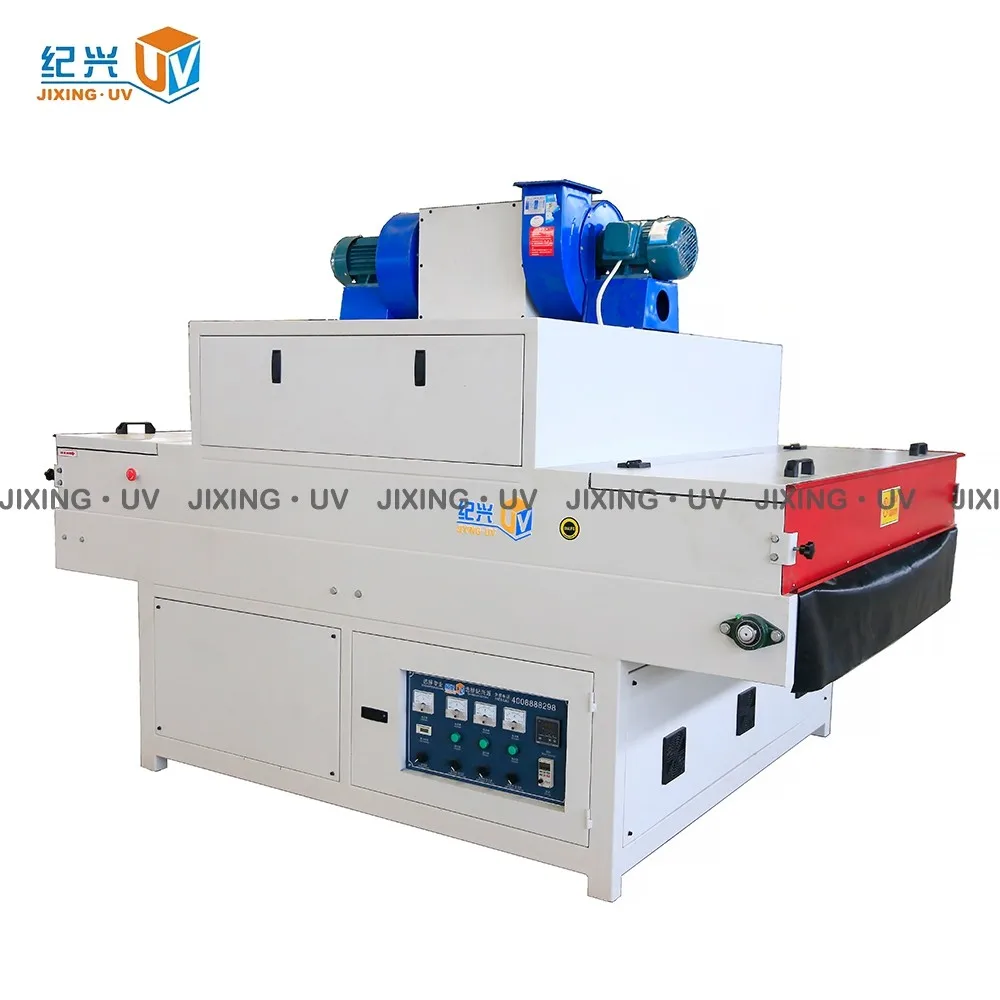

④ Double Lamps UV Curing
⑧ Three Lamps UV Curing
\t
Working Width
\t
1300 mm
\t
Convey Speed
\t
5~15 m/min (frequency control )
\t
Convey Type
\t
Roller type chain transmission
\t
UV Lamp
\t
Osram Lamp ( over 800H working)
\t
Fan
\t
POPULA Fan
\t
Transducer
\t
Delta
\t

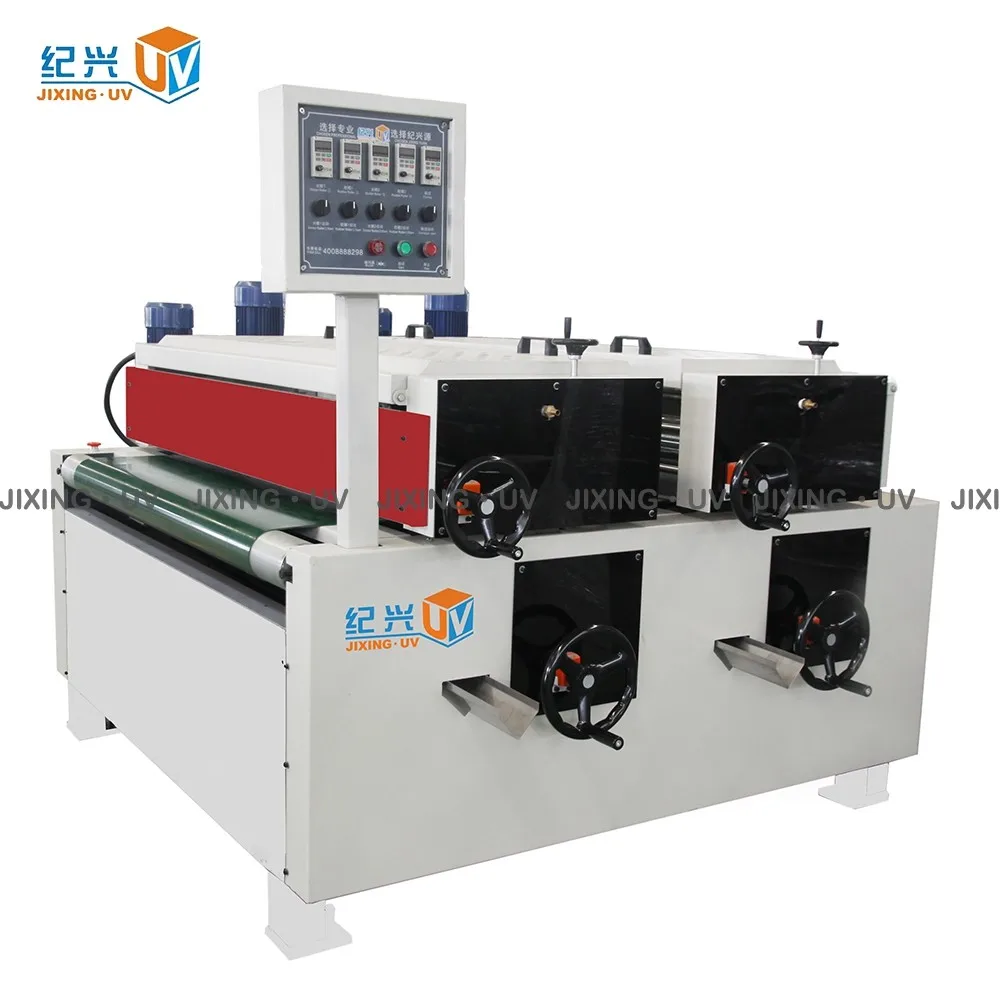

⑥ Posltive and Inverse Rolling
\t
Working Width
\t
1300 mm
\t
Convey Speed
\t
5~15 m/min
\t
Coating Roll (PU)
\t
1450 * φ 240 mm (1.5kw * 2 pcs)
\t
Doctor Roll
\t
1450 * φ 150 mm (0.75kw * 2 pcs)
\t
Machine Size
\t
1800*2370*1730 mm
\t
⑦ Heating Leveling JXIR-1300
\t
Working Width
\t
1300 mm
\t
Convey Speed
\t
5~15 m/min
\t
Heat Tube Power
\t
12 kw
\t
Feeding Height
\t
100 mm
\t
Machine Size
\t
5000×1570×1070 mm
\t

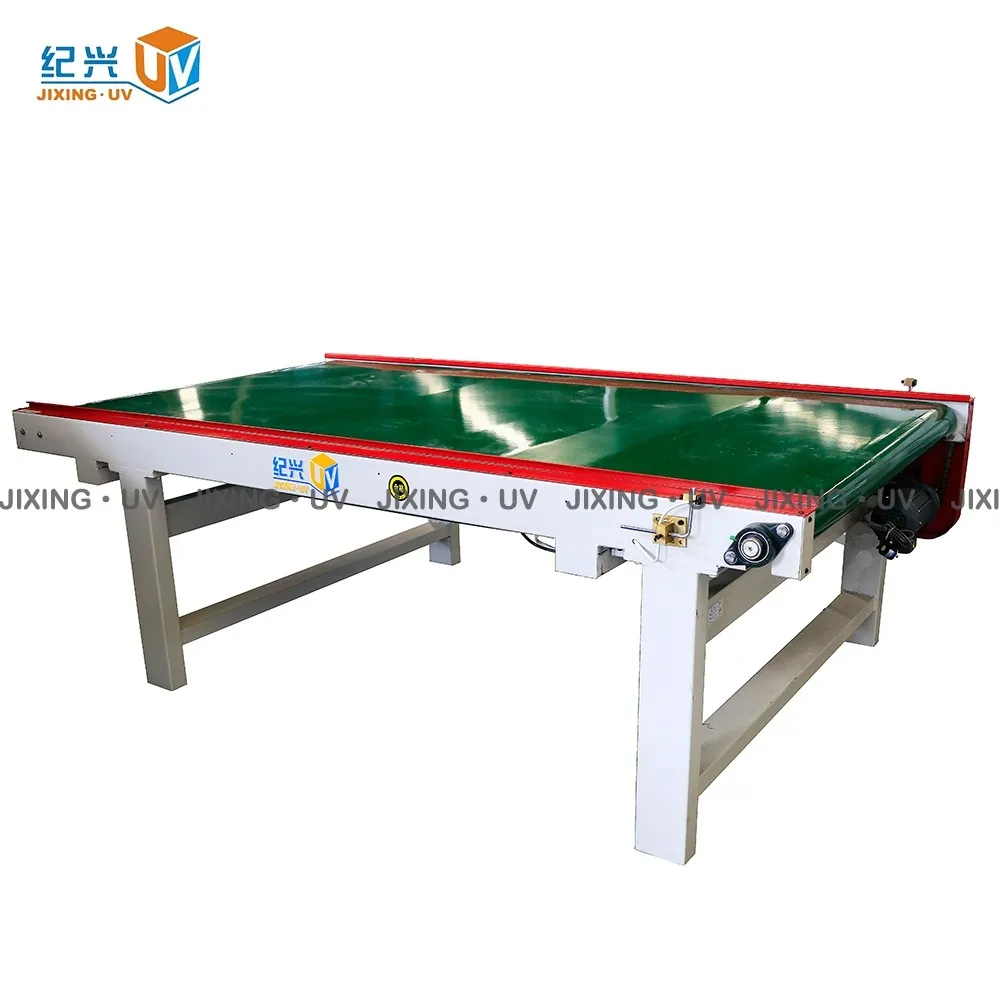

③/⑤/⑨ Conveyor
\t
Working Width
\t
1300 mm
\t
Convey Speed
\t
5~15 m/min
\t
Convey Power
\t
0.4 kw
\t
Machine Size
\t
2500×1550×875 mm
This UV Paint Coating Machine Line is suitable for plate-type furniture, solid wood doors, cabinet doors, handicrafts, decorative plates and other plate-type workpieces. Suitable for large-volume continuous roll coating products. UV coating can be online drying, processing speed. The coating effect is stable.
Effect of Coating

This machine is suitable for all kinds of paint, such as UV, PU, NC and waterborne coatings. The remained paint can be recycled and make no-waste.

Application

This machine is suitable for all kinds of flat products, such as board, calcium silicate board, metal, ceramic, plastic, glass etc surface paint or coating on the surface of the coating, improve working efficiency. Paint through recycling, filtration, saving coatings, surface with uniform coating.
