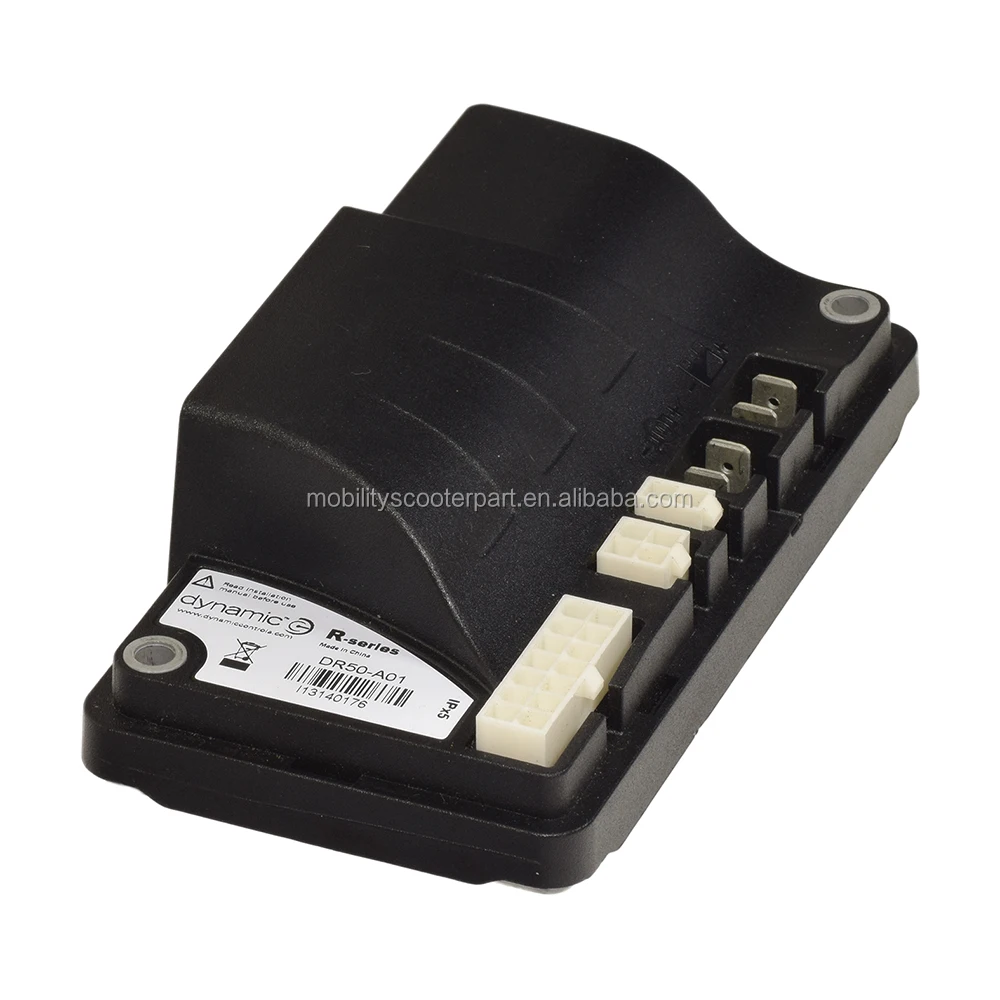

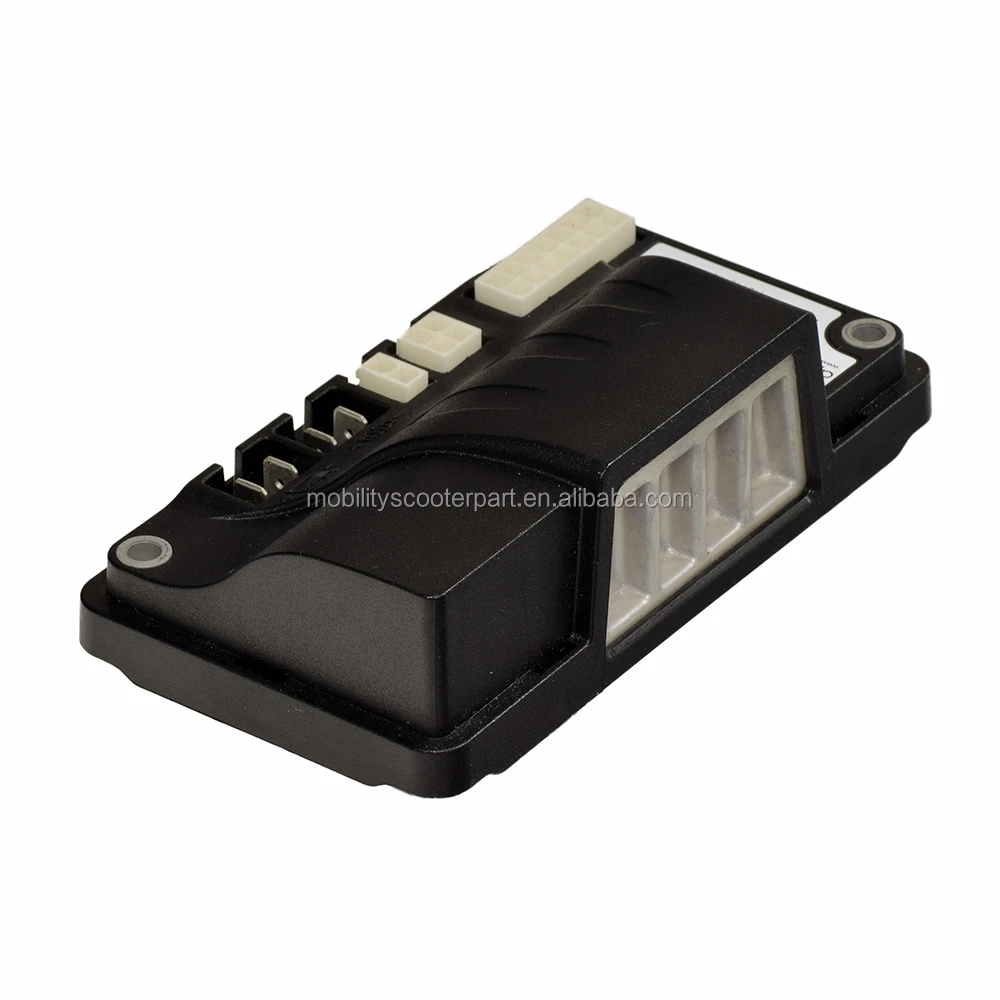

DR50 Dynamic Controller R Series 50A for Golden Electric Mobility Scooter handicapped scooter Controller

Product Overview

Description

• Supply voltage, Brake voltage: 24V DC


• Operating voltage: 18~32V DC


• Peak current: 40 Amps


• Boost current: 10 Amps


• Boost duration: 5-10 seconds


• Charging current: 8 Amps RMS


• Material: Die-cast aluminum base with plastic cover (UL94 V-0 rating)


• Protection Rating: IPX5


• Operating Temperature: -25°C~50°C


• Dimensions: 131.5 x 72.5 x 40 (mm)


• Weight: 260g


• Please contact us for the product availability & the latest price.

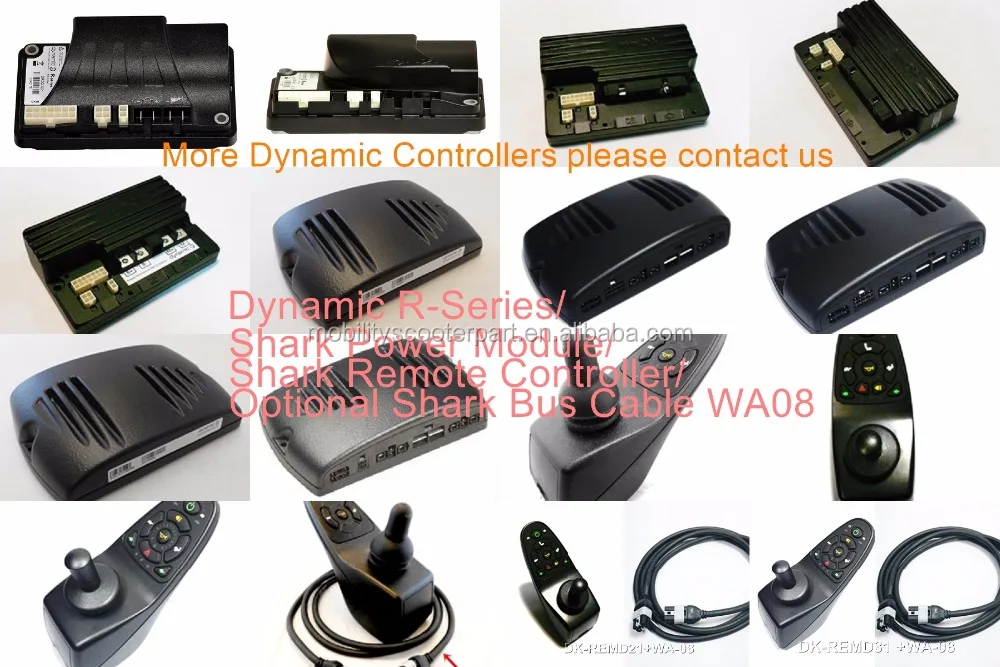

• We have DR90 controllers available. (Sample below)
