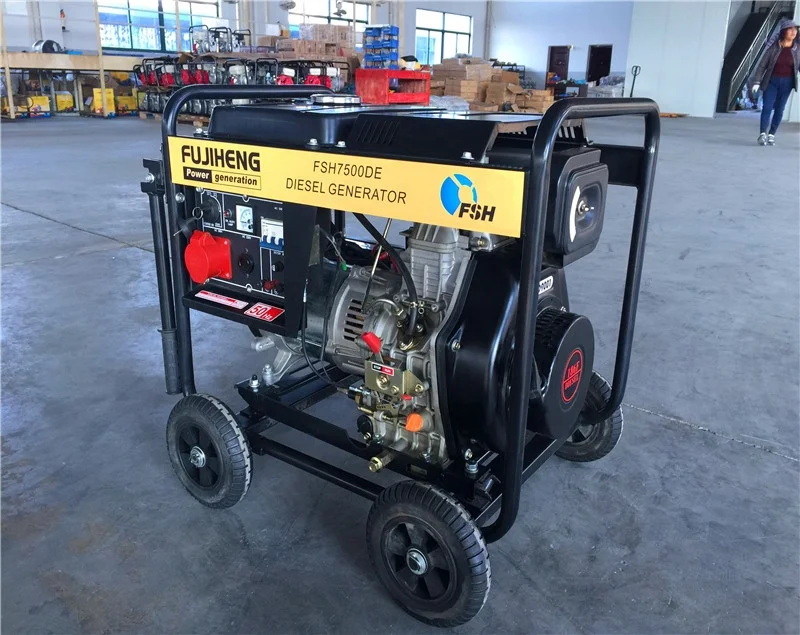

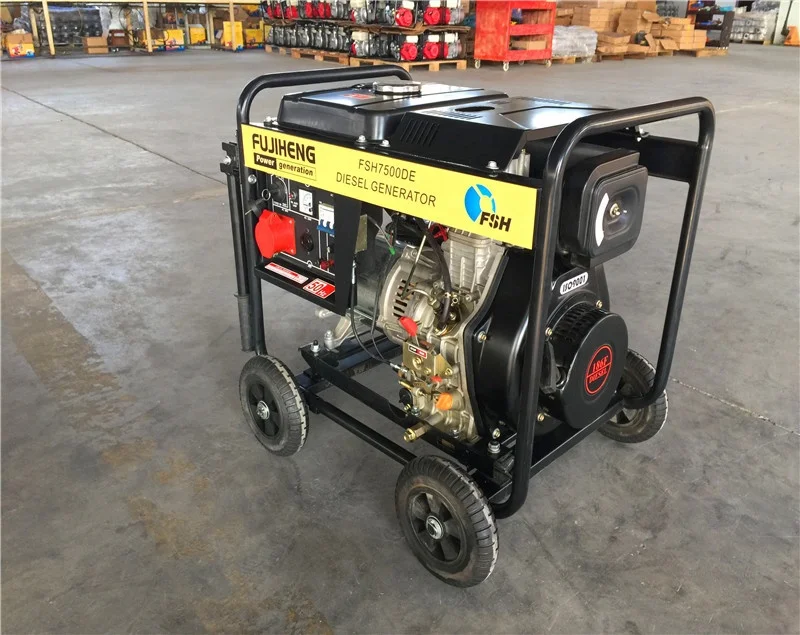

diesel portable Open frame type air cooled,10kw diesel generator manufacturer, engine, OEM

Product Overview

Description

1.mini diesel generator
2.kama diesel generator
3.home diesel generator
4.open-frame type
5.2.0KVA to 5.5KVA

6.kama diesel engine

7.OEM

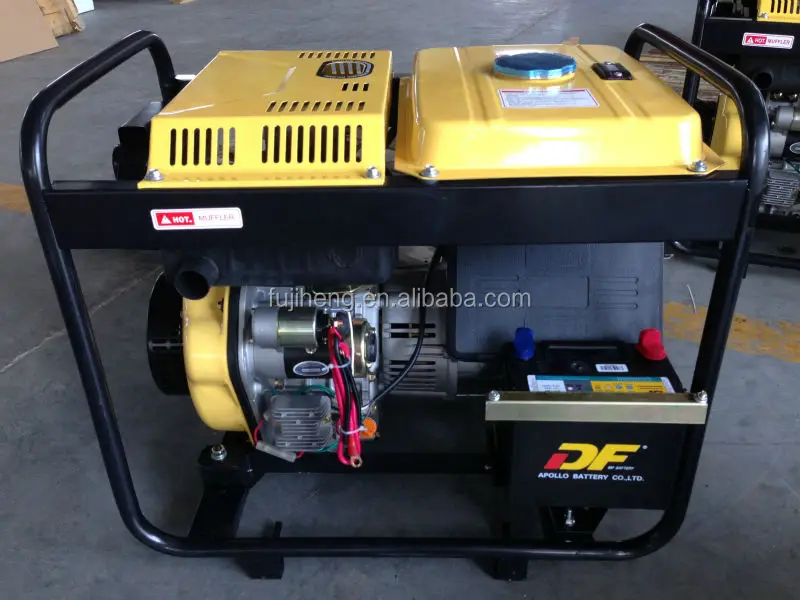

Kama open-frame small generator is mainly uesd in home&garden,indoor&outdoor,and small construction project,power when you need.





Features:



1. Easy to operate and high safty,Electric start large fuel tank with 9.5 hours continuous



2.Precise Machining Technique,Automatic shutdown for low oil pressure



3. Long Life of the Machine



4.Delicate and Beautiful Appearance Design



5. Broader Applicable Scope



6.Good quality and less malfunction



7.Four-stroke diesel internal combustion engine



8.Advanced direct fuel injection system



9.Automatic voltage stabilizer



10.Light weight construction



11.One year warranty





Specifications:







Model	KAMA2000D	KAMA 4000D	KAMA 5000D	KAMA 6500D
Frequency(HZ)	50/60	50/60	50/60	50/60
Rated voltage(V)	110,120,220,230,240   220/380
Rated output KVA	1.8/2.0	2.8/3.0	4.2/4.6	4.6/5.0
Max output KVA	2.0/2.2	3.0/3.3	4.6/5.0	5.0/5.5
DC output	12V-8.3A	12V-8.3A	12V-8.3A	12V-8.3A
Power factor	1.0/0.8(Three phase)
Noise level(7m)db(A)	77	77	77	77
Engine model	FSH170F	FSH178F	FSH186F	FSH186FA
Type	single cylinder,vertical,4-stroke,air-cooled
Bore*stroke(mm)	70*55	78*62	86*70	86*72
Displacment(L)	0.211	0.296	0.406	0.418
Combstion system	Direct Injection
Rated output KW(HP)/rpm	2.5(3.4)/3000  2.98(4.0)/3600	3.8(5.1)/3000 4.4(5.9)/3600	5.7(7.75)/3000 6.6(8.85)/3600	5.7(7.75)/3000 6.6(8.85)/3600
Max output KW(HP)/rpm	2.8(3.8)/3000 3.36(4.5)/3600	4.0(5.36)/3000 4.9(6.6)/3600	6.3(8.57)/3000 7.34(9.85)/3600	6.3(8.57)/3000 7.34(9.85)/3600
Direction of rotation	Countercolockwise,facing PTO shaft
Fuel	0#(summer)/-10#(winder)
Fule tank capacity(L)	12.5	12.5	12.5	12.5
Lubricating oil capacity(L)	0.75	1.1	1.65	1.65
Continuous running time(h)	14/12	9/8	6.5/5.5	6.0/5.0
Lubricating system	Pressure splashed
starting system	Recoil starter/Electric start
Packing size(L*W*H)mm	650*490*570	650*490*570	725*495*620
20FT unit	132	132	96	96
Net weight(KG)	58	74	95	98
