Product Overview
Description

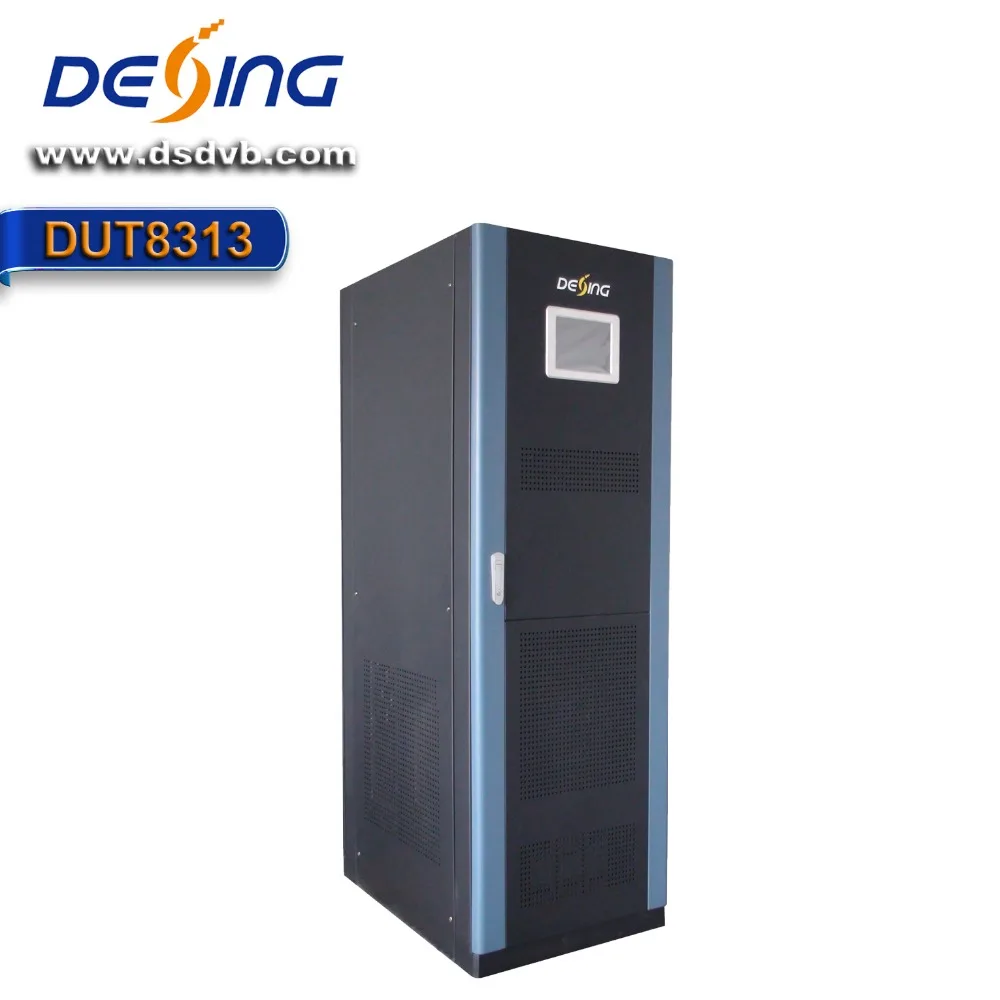

DUT-8313 (800W-1200W) DVB-T/(T) Digital Transmitter
1.1 Outline
DUT-8313 is a professional DVB-T/(T) digital transmitter with 800W/1000W/1200W power optioanal. Its compact structure design has greatly saved space for your room.
The frequency range of DUT-8313 is from 470MHz~806MHz. This transmitter has a high linear and high reliability as it takes high gain and high linear LDMOS tube amplifier module. Furthermore, it supports AGC function to keep sustained power output.
Dexin is always ready to meet customer requirements by making it available to output signal carrier or multi carrier, adapt to signal channel and broadband transmission..
1.2 Key Feature
- telligent and modularized amplifier unit, takes high power gain and high linear LDMOS tube amplifier module design
- Low power consumption and super linear design to improve the transmission power, and reduce the nonlinear distortion
- Support AGC function with sustained power output to allow the transmitter a good stability and reliability
- Support MFN and SFN system
- Support fault diagnosis function
- Full digital front panel control, easy operation.
- LED on the door supporting alarm and signal monitor
- Stabilized-power supply with wide range of voltage and high efficiency
- Cooling system with low consumption and low noise
- Multi lightning protection measures, good protection for whole equipment.
- 24-hour working unmanned, user friendly design
- Easy to install, elegant appearance
1.3 Technical Specifications
Input | System standard | DVB-T/(T) |
frequency | 470MHz~806MHz | |
Input Level | -20 dBm±3dB (87dbuv ±3dB) | |
Input reflection loss | ≥15dB | |
Input Interface | ‘N’ | |
Output | RF output power | 800W/1000W/1200W optional |
Output frequency | 470MHz~806MHz (For Single Channel: Every 8M available; For Broadband Channel: consecutive 60M available) | |
Output impedance | 50Ω | |
frequency response | ±0.75dB | |
Shoulder level | ≥36dB@central freqnencyIF±4.2MHz | |
output reflection loss | ≥20dB | |
variation of output power | ±0.25dB | |
In-band stray | ≤-60dBc | |
Out-of-band suppression | ≥65dBc | |
Output interface | 1-5/8 | |
General Parameters | Working temperature | -20~+50℃ |
Storage temperature | -30~+75℃ | |
Relatively humidity | <95% (25℃ no condensation) | |
Cooling mode | inside cooling fan | |
atm press | 86~106kPa | |
power supply | AC, 220V±10%/50Hz | |
Machine room requirement | less dust, no shake | |
| Overall Efficiency | 33% |

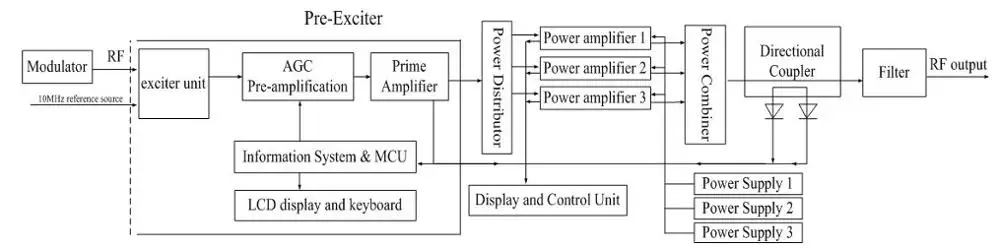

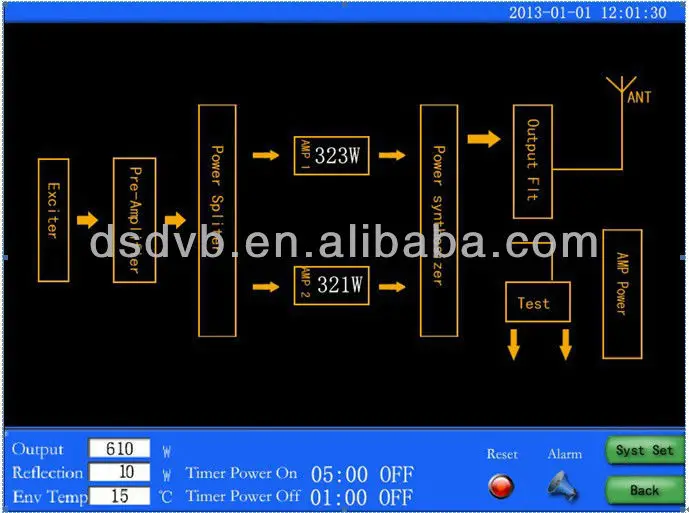

1.4 System Principle
PS: This diagram is a reference for 800W and 1000W transmitter. For 1200W transmitter, there are 4 power amplifiers and 4 power supplier included.
S/N | Component Name | Specs | Qty | Remarks | |
1 | Final Power Amplifier | 300W | 3 pcs | For 800W | |
400W | 3 pcs | For 1000W | |||
400W | 4 pcs | For 1200W | |||
2 | Pre-Exciter |
| 1 pc |
| |
3 | Monitor Unit |
| 1 pc | With LCD monitor on front door | |
4 | Power Supply for Final Amplifier |
| 3 pcs | For 800W/1000W | |
| 4 pcs | For 1200W | |||
5 | Filter |
| 1 pc | As per order. (In case multiple single-channel transmitters are involved, a power combiner is required.) | |
6 | Cabinet |
| 1 pc |
| |
7 | Cooling Fan |
| 1 set | 2 sets (with 1 set for backup) optional as order or needed | |
Accessaries | |||||
8 | Hard Feeder | Φ40, 2 meter long | 1 | These parts are standard configuration. If there are special requirement, please indicate when place order. | |
9 | Elbow |
| 3 | ||
10 | Hoop |
| 3 | ||
11 | Hose Clamp |
| 13 | ||
12 | Central Pin |
| 3 | ||
13 | Flange | Φ40 | 1 | ||

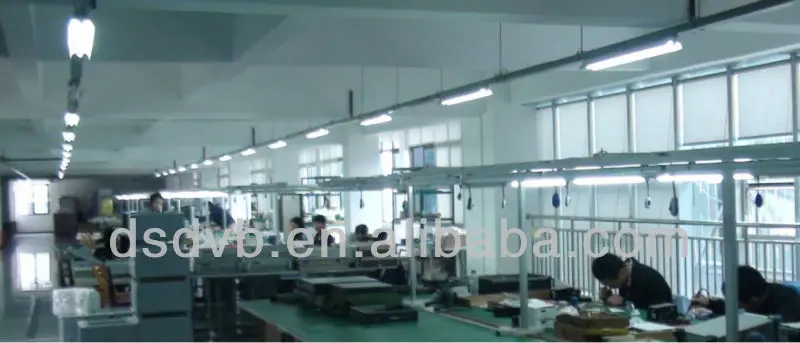

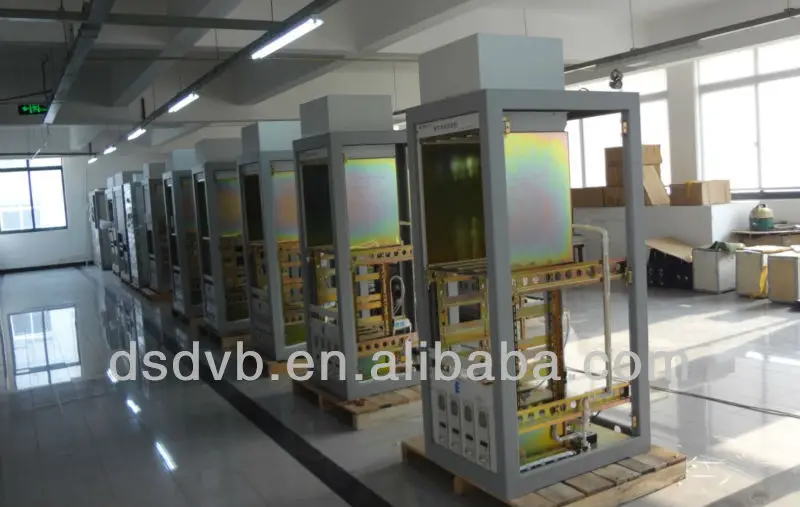

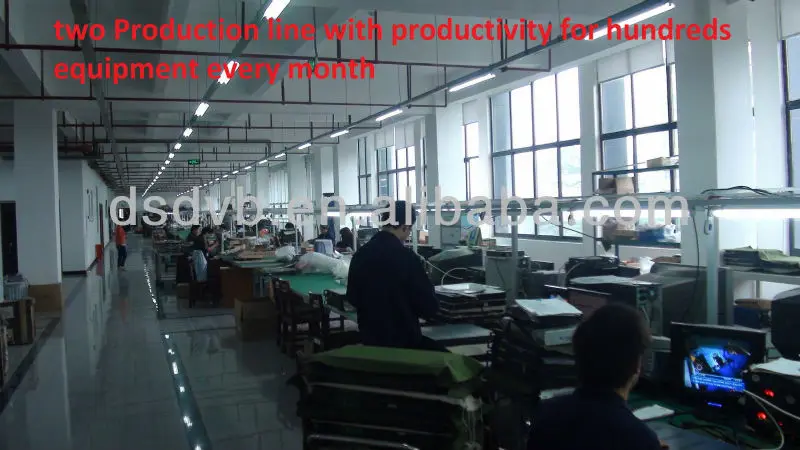

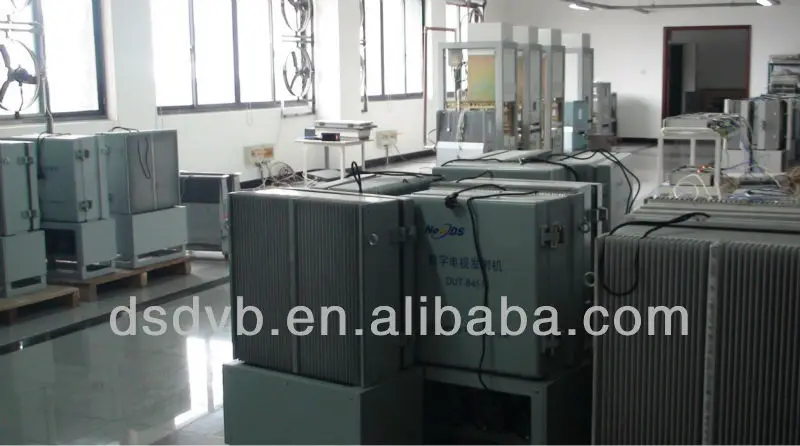

About Our Factory:
