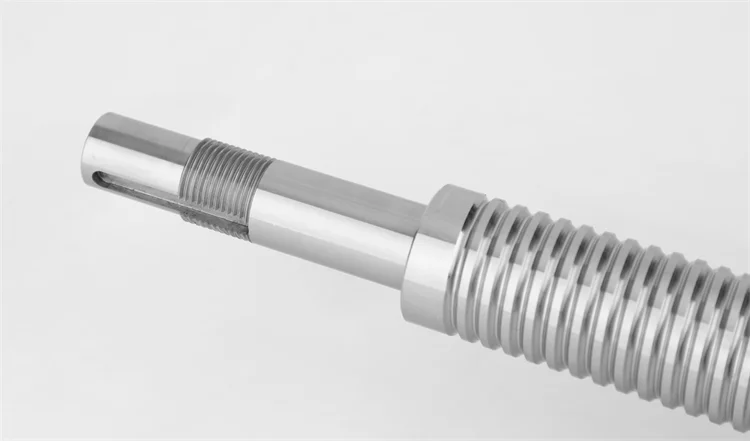

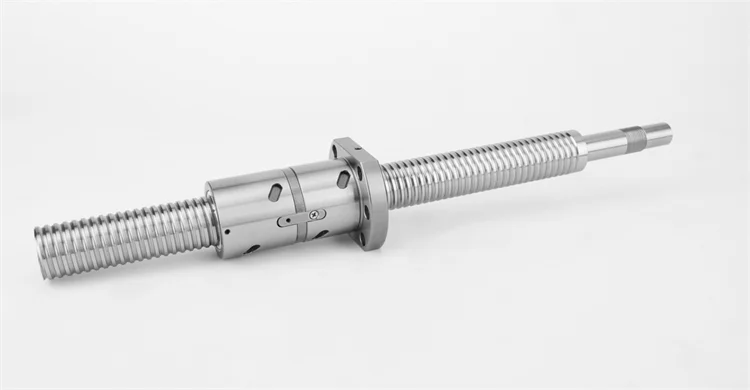

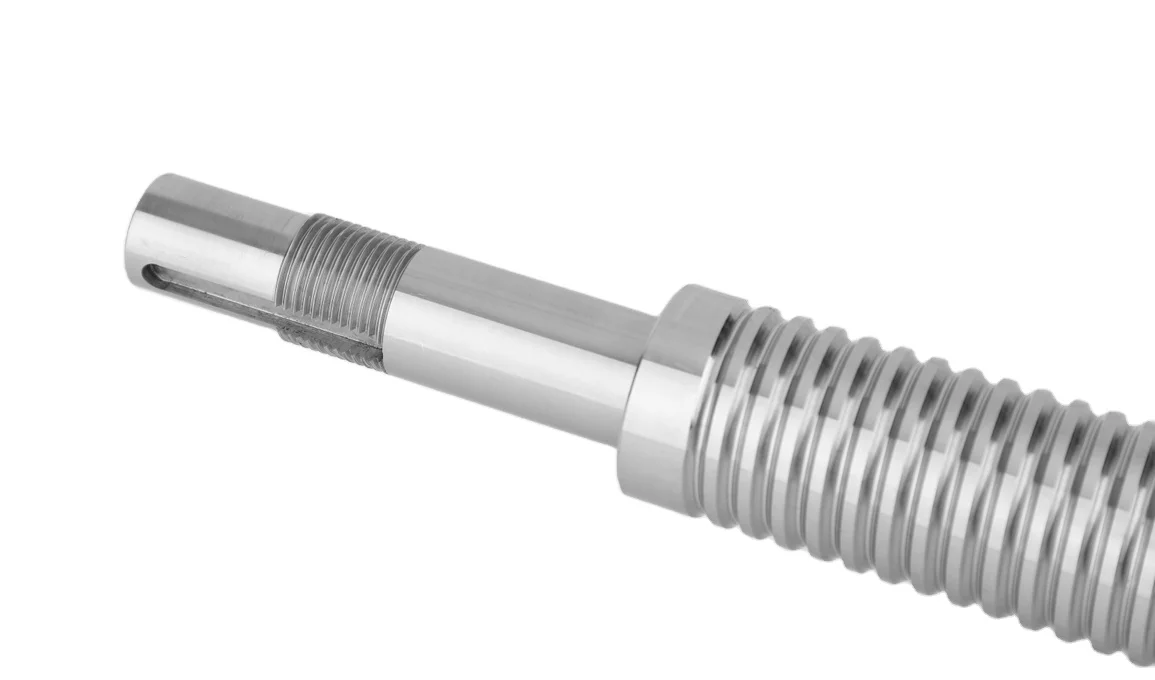

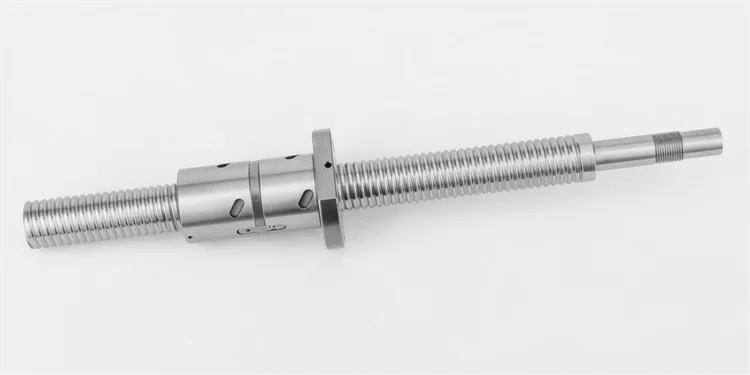

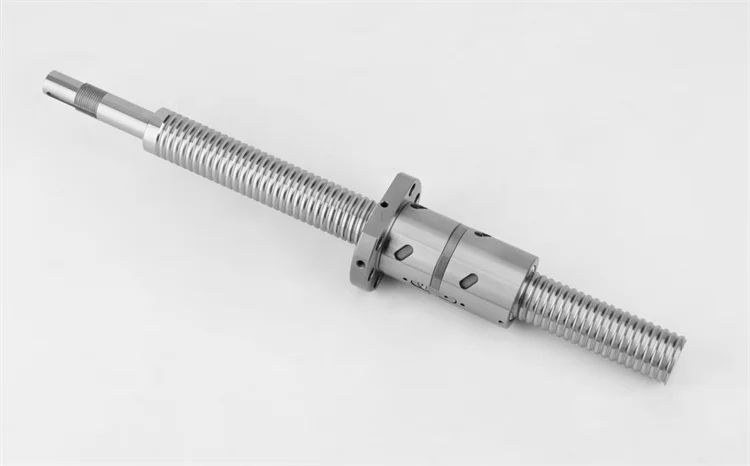

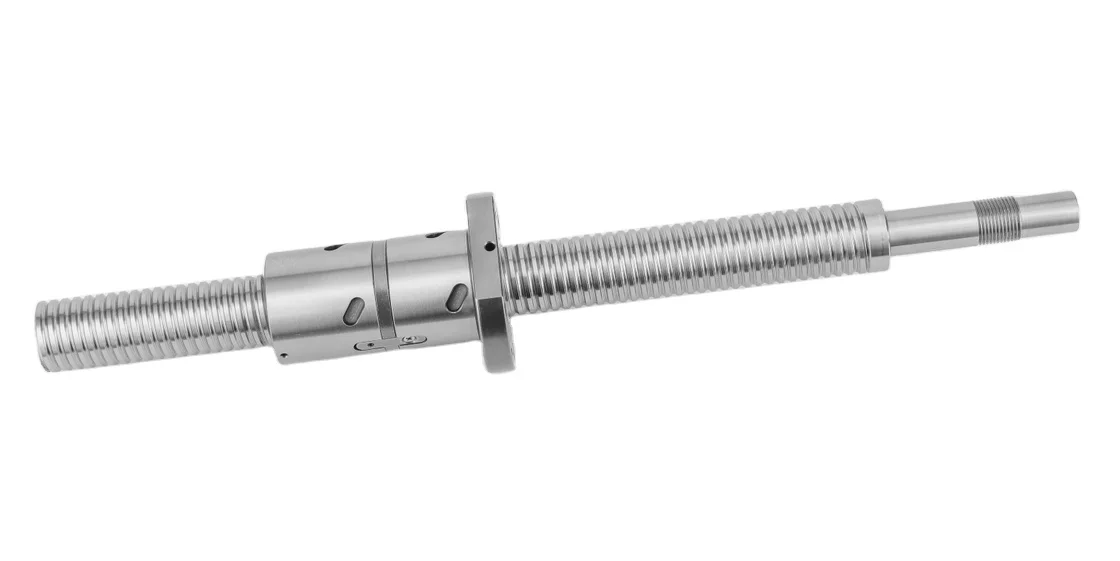

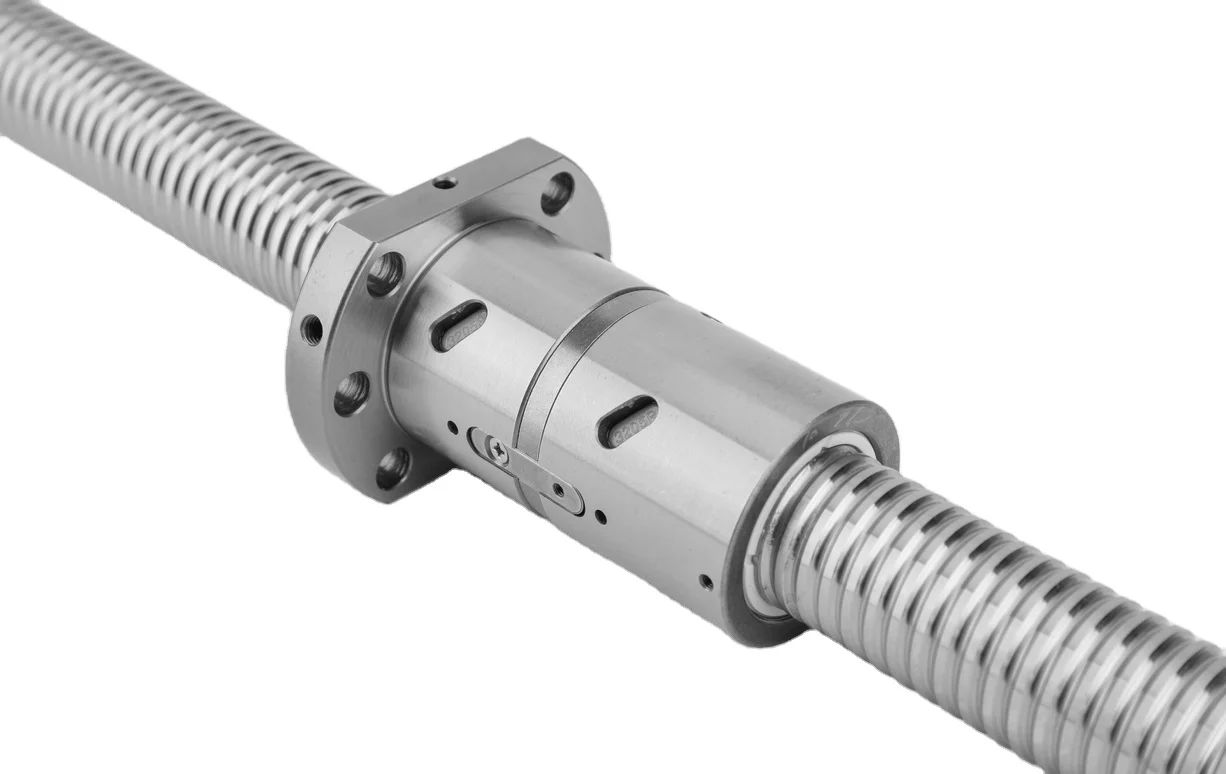

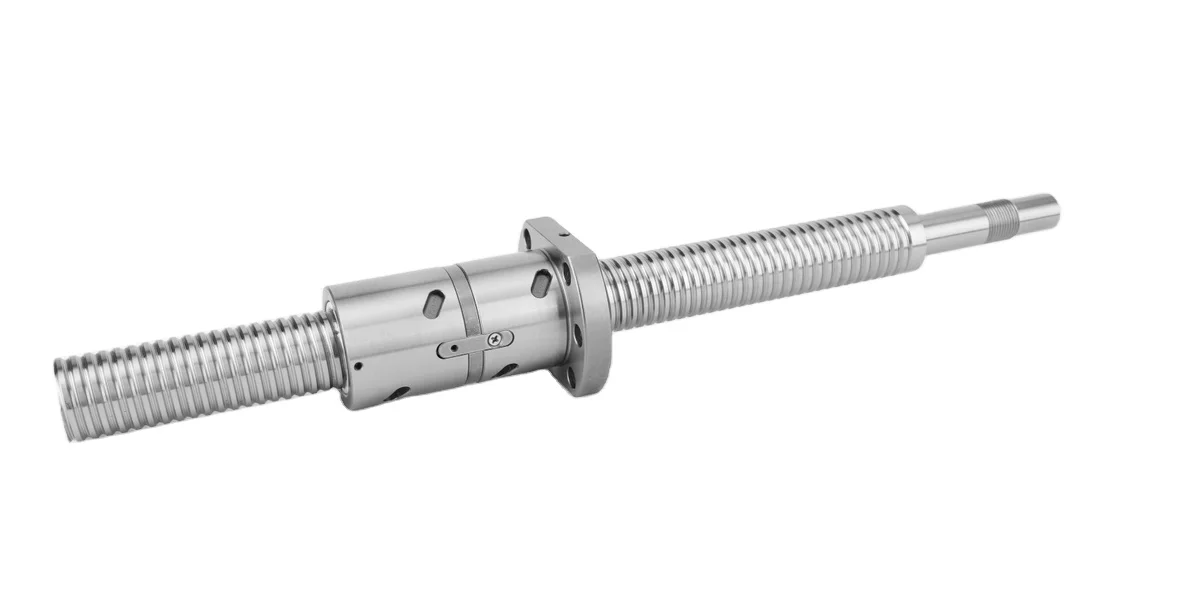

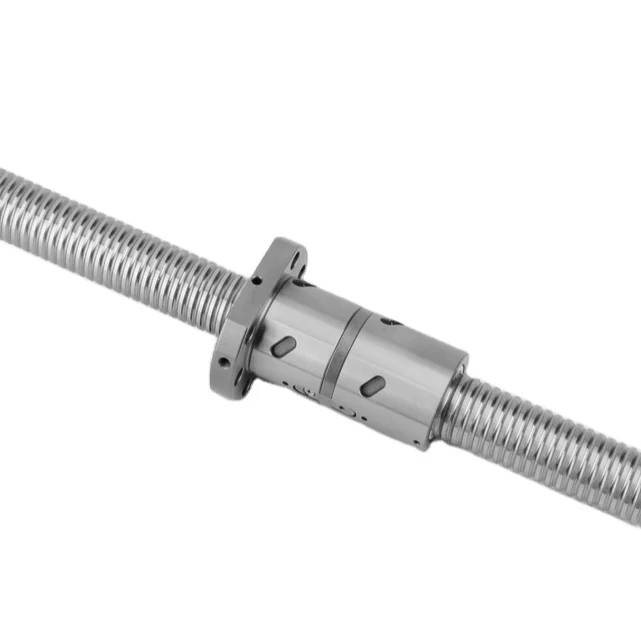

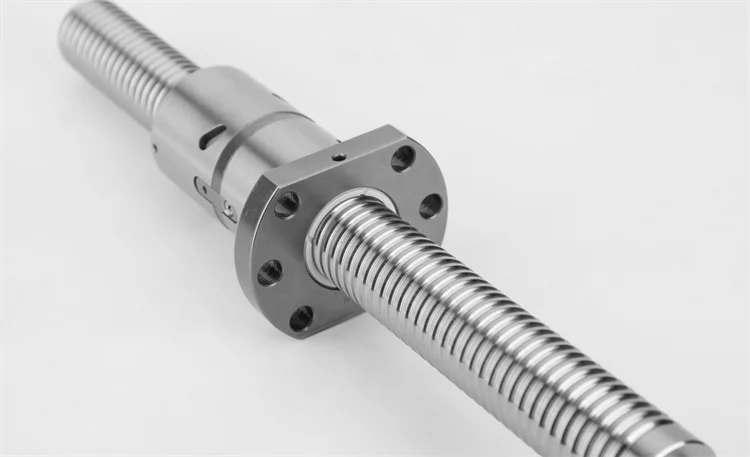

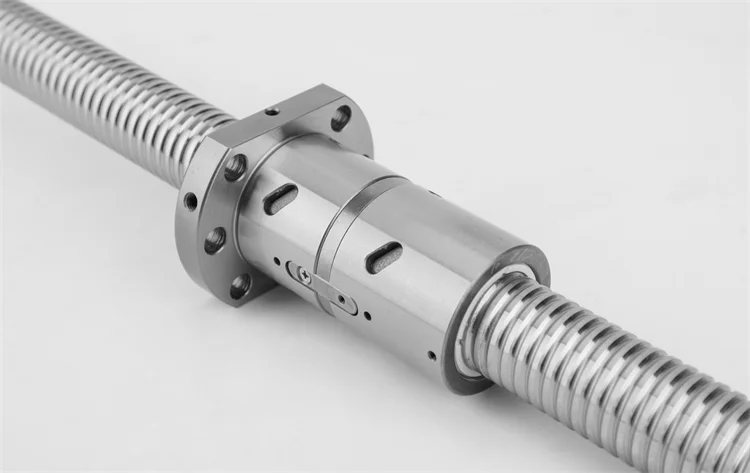

Ball screw is made of screw, nut and ball . Its function is to turn the rotary motion into linear motion, which is a further extension and development of ball screw. The significance of this development is to move into a rolling bearing from sliding action. With little friction, ball screws are widely used in various industrial equipment and precision instruments.

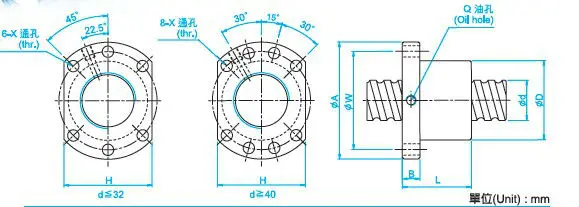

SQ ball Screw SFU2005 Specification :
Type: SFU 2005
Screw Diameter :20mm
Lead:5mm
Ball size: 3.175mm
Nut diameter: 36 mm
Thickness of flange : 10mm
Length of nut: :51mm
Width of flange: 40mm
Number of ball ring: 1×4
Dynamic load rating : 1551
Static load ratings : 3875
Rigidity : 39
Product Name
Hot sale long life SFU1610 steel screw shaft ball screw with flange nut
Brand Name
SQ
Material
GCR15
Model
SFU2005
Diameter
Can produe from 10-80 ballscrew
Service
Design service & can produce according to your drawing
Deliver Time
3-30 days after orders confirmed
Package
As small order like sample order, we will sent by the international express, like DHL,TNT,As large order, we always sent by sea, packing by wooden case.
Loading Port
Ningbo,shanghai
Payment Terms
L/C, T/T
Certifications
Company Information

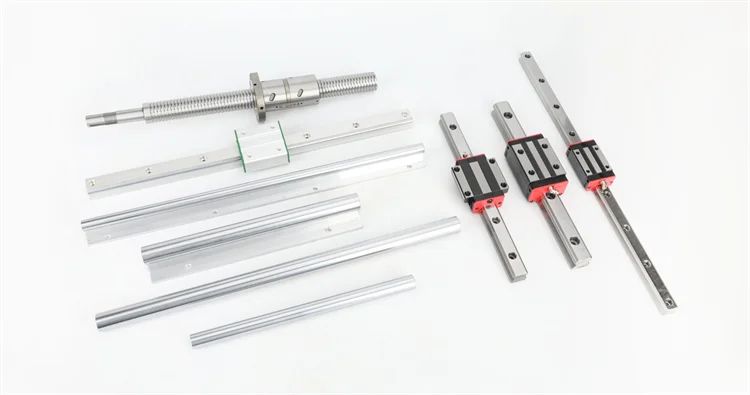

Zhejiang Siqiang Bearing Manufacturing Co, LTD is a professional bearing manufacturer which isdevoting to researching, developing, manufacturing, and marketing. with convenient transportation. It is located in Lishui, close to Hangzhou. With convenient transportation. The main products: linear motion bearings, needle bearings, linear shafts, slide units, ball screws, linear rails, rod end joint bearing spherical plain bearings series etc.
With a wide range, good quality, reasonable prices, our products are extensively used in automated production lines, printing machinery, packing machinery, medical and food machinery and other industries. the company owns independent import and export rights, the products are exported in Europe Africa, Southeast Asia and many other countries and regions. The quality of our goods is stable and reliable .and we got high evaluation from our customers.
In the long term efforts, the company owns excellent equipment, stable pro duct quality and perfect testing equipment. SO company take: Quality first, Client first. Our products are widely recognized andtrusted by users and can meet continuous ly developing economic and social needs. SQ Welcomecustomers from in and abroad to contact us.
Packaging & Shipping
1.Sales packaging: plastic bag+single/color box
2.Transport packaging: in carton(370mm*165mm*250mm/320mm*245mm*320mm), pallet or according to your requirement
3.The shipping way: sea transportation, air transportation.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
