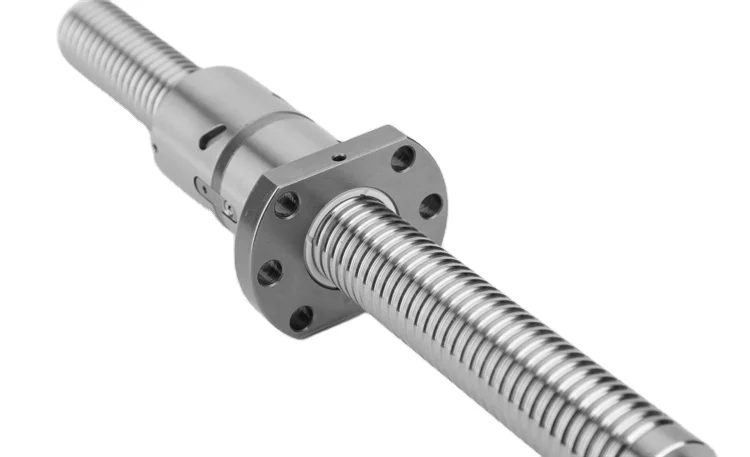

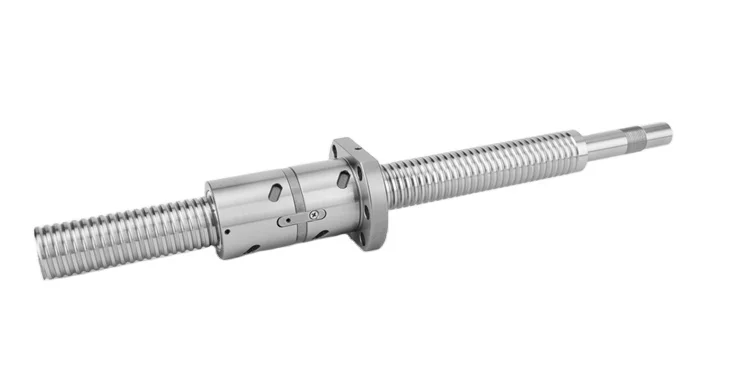

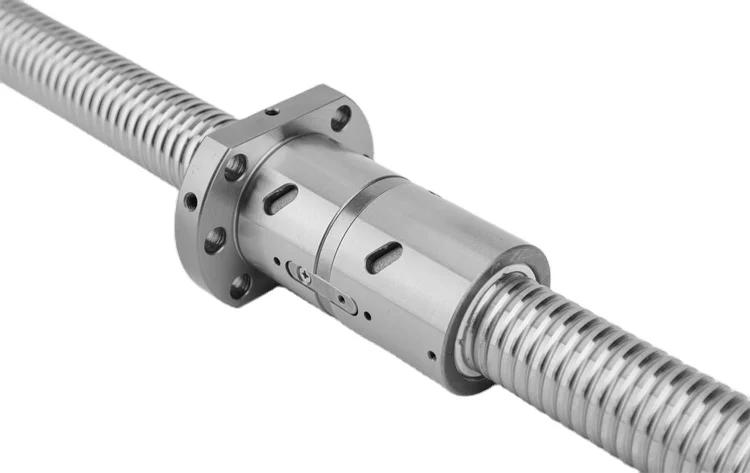

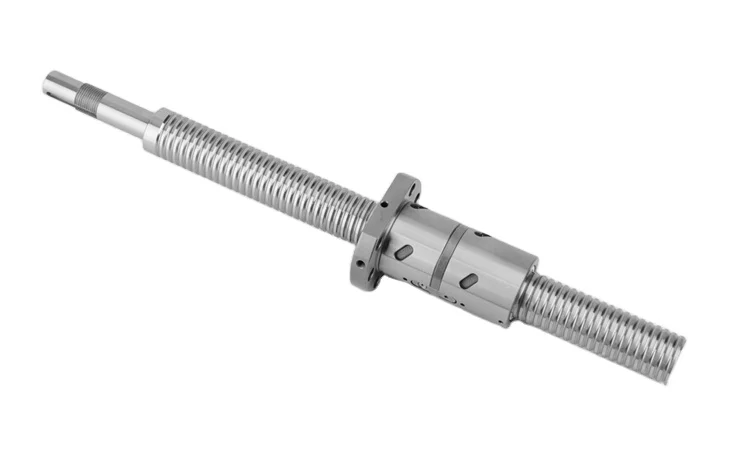

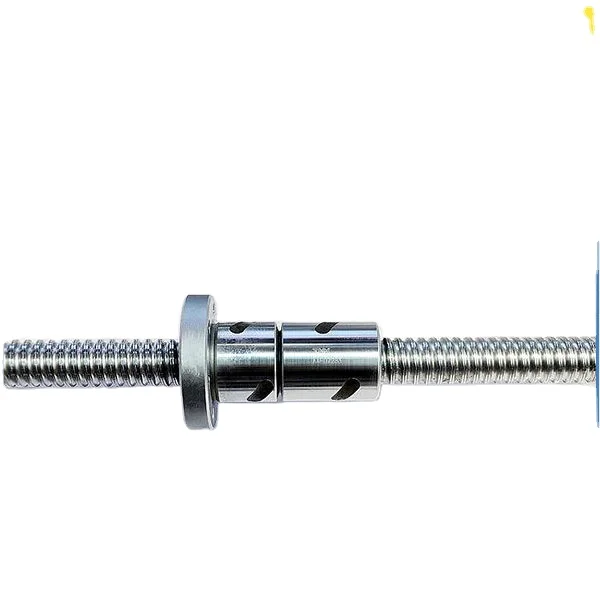

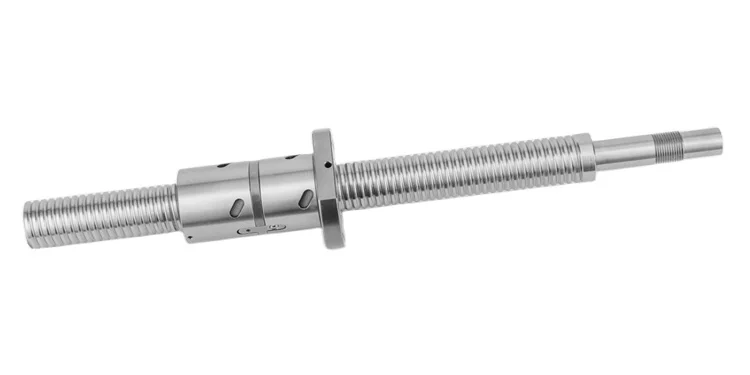

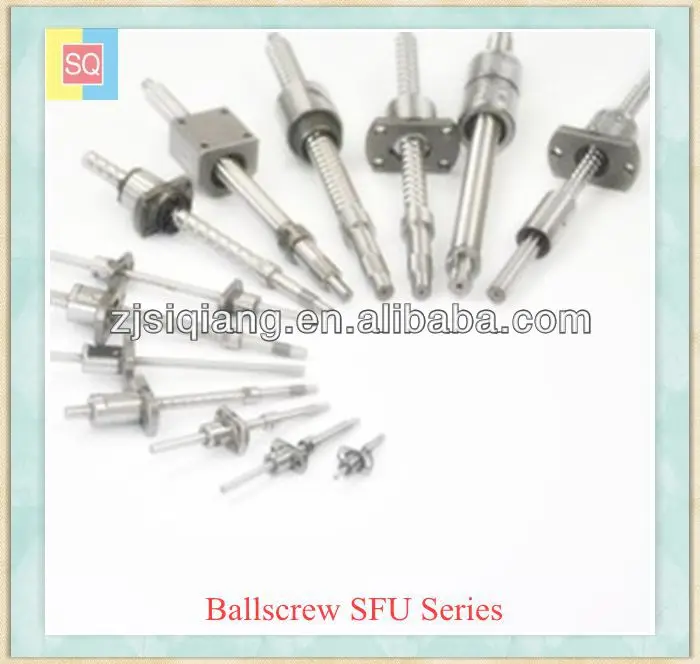

SQ bearing manufacture rolled lead screw//ball screw SFU 6320
- Category: >>>
- Supplier: Zhejiang Siqiang Bearing Manufacture Co. Ltd.
Share on (958315620):
Product Overview
Description
Product Description
| Product name | Rolled ball screw // ballscrew SFU Series |
| Brand name | SQ |
| Material | GCR15 |
| Model | SFU 6320 |
| Diameter | can produe from 10-80 ballscrew |
Service | design service & can produce according to your drawing |
| Deliver time | 3-30 days after orders confirmed |
| package | As small order like sample order, we will sent by the international express, like DHL,TNT,As large order, we always sent by sea, packing by wooden case. |
| loading port | Ningbo,shanghai |
| payment terms | L/C, T/T, paypal |
SQ ball Screw SFU 6320 Specification :
| Type | SFU6320 |
| Screw Diameter | 63mm |
| Lead | 20mm |
| Ball size | 9.525 mm |
| Nut diameter | 95 mm |
| diameter of flange | 135 mm |
| Thickness of flange | 20mm |
| Length of the nut | 149 mm |
| Width of flange | 100 mm |
| Number of ball ring | 1×4 |
| Dynamic load rating | 11444 |
| Static load ratings | 36653 |
| Rigidity | 112 |
SQ Ballscrew features :
1) with high rigidity , four direction etc load design
2) Sliding smothly and low noise
3) With automatic self-aligning capability
4) Can exchange toTBI ballscrew
Certifications
Company Information
Zhejiang Siqiang Bearing Manufacturing Co, LTD is a professional bearing manufacturer which is devoting to researching, developing, manufacturing, and marketing. with convenient transportation. It is located in Lishui, close to Hangzhou. With convenient transportation. The main products: linear motion bearings, needle bearings, linear shafts, slide units, ball screws, linear rails, rod end joint bearing spherical plain bearings series etc.
With a wide range, good quality, reasonable prices, our products are extensively used in automated production lines, printing machinery, packing machinery, medical and food machinery and other industries. the company owns independent import and export rights, the products are exported in Europe Africa, Southeast Asia and many other countries and regions. The quality of our goods is stable and reliable .and we got high evaluation from our customers.
In the long term efforts, the company owns excellent equipment, stable pro duct quality and perfect testing equipment. SO company take: Quality first, Client first. Our products are widely recognized and trusted by users and can meet continuous ly developing economic and social needs. SQ Welcome customers from in and abroad to contact us.
Packaging & Shipping
1.Sales packaging: plastic bag+single/color box
2.Transport packaging: in carton(370mm*165mm*250mm/320mm*245mm*320mm), pallet or according to your requirement
3.The shipping way: sea transportation, air transportation.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Contact us
Any question or interest, pls contact us directly.
