P10 RGB 10000 dot Advertising LED Displays for Financial Trade Center

Product Overview

Description

Outdoor full color LED video screen for use in advertisements&construction media.



Features of our LED display:

•Color correction , color stabilization;
• High brightness and definition, energy-saving, environment friendly;
•16-bit processing generates 281 trillion colors for true color reproduction;
•4,000:1 contrast ratio tempers screen brightness into sharp, focused images whether up

close or far away;
•7,000NIT guarantees the screen stays brighter, providing 100,000 hours of continuous use.
•The display adopts high refresh rate, no highlights, perfectly meet the requirements of

video image;
•Redundant power system maintains power in the event of tile failure;
• Intelligent diagnostic features allowing remote monitoring via the web;
•Easy operation and control, simple installation and maintainence.



Full color Outdoor LED display with 10mm Pixel Pitch:

No.	Item	Parameter
1	LED Color configuration	1R1G1B
2	LED Pixel Size	DIP346
3	LED Pixel Pitch	10mm
4	LED Core Wavelength	R:620~630mm, G:520~530nm, B:465~475nm
5	Module Resolution	64*64

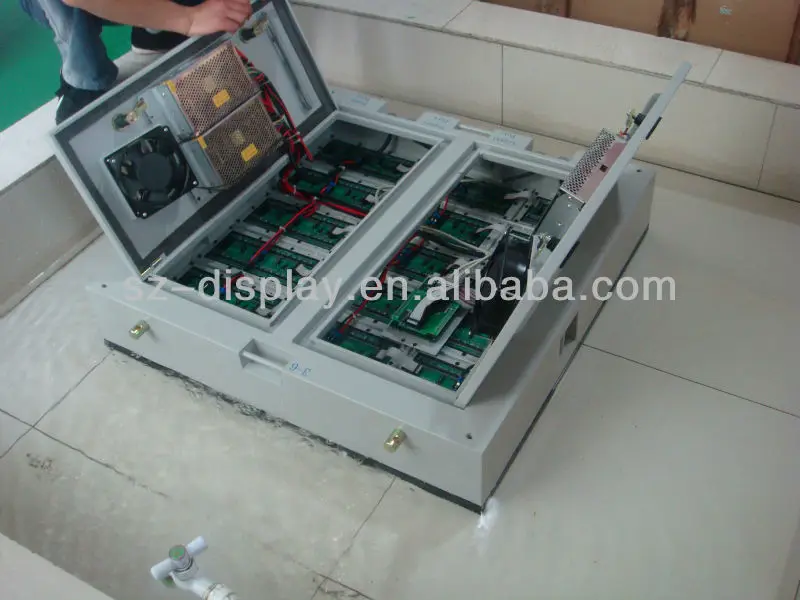

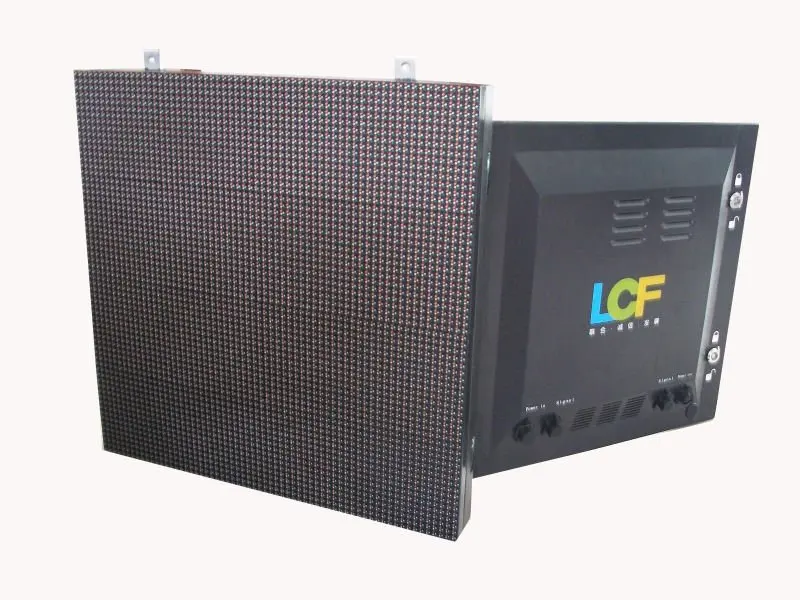

6	Cabinet Size	640mm*640mm
7	Installation	Lifting & Stand
8	Pixel Density	4096/panel
9	Brightness	>7,500nit,@white screen
10	Gray Level	65536
11	Vision Correction Way	Nonlinearity  γ Correction
12	Screen Contrast	>1000:1,@500lux vertical illuminance
13	Drive Mode	1/4 scan,Constant Current
14	Clock Frequency Scanning Rate	>10MHZ
15	Refresh Rate	>600HZ
16	Viewing Angle	X>120°,Y>60°
17	Best Viewing Distance	10~300m
18	Brightness Uniformity	>97%
19	Brightness Adjust Level	64
20	Brightness Adjust Mode	Chip Current Program-Controlled/PWM
21	Main Control Device	Industrial Control Level IBM Compatible Systems
22	Video Interface	DVI/HDMI
23	Computer System	WinXp/Vista/Win7
24	Communication Interface	1000M Ethernet/Optical Fiber,EIA/TIA-T568B
25	MVP Multimedia Video Processor	Support
26	Information Showing Type	All Kinds Of Media Formats
27	Pixel Control Mode	Synchronous
28	Power Parameters	AC 110~220V ±10%,50~60Hz,Singlephase
29	Power Density	Max 800W/m2,Ave.320W/m2
30	MTBF	>5,000h
31	Life Span	>50,000h
32	Dead Pixel Rate	<200ppm
33	Application Environment Temperature,Humidity	0°C~+50°C,RH=40~90%
34	Storage Environment  Temperature,Humidity	-40°C~60°C,RH=10~95%
35	Heat Dissipation Method	Free Convection+Shell Conduction
36	Net Weight  Rate	<12Kg/panel

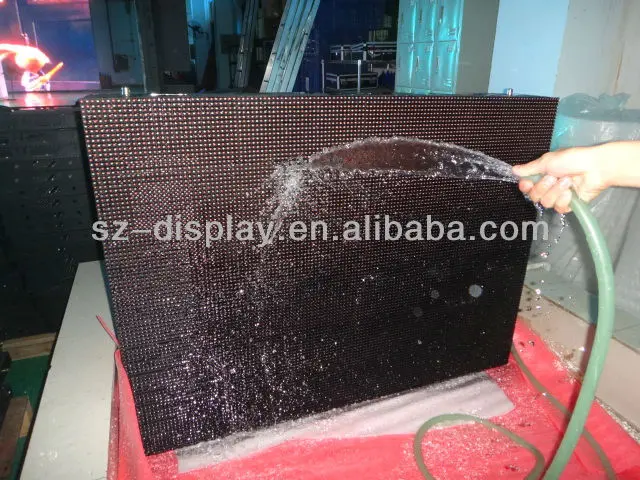

37	Protection level	Outdoor,IP65
38	Certificates	CE,UL,CCC,RoHS

Factory History



Shenzhen LCF group was found at 2004, with 60 million registered capital and nearly 500 staff. It is situated in Shenzhen with 30, 000 square meter production area, which is next to Bao`an international airport. LCF group is specialized in LED full color screens and LED lighting, and it is one of the advanced high-tech enterprises of LED filed in China.



LCF group has been focusing on the researching and developing LED technology, production, sales and overall service of LED full color screens, and it engaged in providing comprehensive LED screen solutions to our customers. Our product is popular in more than 110 countries which located in Asia, EUO, North America, South-Africa etc. At the same time, we own over 30 direct-sales and service agents in domestic market; moreover, we also set up some authorization service agents in many countries and locations.



LCF own many A-first automatic production facilities and also have professional management, development and production teams. We make core component of LED products—LED lamp by ourselves, which is widely used in LED screens and LED lighting. And this high quality encapsulation can make sure LCF to have large scale production and to ensure LCF products with superior quality.



LCF group has achieved the titles such as “National Advanced High-tech Enterprise”, “National Quality Inspection Approved Product” “China Optics and Optoelectronics Industry Association direct enterprise“. We have got approval of ISO9001:200, CE, CCC, RoHS, ETL, EMC and so on.



We believe that on the road of purchasing our dreams, we can win with love, with family, with LCF.







Factory Tour

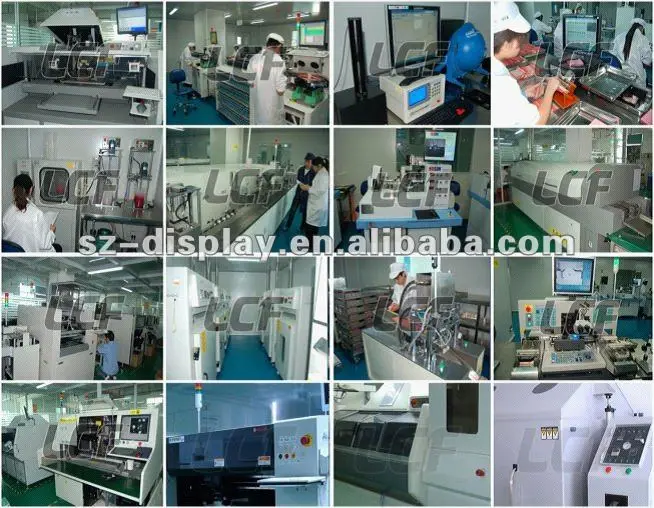

Production Line Profile
