Travelling hanging hoist single beam overhead crane heavy duty lifting 200/50tons

Product Overview

Description

 Travelling hanging hoist single beam overhead crane heavy duty lifting 200/50tons

This machine structure is mainly by the girders, and beams, during operation organization, the car and the car running institutions and fixed on the shelf in the car which CD1-AZ type or MD1-AZ type of fixed electric hoist. Configuration hook is suitable for machinery processing, assembling workshop, metal structure workshop, metallurgy and casting workshop and warehouse hoisting of of all kinds of work.

Product features:

LD type electric hoist crane is fixed wire rope electric hoist as lifting mechanism.

Details:

LD type electric hoist crane is fixed wire rope electric hoist as lifting mechanism, installed in the car driving on a double, and double beam bridge girder supporting the use of the plane, and end with beam can be disassembly type bolt coupling. Light weight, small size, and group sex good, economic and practical. Installation, operation, and maintenance, the transportation is convenient. Apply to light, intermediate system mechanical workshop and warehouse, the field, hydropower station overhaul, assembly and maintenance work.
Appearance of small size, wheel pressure is the bottom, the price is low, is a new type of bridge crane.



Operation method:



This product has the ground and manipulate the operating room two forms. Operator's cab with open, have closed two kinds. But according to actual condition is divided into the left or the right side installed two forms. Introductory direction with side and face, the top three. In order to meet different users in the choice; Can add the remote control, convenient for the user to choose.



Quality guarantee:



The company has passed iso9001-2000 international quality system certification, with perfect quality assurance system, strict management system. Strong production capacity and advanced detection means, to ensure the high quality of the products. Yield also have strong market competition ability.





Please kindly tell us the following information for your  overhead  crane inquiry:
1- Lifting Capacity ?

2- Lifting  height ?

3- the Span (center distance between two rails)

4- power supply: 380V/50Hz/3phase is acceptable or not ?

5- Travel distance ? do you need to buy the travel rails from us also ?

Thanks for your kindly information, we will give you the suitable quotation according to the above information

Capacity			T	3	5	10	16	20
Span			m	10.5,13.5,16.5,19.5,22.5,25.5,28.5,31.5
Lifting height			m	6,9,12,18
Operation method				Pendent line with push button/ cabin
Speed	Lifting		m/min	8,8/0.8;7,7/0.7;3.5,3.5/0.35;6,6/0.6
	Cross travel		m/min	20
	Long travel	Cabin	m/min	20,30
Lifting mechanism			type	Electric trolley
Working duty				A3
Power supply			AC	380V/50HZ/3P

Drawing and structure

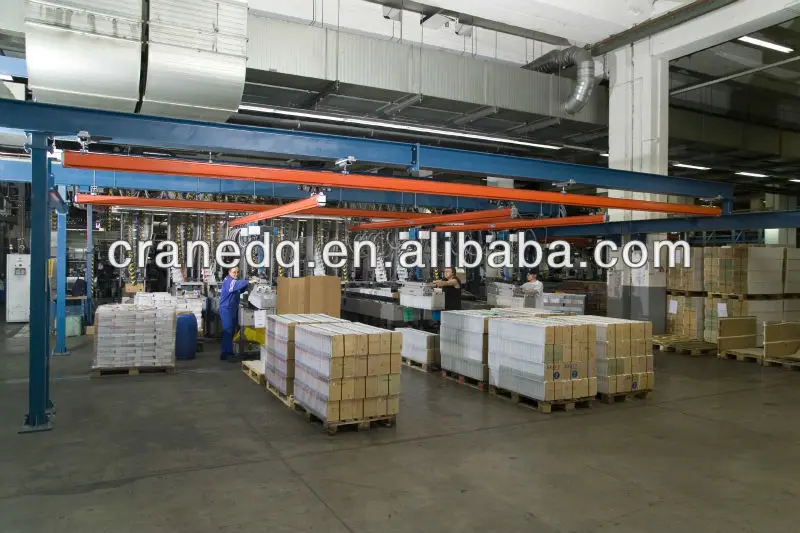

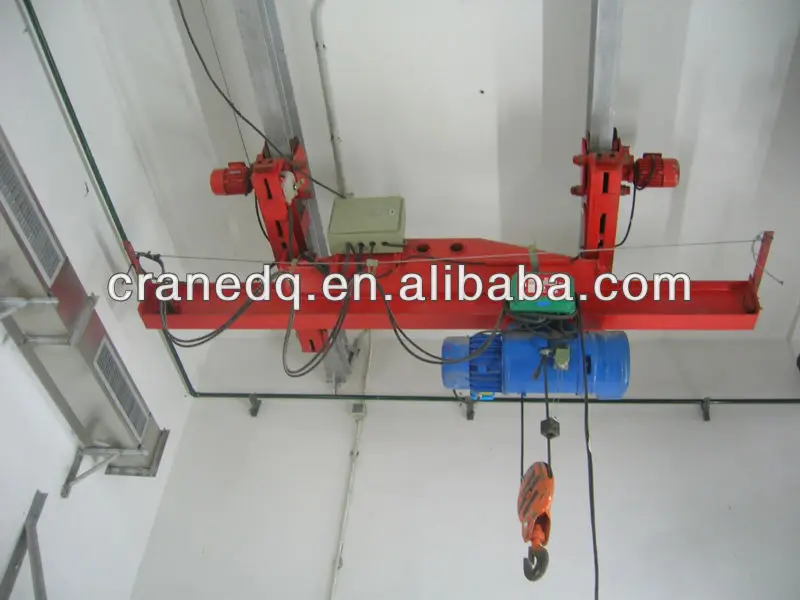

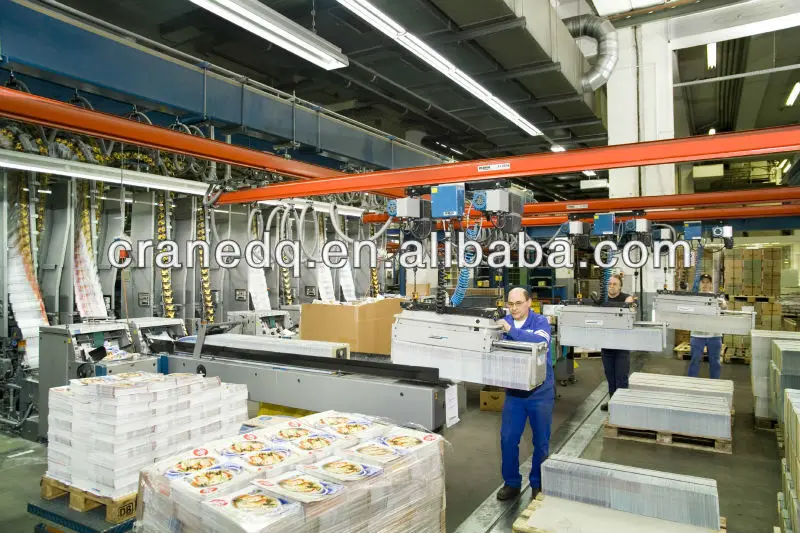

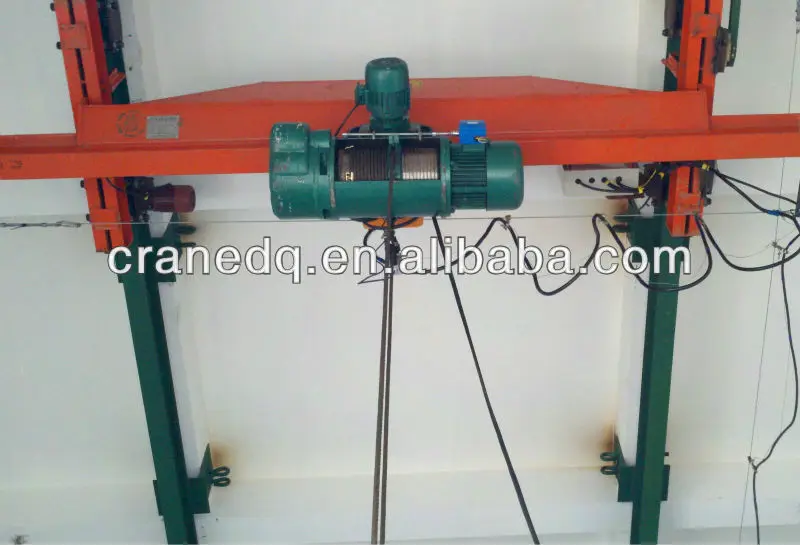

Pictures showing

Client elegance

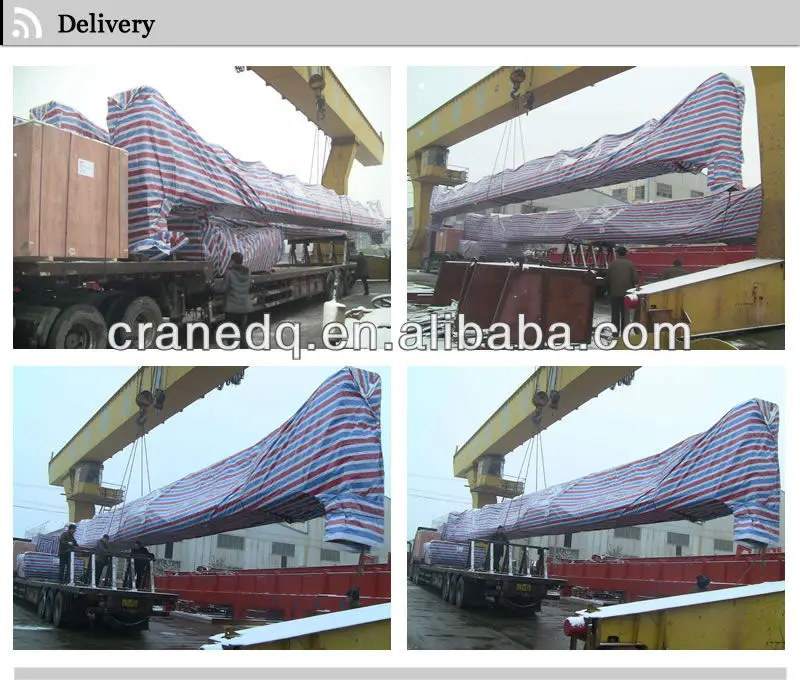

Delivery

Certificate standard
