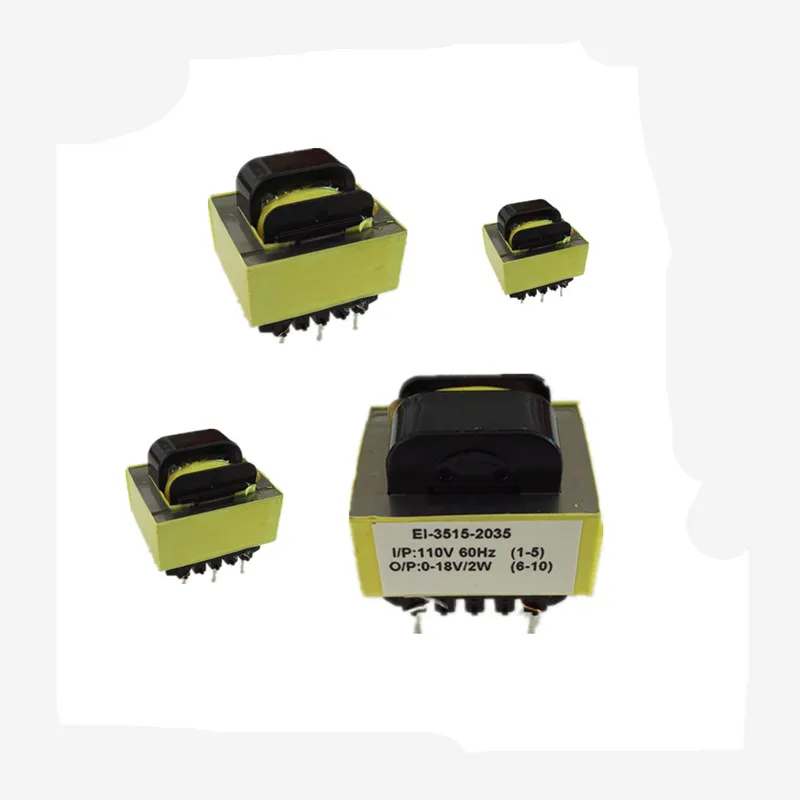

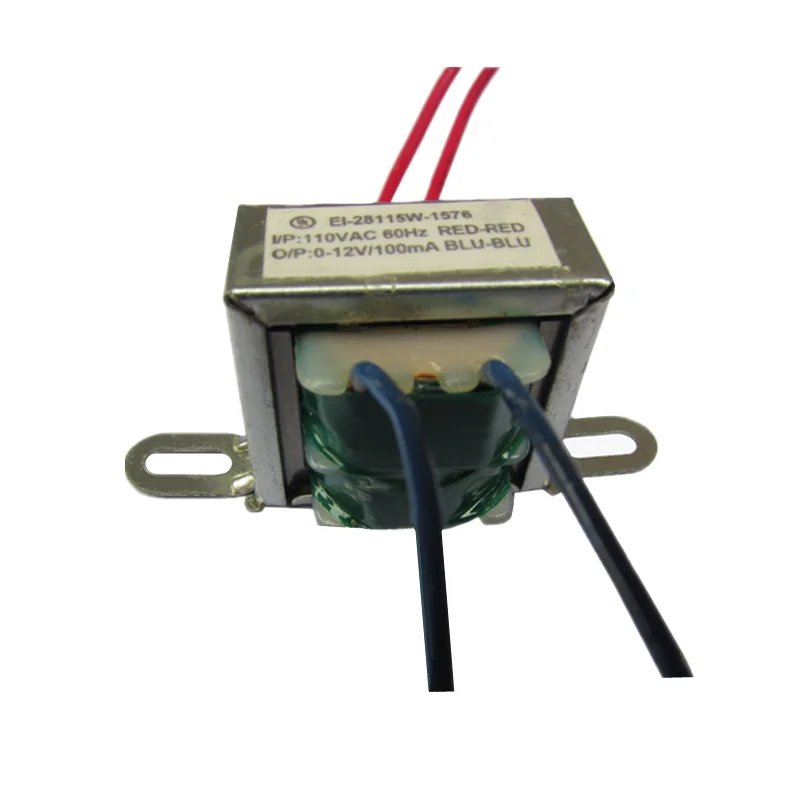

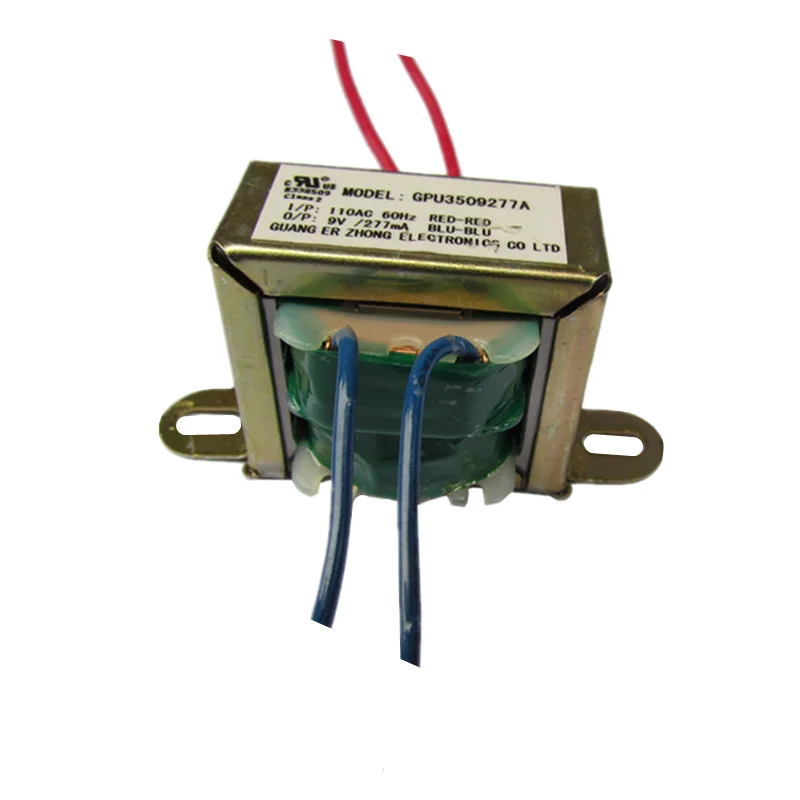

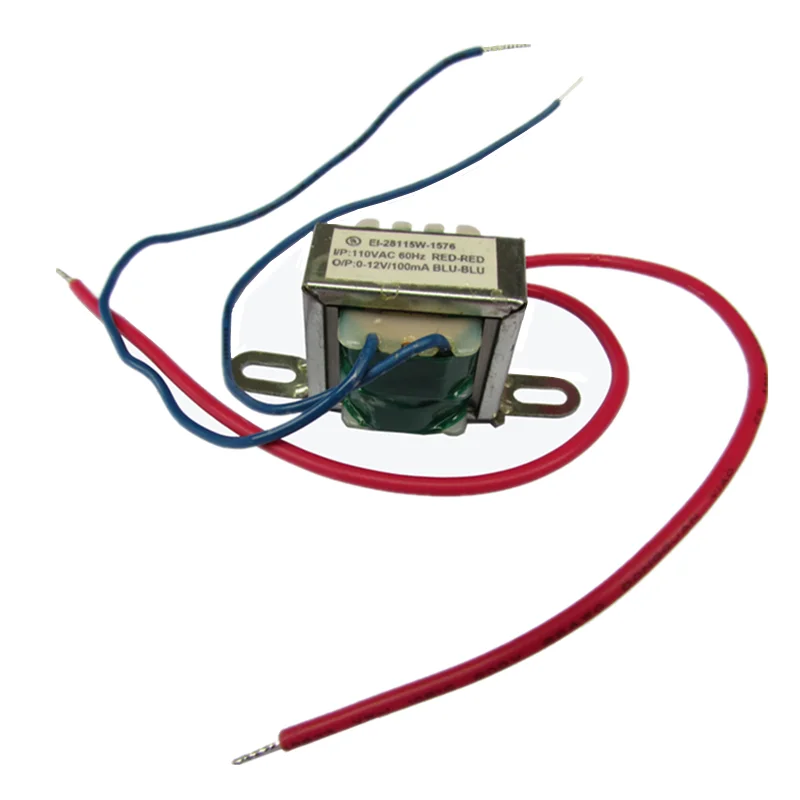

home theatre 220v ac 12v 24 volt transformer

Product Overview

Description

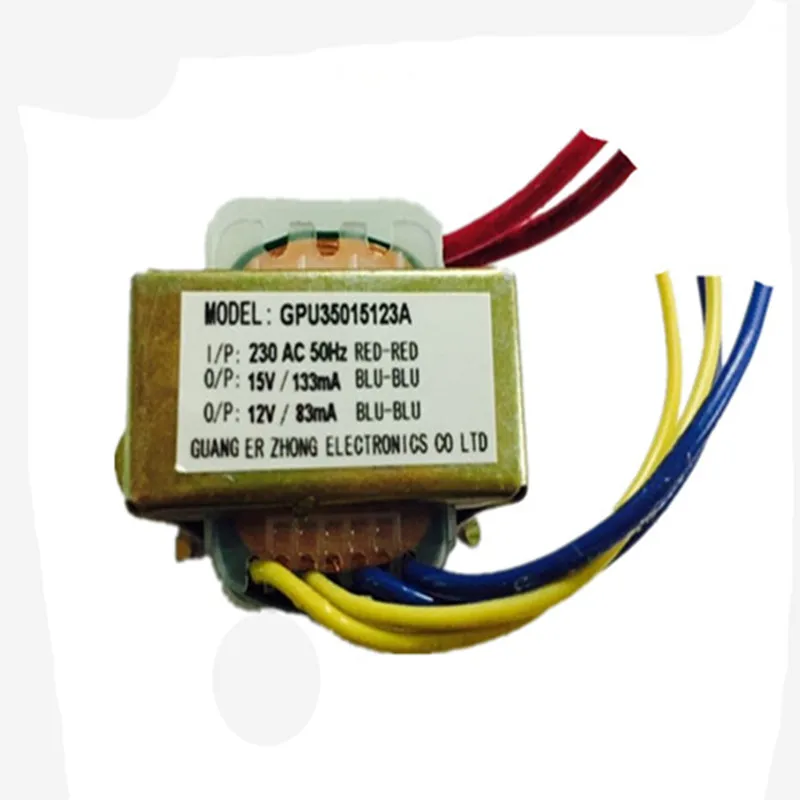

                                home theatre 220v ac 12v 24 volt transformer



Single-Phase electrical Transformer
Transfer AC voltage of 100V, 110V, 120V, 200V, 220V, 230V, 240V to lower AC voltage. The input could be provided with single, double or triple voltage winding. Output can be provided from single to several windings. The size of our EI Transformer from EI-28 to EI-114, capacity up to 150W. We can supply with both screw mountings and pin dipping types.

home theatre 220v ac 12v transformer



Basic Data



Capacity:	1VA-3VA
Phase:	Single

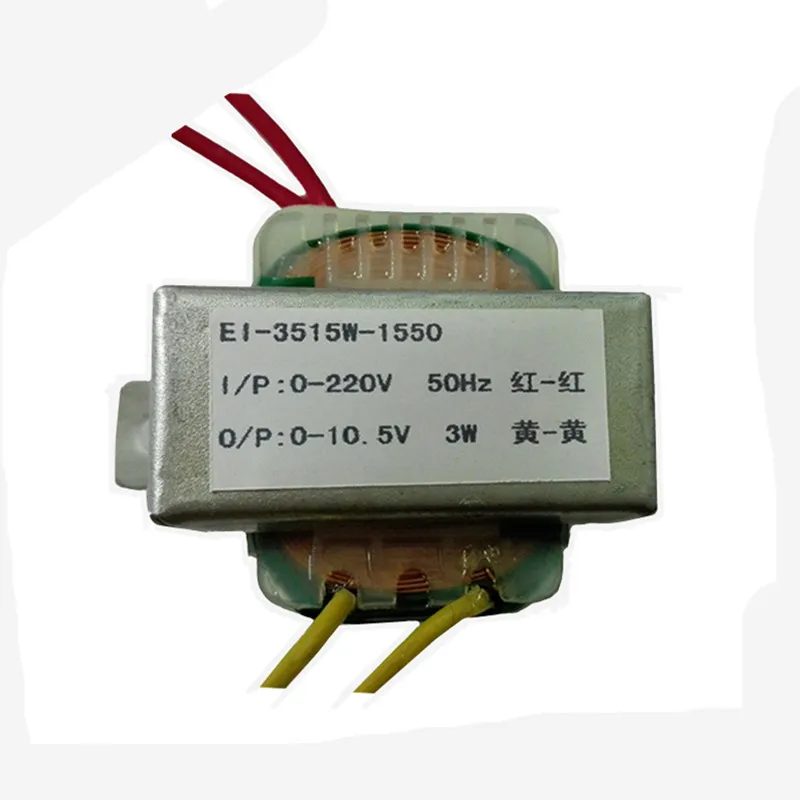

Input:	220V AC  ( Voltage According to Customers Requirements)
Output:	10.5V 0.29A  (AC Current, Voltage According to Customers Requirements)
Frequency:	50-60Hz
Voltage Regulation:	±10%
Manufacture Standard:	GB19212.1-2008 ; GB19212.7-2012;UL1310; EN 61000-6 ; EN 61000-3-2:2014
Insulation Class:	Class B(130 Celsius Degree) ; Class E(120 Celsius Degree)
Temperature-rise:	≤85 Celsius Degree

electrical transformer Application:
This single-phase transformer is widely applied to the little power of DVD, hi-fi stereo, TV, small adaptor, beauty equipment, instruments and Apparatuses equipment, stage light, lighting control circuit, air-conditioning equipment control circuit, medical equipment, monitoring equipment, automation equipment control circuit, machinery and equipment, energy-efficient equipment.

Features:
a) High efficiency
b) Low heat generation
c) 3 frames or full isolation bobbin
d) The cores are lapped by silicon steel sheet of high - quality and have been treated by insulation
e) Clean appearance and convenient installation
f) Competitive pricing.

Testing Items:
No-load Test(No-load Current, No-load Voltage, No-load Loss)
Load Test (Load Voltage, Temperature-rise)
Inductive Voltage Test
DC Resistance Test
Safety Test

Operating environment:
1) Temp.: The ambient temperature can not over +40°C.
2) Altitude: Mounting location can not exceed the altitude of 2000m
3) Relative humidity: Maximum 90%
4) The site not attack by rain and snow
5) The medium which no explosion danger, no corroding metal, no electrical breakdown
