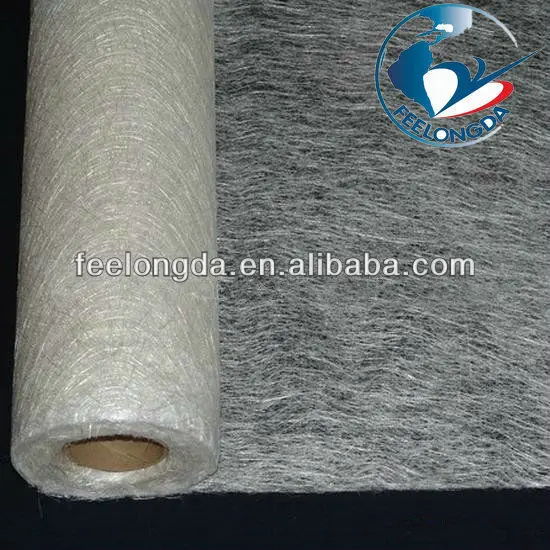

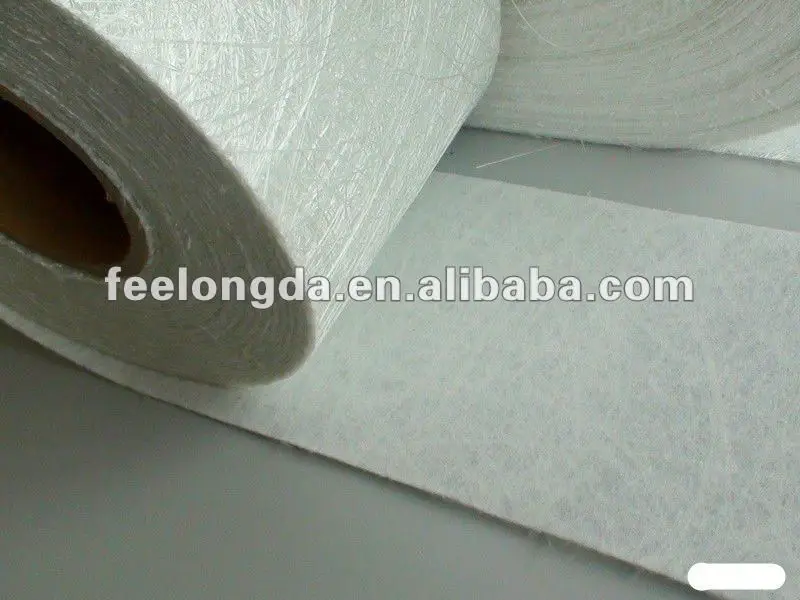

UPR mat fiberglass chopped strand mats

Product Overview

Description

  UPR mat



Fiberglass chopped strand mat is an non-woven E- or C- glass fiberglass fabric manufactured by spreading continuous filament roving of 50mm in length randomly and uniformly in combination  with polyester binder in powder form(or other binder in emulsion form).



Characteristic and Application:



Chopped strand mat is characterized by good combination of resin,easy operation good wetstrength retention,good laminate transparency and low cost.It is suitable for the application by hand lay-up FRP mould,such as various sheets and panels,bath tubs,cooling towers,water tanks,venicle structure,etc.

• Specification:

       1.Density:80g-900g
        2.Bond type:Emulsion/powder
       3.Width: 200mm - 2600mm
        4.Glass type:E/C glass



Technical data:





Property	Glass type	Weight(g/m2)	Width 200~3300	Roll Weight	Moisture Content%	Combustible Content%	Breakage Strength N
Test Method	GB/T 1549	ISO3374:2000	ISO3374	GB/T17470-1998	ISO3344:1997	ISO1887:1995	ISO3342
EMC 80	E/C-GLASS	80±16	±5	6~95	<0.2	13.6±0.35	≥200
EMC 100	E/C-GLASS	100±20	±5	6~95	<0.2	9.5±0.35	≥170
EMC 150	E/C-GLASS	150±30	±5	6~95	<0.2	8.0±0.35	≥40
EMC 225	E/C-GLASS	225±45	±5	6~95	<0.2	5.0±0.35	≥60
EMC 300	E/C-GLASS	300±60	±5	6~95	<0.2	4.0±0.35	≥90
EMC 450	E/C-GLASS	450±90	±5	6~95	<0.2	3.8±0.35	≥120
EMC 600	E/C-GLASS	600±120	±5	6~95	<0.2	3.6±0.35	≥150
EMC 900	E/C-GLASS	900±180	±5	6~95	<0.2	3.4±0.35	≥180
