3d embossed wall panel,various texture and color, PU foam,thermal insulation,fire proof, steel sheet,strong quality

Product Overview

Description

Xiangtuo Panel is used in applications for energy-conservation as well as for exterior wall decoration and insulation. Such as: Mansion, villa, hotel, stadium, old building renovation etc.



       There are 8 styles and over 100 colors for you to choose from, we can also manufacture the style and color according to your need.



      1). Structure: It consists of three layers: the top layer is aluminum zinc-coated metal board, the core material is polyurethane foaming, and the last layer is glass fiber paper. The three layers are formed together by robot equipment, which is different from other similar product. So we guarantee the quality of Xiangtuo Panel for over 45 years.



      2). Dimensions: Thickness: 16mm; width: 380mm length: 3000-6000mm (standard length 3800). If you think the thickness is not enough for insulation, we can insert thicker insulated material between the wall and Xiangtuo Panel.



      3 ).  Package Size:3840x420x140mm            Package Quantity: 8 blocks/pack  .

Unit Weight: 3.7kg/m2.             Gross Weight: 45kg/CTN    .

1x40HQ:3400m2                       1X20: 1000m2







                                            the double color painted workshop

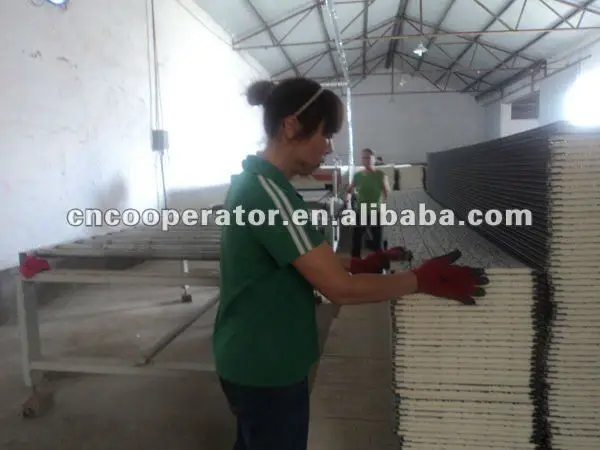

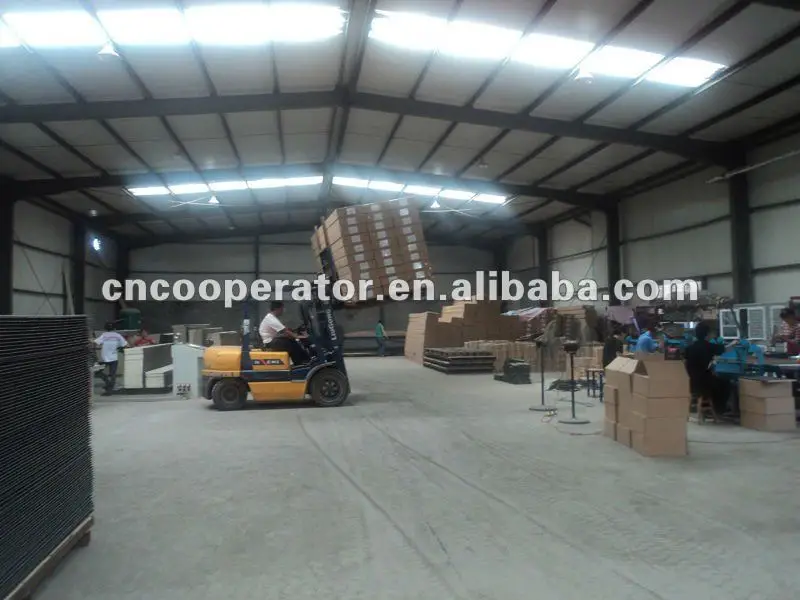

                                                                                   our workshop



Should you have any demand,pls do not hesitate to contact.



contact person: Beryl                        Skype:beryl850727                      Mobile&wechat:+86 18134116881
