Digital Photo Canvas Printing Machine Price YC2513GS

Share on (961723388):


Price:$25,000.00-35,000.00

Quantity:


Product Overview

Description



YC2513GS


Main Features:
Equipped with Imported Japanese Industrial printhead with 1024GS nozzles
Seiko 1024GS printhead, 7-21pl drops for high performance printing
Fast fiber data transmission technology
With 8 heads for bright color, suitable for high speed and high quality industrial production
15sqm/h-30sqm/h for production printing
White ink circulation system to avoid white ink precipitating
6 zones vacuum table for easy operation and save energy
Long-lasting UV LED lamps are safe, energy efficient and generate minimum heat;
Taiwan HIWIN guide and double lead screw is used for a stable and precise movement
Free training and installation with English speaking Tech
Free gallery with machine and printing solutions
Free consumable parts with machine, free exchange within warranty period
Free Software free updated



Applicable material
The UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.





Application areas
A.Decoration industry
B.Glass, Ceramic industry;
C.Advertising&Sign industry;
D.Furniture and personalized products etc.

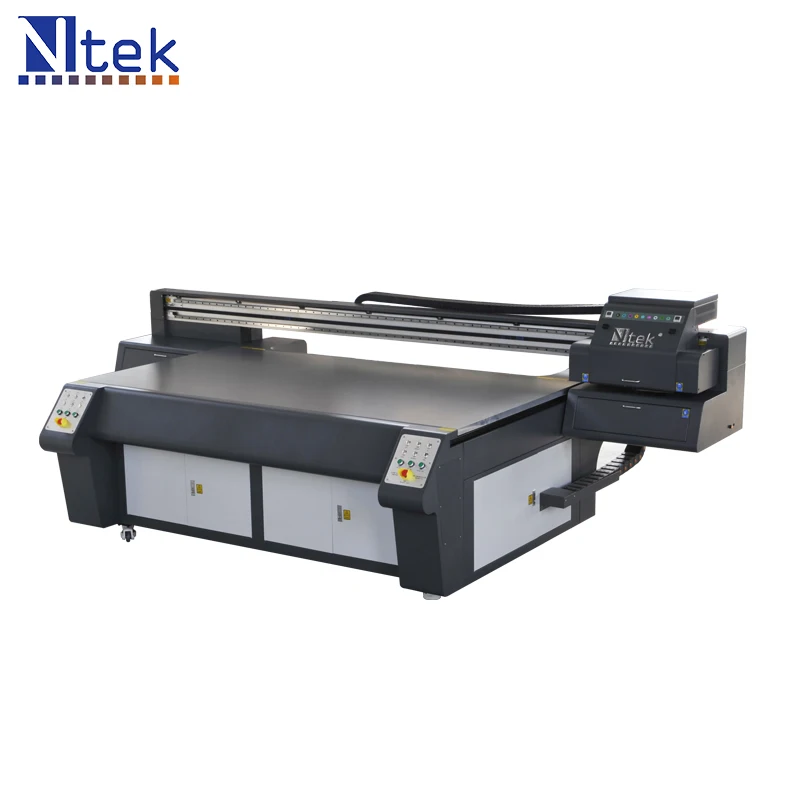

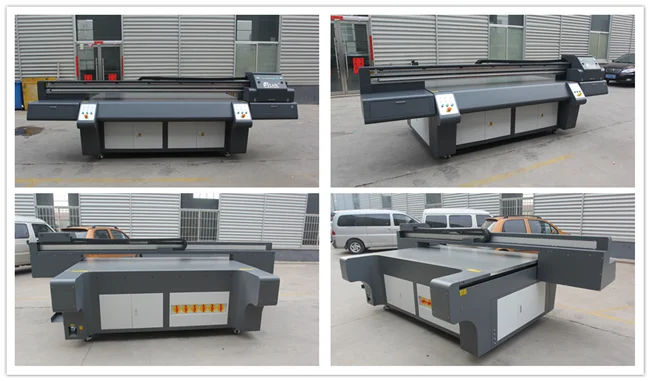

YC2513S

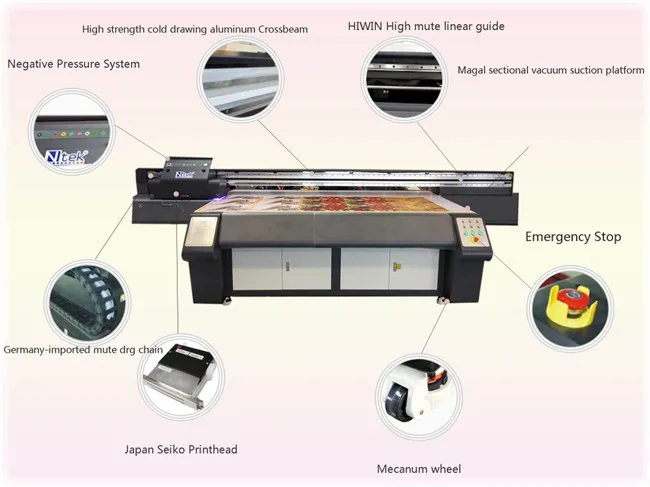

photobank (2)2513S

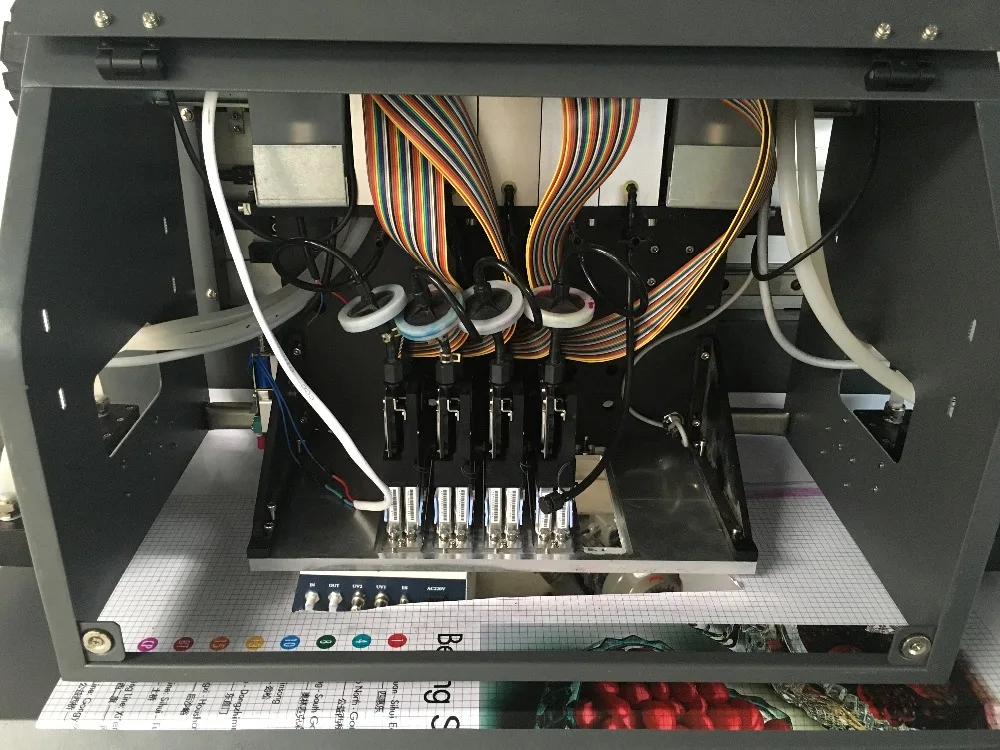

IMG_8495












































































































Product Model



YC2513GS



Printhead Technology



Drop-on demand piezo electric



Printhead control



Printhead voltage is software adjustable



Printhead Type



SPT1024GS-7pl



Printhead Number



4/5/6/7/8



Ink Characteristics



UV Curing Ink



Ink reservoirs



Refillable on the fly while printing/1000ml per color



Lamp



UV LED lamp



Color Control



ICC based color,curves and density adjustment



Color arrangement



C M Y K LC LM W Varnish optional



Printhead Cleaning System



Positive Pressure Cleaning



Guide Rail



Taiwan HIWIN



Working Table



Vacuum Sucking



Printing Size



2500x1300mm



Print Interface



USB2.0



Media Thickness



0-100mm, higher can be customized



Printing Resolution



720*360dpi,720*720dpi,360*1080dpi,720*1080dpi,


720*1440dpi,1440*1440dpi,360*2160dpi



Printing Speed



15sqm/h-30sqm/h



Life of printed image



3 years(outdoor),10years(indoor)



File Format



TIFF,JPEG,Postscript3,EPS,PDF etc.



RIP Software



UltraPrint , Photoprint, Onyx



Power Supply



220V 50/60Hz(10%) >15A



Operation Environment



Temperature 20 to 28℃,Humidity 40% to 60%



Warranty



13 months exclude the consumables

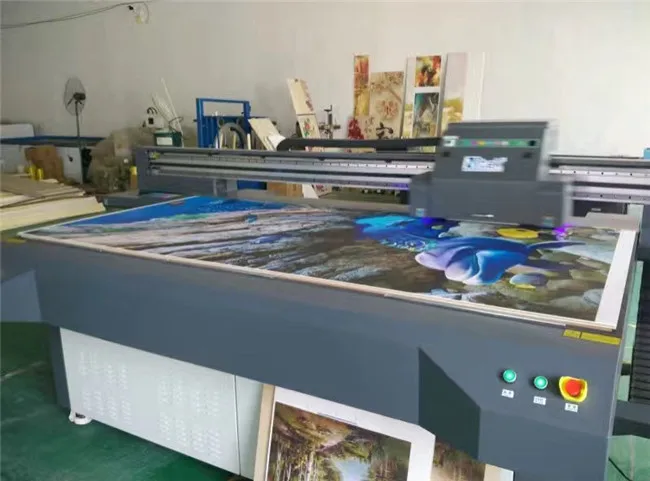

Canvas Samples


IMG_8293mdf woodOM-009-1





Prints-on-Glass-Lounge-Wall-700a





Our Services


-_02-_07-_06photobank (3)-_04-_03





FAQ





How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.





What is the cost of ink for printing on the materials?


Normally it is around 0.5-1usd per square meter for ink cost.

How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.

Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.





Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board, driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.

How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can contact our technician or me directly.

Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
