Marine Boat Aluminum Cabin Door for Ship
- Category: >>>
- Supplier: Chongqing Yushuo Import & Export Business Co. Ltd.
Share on (961843829):
Product Overview
Description

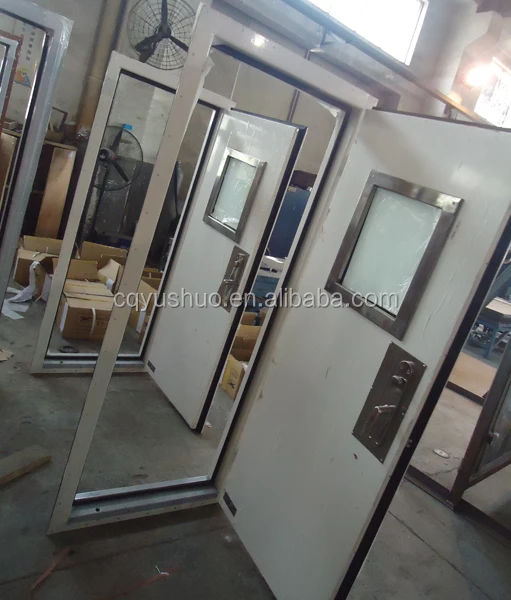

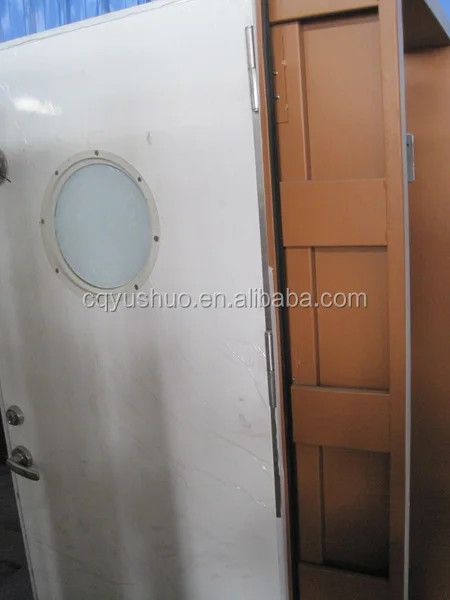

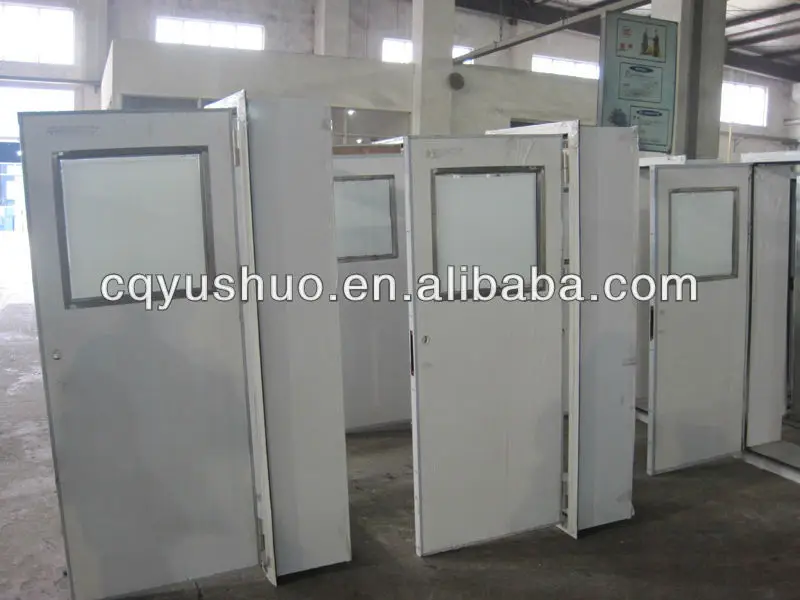

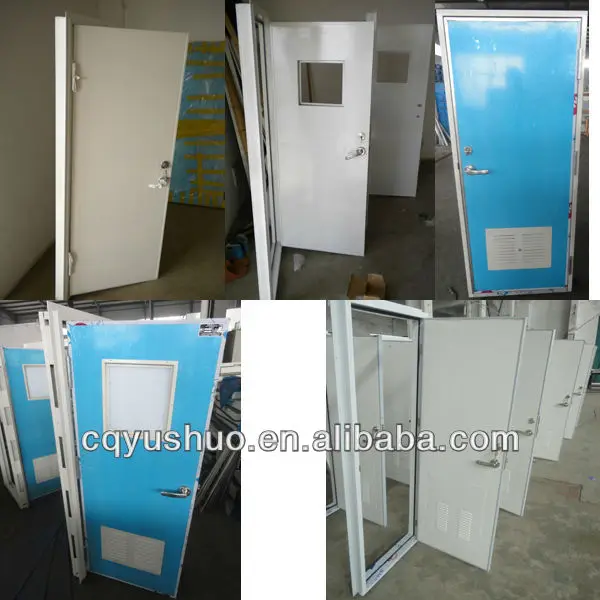

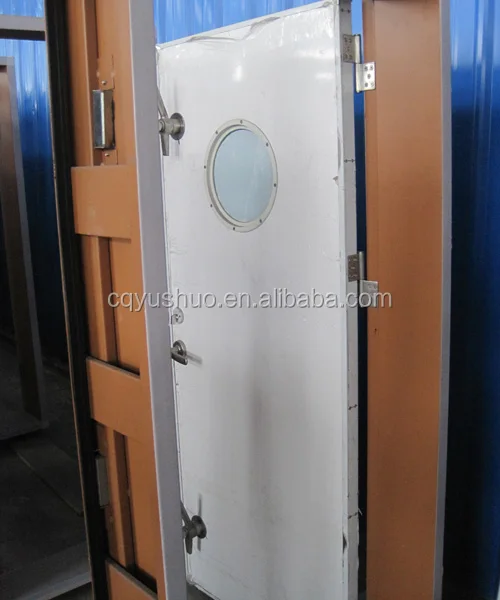

Marine Boat Aluminum Cabin Door for Ship
Product Description
Meet SOLAS, ISO9001-2000
Designed with new structure & good weather tightness
Application: can be used in ship cabin, floating construction and gateway with class C fire rated
Optional: window/louver/kick-out panel
Available certificates: GL, DNV, CCS, BV,ABS, LR, KR, RS, etc

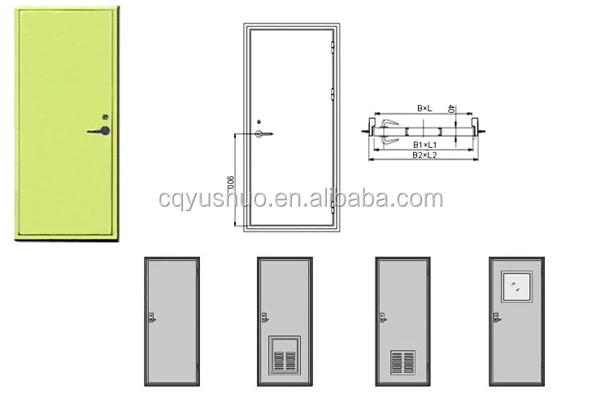

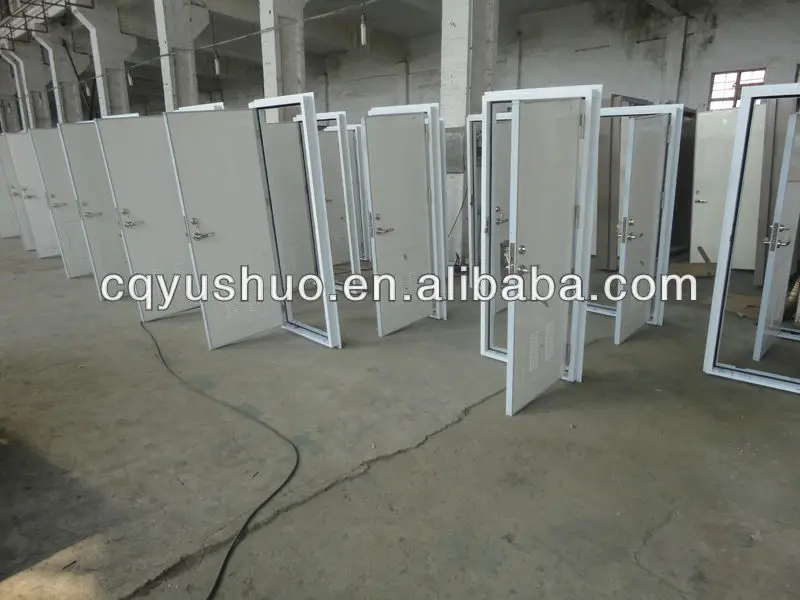

Standard Aluminum Hollow Cabin Door
Specifications | |||||
Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | D | Weight |
| B×L | B1×L1 | B2×L2 | ≥ 75 | kg | |
CQYS010-LV001 | 600×1600 | 680×1680 | 686×1686 |
T+45 | 24.61 |
CQYS010-LV002 | 650×1650 | 730×1730 | 736×1736 | 26 | |
CQYS010-LV003 | 700×1750 | 780×1730 | 786×1736 | 27.87 | |
CQYS010-LV004 | 800×1750 | 880×1830 | 886×1836 | 29.76 | |

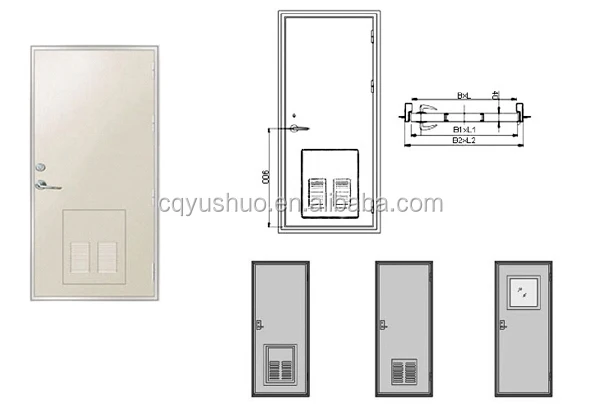

Aluminum Hollow Cabin Door with Kick-out Panel
Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | D | Weight |
| B×L | B1×L1 | B2×L2 | ≥ 75 | kg | |
CQYS010-LK001 | 600×1600 | 680×1680 | 686×1686 | T+45 | 34.51 |
CQYS010-LK002 | 650×1650 | 730×1730 | 736×1736 | 35.88 | |
CQYS010-LK003 | 700×1750 | 780×1730 | 786×1736 | 37.78 | |
CQYS010-LK004 | 800×1750 | 880×1830 | 886×1836 | 39.71 |

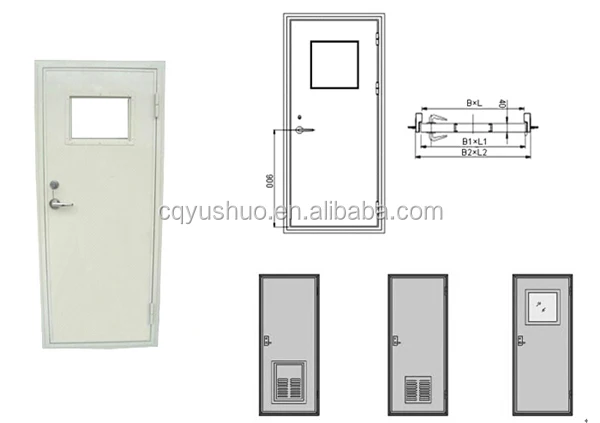

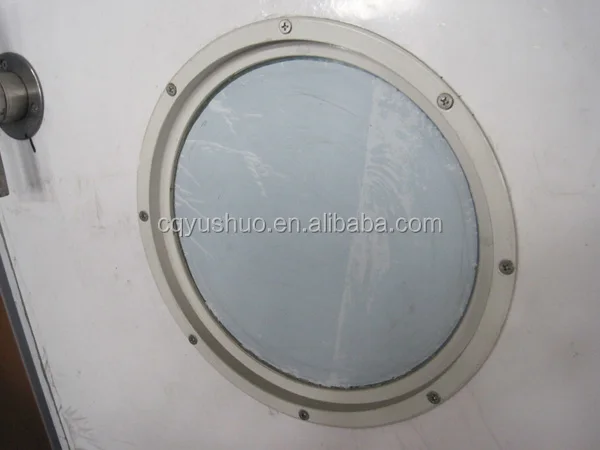

Aluminum Hollow Cabin Door with Window
Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | D | Weight |
| B×L | B1B1××L1 | B2B2××L2 | ≥ 75 | kg | |
CQYS010-LW001 | 600×1600 | 680×1680 | 686×1686 | T+45 | 26.72 |
CQYS010-LW002 | 650×1650 | 730×1730 | 736×1736 | 28.41 | |
CQYS010-LW003 | 700×1750 | 780×1730 | 786×1736 | 29.8 | |
CQYS010-LW004 | 800×1750 | 880×1830 | 886×1836 | 31.73 |

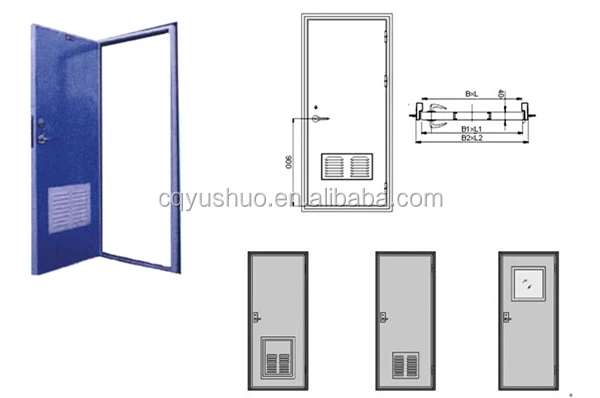

Aluminum Hollow Cabin Door with Louver
Product No | Nominal Size | Size of Frame | Cutout in Steel Wall | D | Weight |
| B×L | B1B1××L1 | B2B2××L2 | ≥ 75 | kg | |
CQYS010-LV001 | 600×1600 | 680×1680 | 686×1686 | T+45 | 24.61 |
CQYS010-LV002 | 650×1650 | 730×1730 | 736×1736 | 26 | |
CQYS010-LV003 | 700×1750 | 780×1730 | 786×1736 | 27.87 | |
CQYS010-LV004 | 800×1750 | 880×1830 | 886×1836 | 29.76 |
Packaging & Shipping

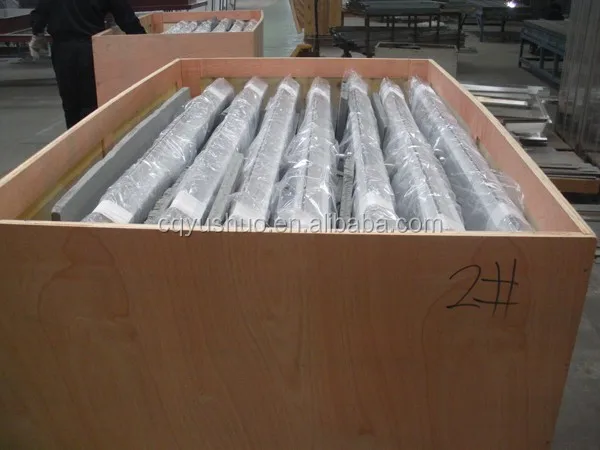

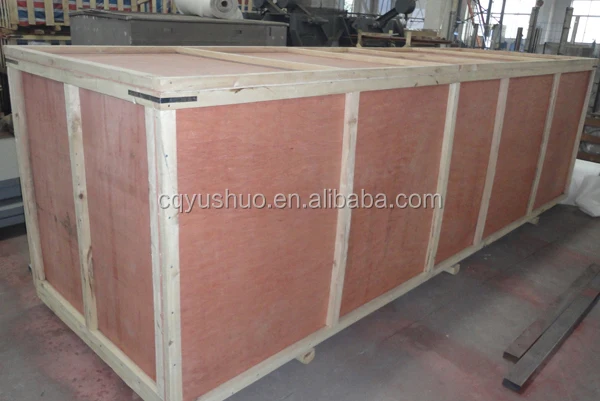

Marine ship boat aluminum cabin hollow door will be packed with wooden case.
