ANSI Type Fail Safe / Secure Adjustable Electric Strike
- Category: >>>
- Supplier: PONGEE INDUSTRIES CO. LTD.
Share on (961924436):
Product Overview
Description
Features
•The PGS-501 is a ANSI size electric door strike.

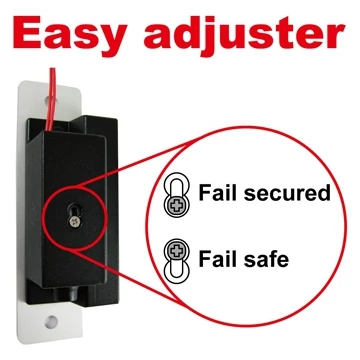

•Fail-Safe / Secure Adjustable
•Could be continuously energized.
•For light duty door.
•Endurance:1,000,000 cycles.
Specifications
Model No. | PGS-501 | PGS-501L |
PGS-501-24V | PGS-501L-24V | |
Lock size (mm) | 124(L)x32(W)x32(H) | 202(L)x36(W)x32(H) |
Approx. weight | 165g±1% | 280g±1% |
Nominal voltage | DC 12V / DC 24V | |
Standby current | 230mA(12V) / 115mA(24V) | |
Working current | 0mA | |
Temp. range | -10℃ ~60℃ | |
Power consumption | 2.76W | |
Depth of lock slot | 15mm | |
Material | Front plate: Aluminum / Stainless steel Lock body: Zinc alloy Latches: Stainless steel | |
Operation | Pair with latch bolt mechanical lock. | |
Applications | For aluminum steel or wooden door, brass door | |

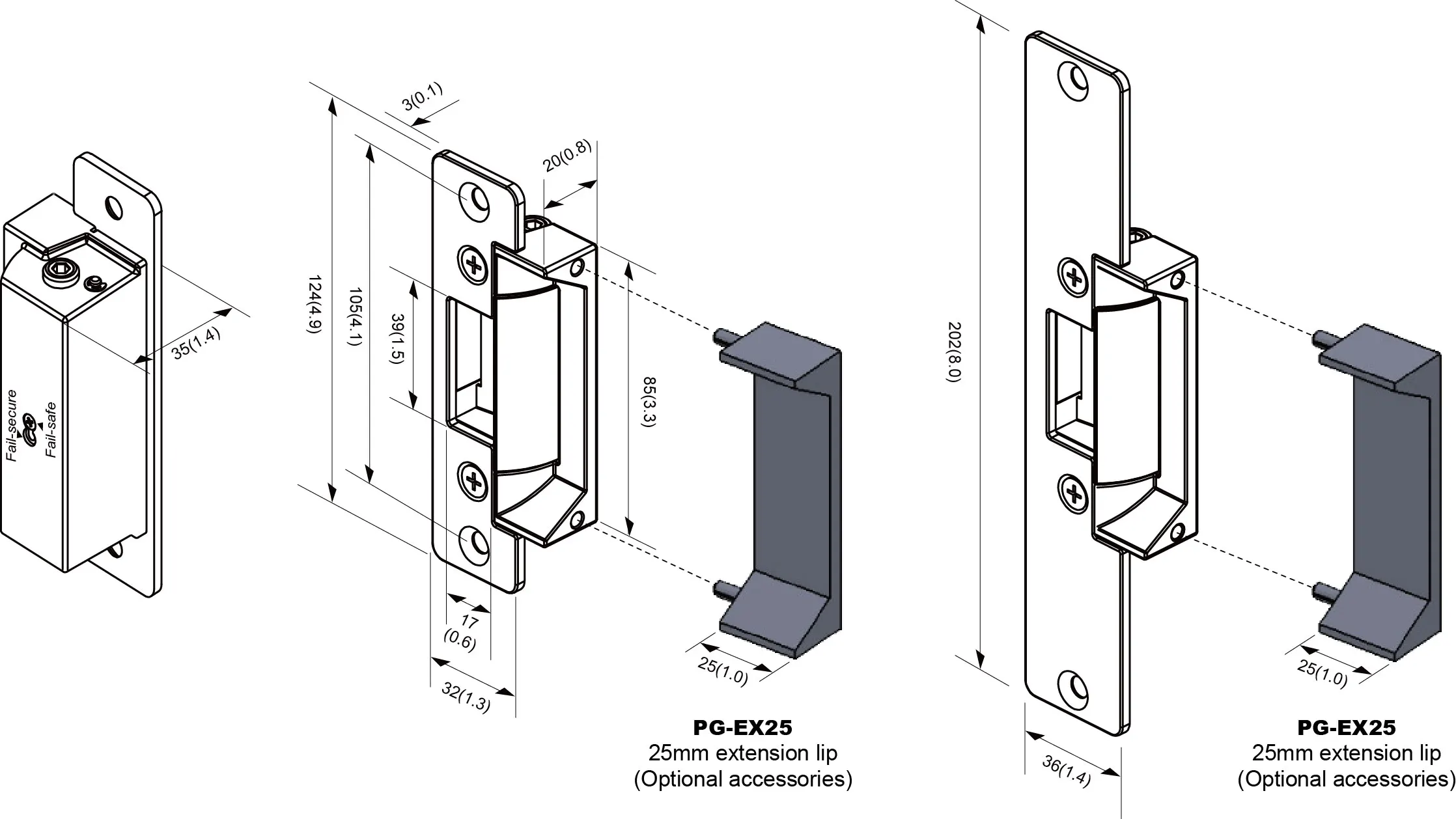

Dimensions: mm[inch]

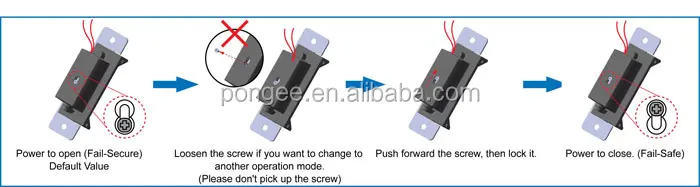

How to change operation mode of electric strike

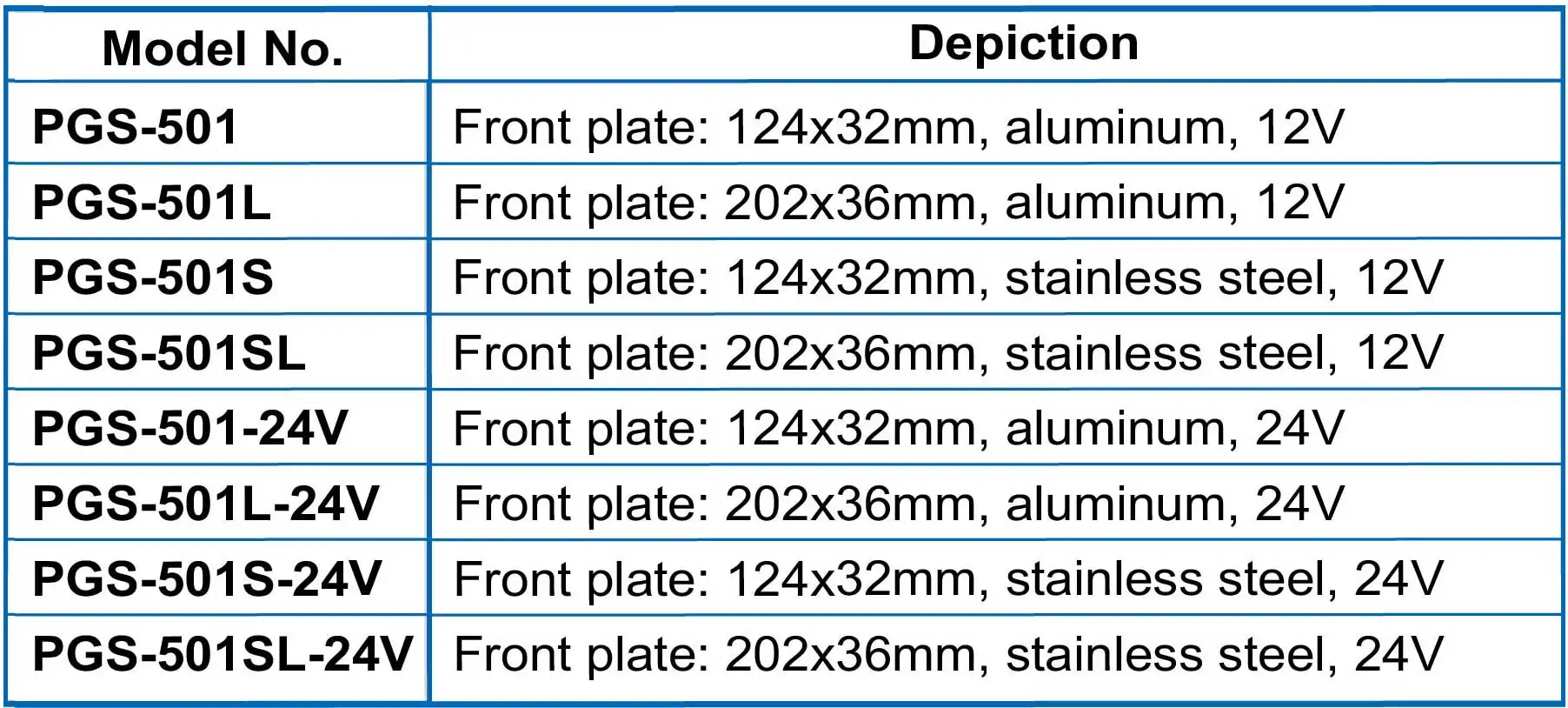

Ordering information
Front plate(Optional)The minimum order quantity: 200 pcs
Model No. | Appearance | Dimensions(unit:mm) | Material |

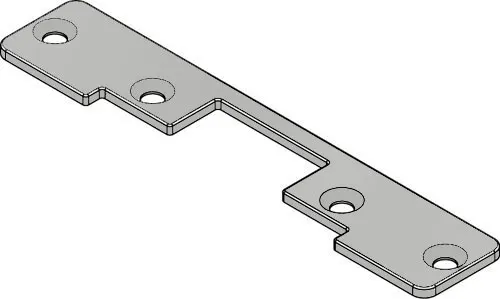

PG-FP150 | | 150 x 28.6 | Stainless steel |
PG-FP182 | | 182 x 32 | Stainless steel |

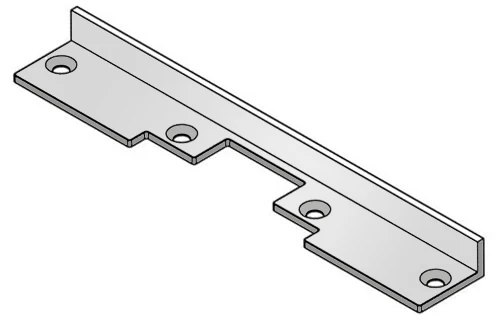

PG-FP202 | | 201.6 x 32 x 16 | Aluminum |

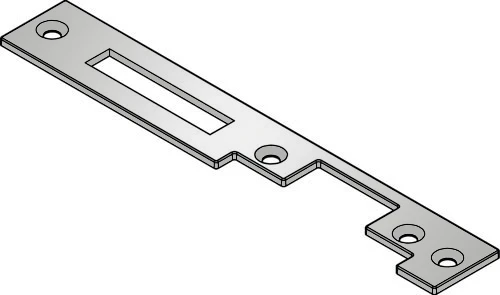

PG-FP209 | | 209 x 31.7 | Stainless steel |
PG-FP251 | | 251 x 25 | Stainless steel |
We reserve the right to change the specification without prior notice or obligation!
