Auto wood copy shaper machine with automatic feeder

Product Overview

Description

Auto wood copy shaper machine(with automatic feeder)







It is applided for re-processing camber side and the special shape side.It also can do beeline and bevel edge process,make different shapes of wood line with template.It is widely used in woodworking furniture and construction industry.





Main Specification And Technology Parameter



MX7202	MAIN SPECIFICATIONS	MX7203
	Voltage	380V
	Working air pressure	0.6~0.8Mpa
	Motor power of shaper cutter	1.5km,2P 380V
	Rotary motor power	4P,0,37kw
	Feeding speed(220V frequency control of   rotary speed)	4-20r/min
	Cutter spindle speed	9000r/min
	Spindle	φ25mm
	Shaping length	50-200mm
	Shaping width	40-100mm
	Shaping height	5-50mm
	Dust outlet diameter	80mm
	Max.rectangular cutting	2:1
	Overall dimensions	1200×1500×1200mm

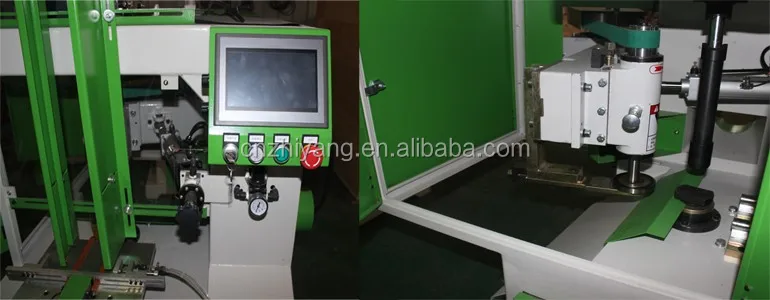

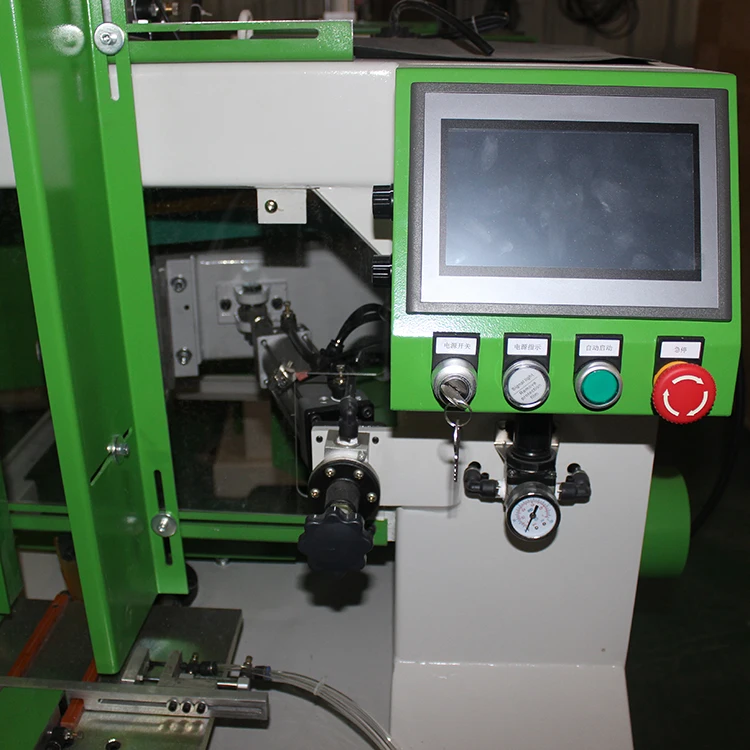

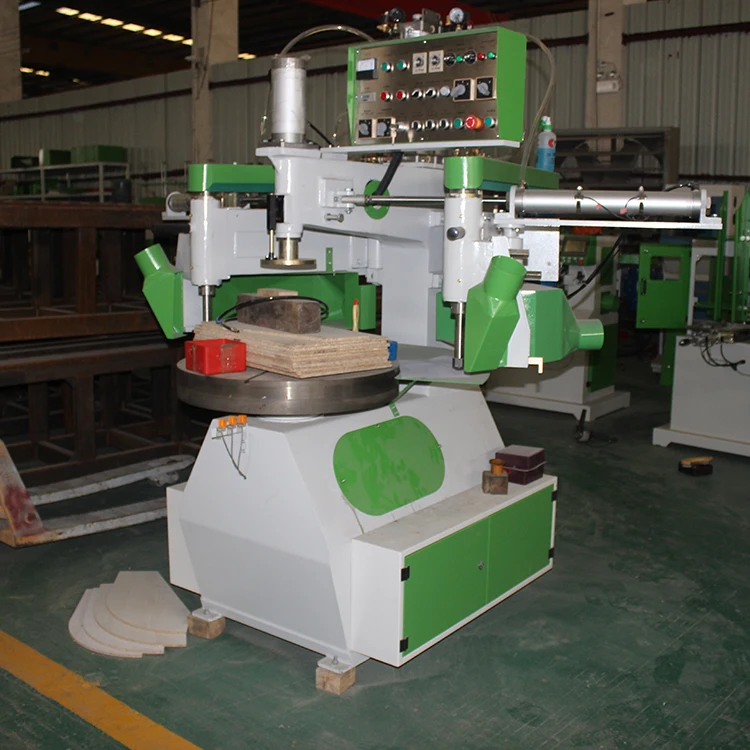

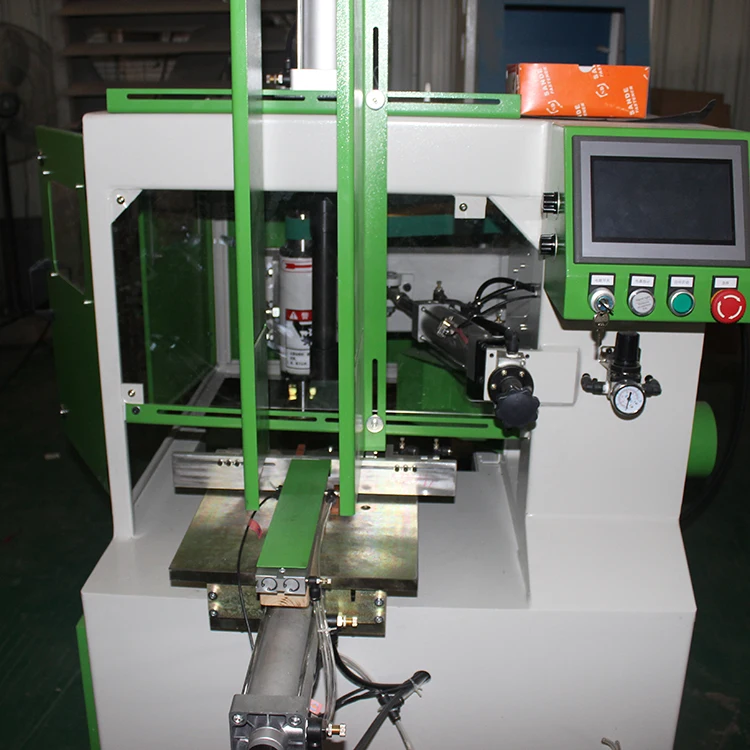

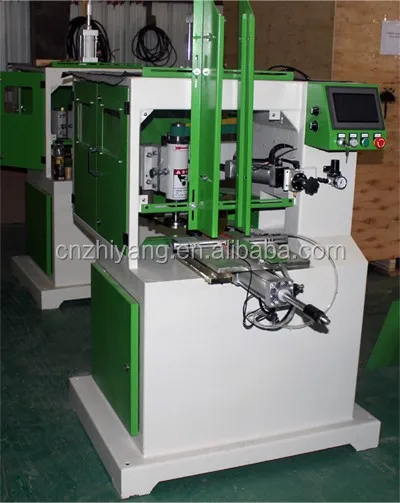

Machine details:







Video:https://www.youtube.com/watch?v=8oc4hy9XmlA



 Would you please to tell me what product do you make?

 Then i can better to introduce the machine to  you!







More Information about ZHIYANG  Machinery~



       ZMAX MACHINERY CO., LTD. is a professional company in design ,production and

sales of wood working machinery tool and cutter,whose products are widely

used in the area of wood and log processing .



Advantage of ZHIYANG Machinery :



1:specializing in wood working machinery for 10 years



2:high quality with most competitive price in the whole market



3: Efficient wood processing solutions will be provided to you to help you solve the wood processing problem



Company Office:



Our services

 Guarantee and after sales-service of ZHIYANG:



1)The machine is guaranteed for 12 months.



2)Free sawmill processing solutions  will be provided to you.







If still have any question,please contact us freely for more details, we are glad to provide and answer it.
