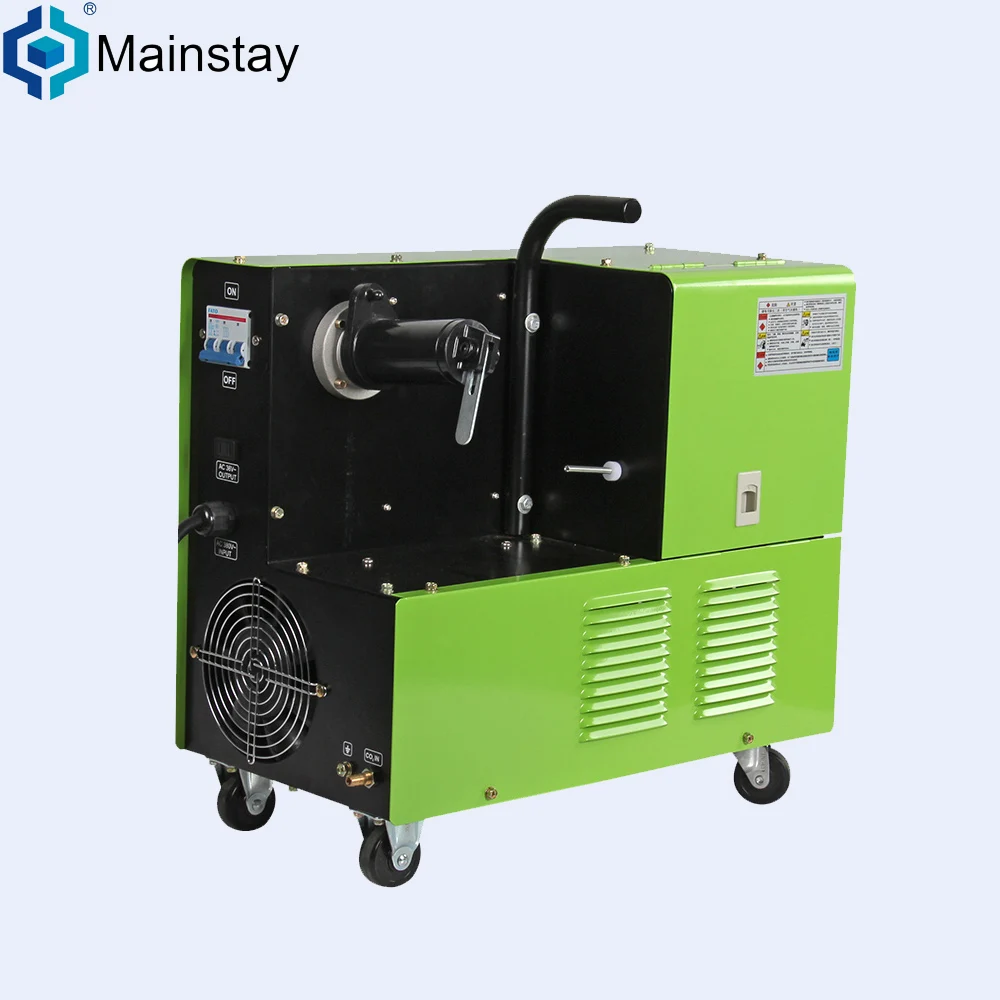

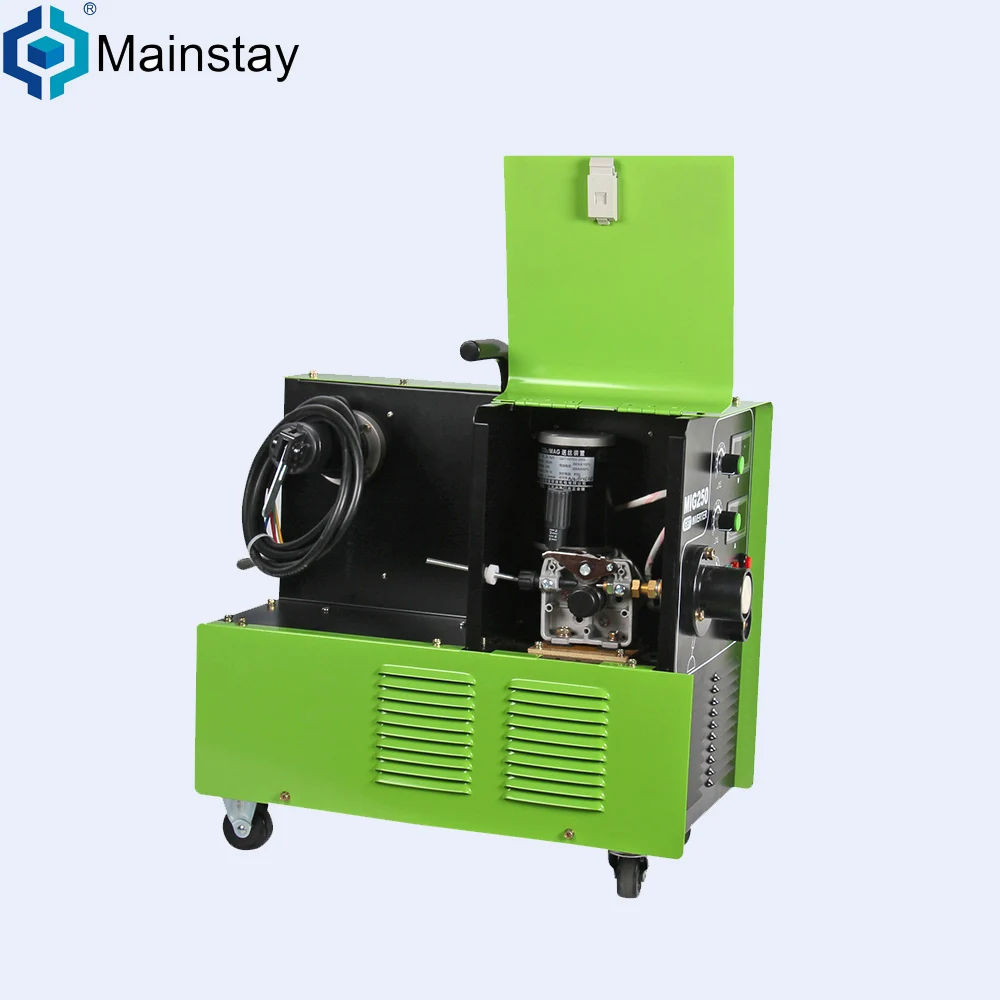

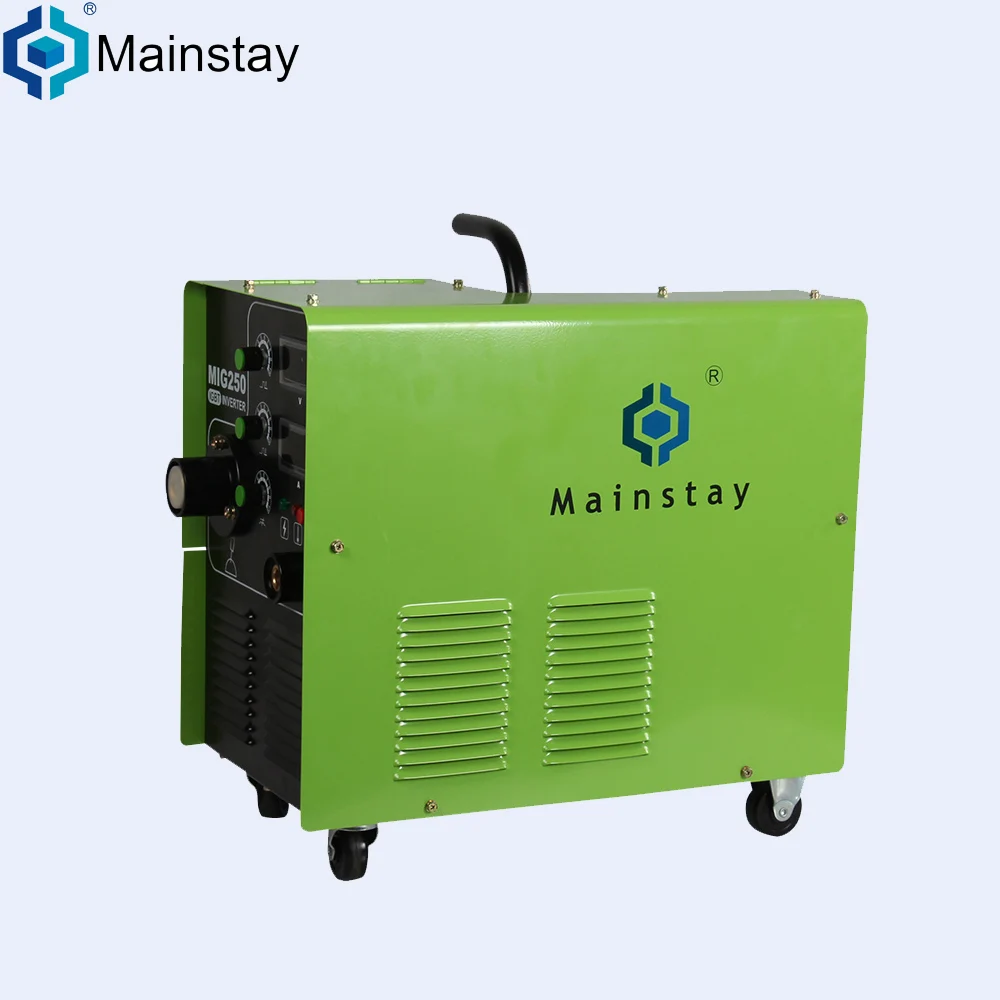

MIG250 High Efficient Cebora MIG Welder Welding Machine Mig Welder

Product Overview

Description

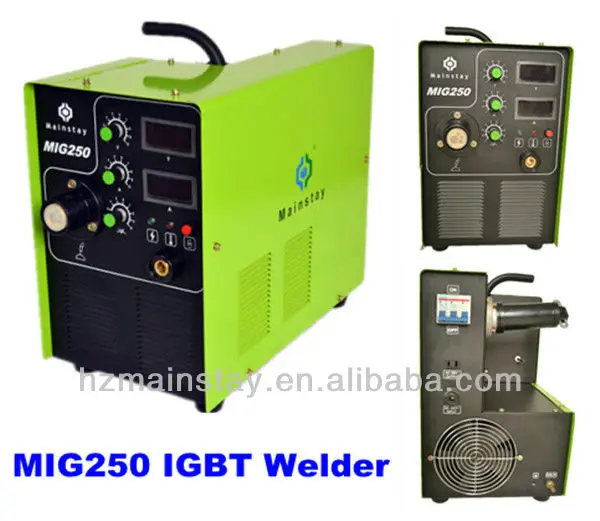

MIG250 High Efficient Cebora MIG Welder

Co2 MIG Welding Machine Technical Features:



1, The waveform control technology,good forming,small spatter.

2,The high frequency inversion,small volume,light weight,energy saving.

3, Slow wire arc starting, easy arc starting, high success rate.

4,Has the cut function when receiving arc,high welding melt spreading rate,adjustable electric current voltage,wide applicable scope.

5,The welding source suits weilding operation under an electric shock risk big environment.

6,When input network voltage fluctuation and electronic arc length change,the electric current to be highly steady, the strong ability to adjust electric arc,the electric arc is gentle.





Main Technical specifications of Co2 MIG Welding Machine

Model / Item	MIG250--Co2 gas welding machine
Supply Voltage ( V )	AC380V±10% 3ph 50/60Hz
Rated Intput Capacity ( KVA )	9.2
Output Current Adjustment Range ( A )	50-250
Output Voltage Adjustment Range ( V )	15-29
No-load Voltage ( V )	50
Rated Duty Cycle ( % )	60
Type Of Wire Feeder	Intergrated
Speed Of Welding Wire ( m/min )	3-15
Flow ( L/min )	15-20
Overall Dimension ( mm )	510*273*440
Weight ( kg )	26
Suitable Welding Wire ( mm )	0.8-1.0
Welding Thickness ( mm )	0.5-10

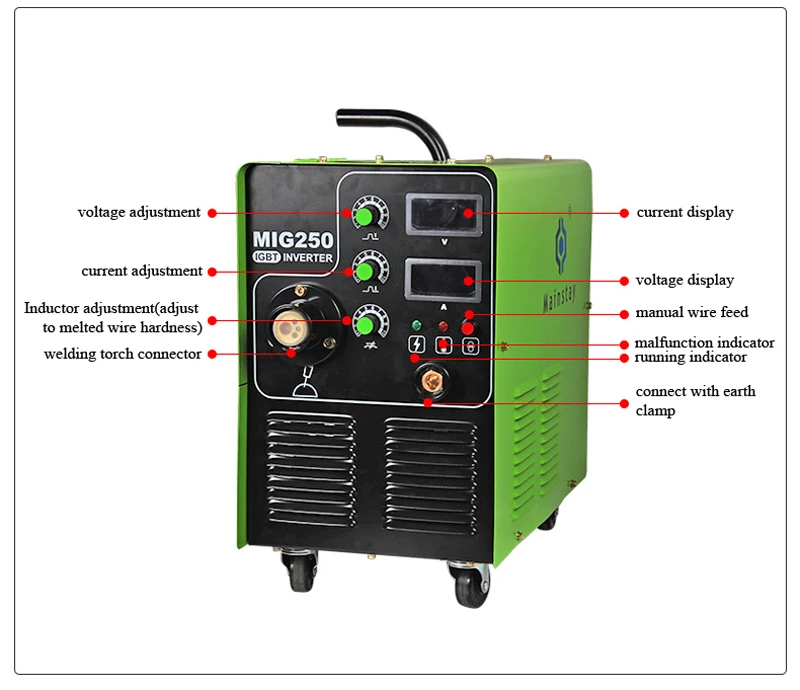

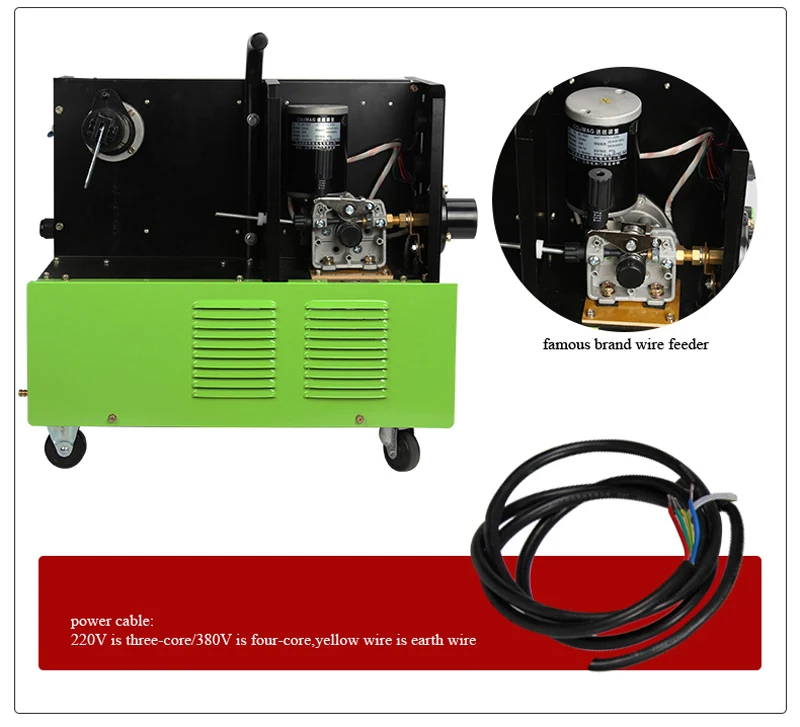

Components of Co2 MIG Welding Machine

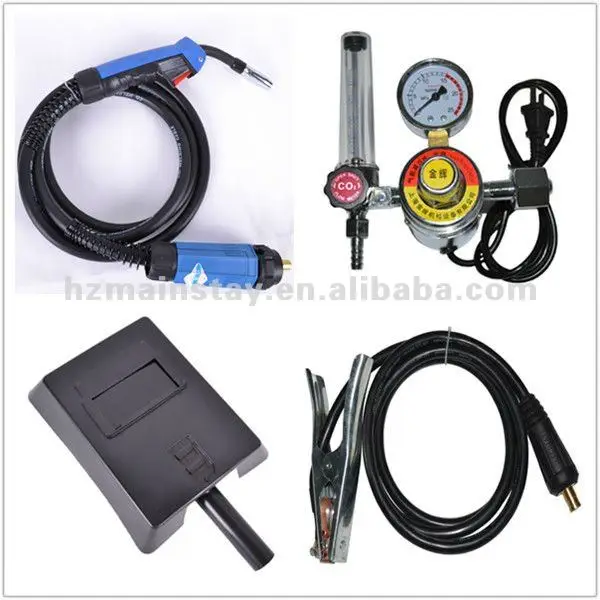

Accessories of Co2 MIG Welding Machine :

MB 23AK 200A 3M Welding Torch ,    3M Earth clamp , AC220V CO2 watch



OEM Order We Produced

Packaging of Co2 MIG Welding Machine

Application of Co2 MIG Welding Machine

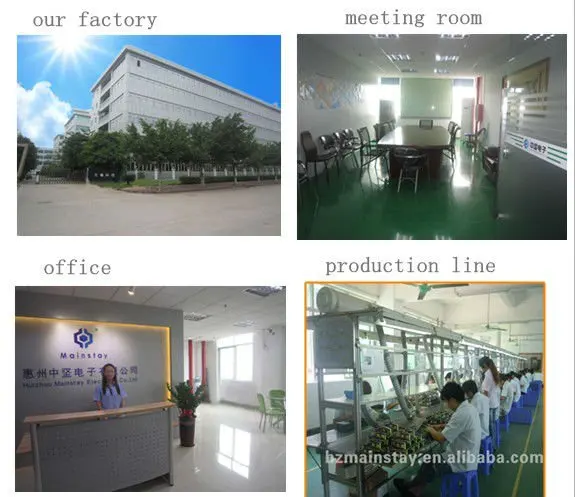

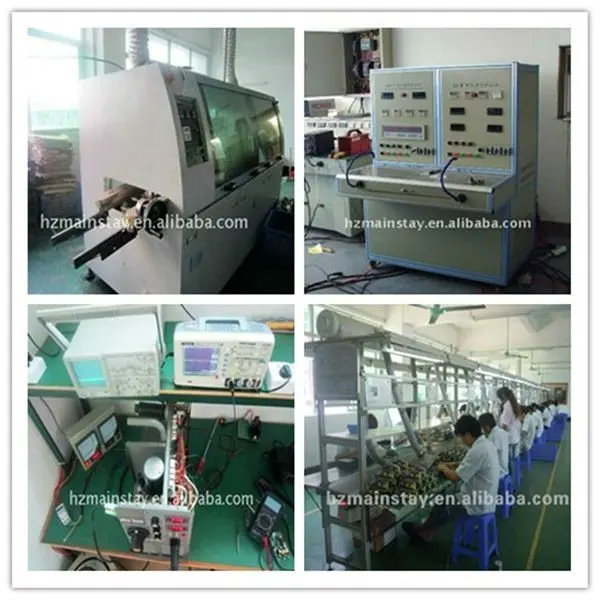

Company Profile



BV Certificate

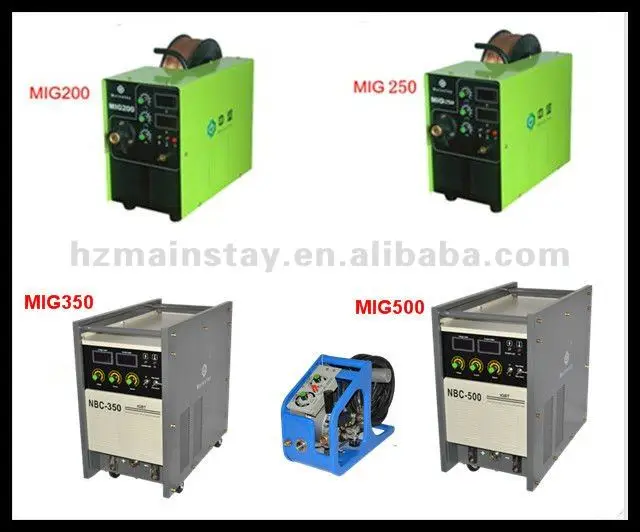

Related Product of Co2 MIG Welding Machine









After-Sale Service:
1.with 1 year warranty for this mig argon welding machine.

2.The average of our welding machine lasts between seven and eight years.If there were problems in seven days,we replace the new one for you.
