Product Overview
Description
Product Paramenters
HCP315 | HCP460 | |
Maximum Sheet Width | 315 mm | 460mm |
Minimum Stock Size | 127mmx 25 mm | 127mmx 25 mm |
Thickness Capacity | 45 - 400 gsm | 45 - 400 gsm |
Maximum Speed | up to 750 per hour | up to 750 per hour |
Machine Weight | 11.5kg | 17kg |
Machine dimensions | 500×380×130 mm | 690×590×180 mm |
Product show

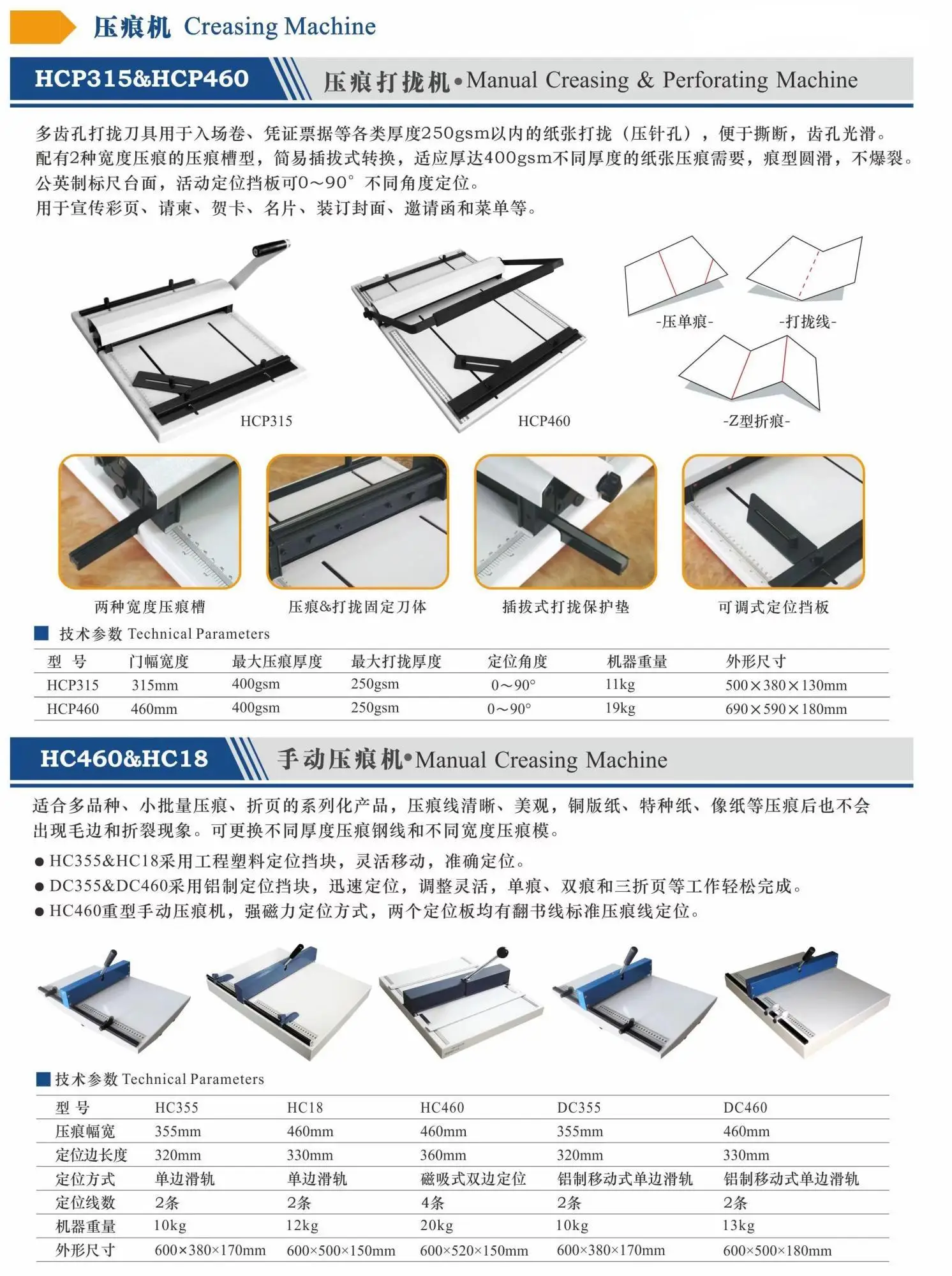

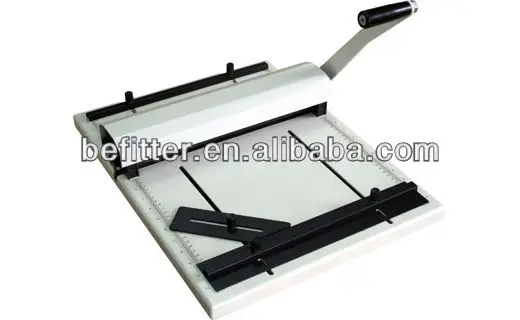

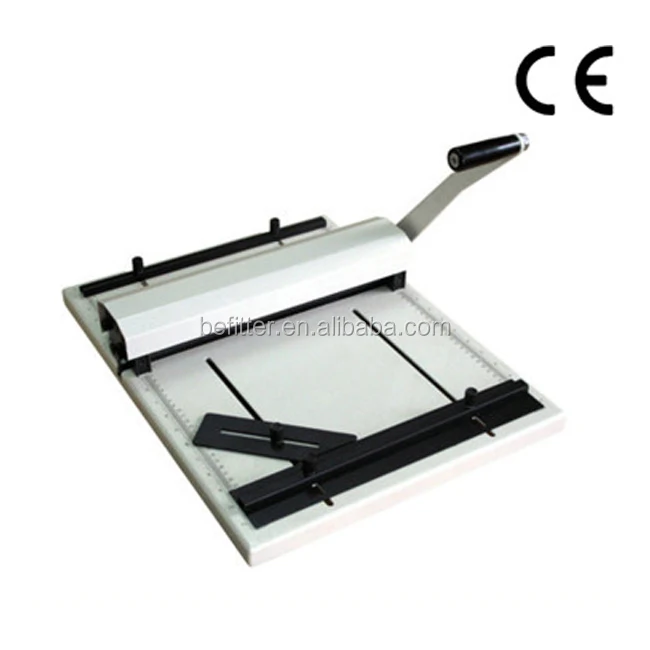

Creasing & Perforating Machine HCP315(A3)
Scoring & Creasing & Perforating Machine
Tabletop impact creasing and perforating machine that provides a simple economical solution for low volume or occasional creasing/perfing jobs. It creases and perforates on any angle up to 90°with a simple manual adjustment of perf, narrow or wide crease.
1. HCP315 offers great quality creasing and perforating of single sheets, for smooth folds and clean tear offs.
2. Perforates for food coupons, vouchers, etc;
3. Perforates up to 250gsm paper;
4. Creases up to 400gsm paper thickness,The width of crease is 1.2 / 1.8mm;
5. 0-90 degree creasing & perforating angle;
6.The mechanism is working with a knife and a v-shaped counter knife in order to be very smooth;
7. Millimeter scale runs along the sides;
8. Easy adjustment of front, rear & angular paper guides;
9. Easily move from perforation, narrow or wide scoring blades
10.Simple manual adjustment required to change codes.
11. Includes 1 scoring blade & 1 perforating blade.
Tabletop impact creasing and perforating machine that provides a simple economical solution for low volume or occasional creasing/perfing jobs. It creases and perforates on any angle up to 90°with a simple manual adjustment of perf, narrow or wide crease.
1. HCP315 offers great quality creasing and perforating of single sheets, for smooth folds and clean tear offs.
2. Perforates for food coupons, vouchers, etc;
3. Perforates up to 250gsm paper;
4. Creases up to 400gsm paper thickness,The width of crease is 1.2 / 1.8mm;
5. 0-90 degree creasing & perforating angle;
6.The mechanism is working with a knife and a v-shaped counter knife in order to be very smooth;
7. Millimeter scale runs along the sides;
8. Easy adjustment of front, rear & angular paper guides;
9. Easily move from perforation, narrow or wide scoring blades
10.Simple manual adjustment required to change codes.
11. Includes 1 scoring blade & 1 perforating blade.
