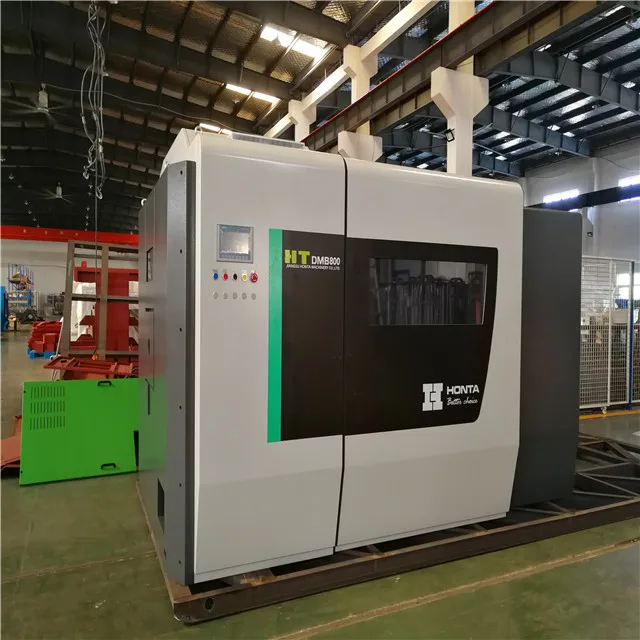

( Twisting machine ) HT.DMB630.03.00 copper wire bunching machine electric wire cable making machine

Features:

Products Model:  HT.DMB630.03.00

Wire Diameter Product range:

Irregular Bunching
Sectional area :Min0.10-Max6 mm2;
Wire dia. :Min0.1-Max1.0mm
Finished dia. :Max3.2mm

 Half-regular Bunching(1+6)

Finished dia. :Min0.10-Max6 mm2;
Wire dia. :Min0.13-Max1.04mm
Finished dia. :Min0.405-Max3.2mm

Regular Bunching(1+6+12)
Sectional area :Min0.254-Max6 mm2;
Wire dia. :Min0.12-Max0.6mm
Finished dia. :Min0.62-Max3.0mm

Pitches:

Gears : Z=20/65
Pitch range :5.96-62.98mm
For more detailed pitch information, please indicate at the time of
agreement.

Max. Line speed: Max 300m/min ( bobbin barrel dia. ≥ 250mm)

Electric motor power :

Main motor          : AC18.5kw
Take-up motor     : AC2.2kw
Fan motor            : AC 1.1kw
Lifting motor        : AC 0.55kw





Company Information

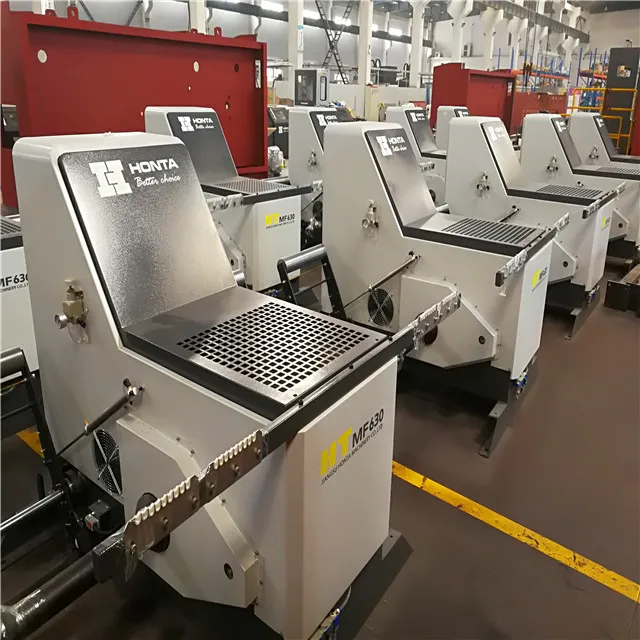

 Our factory show:
