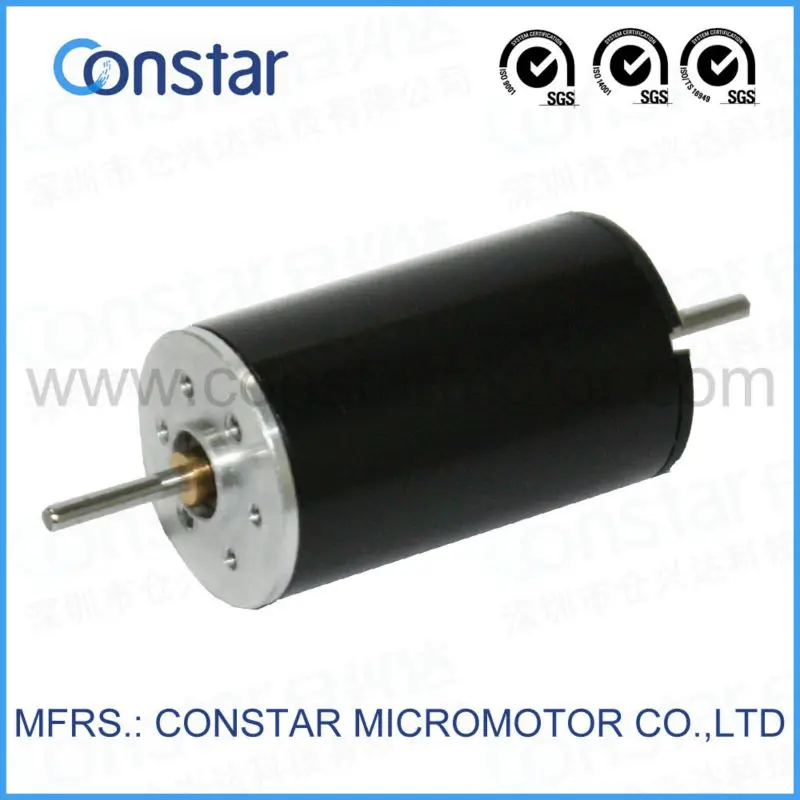

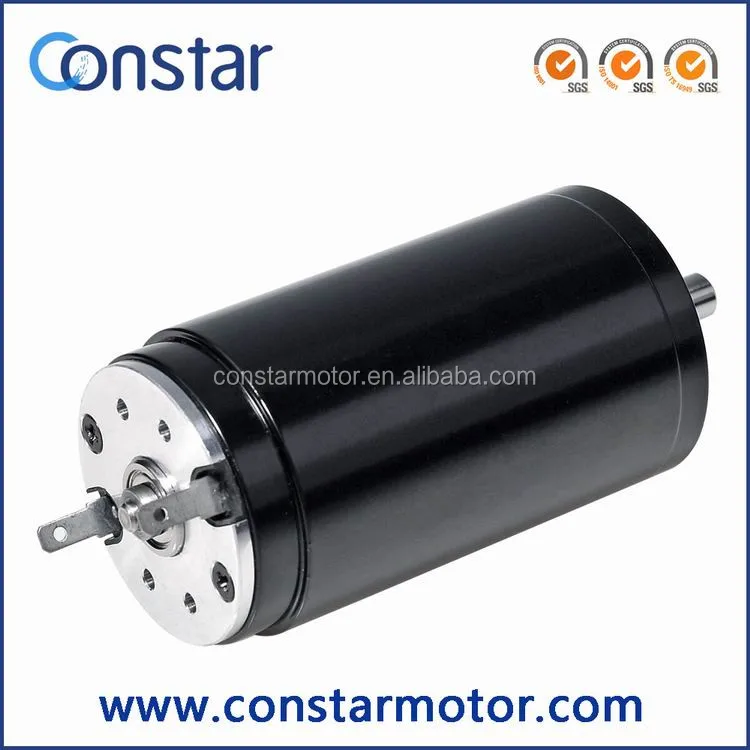

16mm 12V dual shaft motor

Product Overview

Description

 16mm 12V dual shaft motor

CONSTAR MICROMOTOR
PRECISION DC CORELESS MOTOR	BRUSHLESS DC MOTOR	SERVO MOTOR
GEARMOTOR	STEP MOTOR	MINI CORELESS MOTOR



1. Applications:   Precision driving field in medical,health care and industrial automation.



2. Operating Environment:  -20~+85°C;15~90%RH



3. Characteristics:



series	Performance Code	Dimension (mm)	Voltage (V)	Terminal resistance (Ω)	No-load Speed (rpm)	No-load Current (mA)	Load Torque (mNm)	Load Speed (rpm)	Load Current (mA)
1627RCN**C	-7	Φ16*26.6	4.5	1.5	10100	45	2.5	8100	550
	-13	Φ16*26.6	6	2	10000	45	2.5	8500	500
	-14	Φ16*26.6	12	8.5	10000	35	3.5	7200	360



 4. Options:   Lead wires length, shaft length, special coils, gearheads, encoder , bearing type







                                                                                                          16mm 12V dual shaft motor
