Product Overview
Description
post

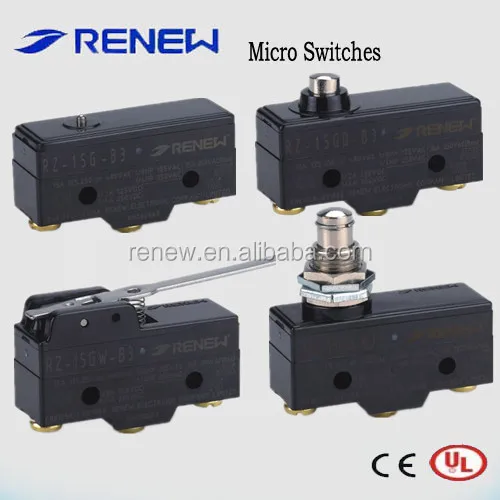

Micro switch RZ type
zippy micro switch
Perfomance

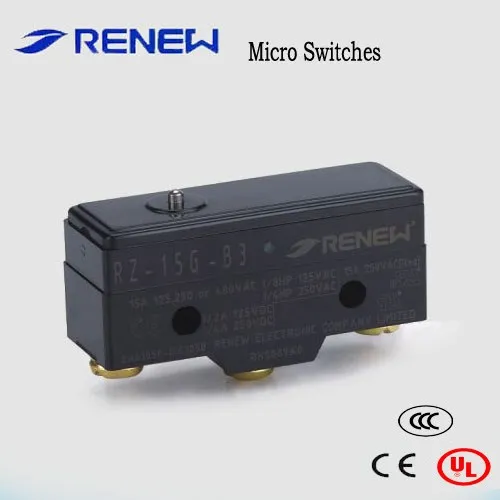

RZ-15G-B3 micro switch
| Operating Force | 250-350gf |
| Releasing Force | 114gf min. |
| Pre Travel | 0.4mm max. |
| Movement Differential | 0.05mm max. |
| Over Travel | 0.13mm min. |
| Operating Position | 15.9±0.4mm |
RZ-15GD-B3 micro switch
| Operating Force | 250-350gf |
| Releasing Force | 114gf min. |
| Pre Travel | 0.4mm max. |
| Movement Differential | 0.05mm max. |
| Over Travel | 1.6mm min. |
| Operating Position | 21.5±0.5mm |

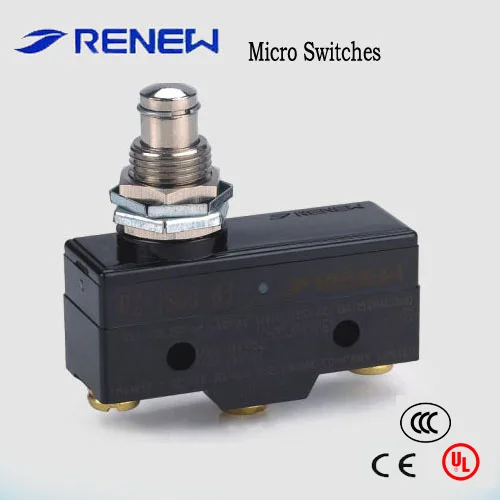

RZ-15GQ-B3 micro switch
| Operating Force | 250-350gf |
| Releasing Force | 114gf min. |
| Pre Travel | 0.4mm max. |
| Movement Differential | 0.05mm max. |
| Over Travel | 5.5mm min. |
| Operating Position | 21.8±0.8mm |

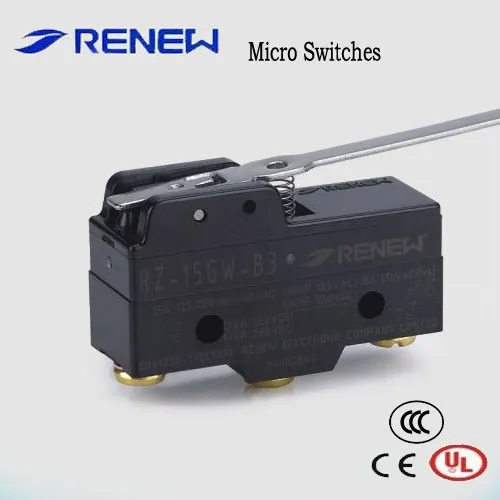

RZ-15GW-B3 micro switch
| Operating Force | 70gf |
| Releasing Force | 14gf min. |
| Free Position | 28.2mm max. |
| Movement Differential | 1.3mm max. |
| Over Travel | 5.6mm min. |
| Operating Position | 19±0.8mm |
1. Characteristics
Item Type | RZ-15 series | ||||||
Operating speed | 0.1mm~1m/secs (pin plunge type) | ||||||
Operating frequency | Mechanical | 240 operations/min | |||||
Electrical | 20 operations/min | ||||||
Insulation resistance | Above 100 mΩ(use the DC500V insulation resistance test) | ||||||
Contact resistance (initial value ) | The max 15 mΩ | ||||||
Dielectric strength | Between Non-connect terminal : AC1000V 50/60HZ for 1 min | ||||||
Between non voltage metal parts and each terminal , ground and each terminal : AC2000V 50/60HZ for 1min | |||||||
Vibration resistance(pin plunger type) | Malfunction | 1.5mm double amplitude; 10-55HZ (contact gap is under 1ms ) | |||||
Shock resistance | Pin plunger type | max 300m/s2 (contact gap is under 1ms ) | |||||
Others | max 50m/s2 (contact gap is under 1ms ) | ||||||
Life | Mechanical | ||||||
5,000,000 operations above (on/off frequency is 60 operations/min)( order OT) | |||||||
Electrical (resistive load) | 500,000operations min. (on/off frequency is 20 operations/min ) | ||||||
Ambient operation temperature & Ambient humidity | -25~+80(with no icing ), 85%RH max. (at +5~35) | ||||||
Contact material | AgNi alloy ; AgCdO alloy (not in the ROHS order ) | ||||||
Weight | Approx. 22 to 58g |
| |||||
Remark : switch operation with the low / high speed and shock , or used in the high temperature and more humidity , the life and the capability may be decreased because of the load capacity , so please consultation us freely .

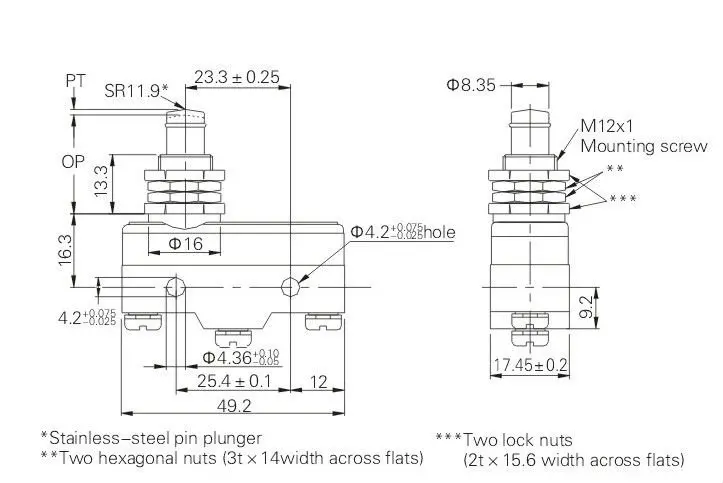

2.Demension size of micro switch RZ type
3.Other informaiton of micro switch RZ type
| Rating: | 15A, AC250V. 25A,AC400V |
| Contact form | SPDT, Reverse operation type |
| Terminals: | screw terminal with cup mouth washer, screw terminal with skidprooof within toothed washer screw terminal with spring washer |
| Maximum Operating Force | 4gf-540gf |
4.Packing details of micro switch RZ type
