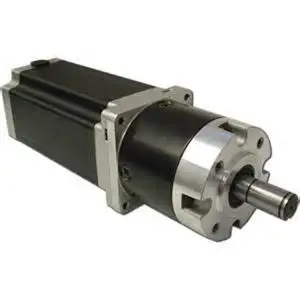

NEMA 23 Geared Stepper motor, Gear Reductor Step
- Category: >>>
- Supplier: Lianglu Transmission Machinery Plant
Share on (965815498):
Product Overview
Description
NEMA 23 Geared Stepper motor, Gear Reductor Step
Feature Description:
- Low noise
- Speed adjustable
- Long life characteristics
- High step angle accuracy
The specification of geared stepper motor :
Item | Specifications |
Step Angle Accuracy | ±5% |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80oC max(rated current, 2 phase on) |
Ambient Temperature | -20oC~+50oC |
Insulation Resistance | 100MΩ Min.500VDC |
| Dielectric Strength | 500VAC/1 minute |
| Model | Step Angle | Rated Current | Phase Resistance | Phase Inductance | Holding Torque | Detent Torque | Rotor Inertia | Motor Length L | Lead Wire | Gear Ratio |
| (°) | (A) | (Ω) | (MH) | (N.m) | (N.cm) | (g.cm²) | (mm) | (No.) | ||
| 57HS76354G05 | 1.8 | 3.5 | 1 | 3.5 | 1.8 | 6 | 440 | 76 | 4/8 | 1:05 |
| 57HS76354G10 | 1.8 | 3.5 | 1 | 3.5 | 1.8 | 6 | 440 | 76 | 4/8 | 1:10 |
| 57HS76354G20 | 1.8 | 3.5 | 1 | 3.5 | 1.8 | 6 | 440 | 76 | 4/8 | 1:20 |
| 57HS76354G50 | 1.8 | 3.5 | 1 | 3.5 | 1.8 | 6 | 440 | 76 | 4/8 | 1:50 |
| 57HS112404-G05 | 1.8 | 4 | 0.9 | 3.8 | 2.8 | 12 | 800 | 112 | 4 | 1:05 |
| 57HS112404-G10 | 1.8 | 4 | 0.9 | 3.8 | 2.8 | 12 | 800 | 112 | 4 | 1:10 |
| 57HS112404-G20 | 1.8 | 4 | 0.9 | 6.8 | 2.8 | 12 | 800 | 112 | 4 | 1:20 |
| 57HS112404-G50 | 1.8 | 4 | 0.9 | 1.8 | 2.8 | 12 | 800 | 112 | 4 | 1:50 |
Application of geared stepper motor :
Stepper motor can be used in such areas as industrial transmission control, powder packaging machine, CD-ROM reader, winding machine, printing machine, cutting machine, engraving machines, printers, plotters, robotics and other related products.
Related Search of geared stepper motor :
motor, stepper, engine, stepper motor, gear stepper motor, stepper geared motor, gear motor, Elektromotor, AC motor, dc gear motor, reducer motor, electric motor, Getriebemotor, Hybrid stepper motor, 2 phase stepper motor, nema 11 stepper motor, nema 8 stepper motor, nema 14 stepper motor, 20mm frame stepper motor, 57mm frame stepper motor, 86mm frame stepper motor, nema 17 stepper motor, nema 23 stepper motor, nema 34 stepper motor, nema 42 stepper motor

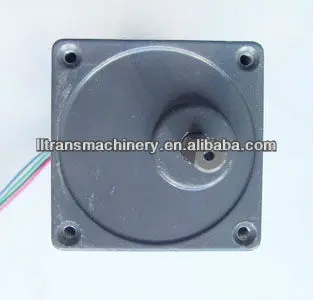

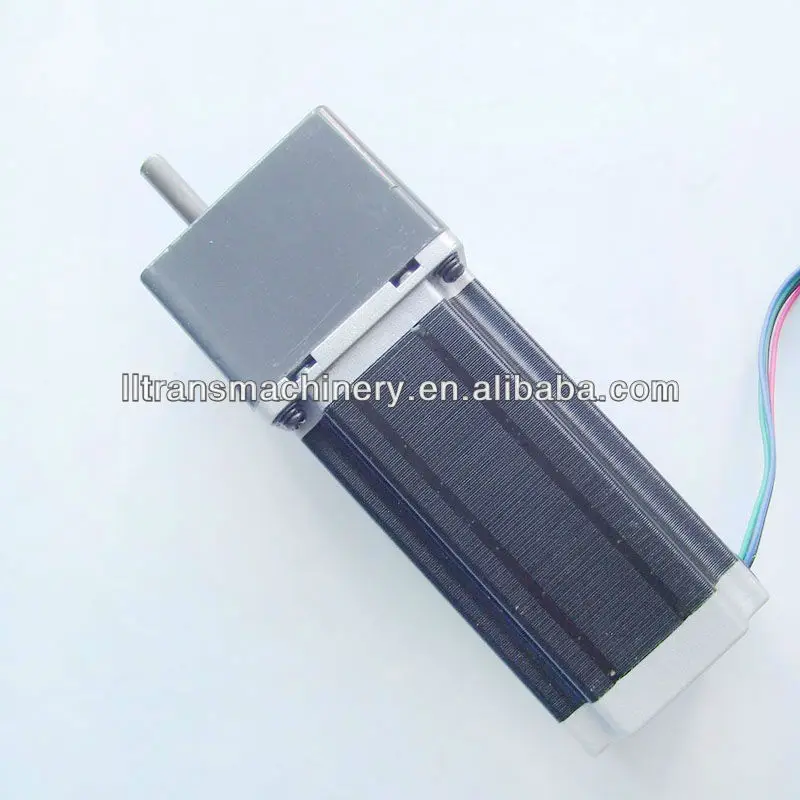

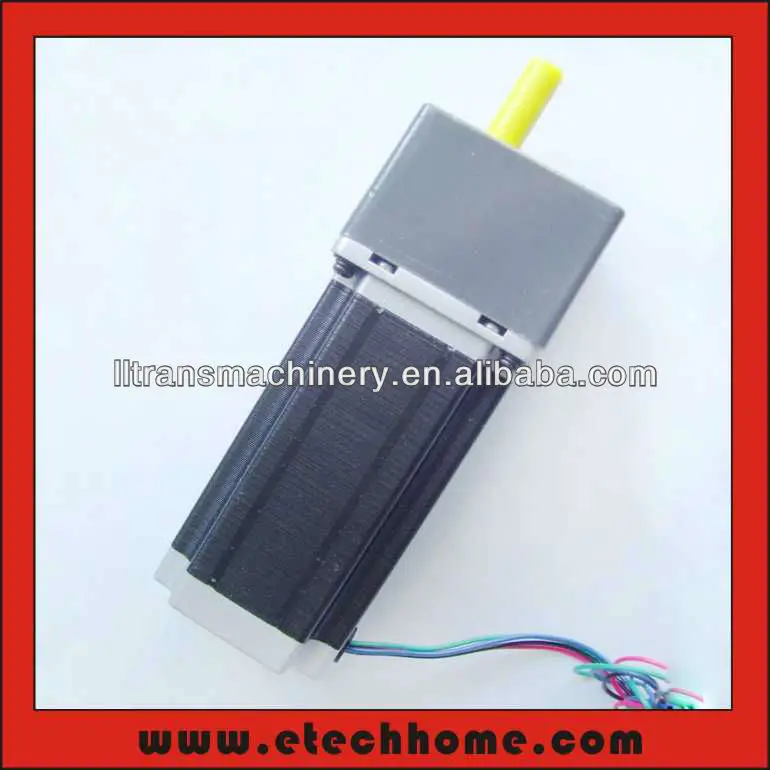

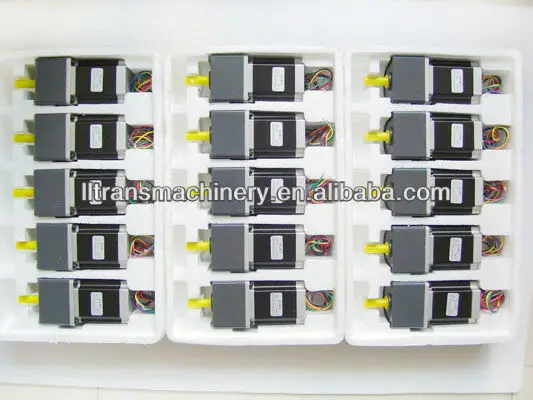

More photos of NEMA 23 57mm geared stepper motor :

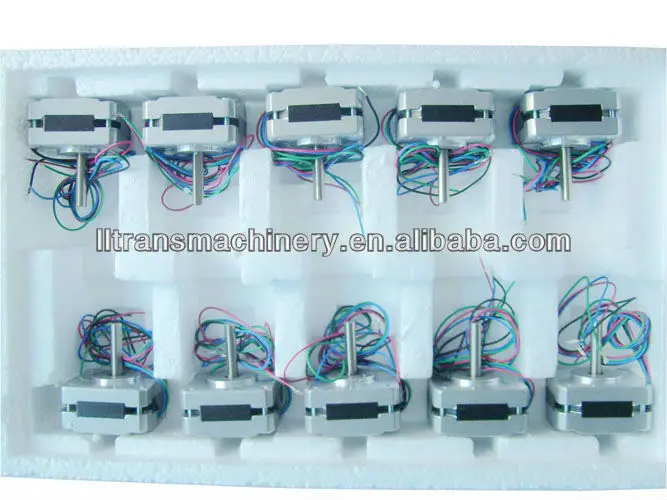

Packing of NEMA 17 geared steppr motor:

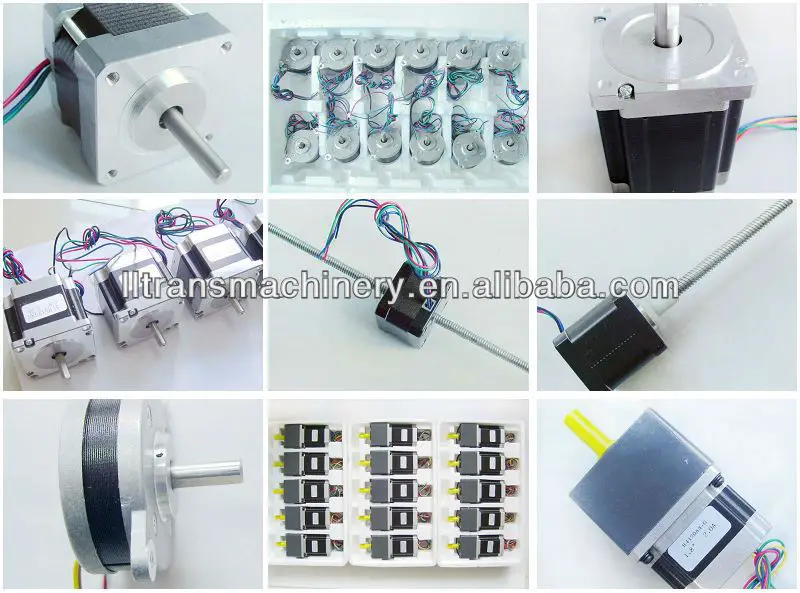

Various stepper motor for you selection:

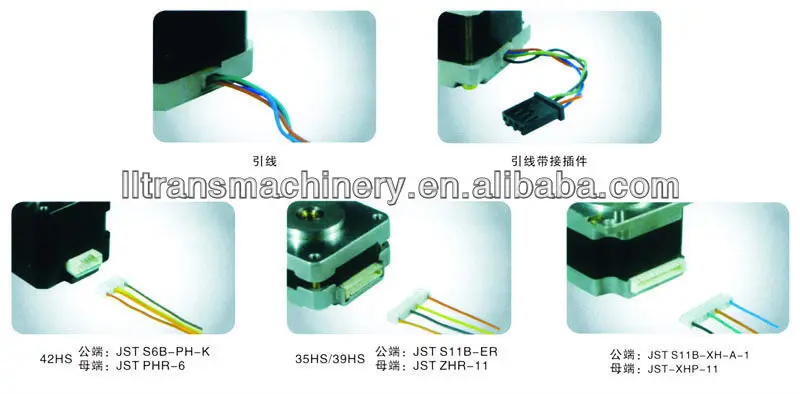

The lead wire mode of stepper motor:

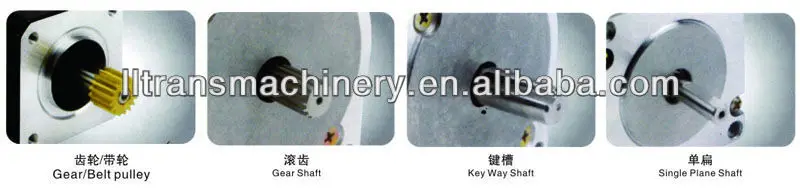

The shaft mode of stepper motor:

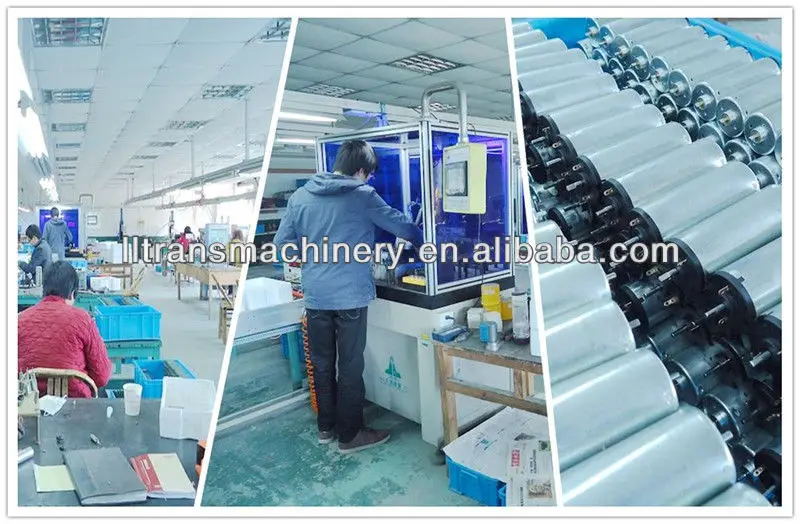

Plant:
