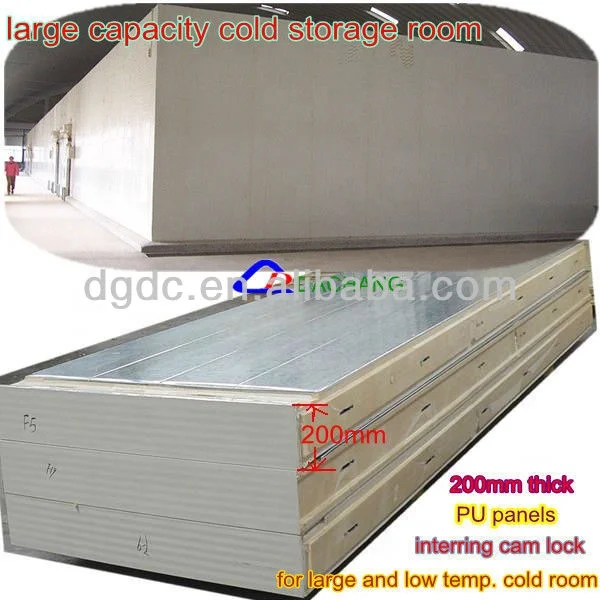

200mm thick cold room polyurethane heat insulation panel

Product Overview

Description

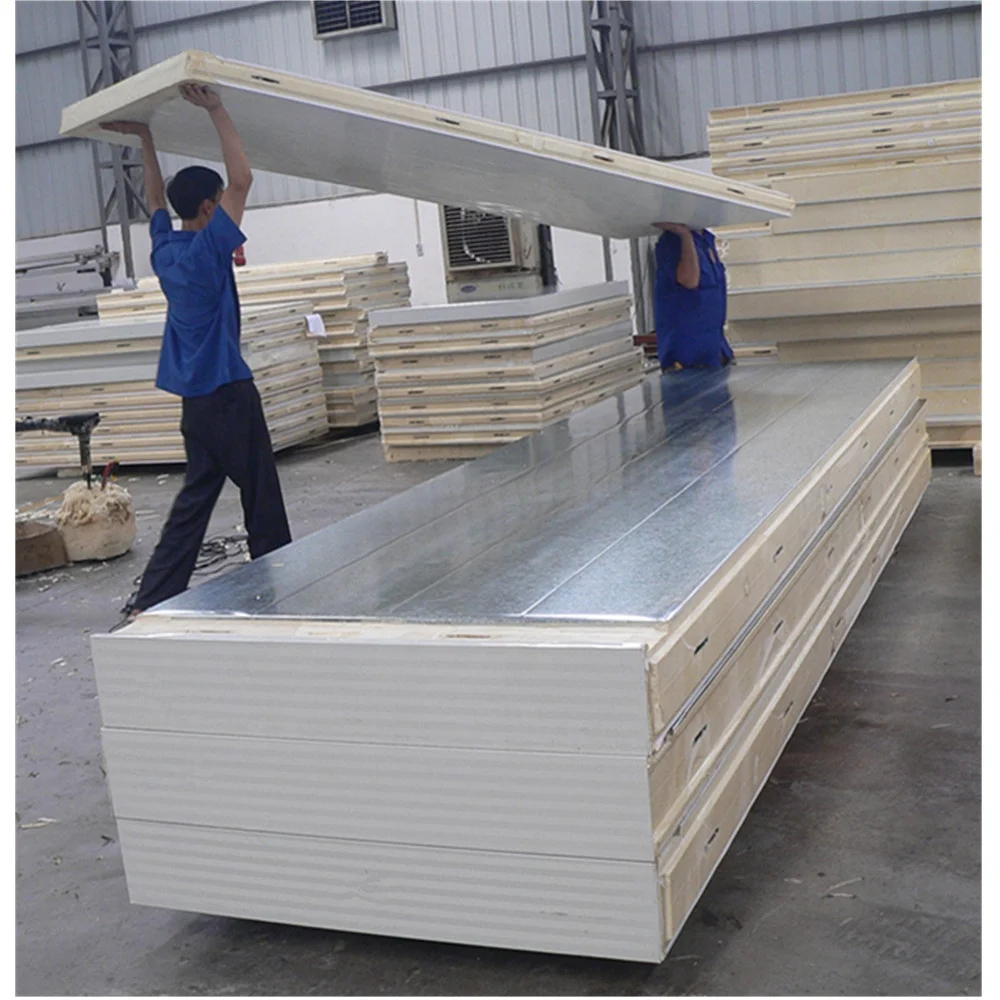

200mm thick cold room polyurethane heat insulation panel for cold storage

Feature of cold room PU insulation panel

1. Polyurethane panels are 100% polyurethane insulation, foamed by high pressure by using BASF foaming material,green to the environment.



2. PU panels are foamed by high pressure, our pressure plate can bear the pressure up to 200 ton, even foaming, the whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of  0.021W/(m.k)



3. All the PU panels are with fire retardant, reach the B1 hard firing material for the safety.



4.  The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, the protect film of the painted galvanized steel is 0.07mm thick, well protect the steel sheet in fine condition.



 Details

1.polyurehtane sandwich panel-cold room wall panel, cold room ceiling panel,cold room floor panels

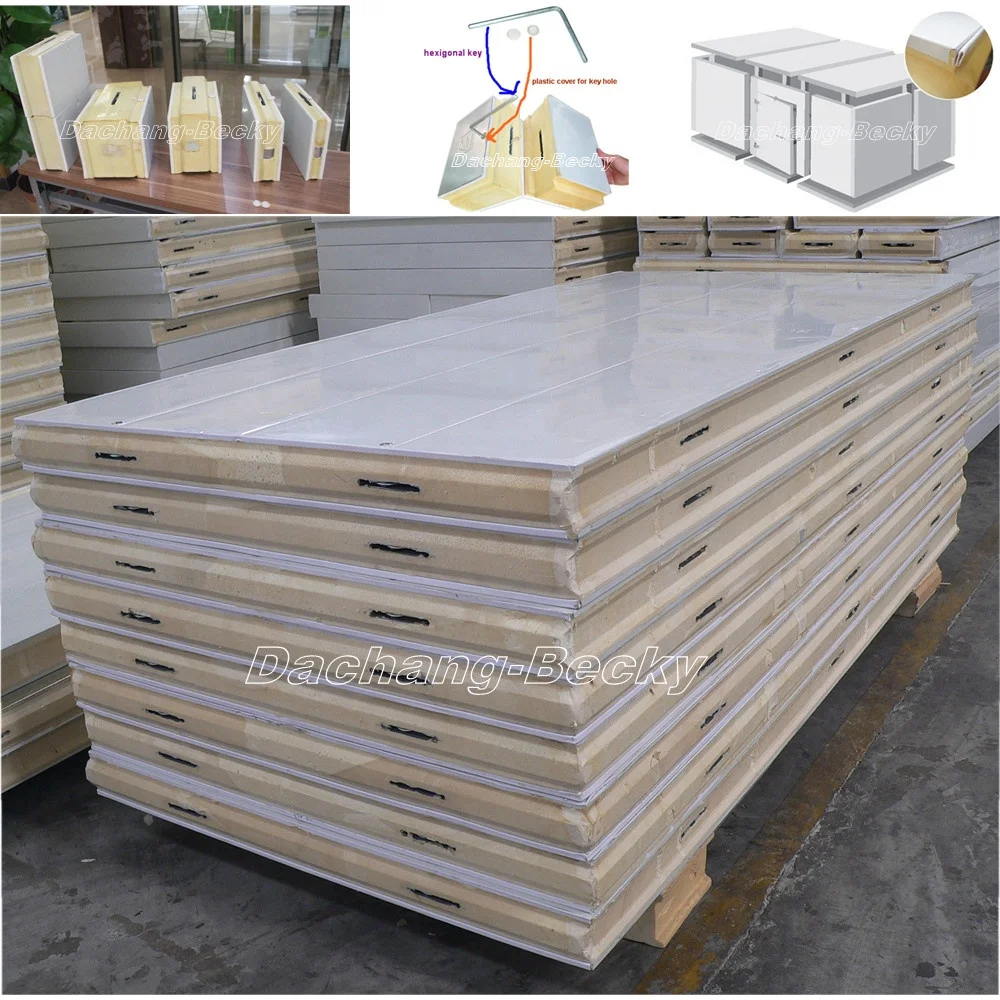

 2.cam locky type, use hexagonal key to assmeble and disassemble the cold storage room

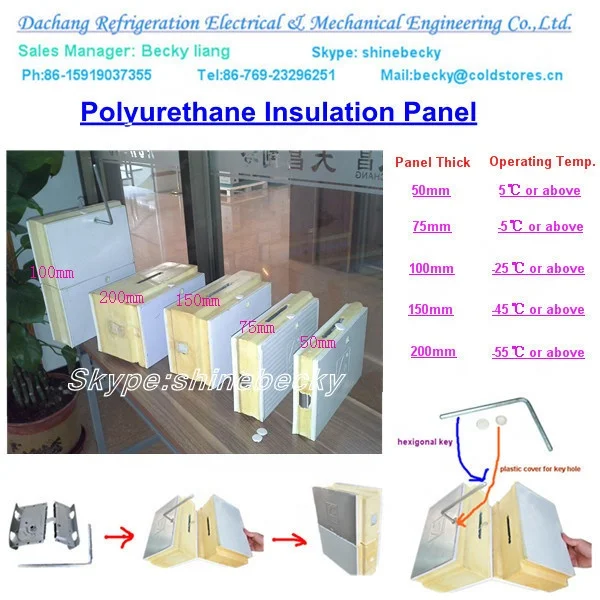

3.cold room panels thick:50mm,75mm,100mm.150mm,200mm, standard width 1183mm, max. length 13.5m.

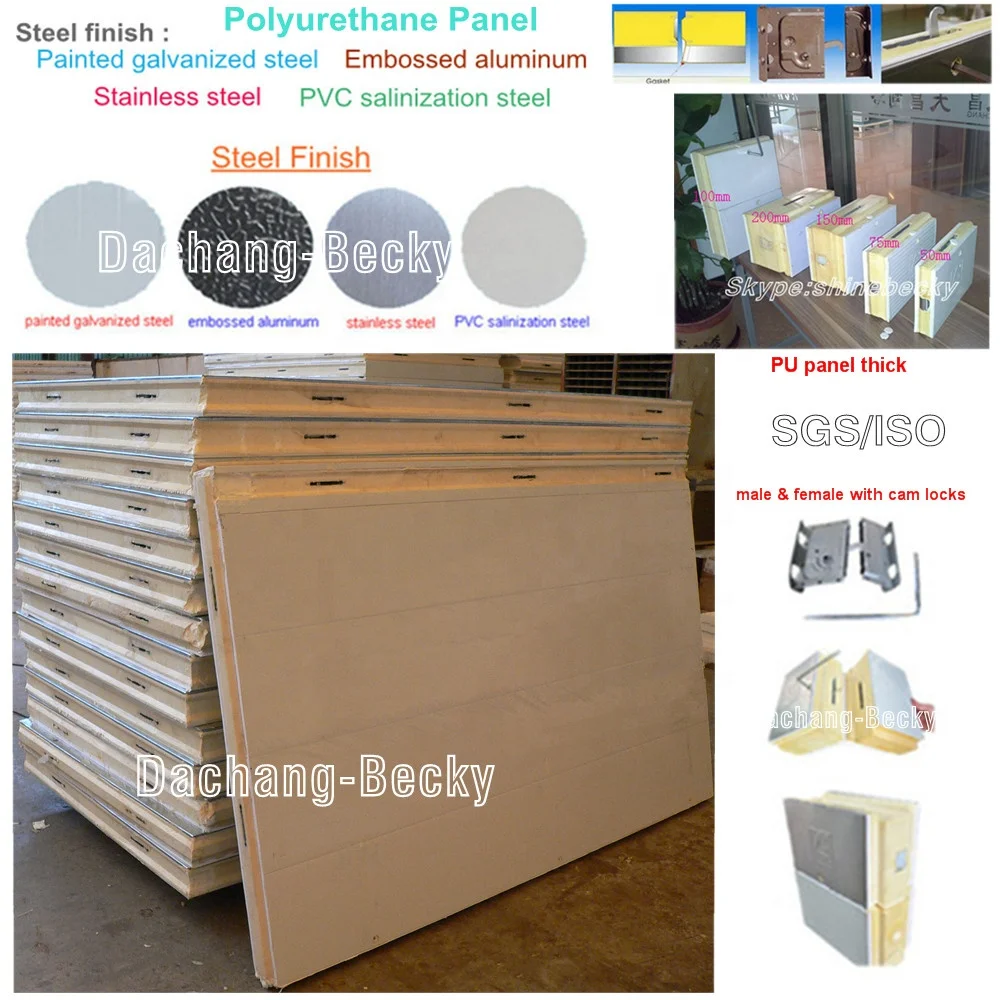

4.steel sheet:painted galvanized steel,stucco embossed aluminum,stainless steel,PVC steel

Polyurethane Specification

According to the inspecion result of national JB/T6527-92<modular cold room insulation sandwiched panel's technology conditions

No.	Inspection item	Unit	Technology Inspection	Inspection result
1	Density	kg/m3	32-50	43
2	Compressing strength(10% deformation)	Kpa	more than160	200
3	Bending strength	Kpa	more than 245	331
4	Absorbing rate	%	less than 4	3
5	Heating coefficient	W/m.k.	0.024	0.024
6	Average burning time(Vertical)	S	less than30	3
7	Average burning height(Vertical)	S	less than250	250

Dachang panels are appropriate for GB8624-1997<Classification of the firing capacity of construction-materials>and reach the requirements of lever B1 hard firing material.





Use the PU panels to assemble the  cold room



Dimension	Length (m) *Width (m)*Height (m)
Panel	polyurethane insulation panel,43kg/m3, fire retardant
Foaming material	BASF
Panel thickness	50mm,75mm,100mm,150mm,200mm
Steel cover	stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell
Panel connection	cam lock type, use hexagonal key to assemble and disassemble
Type of door	hinge door, convex door, sliding door
Temp.of room	-55~+20 degree, optional
Purpose of cold room	fruit,vegetable,flower,foods, frozen meat and fish etc
Refrigeration unit	Copeland / Bitzer / Sanyo etc
Refrigeration type	air cooled / water cooled
Fittings	all necessary fittings are included, optional
Place to assemble	indoor/out door(concrete construction building/steel construction building)
Voltage	220V/50HZ, 220V/60HZ, 380V/50HZ optional

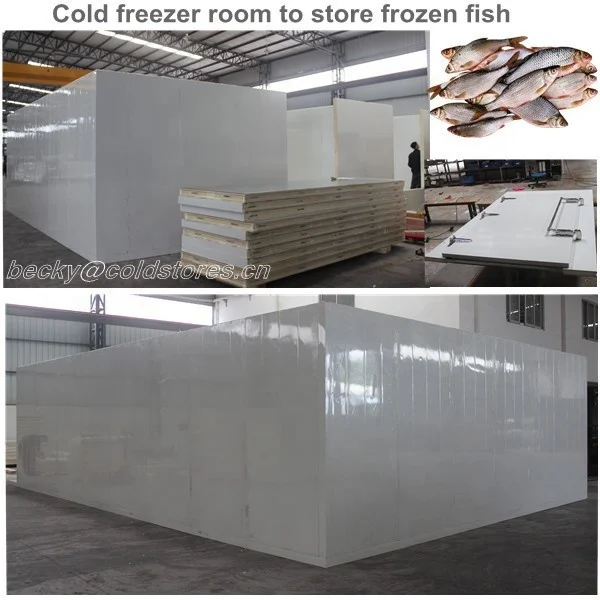

Large cold room for distribution:

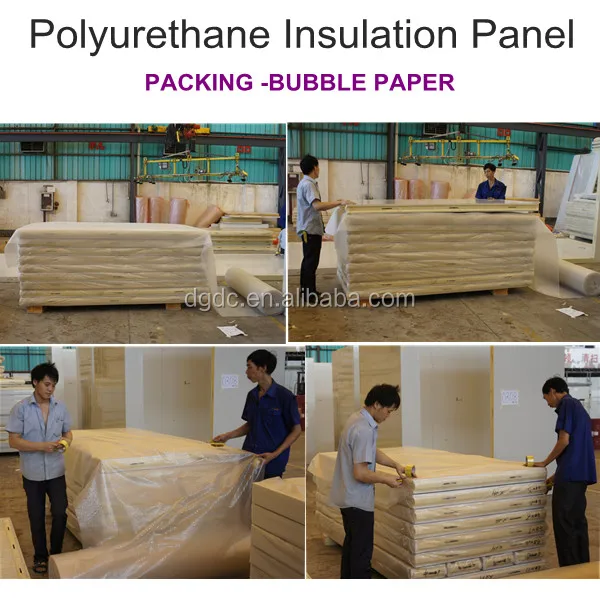

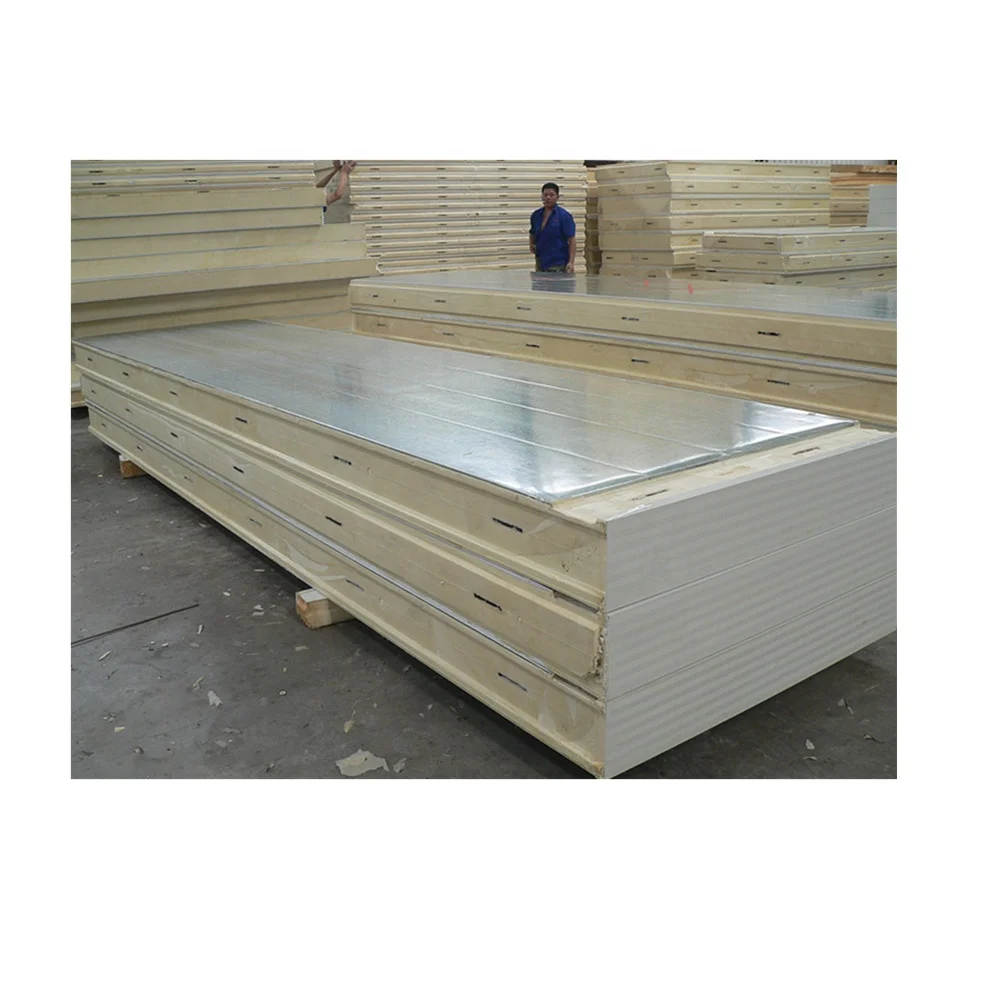

Standard packing of the panels-packed in bubble paper

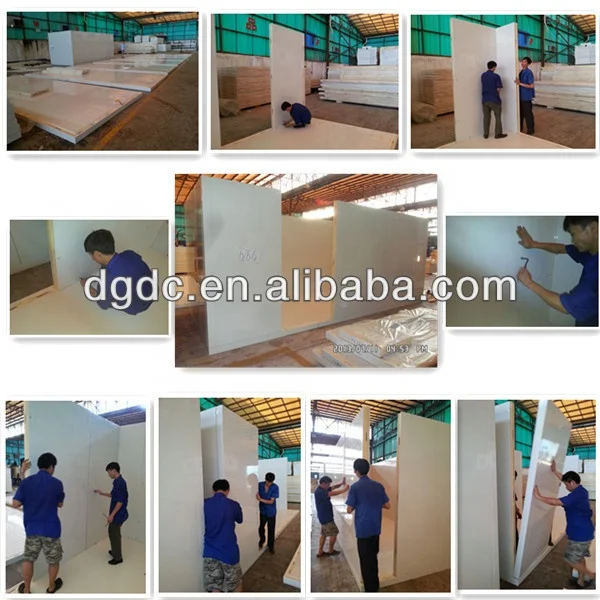

We use the cold room insulation panels to assemble all kinds of cold room

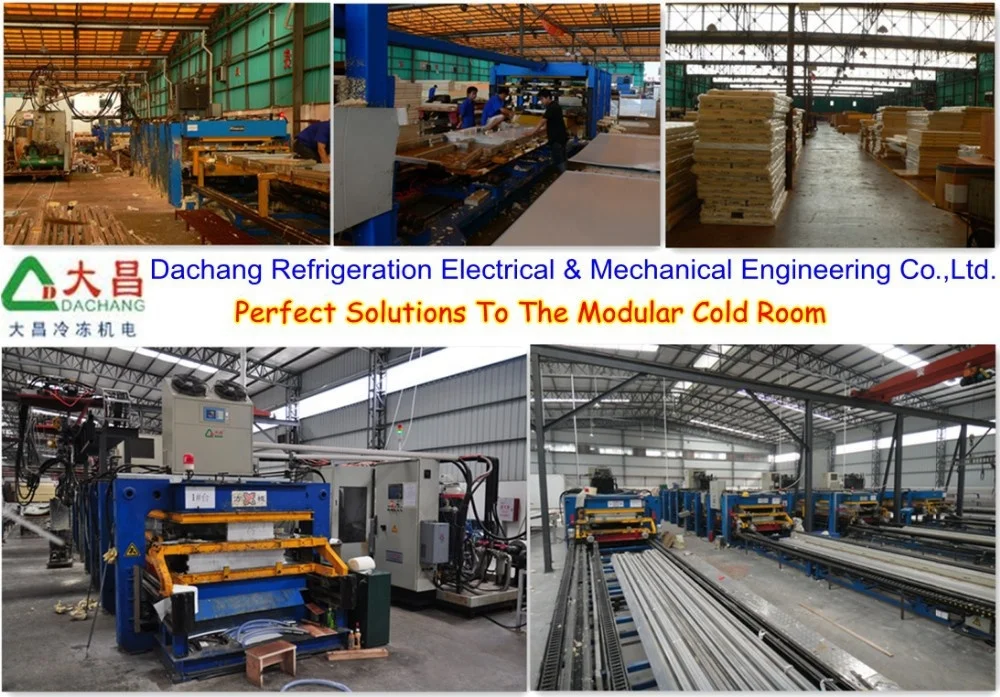

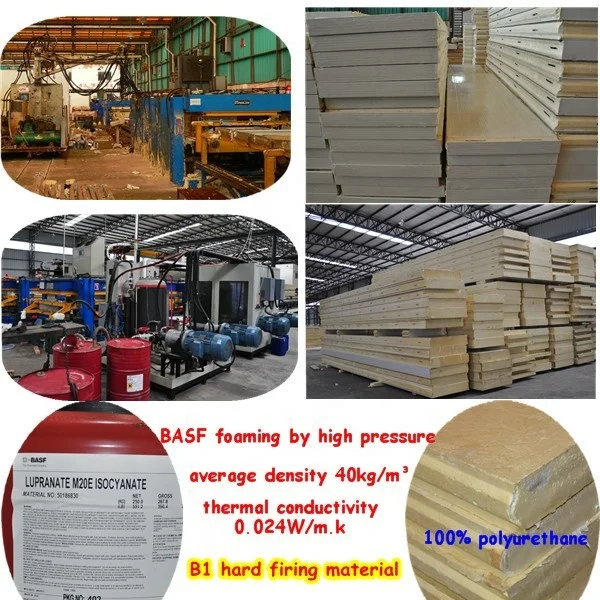

Imported production lines for the  cold room panels



DACHANG company provide the pefect solutions to the modular cold room for 20years !

DACHANG company attend the related exhibitions every year.
