Supply Fast Speed Water Well 400m Water Well Drilling Rig
US $19000-$30000
multifunctioncal HF 6A pile foundation drill depth upto 300m mine drilling rig machine drill pile diamond jacking pile machine
- Category: Mine Drilling Rig >>>
- Supplier: Zhengzhou Hanfa Imp & Exp Trading Co. Ltd.
Share on (967263213):
Product Overview
Description
Product Description

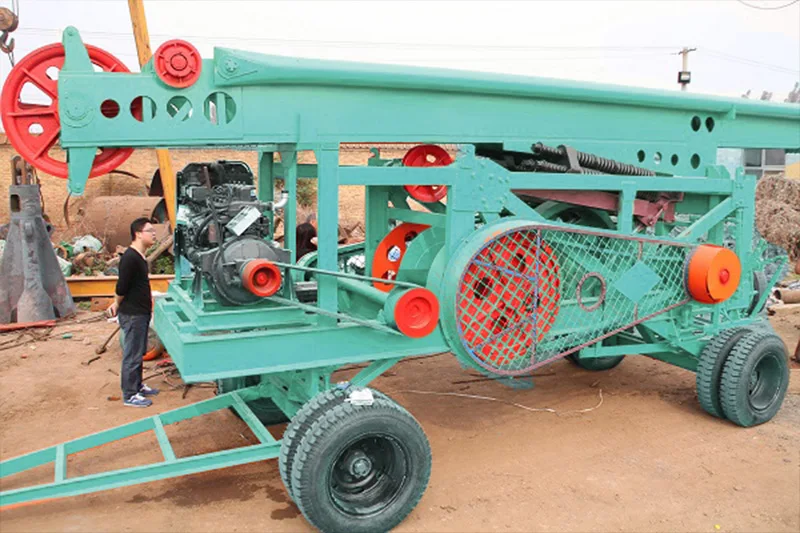

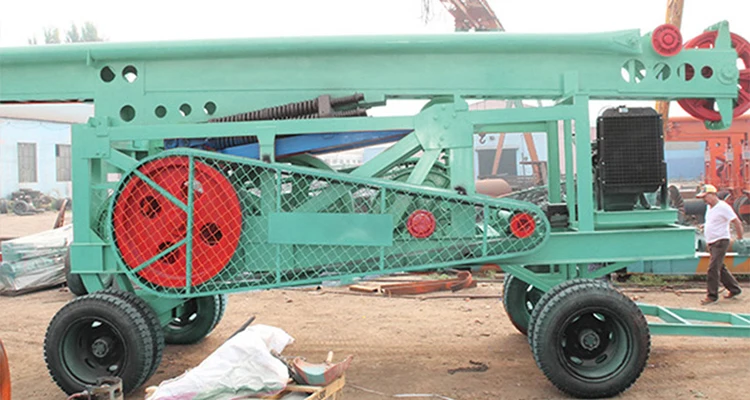

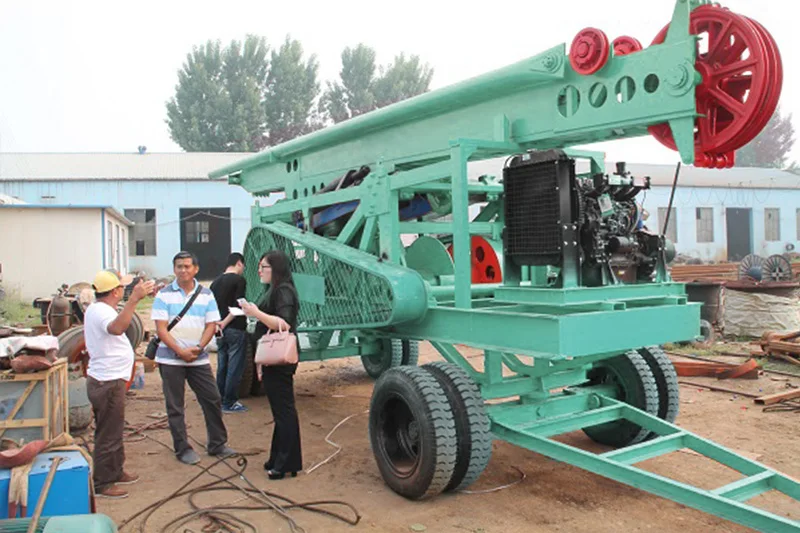

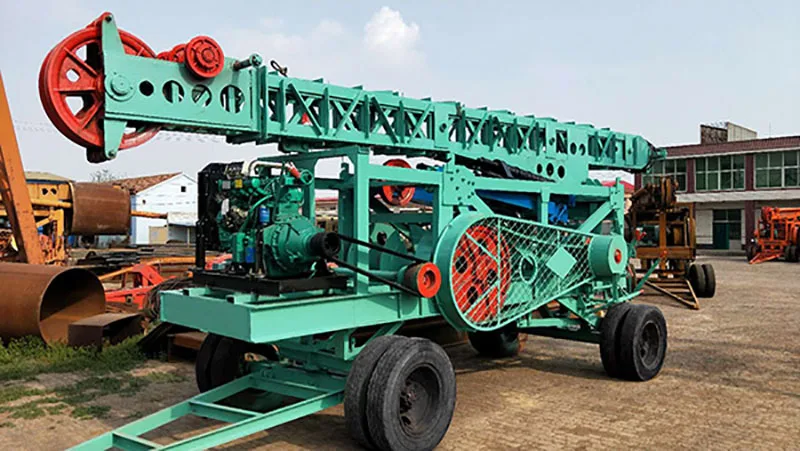

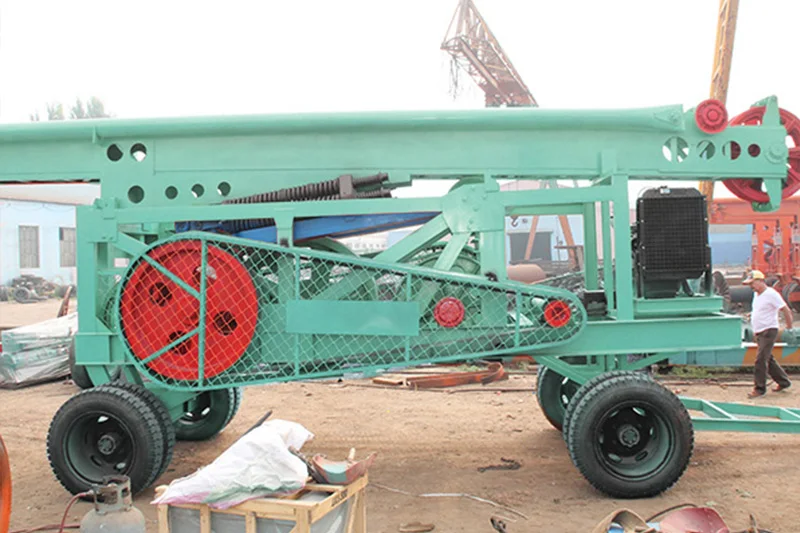

HF-6A percussion drilling rig is one of the most important drilling machine in the piling foundation and bore hole drilling. It
can adapt various geological condition, especially for drilling hole in gravel and rock with strong adaptation. Meantime,
percussion drilling rig has high pore forming efficiency and good pile formation quality. HF-6A drilling rig is very popular in
the market currently, all of its components are all installed in the trailer, like electric motor,drive motor, hoist, mast etc,
integrate motion. The percussion drilling rig uses the crank-link mechanism to change the power's gyration motion into alternating motion, through the steel wire rope to drive the hammer bit to do up-and-down motion. With the impact effect of the hammer bit's free failing, to break the soil, sand, gravel or rock into pieces, and then use the slag tube or mud pump to clean the slag out of the hole.
can adapt various geological condition, especially for drilling hole in gravel and rock with strong adaptation. Meantime,
percussion drilling rig has high pore forming efficiency and good pile formation quality. HF-6A drilling rig is very popular in
the market currently, all of its components are all installed in the trailer, like electric motor,drive motor, hoist, mast etc,
integrate motion. The percussion drilling rig uses the crank-link mechanism to change the power's gyration motion into alternating motion, through the steel wire rope to drive the hammer bit to do up-and-down motion. With the impact effect of the hammer bit's free failing, to break the soil, sand, gravel or rock into pieces, and then use the slag tube or mud pump to clean the slag out of the hole.
Technical Data
Technical performance | Parameter | ||
Dimension(M) | 9.30*2.50*3.10m | ||
Vehicle transportation size（M） | 9.30*2.25*2.80m | ||
Container transport dimensions（M） | split1 | 4.80*2.25*2.30m | |
split2 | 9.30*0.85*1.05m | ||
Weight（kg） | 9500kg | ||
Drill diameter（mm） | 300-1850mm | ||
Drill depth（M） | 300m(when the diameter is 600mm) | ||
Maximum weight of drill tools（kg） | 5000kg | ||
Drill tools selection | Stratum hardness≤1000kp | hollow boring bit | |
Stratum hardness≥1000kp | solid-crown bit | ||
Drill tools stroke（mm） | 850mm、700mm | ||
Impact frequency（times/min） | 38-42times/min | ||

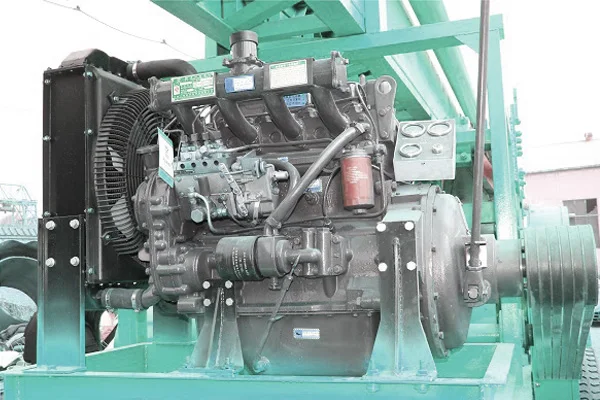

Electric Motor parameters | Model YL280M2-6，engine power 55kw | ||
980r/min | |||
The mast height(M) | single mast 8.5m、9.5m；double mast 12.5m | ||
Mast loading capacity(kg) | 50000kg | ||
Traction Driving speed (km/h) | 30km/h | ||
Hoist lifting capacity(N) | front winch | 20096N | |
Back winch | 68357N | ||
Specification and capacity of winding drum rope(M) | front winding drum | 6×37s φ18 200-250(levorotation) | |
Back winding drum | 6×19s+IWRC 200-300(levorotation) | ||
Wheel specification | Tire specifications | 7.50-20 | |
Rim Specification | 20×7 | ||

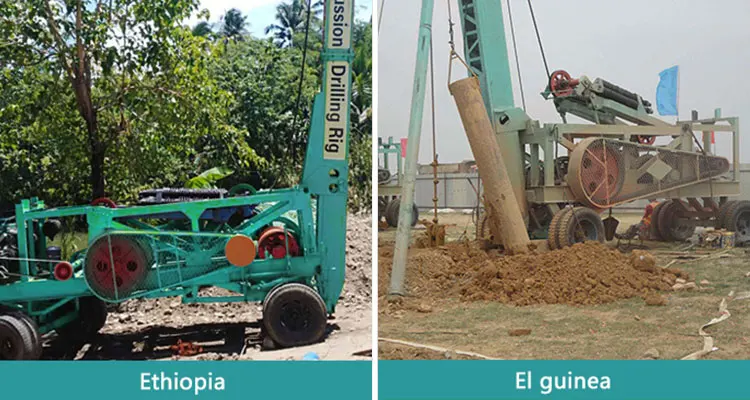

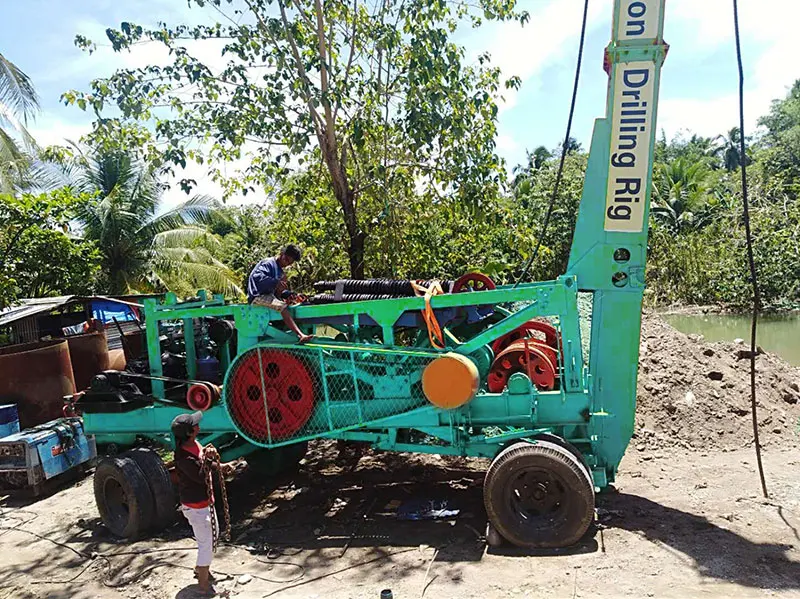

Working Site
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
