T85FEL T 85HP 2 stroke outboard motor

Product Overview

Description

PARSUN T85FEL-T  OUTBOARD ENGINE



FEATURES

High grade marine aluminum alloy for ultimate corrosion protection

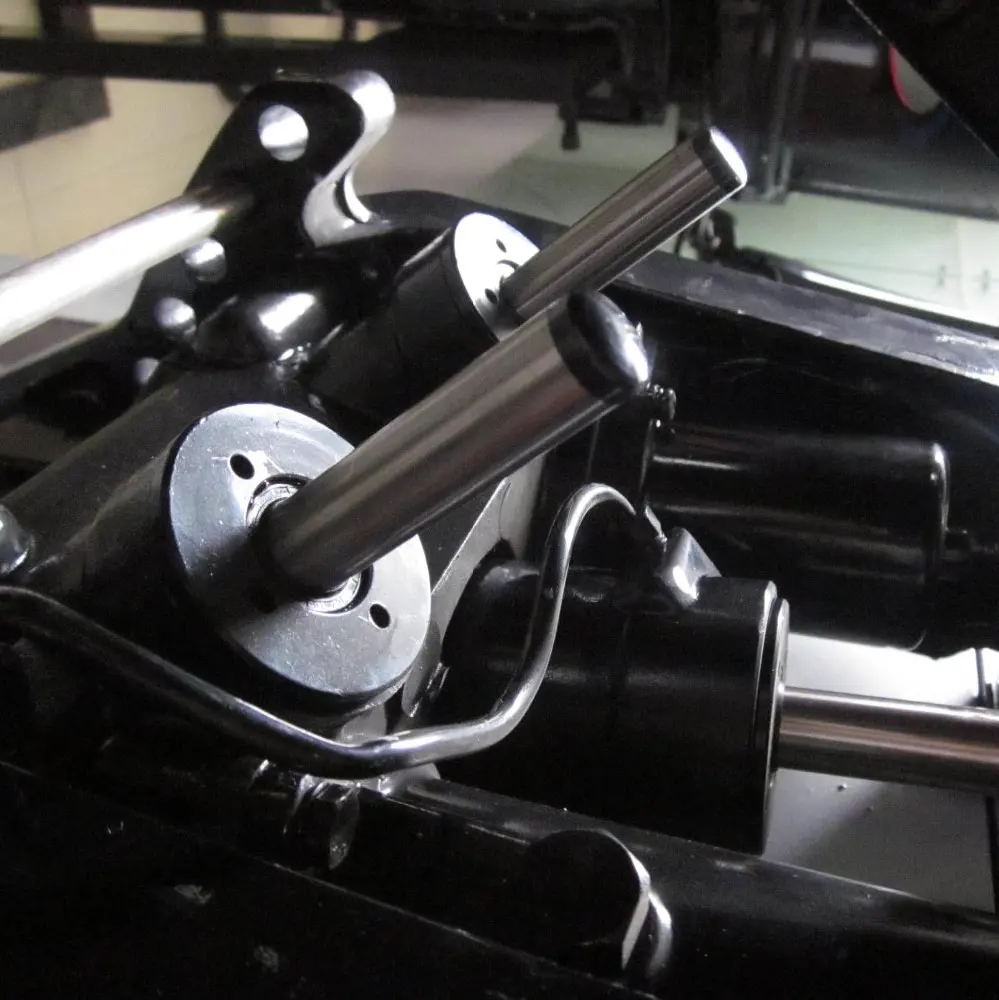

Tilt & trim with shallow water drive various positions
Twist grip throttle control for easy maneuverability & safety
Thermostat controlled water cooling system
Safety lanyard with emergency shutoff
Easy forward-neutral-reverse gear shifting
Vibration reduction system for smooth performance
Start in gear protection for increased safety
Adjustable steering friction for easier maneuverability
CDI ignition system for trouble free starting
Innovative large recoil wheel assists easy starting
Quiet, through the propeller hub exhaustQuality 24L fuel tank with hose



Item		T85BEX-D	T85BEL-D	T85FEX-T			T85FEL-T
Overall length	mm(in.)	1337(52.6)		726(28.6)
Overall width	mm(in.)	398(15.7)		374(14.7)
Overall height	mm(in.)	1548(60.9)	1422(56.0)	1548(60.9)			1422(56.0)
Transom height	mm(in.)	635(25)	508(20)	635(25.0)	508(20)
Weight	kg	122	119	122			119
Full throttle operating range	r/min	4500~5500
Maximum output		62.5(85)@5000
Idling speed(Neutral)	r/min	750~850
Engine type		Reed Valve
Cylinders		L3
Displacement	cm3	1141
Bore x stroke	mm(in.)	82.0 x 72.0(3.23 x 2.83)
Ignition system		CDI
Control system		Tiller control		Remote control
Starting system		Electric start		Electric start
Gear positions		Forward-Netural-Reverse
Gear ratio		2.0(26/13)
Trim and tilt system		Hydraulic elevator		Electric tilt
Fuel tank capacity	L	24
Maximum fuel consumption	L/h	37
Mixing ratio	Fuel:Oil	50:1
Gear oil capacity	cm3	610
Propeller options*	in	3-13.25" x 17" or 3-13 5/8" x 13"

*Propeller choice will vary by boat size and application. *B=Back control   F=Front control   E=Electric start  M=Manual start   W=Electric start/Manual start S=Short shaft   L=Long shaft  X=Ultra-long -D=Hydraulic elevator -T=Electric tilt
