Parameter
Q698
Q6912
Q6915
Q6920
Q6925
Q6930
Q6940
The effective cleaning width(mm)
800
1200
1500
2000
2500
3000
4000
Dimesion of inlet opening
1600*800
1200*400
1700*400
2200*400
2700*800
3200*800
4200*400
The length of cleaning workpiece(mm)
1200-12000
1200-1600
1200-12000
1200-12000
3000-12000
2400-12000
4500-18000
The speed of conveyer(m/min)
0.5-4
0.5-4
0.5-4
0.5-4
0.5-4
0.5-4
0.5-4
The thickness of cleaning steel sheet (mm)
3-60
3-60
1.5-60
3-60
3-60
3-110
4.5-100
Shot ball flow rate (kg/min)
4*120
4*250
4*250
6*250
6*250
6*360
8*360
The shot ball first loading (kg)
4000
4000
4000
4500
4500
8000
11000
Roll brush adjusting height (mm)
200
200
350
450
600
850
900
Air capacity(m3/h)
22000
17560
19000
19550
27758
28050
38000
Total power (kw)
90
78.3
113.5
156.6
204.8
224.55
293.6
We can do all kind of shot blasitng machine according customer's need
Before inquiry we hope you can send us the following information with your inquiry letter, so that we send you the technical drawing and technical proposal at the first time!.
1. The max. Length of the workpiece.
2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing.

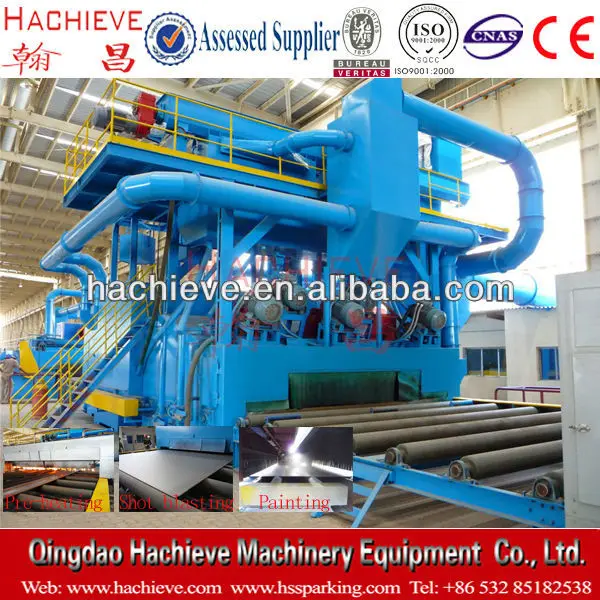

Equipment photo for reference
Some of our customer and same model machine
Same model machine
1.QXY2500 Steel plate and profile shot blasting and painting line export to Bangladesh in 2011
2.QXY3500 Steel plate and profile shot blasting and painting line export to Turkey in 2012
3.QLY3500 Vertical Steel plate shot blasting machine export to Saudi Arabia in 2012
