Concrete formwork /Euro form

Product Overview

Description

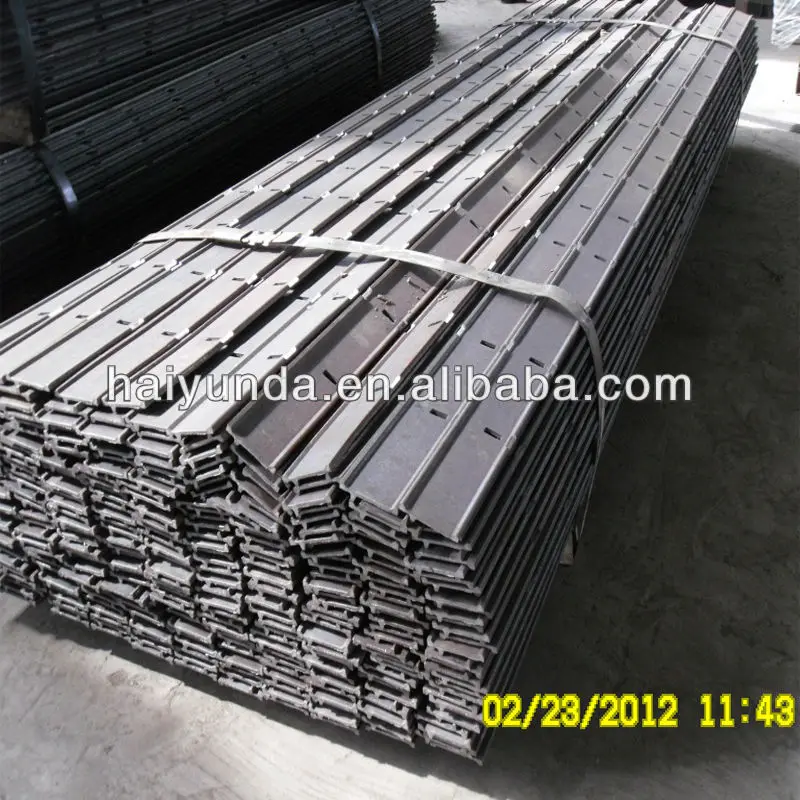

1)Concrete Formwork System F Steel Profile :

1.Material:ASTM1045 or Q235   2.Shape: F Steel profile  3.Technical processing:hot rolled 4.can be punched.5.according the request to punch.

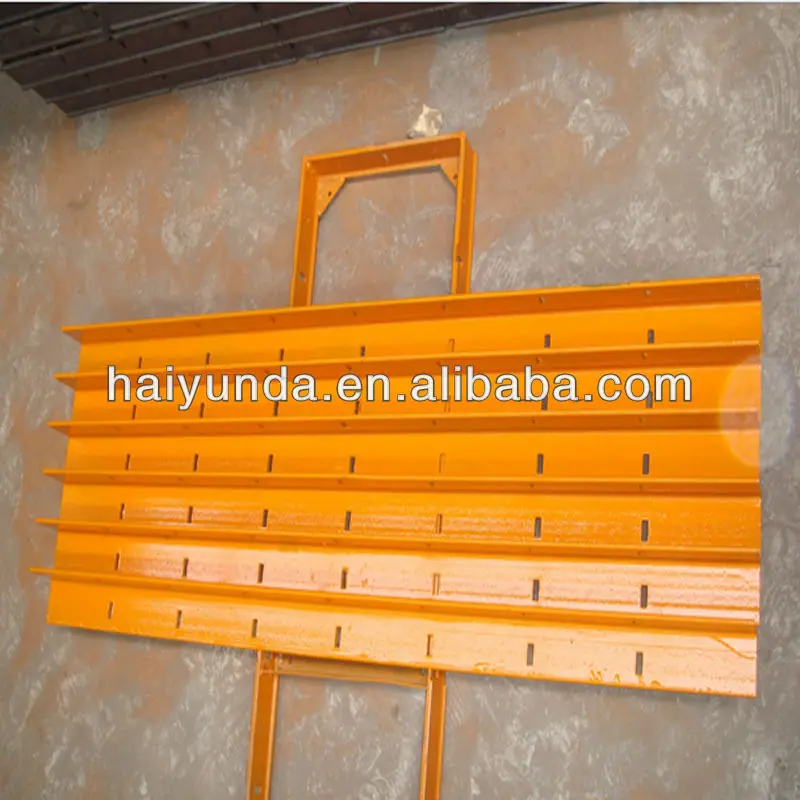

 2)the dimensions of the steel frame plyood formwork:



CONCRETE FORMWORK



(Metric size)		(Inch Size)				(Metric size)		(Inch Size)
Height (mm)	Width(mm)	Height (feet)	Width (inch)	weight  (kgs)		Height (mm)	Width(mm)	Height (feet)	Width (inch)	weight  (kgs)
2400	100	8'	4''	16.85		1800	100	6'	4''	12.85
2400	150	8'	6''	18.66		1800	150	6'	6''	14.26
2400	200	8'	8''	20.48		1800	200	6'	8''	15.66
2400	250	8'	10''	22.29		1800	250	6'	10''	17.06
2400	300	8'	12''	24.1		1800	300	6'	12''	18.46
2400	350	8'	14'	25.92		1800	350	6'	14'	19.86
2400	400	8'	16'	27.73		1800	400	6'	16'	21.27
2400	450	8'	18''	29.55		1800	450	6'	18''	22.67
2400	550	8'	20''	31.36		1800	550	6'	20''	24.07
2400	550	8'	22''	33.17		1800	550	6'	22''	25.47
2400	600	8'	24''	34.99		1800	600	6'	24''	26.88



3.the accessories used on the steel frame:

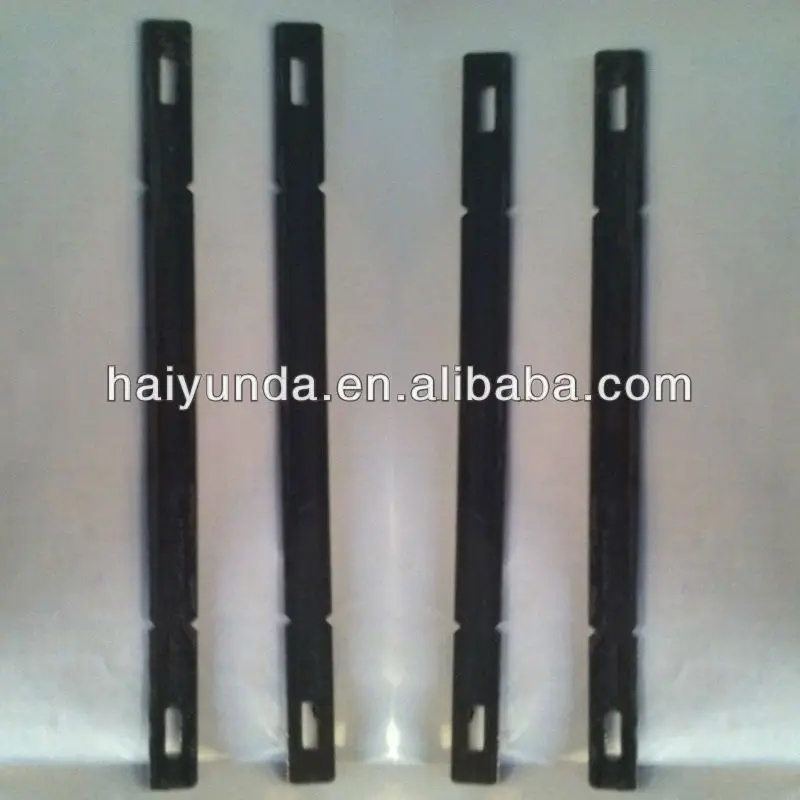

flat tie

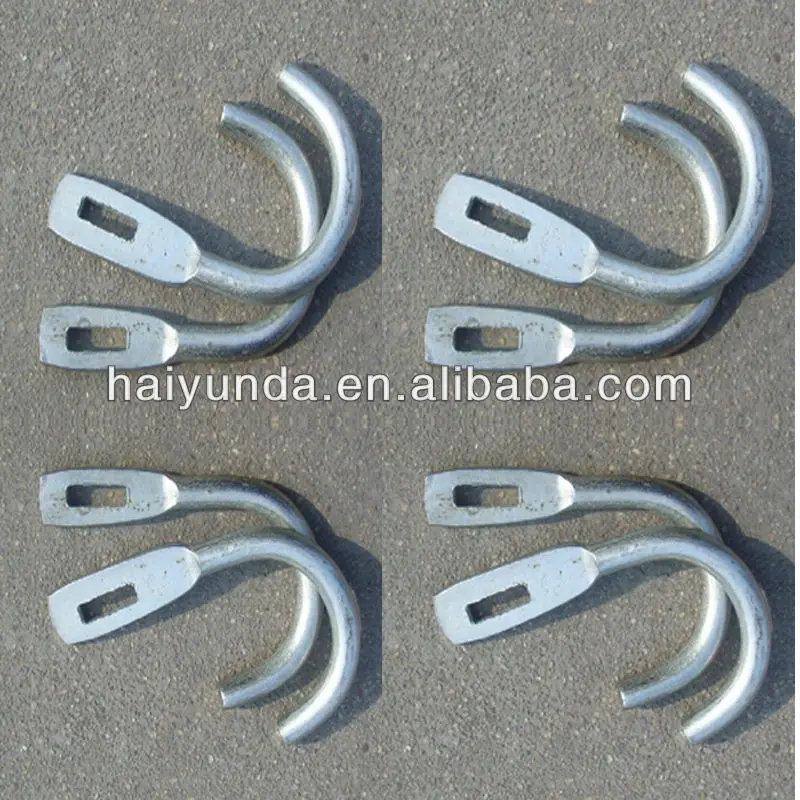

pipe hook

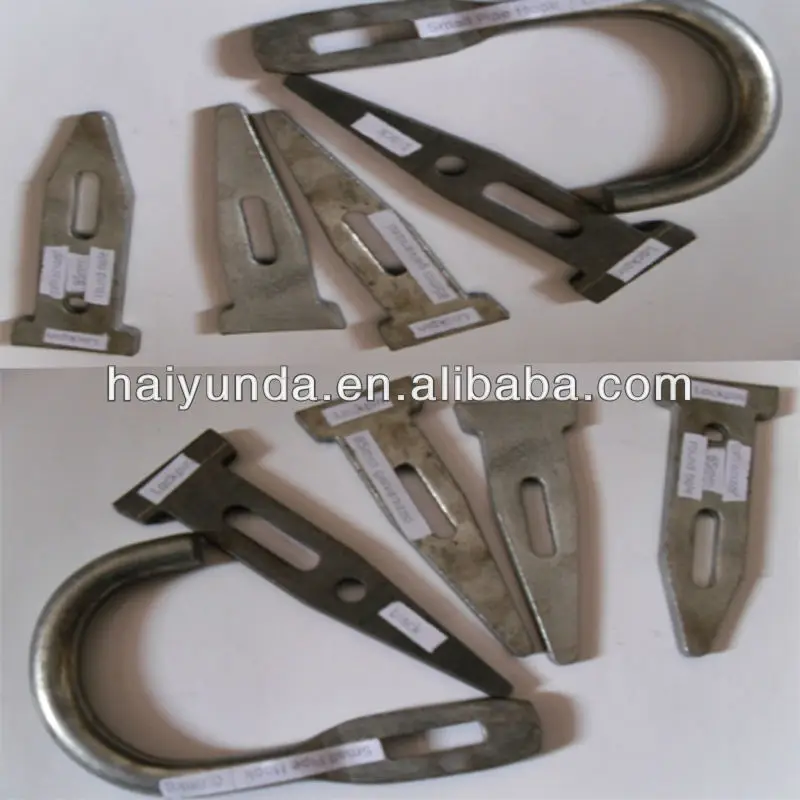

wedge bolt



incorner and out corner





The concrete form panels are kind of systemized formwork, easy to install and to dismantle for the reinforced concrete construction in any type. The structure of the panels is conveniently designed for various functions, enabling the panels to be reused repeatedly, helping save the costs on materials and reduce the times for work by simplifying and accelerating the process. Consequently it can cut down on the labor costs and expenses. Basic and standard products as well as various products for different types and sizes of constructions are available from manufacturing. Recycling the panel after its life-span can help reduce costs, because we can remove plywood, adjust the frame and the angle, get rid of the impurities, carry out coloring and finally attach the new plywood. The recycled forms still perform as good as the new ones, with substantially reduced costs. Other types of recycled panel are those who combine the recycled frames and the used plywood which is still in good condition.
