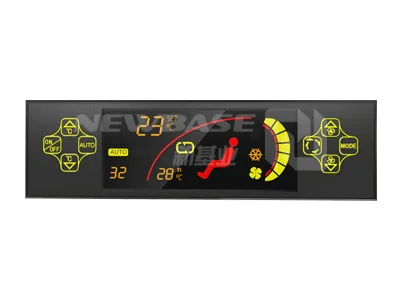

CK200207 air conditioning Auto climate control panel



CK200207 fully-automatic controller applies to the internal climate control for CAN-bus. With its precision control and adequate functions, it is able to replace controller of analog and mechanical signal. With digital communication, the dispatch and receive of control signals and orders are digital-encoded and then encrypted after  dispatch and receive check via CANH and CANL between the control panel and operate panel. Therefore,  it improves the transition accuracy of control signal,  control reliability  and reduce the amount of connecters and wiring.



Main functions: fully-automatic control, cool, fresh air, memory, error alarm, interior and exterior temp. display, air-flow adjustment, voltage auto-protection, shift function, condenser fan 2-grade adjustment, evaporator fan PWM 7-grade adjustment. Could work with old relay box together.



The shift function

1) Running time check (press ventilation button for no less than 3S )(Press disinfection button for 3SX100=ventilation time)

2) Air outlet temp display (press fresh air button no less than 3S)

3) Hold cooling (press cooling button for no less than 3S)

4) Condenser fan sensor temp (press auto button for no less than 3S)

5)Check interior temp. and control fresh air when power-off



Application

 KINGLONG Bus, KINGTECH



Technical date



Power supply	24V(DC20V-DC32V)
Power consumption	3.5W
Current	Max.210mA

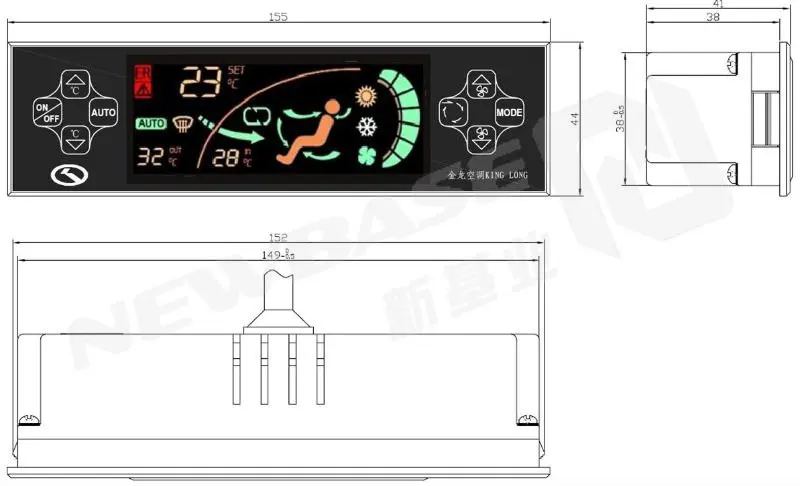

Dimensions	155X44X41mm
Input	1) Interior temp. sensor (25°C,Rb=5K,B=3274) 2) Defrost sensor1/2(25°C,Rb=5K,B=3274) 3) Pressure sensor (high, medium, low)  4) A/C power(generator) 5) ACC(battery) 6) Backlight power
Output	1) Condenser fan 2-grade PWM output(more than 15A) 2) Evaporator fan 7-grade PWM output (more than 15A) 3) Fresh air on  (max0.3A) 4) Fresh air off  (max0.3A) 5) Compressor clutch(max. 7.5A) 6) Excitation  (max.10A)
Display	LED (true color/red)
Ambient temperature	-30°C—80°C 5%-95%RH Non-condensing
Storage temperature	-10°C—70°C 5%-95%RH Non-condensing
Display precision	Set temp for dual digit display, accuracy 1°C; Interior temp dual digit display, accuracy 1°C
Temperature test standard	Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp., defrost on at 2°C, defrost off at 4°C
Connector	Optional
Faceplate level	IP43
EMC level	EN50081&EN50082-2
Security level	Applied to EN61010-II, Pollution degree: II
Weight	180g
