MEAN WELL 48V LED Driver 200W with CE approved HLG 240H 48A

Product Overview

Description

Original MEAN WELL!





HLG-240H-48A

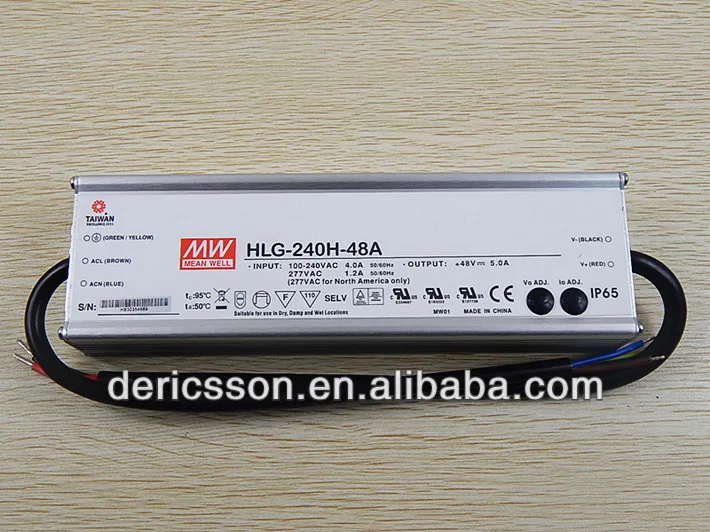

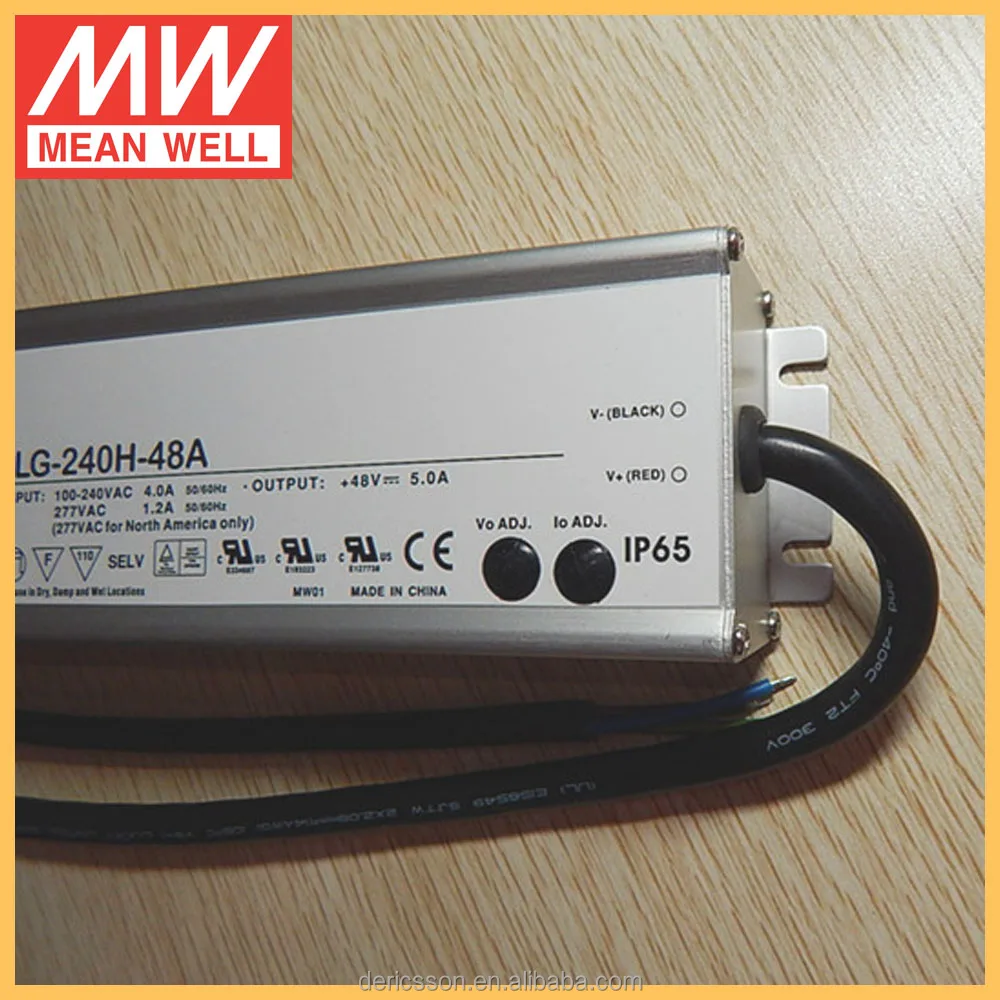

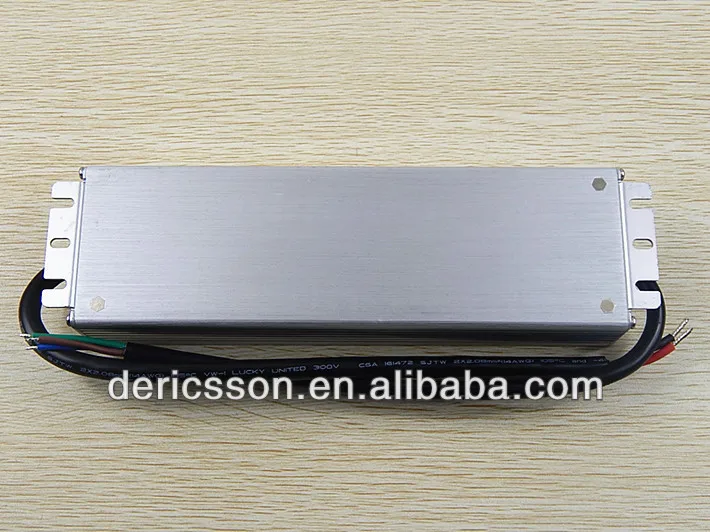

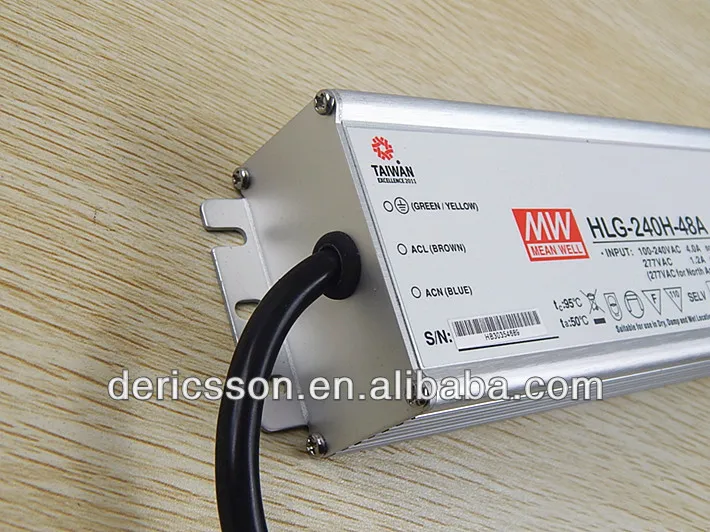

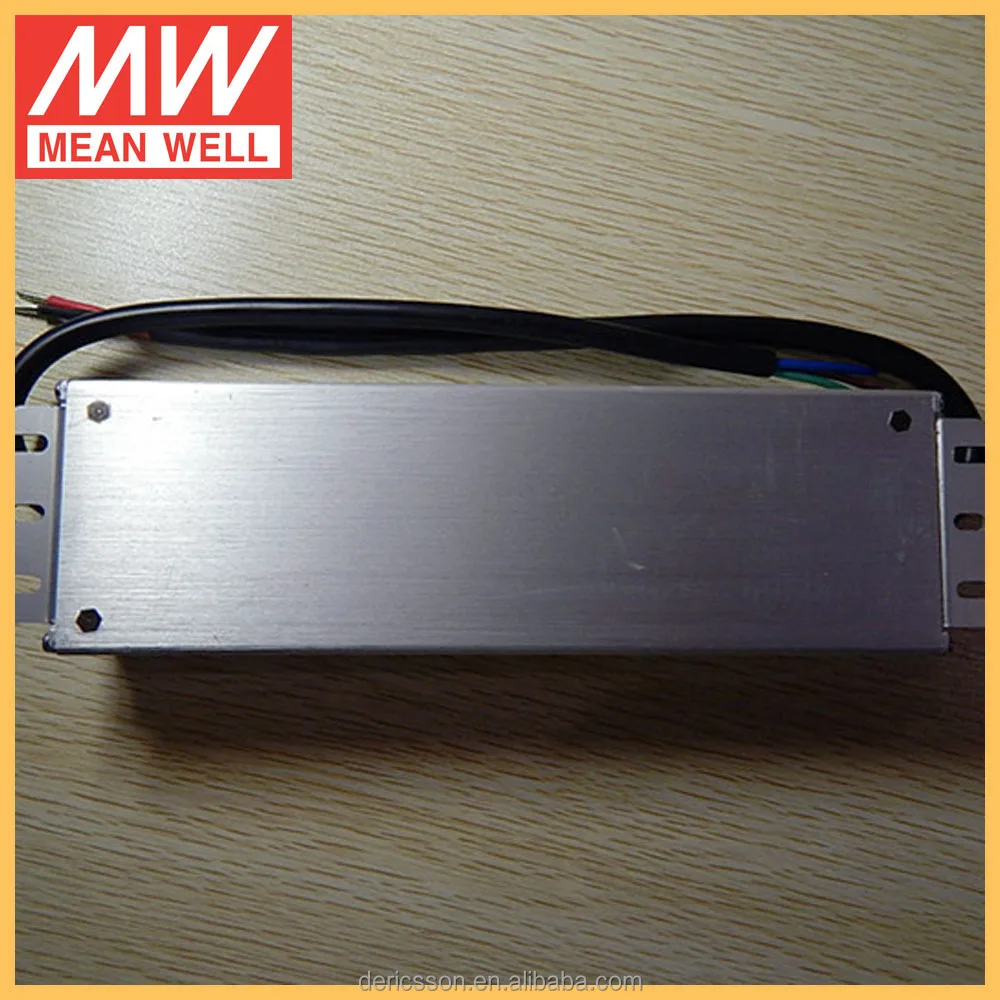

Product Pictures



Here is the detailed info for my MEAN WELL 48V LED Driver 200W with CE approved HLG-240H-48A . Hope you like it.





























Product Information



Features :

• Universal AC input / Full range (up to 305VAC)


• Built-in active PFC function


• Protections: Short circuit /Over current /Over voltage /Over temperature


• Cooling by free air convection


• OCP point adjustable through internal potentiometer


• IP67 / IP65 design for indoor or outdoor installations


• Three in one dimming function(1~10Vdc or PWM signal or resistance)


• Suitable for LED lighting and moving sign applications


• Compliance to worldwide safety regulations for lighting


• Suitable for dry / damp / wet locations


• 5 years warranty



MODEL		HLG-240H-48A
OUTPUT	DC VOLTAGE	48V
	CONSTANT CURRENT REGION Note.4	24 ~ 48V
	RATED CURRENT	5A
	RATED POWER	241.2W
	RIPPLE & NOISE (max.) Note.2	250mVp- p
	VOLTAGE ADJ. RANGE Note.6	44.8 ~ 51.2V
	CURRENT ADJ. RANGE	2.5 ~ 5A Can be adjusted by internal potentiometer A type and C type only
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION Note.8	±0.5%
	SETUP, RISE TIME Note.9	2500ms, 80ms at full load 230VAC /115VAC
	HOLD UP TIME (Typ.)	15ms at full load 230VAC /115VAC
INPUT	VOLTAGE RANGE Note.5	90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	PF>0.98/115VAC, PF>0.95/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
	EFFICIENCY (Typ.)	93.5%
	AC CURRENT (Typ.)	4A / 115VAC 2A / 230VAC 1.2A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 75A(twidth=570μs measured at 50% Ipeak) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER CURRENT Note.4	95 ~ 108%  Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	55 ~ 63V  Protection type : Shut down and latch off o/p voltage, re- power on to re cover
	OVER TEMPERATURE	95°C±5°C(TSW1)  Protection type : Shut down o/p volt age, recovers automatical ly after temperature goes down
ENVIRONMENT	WORKING TEMP.	-40 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80°C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°C(0 ~ 50°C)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS Note.7	UL1012, CAN/CSA-C22.2 No. 107.1-01, UL8750, CSA C22.2 No. 250.0-08, TUV EN61347-1, EN61347-2-13 independent (except for HLG-240H C typ e), UL60950-1, UL8750, TUV EN60950-1, IP65 or IP 67, J61347-1, J61347-2-13 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG :2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P- FG:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (>=50% load) ; EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
OTHERS	MTBF	207.9K hrs min. MIL-HDBK-217F (25°C)
	DIMENSION	244.2*68*38.8mm
	PACKING	1.3Kg; 12pcs/16.6Kg/0.84CUFT





Certificate

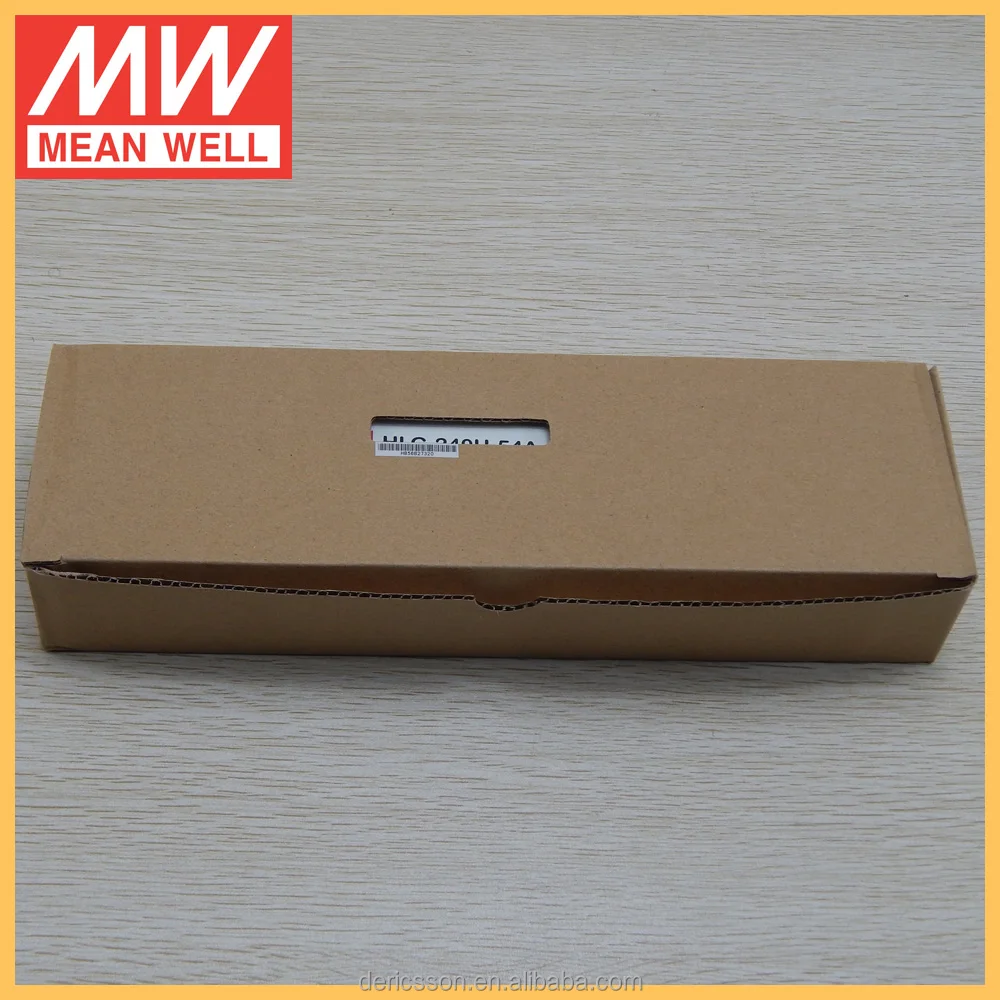

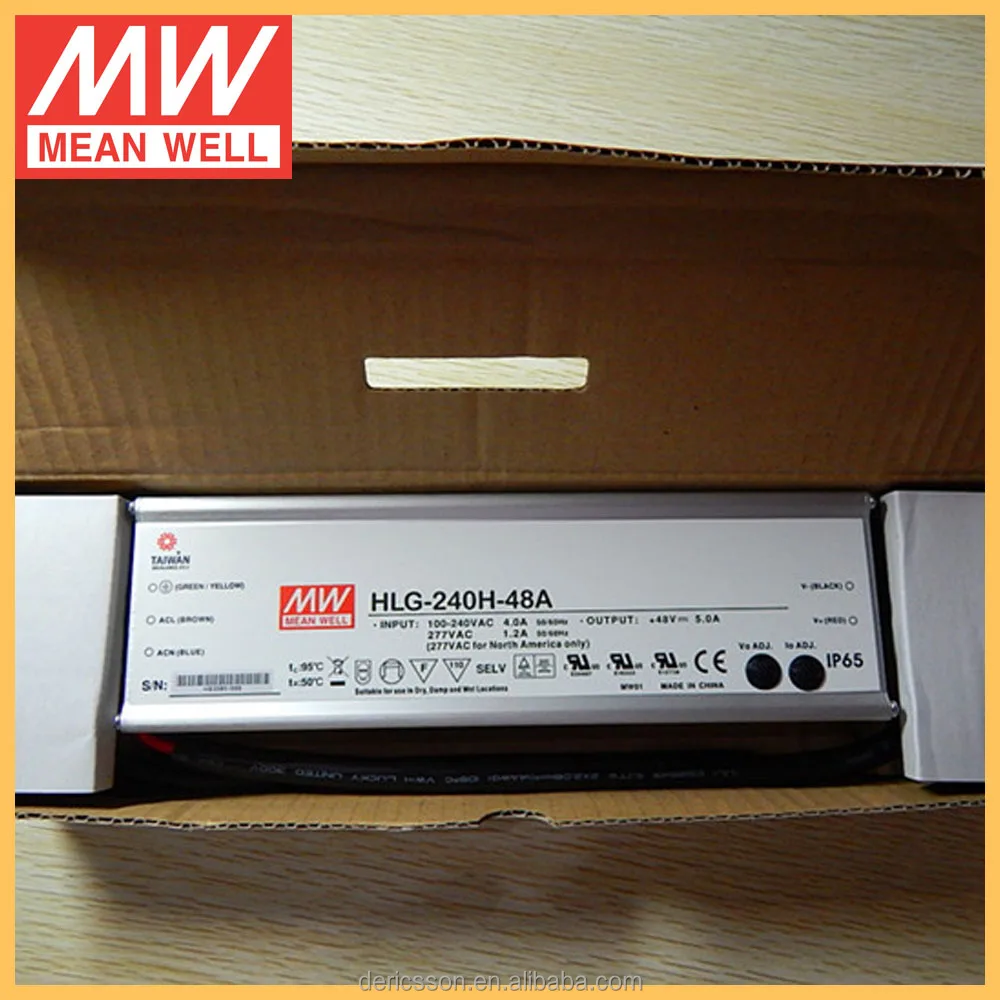

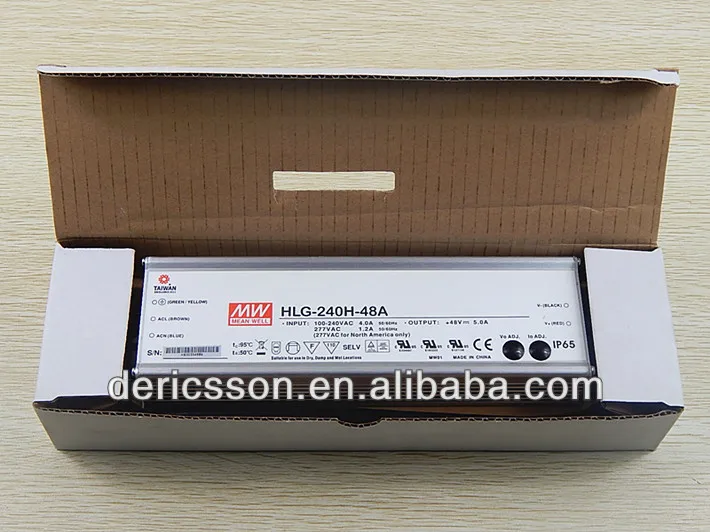

Storage and Packing
