5 gallon bottled water production line 20L plastic bucket water filling machine

Product Overview

Description

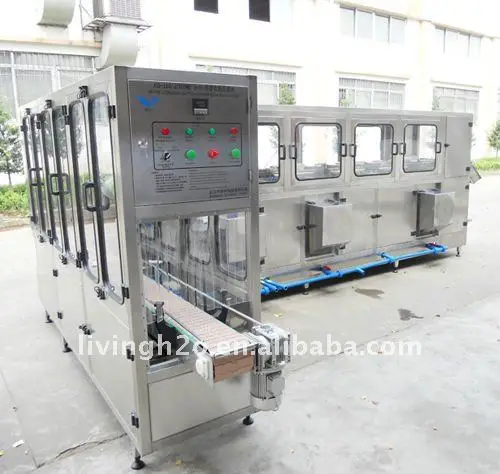

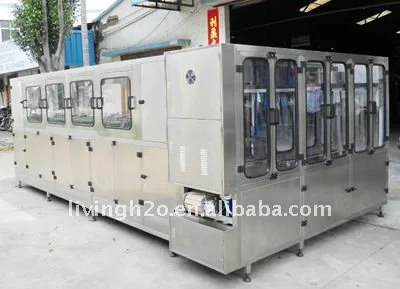

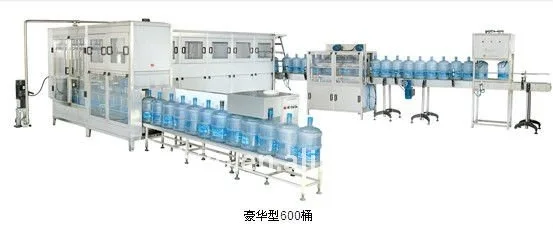

5 gallon bottled water production line 20L plastic bucket water filling machine


Introduction:

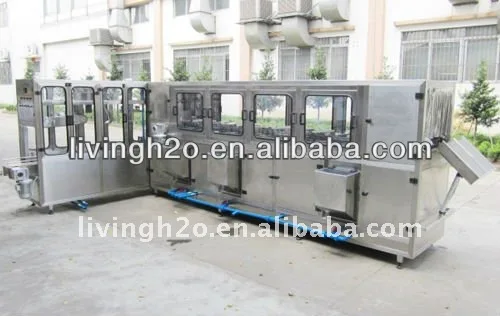

This Series Barrel Filling Machine is specially designed to produce 3 or 5 gallon barrel drinking water, production line, which is ideal for production for mineral water, distilled water and pure water.  The use of top quality stainless steel guarantees it high-performance resistance of corrosion and easiness of cleaning. With major electrical components coming from SIEMENS and OMRON, and original components for gas path imported from AIRTAC, combined with interior and exterior spray nozzles for cleaning barrels provided by know-how enterprise of American spray companies. This machine is of compact design, high efficiency, accurate and sensitive response and high automation level to ensure its stability and reliability as an entegrated (machine, electricity and gas) full automatic barrel filling line.



Principle of the 5 gallon water production line

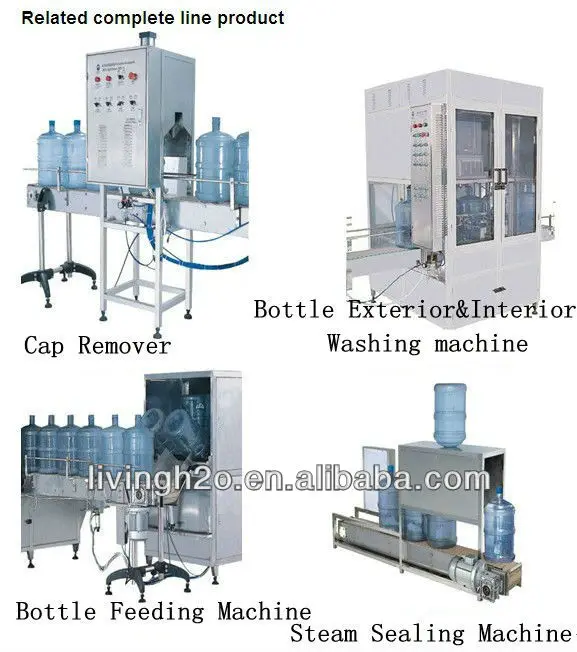

We produce a complete production line including water treatment, water cleaner, labeling machine, plastic injection machine, blow moulding machine and shrink-wrapping packing machine. The bottle's size can be decided by client.







Application:







This production line can fill mineral water, carbonated drinking, juice and so on. Fit for home water dispensor.

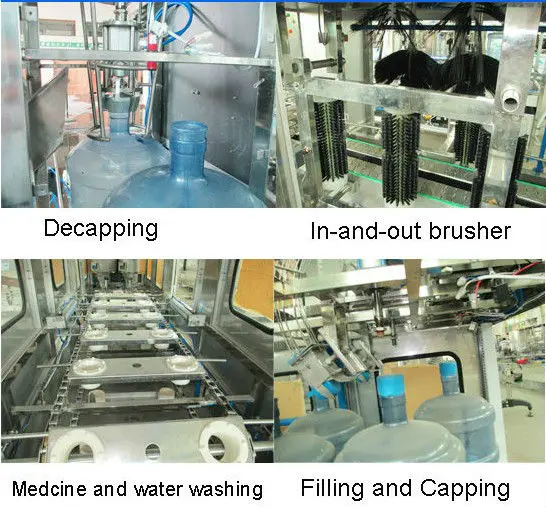

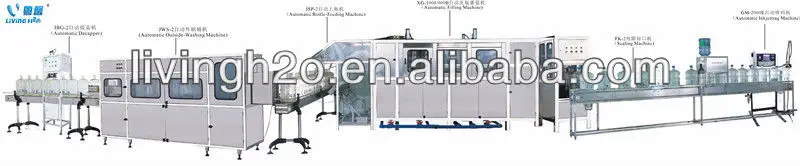

Whole line working procedure













Item		Specification
Production capacity		300 Buckets/hour
Bottle’s capacity		18.9 Liters (5 gallons)
		11.3 Liters (3 gallons)
Bottle’s specification (mm)		Φ270×490×Φ56
		Φ230×420×Φ56
Cap’s specification (mm)		Φ58×40 (strip:L18mm,W:7.5mm)
Rated input power		4.5kw
Electromotor power	Washing convey motor	0.37kw
	Bottle Elevator convey motor	0.37kw
	Disinfectant washing pump	0.37kw×3
	Tap water washing pump	0.37kw×2
	Pure washing pump	0.37kw×1
	Filling pump	0.55kw×2
	Cap-aligning pump	0.06kw
Power supply		AC 380V±5%  50Hz
Rated current		16A
Net weight		480Kg
Outer size		47800×980×1600 (mm)
Requirement of air compressor		0.1 M3     0.17 M3/Min   0.8 MPa/Cm2
Requirement of water supply		6.0 M3/H























































With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially Europe, North America and Africa. Also enjoy a good reputation among our customers.





Strict finished testing	Security packaging	Packing and Loading





 LIVINGH2O water filling equipment is the good choice for you!!!
