Product Overview
Description
Product Description

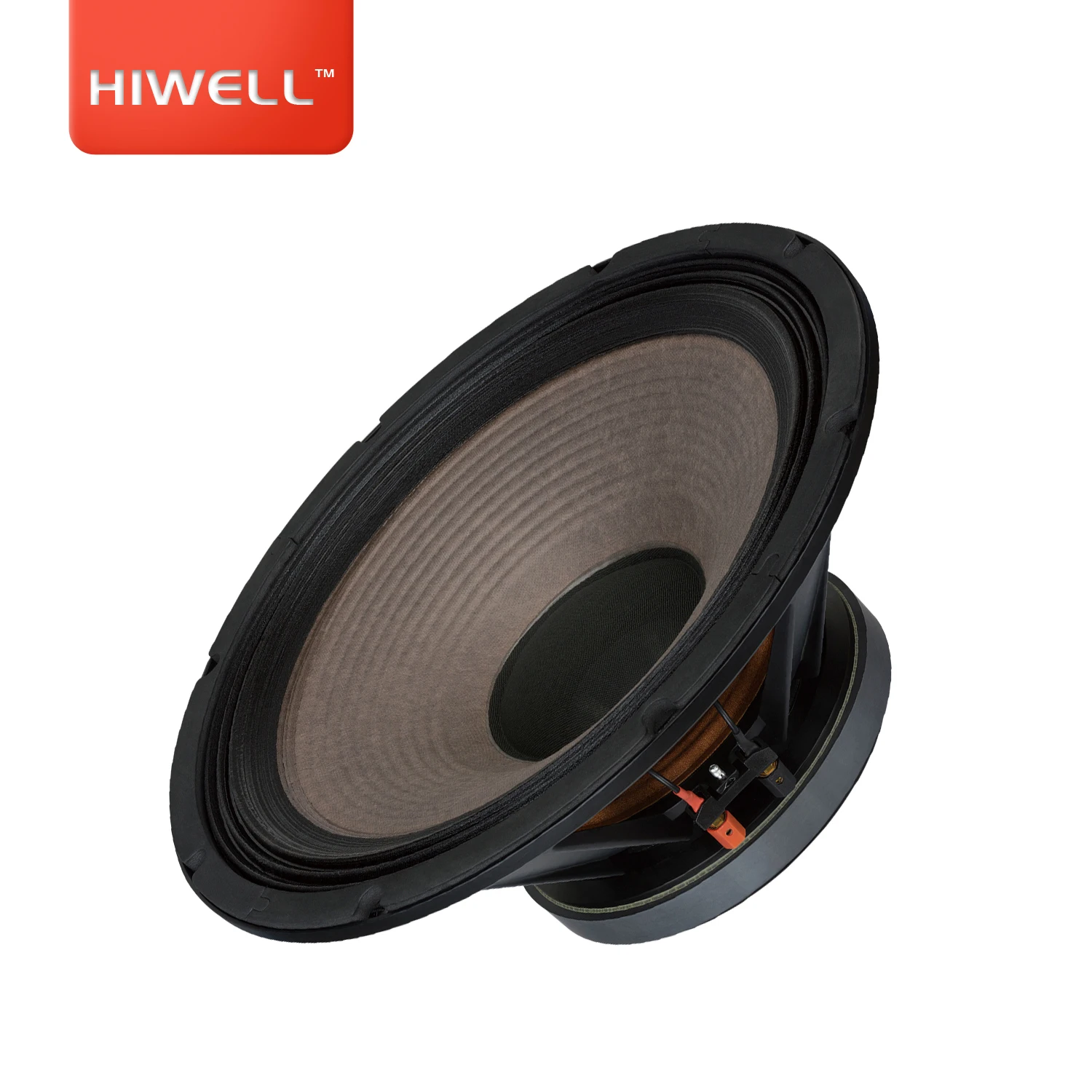

15" Coaxial audio sound speaker with 400W bass and 80W tweeter
1.3inch Ferrite coaxial speaker
| GENERAL SPECIFICATIONS | |||
| Nominal diameter | mm(in.) | 389(15) | |
| Nominal impedance | Ω | 8 | |
| Minimum impedance | Ω | 6.1 | |
| Program power (1) | W | 800 | |
| AES Power rating(2) | W | 400 | |
| Sensitivity (3) | dB | 97 | |
| Frequency range | Hz | 39 ~ 3500 | |
| Voice coil diameter | mm(in.) | 75(3) | |
| Chassis material | Aluminium | ||
| Magnet | material | Ferrite | |
| Magnet dimensions (ODxIDxh) | mm | 200 x 100 x 20 | |
| Coil material | ALR | ||
| Former material | Glass Fiber | ||
| Xmax(4) | mm | 7.5 | |
| Xmech(5) | mm | 13 | |
| Gap height | mm | 10 | |
| Voice coil Wingding height | mm | 18 | |
| Diaphragm material | Titanium | ||
| Program power (1) | W | 220 | |
| AES Power rating(2) | W | 110 | |
| Sensitivity (3) | dB | 108 | |
| Frequency range | Hz | 500 ~ 18000 | |
| Voice coil diameter | mm(in.) | 72(3) | |
| Coil material | ALR | ||
| GENERAL SPECIFICATIONS | |||
| Nominal diameter | mm(in.) | 389(15) | |
| Nominal impedance | Ω | 8 | |
| Minimum impedance | Ω | 6.1 | |
| Program power (1) | W | 800 | |
| AES Power rating(2) | W | 400 | |
| Sensitivity (3) | dB | 97 | |
| Frequency range | Hz | 39 ~ 3500 | |
| Voice coil diameter | mm(in.) | 75(3) | |
| Chassis material | Aluminium | ||
| Magnet | material | Ferrite | |
| Magnet dimensions (ODxIDxh) | mm | 200 x 100 x 20 | |
| Coil material | ALR | ||
| Former material | Glass Fiber | ||
| Xmax(4) | mm | 7.5 | |
| Xmech(5) | mm | 13 | |
| Gap height | mm | 10 | |
| Voice coil Wingding height | mm | 18 | |
| Diaphragm material | Titanium | ||
| Program power (1) | W | 220 | |
| AES Power rating(2) | W | 110 | |
| Sensitivity (3) | dB | 108 | |
| Frequency range | Hz | 500 ~ 18000 | |
| Voice coil diameter | mm(in.) | 72(3) | |
| Coil material | ALR | ||
| SHIPPING INFORMATION | |||
| Net weight | Kg | 8.1 | |
| Multipack size (1) (W x D x H) | mm | 410 x 410 x 231 | |
| Multipack weight | Kg | 9 | |
