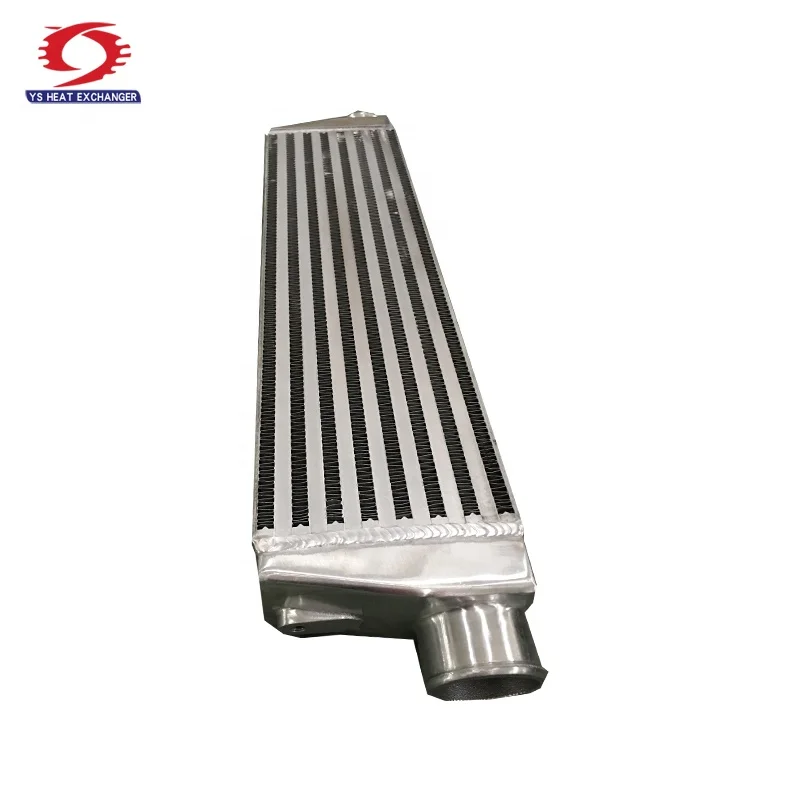

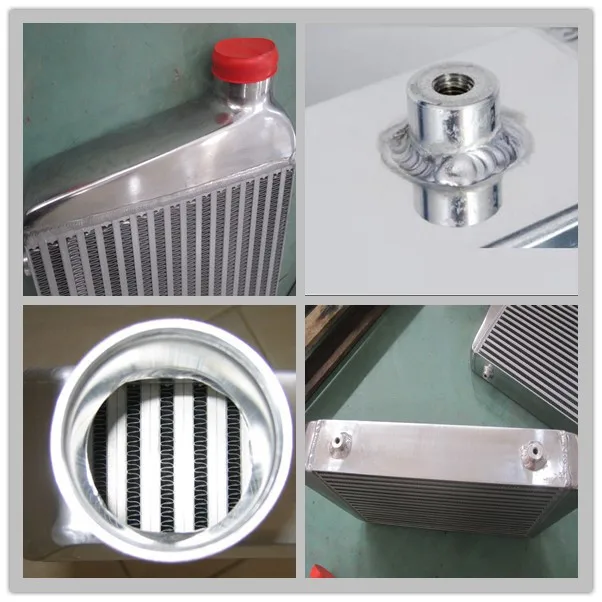

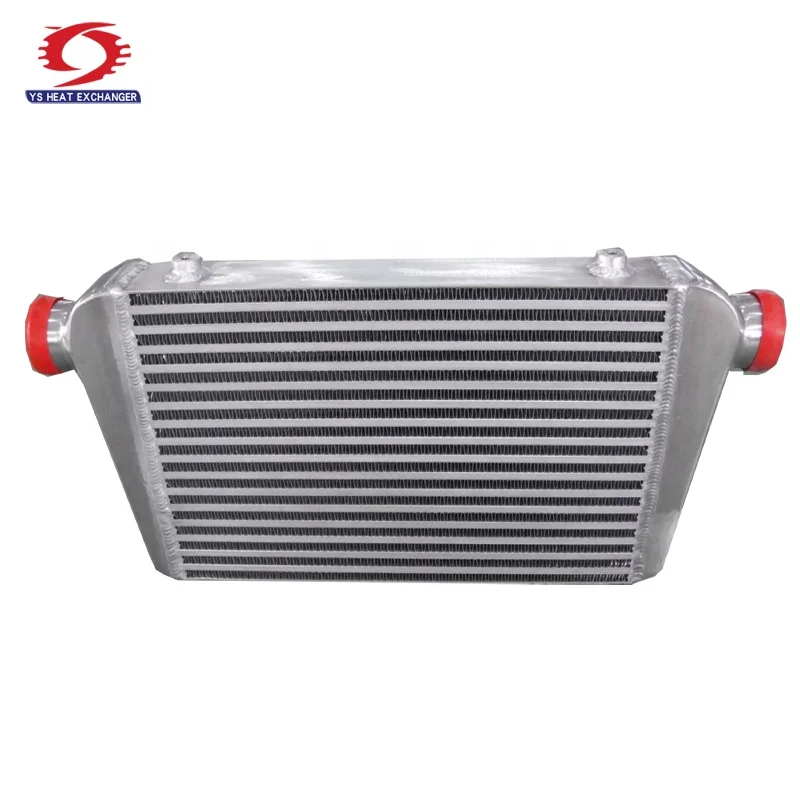

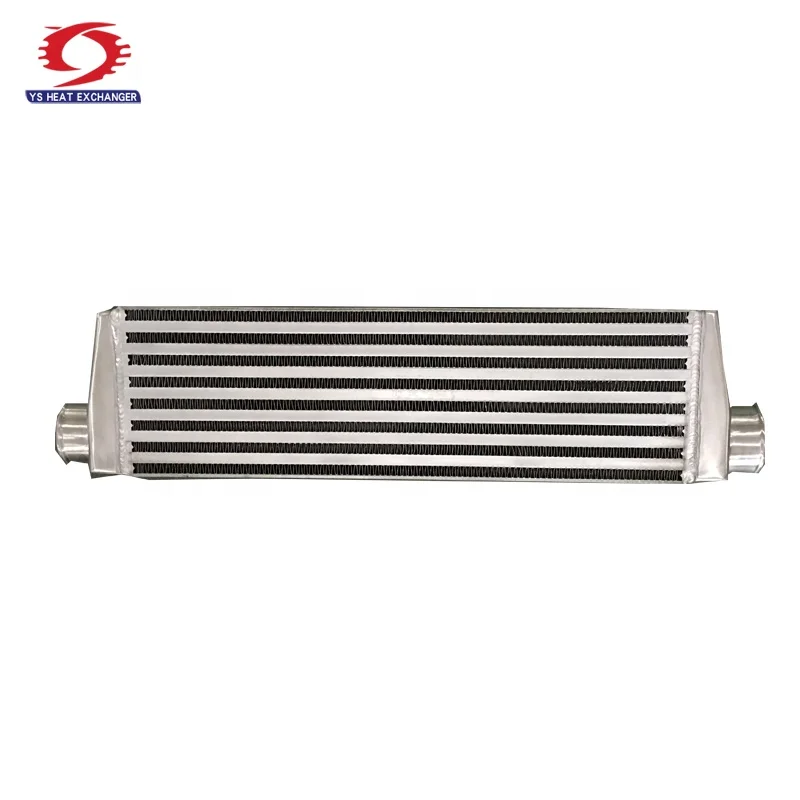

plate bar turbocharger intercooler universal

specification

Medium

Air. oil. water. wind

   Fin types

   application

        features

Width series

Fins

BW(wavy-fin)

external fin

Widely used(better heat emission capacity)

2.0mm,2.5mm,

3.0mm,3.8mm

4.7mm,5.6mm,

6.5mm,8.0mm,

9.0mm,9.5mm,

10.3mm,11.3mm

11.7mm,12mm

JC(serrated-fin)

Internal&external fin

Widely used(better heat emission capacity);large friction resistance

DK(perforated-fin)

Internal fin

PZ(plain-fin)

Internal&external fin

Used in construction machinery

BY(Louvered-fin)

External fin

                                        Veriety of heat exchangers

Classification according to

The medium

1)Oil cooer;  water radiater;  air cooler;  intercooler;

2)Combined oil-water cooer; combined oil-air cooer; combined water-air cooler; combined oil-air-water cooler

3)air separator; condensator evaporator

Classification according to

the

application

For engineer machinery(excavator,loader,bulldozer,roller,drilling,crane,paver,scraper and so on)

For compressor(screw compressor and reciprocating compressor)

For chemistry industry

For petroleum chemical industry

For automobile

For watercraft,marine engineering

For offshore engineering

For steel industry

For HVAC

For textile industry

We can produce all kinds of plate-fin heat exchangers according to your drawing or design for you. OEM,ODM is welcome,plz send me your drawing.
