steel foldable , collapsible container
- Category: >>>
- Supplier: Guangdong Sunli Intelligent Logistics Equipment Co. Ltd.
Share on (977044505):
Product Overview
Description
steel foldable , collapsible container
The wire container is handled and is easy to open and close, easily for transportation, and be foldable.
The bottom is adopted the U-channel steel to strengthen the loading intensity.

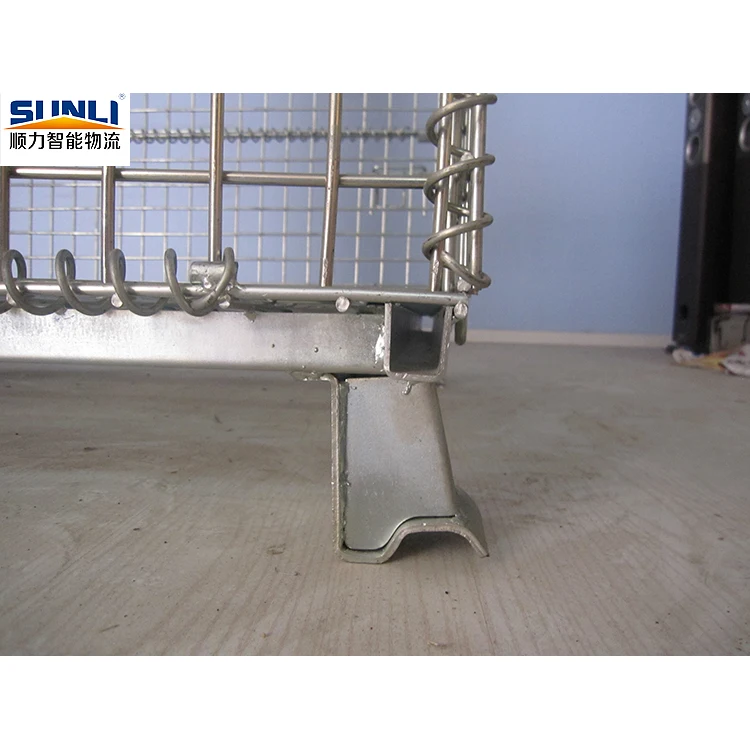

The special foot base structure assures the stability of wire container when loading and heaping.

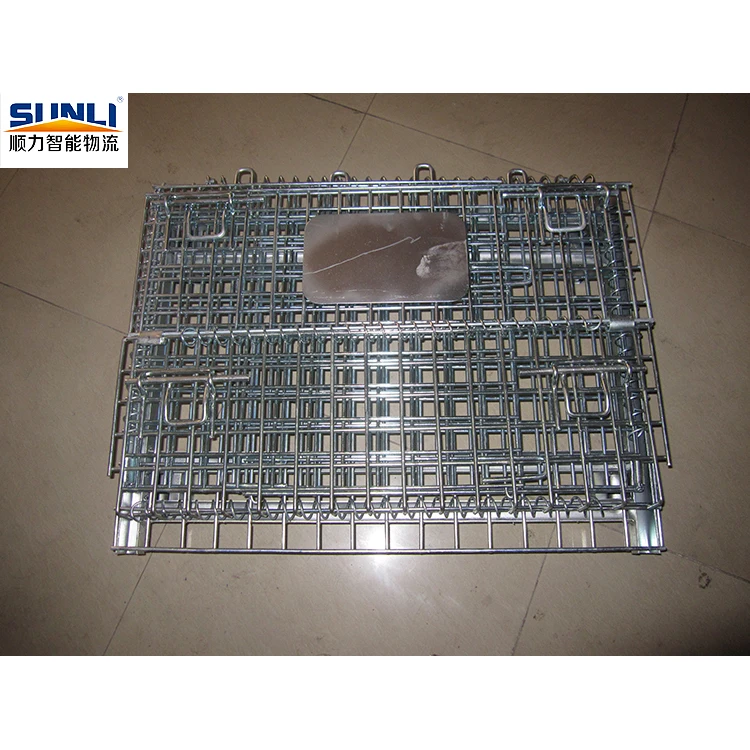

Spiral spring hinge connects the reticular pieces, which makes the wire container can be folded when they are idle.
The top is fixed by clamp that assures the intensity of the hinge.
Auxiliary strengthened structure assures the stability of wire container when heaping.
Adopting the multipoint spot welding technique assures the wire container durable.
Individual bolt assures the easy opening of the door when the wire container is heaped
| Model | External Measurements (LxWxH) (mm) | Wire Dia | Net Weight | Mesh pitch | Capacity | Legs height |
| (mm) | kg | (mm) | (kg) | (mm) | ||
| SL-01 | 1000x800x840 | 6 | 49 | 50x50 | 1200 | 100 |
| SL-01 | 1000x800x840 | 6.4 | 54 | 50x50 | 1500 | 100 |
| SL-01 | 1000x800x500 | 6.4 | 40 | 50x50 | 1000 | 100 |
| SL-01 | 1000x800x840 | 4.8 | 37 | 50x50 | 500 | 100 |
| SL-01 | 1000x800x840 | 6.4 | 45 | 50x100 | 1000 | 100 |
