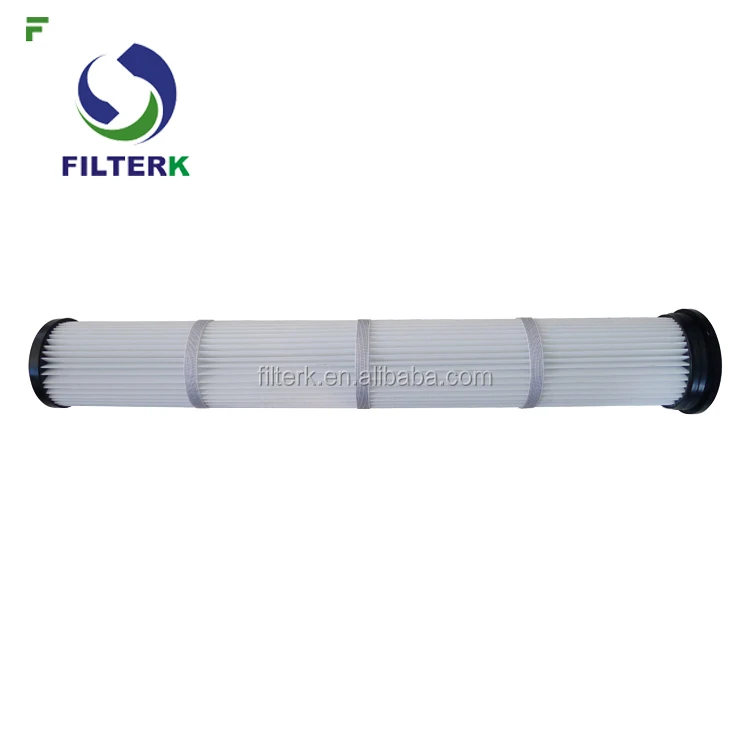

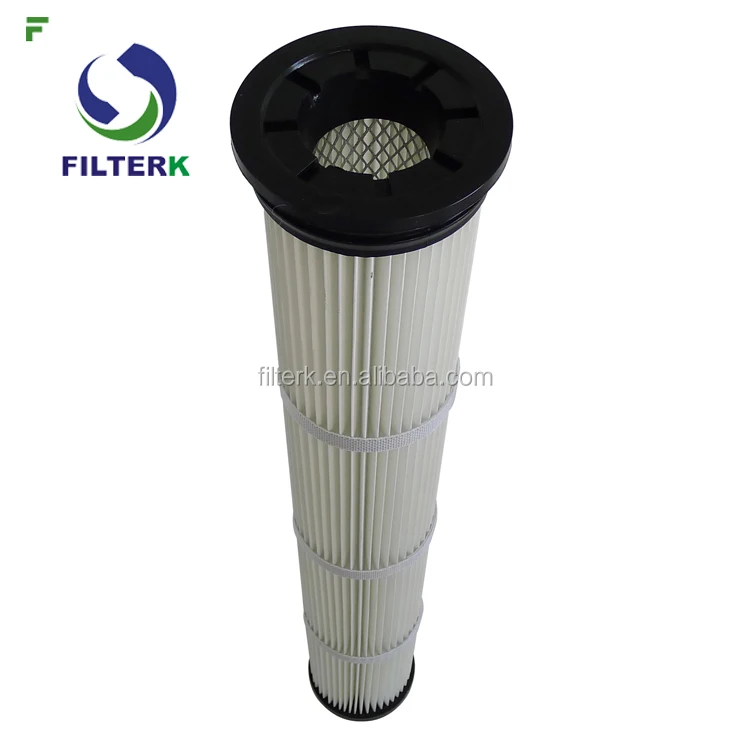

FILTERK Jet Pulse Air Cartridge Filter

Product Overview

Description

FILTERK Jet Pulse Air Cartridge Filter

FILTERK ETA standard structure feature:

• 100% Polyester nonwoven
• 130°C  continuous operating temperature
• Wide pleat designed
• High filtration efficiency
• Galvanized mesh inner frame
• EPDM rubber top and galvanized meral chassis structure
• suitable for about 5mm thick steel plate



Available materials:

• PE806         White polyester(standard)
• PE806TR    White polyester, oil and water proof
• PE810         Antistatic polyester
• QP842        PTFE tectorial membrane



FILTERK ETA500 filter cartridge:

 Replace the top-mounted filter bag and cartridge,applies to most 127mm tubesheet hole standard structure.

FILTERK  ETA525 filter cartridge:

Replace the top-mounted filter bag and cartridge,applies to most 133mm tubesheet hole standard structure.

FILTERK ETA625 filter cartridge:

Replace the top-mounted filter bag and cartridge,applies to most 159mm tubesheet hole standard structure.



FILTERK ETA model	Top diameter	bottom diameter	1-meter-long cartridge standard filter area	2-meter-long cartridge standard filter area
500	145mm	124mm	1.4 m2	2.7 m2
525	156mm	124mm	1.4 m2	2.7 m2
625	200mm	147mm	2.3m2	4.6 m2
